U.V SPOT MACHINEOVERALL COATING MACHINE
L/CT/TD/PWestern UnionPaypal

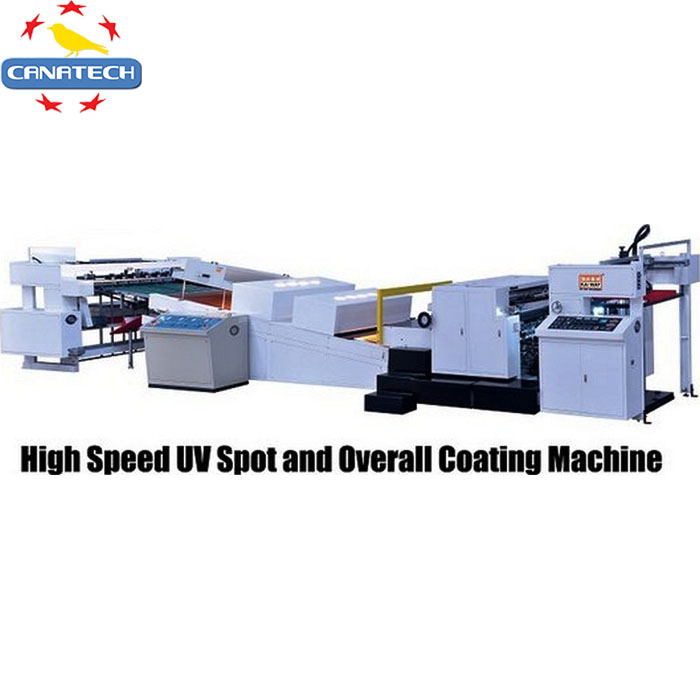

U.V SPOT AND OVERALL COATING MACHINE
UV Spot and Overall Coating Machine adopts similar gripper structure like offset printer for conveying.It uses enclosed eyelet belt for UV drying,the drying efficiency is high and power consumption is low.We also use printing cylinder with big diameter,it has wide adaption range both for thick paper and thin paper,and it can be used for spot UV as well as for overall UV.
Technical parameters
Model | SUV-128 | SUV-145 |
Maximum Sheet Size(L*W) | 920*1280mm | 1100*1450mm |
Maximum Sheet Size(L*W) | 310*406mm | 350*460mm |
Maximum Coating Area(L*W) | 910*1270mm | 1090*1440mm |
Sheet Thickness | 80-600gsm | 125-600gsm |
Maximum Coating speed | Up to 5000 sheets/hour | Up to 4500 sheets/hour |
Total Power Required | 55kw(water base)/49.06kw(solvent base) | 75kw(water base)/49kw(solvent base) |
Machine Dimension(L*W*H) | 11510*2800*2010mm | 12510*3400*2360 |
Weight | 9120Kgs | 9550Kgs |
