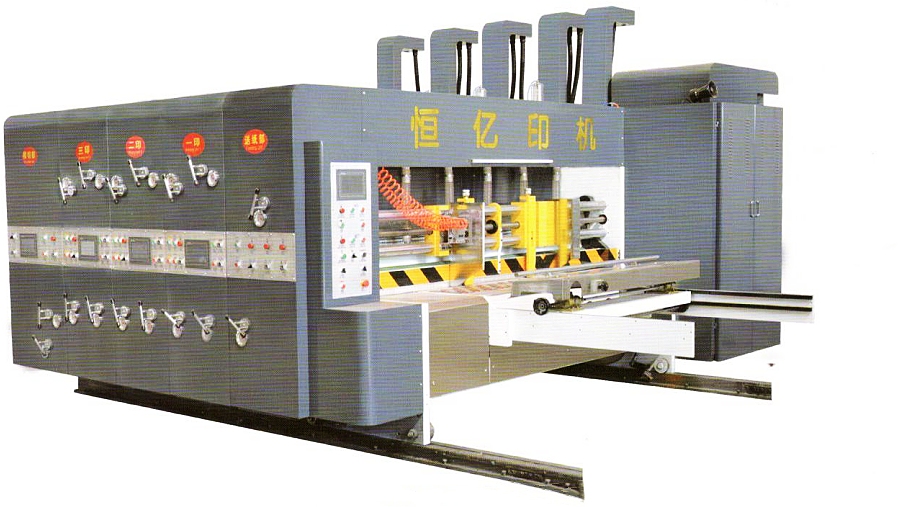

HY-B type high speed printing slot machine(lead fedder)

Function and characteristic:

*The whole machine is adopted international famous brand appliances and computer software,the quality is stable and reliable.Man- -machine interface, Multi-set touch screen control,computer order management, easy to operate.Replace the order faster ( can be stored 999 orders in advance)

*Whole wallboard and important components are adopted aging treatment, eliminate the metal internal stress;Adopt high precision machining centers, CNC grinding machine for grinding processing.

*The machine shaft, roller are adopted high quality steel, grinding processing, high precision computer dynamic balancing correction and surface hard chromium plating.

*The engine drive gear is adopted 20CrMnTi alloy steel, carburizing,quenching treatment, hardness HRC58-62 and gear grinding processing precision level 6, and ensured the long-term use of tinted with high precision

*Machine transmission parts (shaft, gear joint), are adopted free key connection (LOCK-ALX), the connection eliminate clearance. It is suitable for long-term high speed with high torque.

*The machine drive bearing ,important driving parts adopt Heavy-duty self-aligning bearing ,simple maintenance,long service life. (three big domestic famous brand:Hava los)

*The machine is adopted adjustment preset functions, feeding , printing, slotting, die-cutting, automatic zero resetting Separate and combine memory automatic reset.

*It adopts Working gap adjustment, rapid adjustment without wrench, quick performance and convenient adjustment.

*The main motor is adopted frequency conversion control. It makes start, running more steadily and saves more energy.

*There is lack of ink alarm device and the real- time monitoring for the ink working condition system.

*Optional: ceramic anilox roller, doctor blade and set ink system, stacking machine.

Feeding unit:

* Lead edge system: Using Gently pressure on the leading edge paper-feeding mechanism, the domestic advanced technology, its characteristic protection cardboard original strength, avoid collapse and thinning. Conducive to the smooth line pressing board after input, the system is stable, paper accurate, fast and suitable for all kinds of corrugated board. (Mechanical or Germany servo type option )

*Frequency conversion of suction can adjust the wind volume,and the wind pressure can be adjusted by the size of the paperboard,increase the thin board and the bend board convey stability and accurately.

*Double conveyor roller structure :A set of paper feed roller adopt pneumatic type elastic paper plastic shaft ,in order not to destroy the strength of the corrugated paperboard. The cleaning brush sweep the debris on the surface of the paperboard,and the high pressure fan sucked down the impurities, on it,So that the printing quality can be improved.

* Left and right side baffle (computer touch screen control),the block box adopt electric adjustment,front baffle gap manual synchronous adjustment . said baffle equipped with pneumatic line device,make the paperboard transverse positioning more accurate.

* The 10.4-inch color touch screen control the paper feeding unit,printing unit, slotting unit and the die cutting unit.One-time reset,store orders, memory location.The production speed can reach 60,80,100,120(pcs/min),cruise control,infrared photoelectric counting, preset the order quantity.

*The man engine adopts frequency conversion control,start and operation smoothly,saving energy can reach 30%.

Printing unit:

* Leading edge paper system Using Gently pressure on the leading edge paper-feeding mechanism, the domestic advanced technology.its characteristic protect the original strength of paperboard, avoiding collapse and thinning. It is conducive to the smooth input of the cardboard after the pressure line, the system is stable, the paper feeding is accurate and fast,and it is suitable for all kinds of corrugated cardboard, (machine or German servo type optional )

*Suction frequency adjustment air volume,  wind pressure can be adjusted according to the size of the cardboard,increasing the stability and accuracy of the thin cardboard and curved cardboard transmission.

*Double conveying roller structure:one set of paper feeding roller adopts pneumatic elastic paper feeding rubber shaft,which does not damage the strength of  corrugated cardboard.The cleaning brush removes the chip surface debris,and the high pressure fan absorbs the surface impurities of the cardboard to improve the printing quality.

* Left and right bezels (computer touch screen control),the position of the rear baffle is electrically adjusted,the front baffle gap is manually adjusted synchronously, and the sade baffles are equipped with pneumatic alignment devices.The horizontal positioning of the cardboard is more accurate.

* 10.4 inch color touch screen control the paper feeding department,printing department , slotting part, die cutting part,zero return,order One-time reset,store orders, memory location.The production speed can reach 60,80,100 120 fixed speed cruise,infrared photoelectric counting, preset the number processed.

*The main machine adopts frequency conversion control, starts up, runs smoothly,and can save energy by 30%.

Die cutting unit:

*Rubber gasket roller: centrifugal casting steel cylinder, computer dynamic balancing correction ,surface grinding,hard chrome plating.

*die cutting roller:centrifugal casting steel cylinder,computer dynamic balancing correction,surface grinding,hard chrome plating.

(Optional:free plate die cutting slotting steel knife mold ,do regular box slotting,the use of the corner cutting has box height synchronous adjustment function)

*Die cutting roller phase and axial adjustment,the phase adjustment adapt planetary gear type structure,PLC touch screen control and electric digital 360° adjustment,the axial transverse adopt PLC touch screen and electric digital adjustment,the total adjusting range is ±15mm。

*Rubber roller cutting repair mechanism, rubber gasket can be used repeatedly theeby,it can greatly save the cost.

*Differential compensation device,automatic adjust the revolutions of the rubber gasket roll,make the shape of the die cutting carton box as same as the knife mold.

*Rubber gasket roller mechanical transverse set±40mm,to improve the service life of the die cutting rubber gasket.

*This unit independent servo synchronous drive, remove the accumulated error, depending on the speed range of die cutting with feeding paper, printing is consistent.
