Automatic 3/5/7 Layer High Speed Corrugated Cardboard Production Line

Corrugated Cardboard Production line

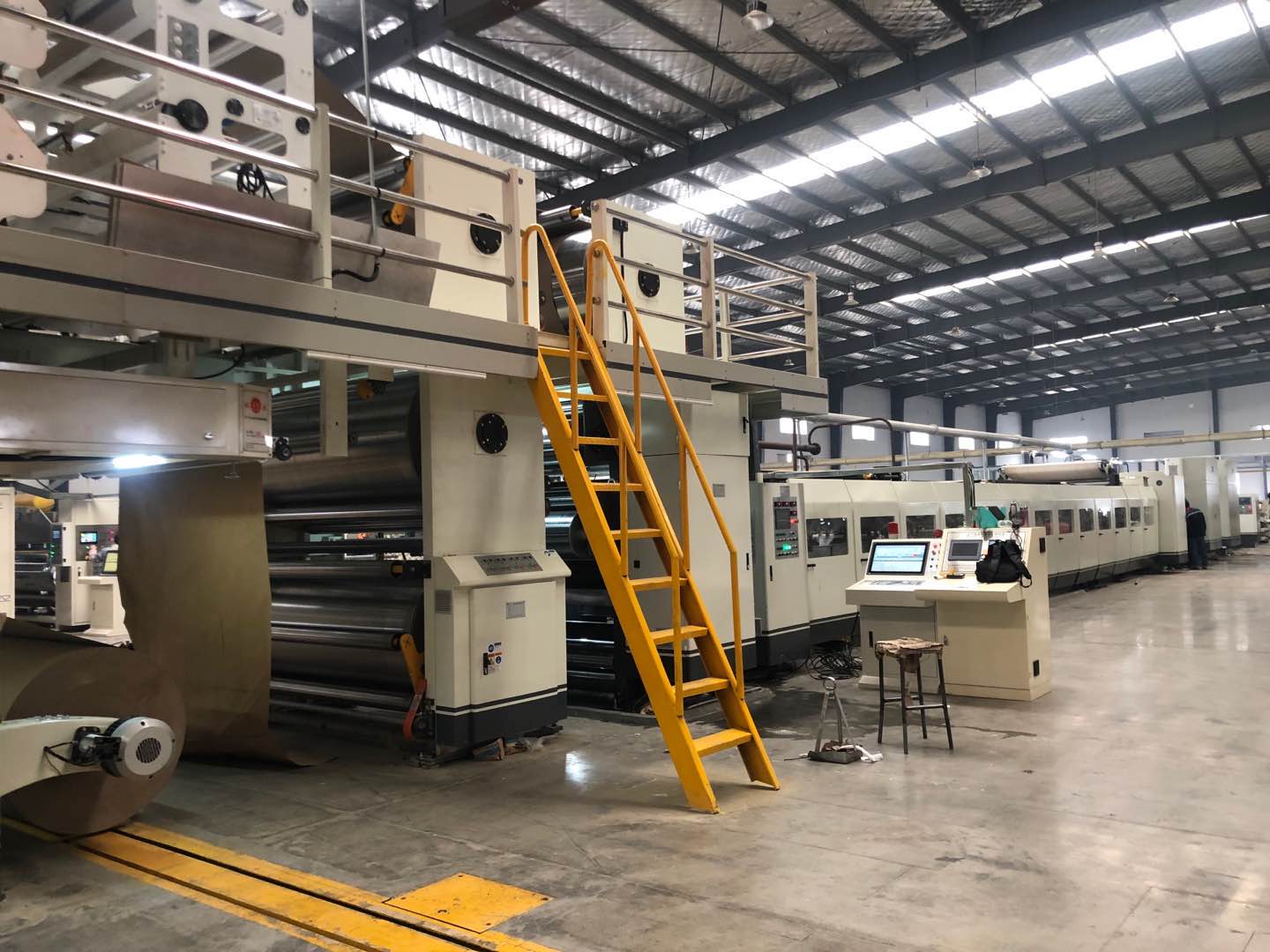

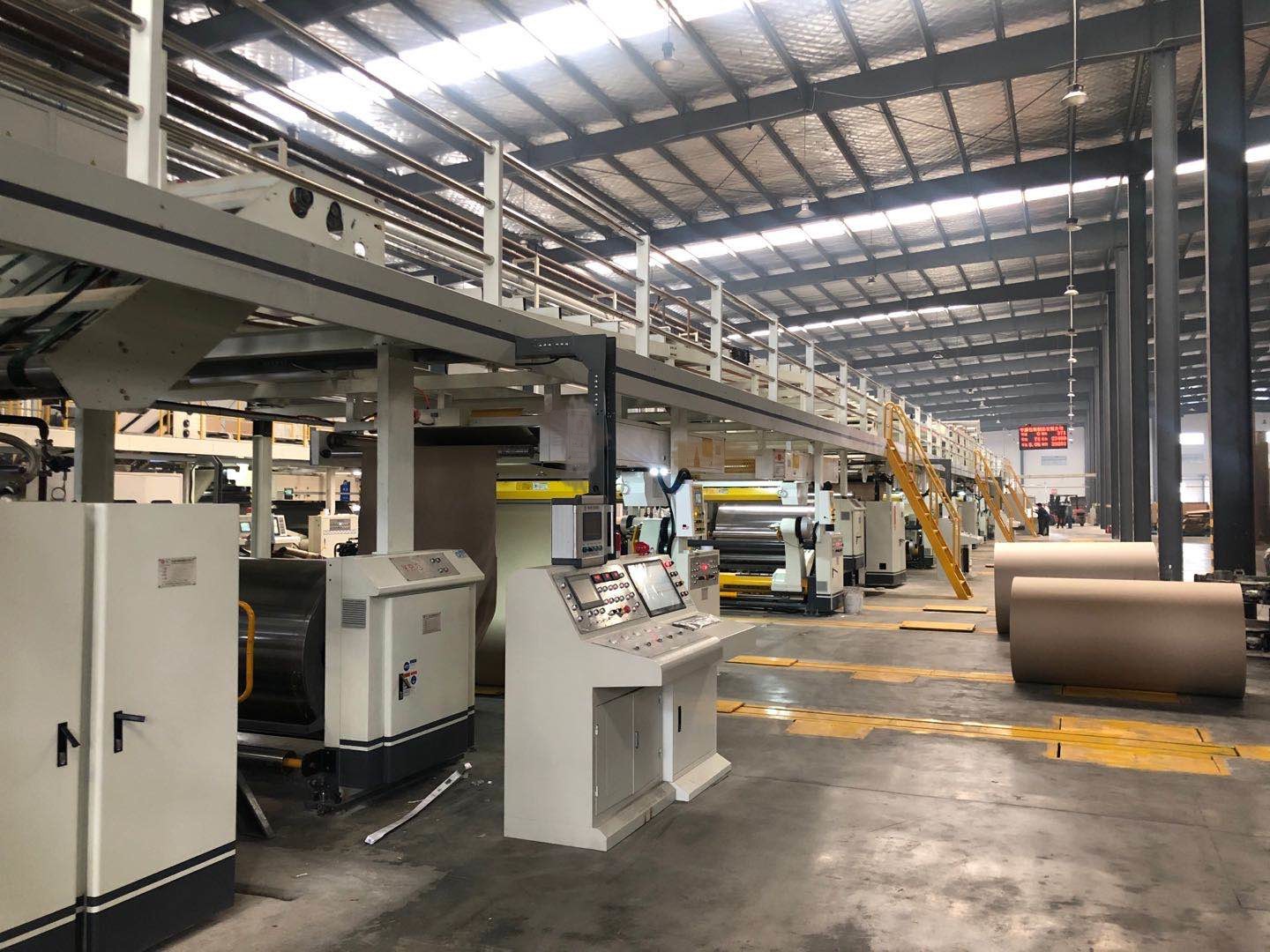

Corrugated cardboard production line is the professional equipment for producing corrugated cardboard. The 3ply, 5ply, 7ply, and multi-function corrugated cardboard production line mainly consist of the following equipment: Mill roll stand, surface paper (core-paper)pre-heater, single facer, conveying span bridge. Glue application machine, double facer, slitter scorer, cut-off, conveyer and stacker, heating system, air compression system and glue making system, etc. The 3ply, 5ply, 7ply, and multi-function corrugated cardboard production line has high, middle and low grade with different-specification and different-quality equipment. On the base of understanding the requirements of the customers and the advanced skills at home and abroad, our company has developed and designed these production lines with the speed 60-22m/min; The paper width 1600-2200mm and four fluting UV type A, B, C, E for all the customers to choose from.

 Feature:
(1) Steam heating
(2) Easy operating.
(3) Equipment composition:
       Mill roll stand

Parameter:

Effective width:	1400mm-2500mm
Design Speed:	100m/min -150m/min
Mechanical configuration:	NC Slitter and NC helical cutter and stacker
Min. Cutting length:	300mm
Max. Cutting Length:	9999mm
Cutting accuracy:	±1mm(uniform speed), ±1.5mm(non-uniform speed)
Five groups ?200 thin blade knife.
Memory of 200 orders, man-machine interface, the screen displays formation, easy for machine operator modify or cancel order at any time.
Adopt Germany KEB servo system and high-performance synchronous servo motor.
Helical knives structure with HSS knife edge, serration type knife and scissor cutting with less shear force, keep the knives long life.
Host base and machine frame adopt gray cast iron to keep machine strong and stable.

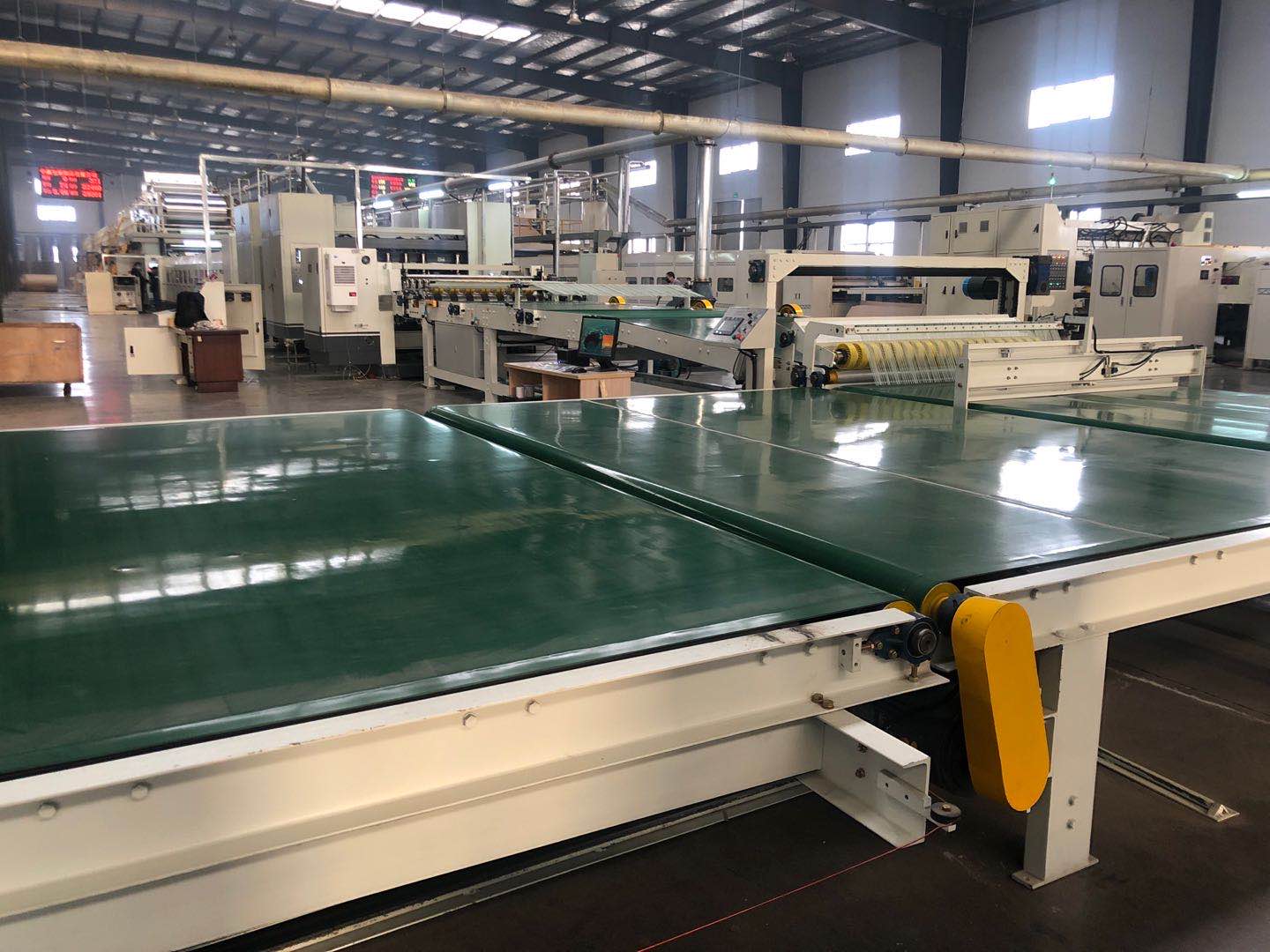

Adopt 3 section up stacker, the paper board automatic side delivery after reach setting quantity.
Max. Stacking length 1.3m.
Fast change order in 3 seconds.
Adopt tungsten steel alloy thin blade, blade life more than 8 million running meters.
Automatic or manual knives grinding is option, non-stop grinding knives improve production efficiency.
