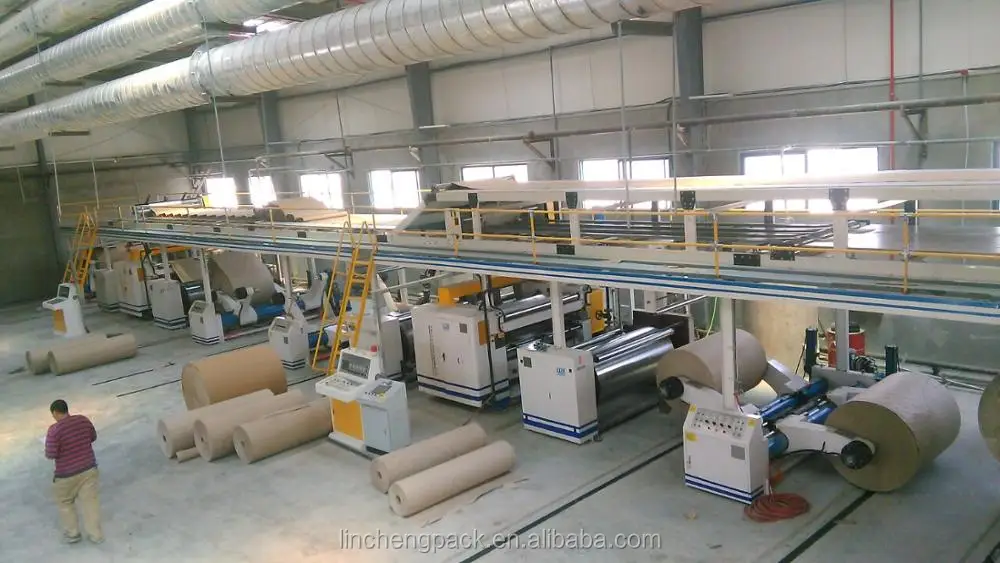

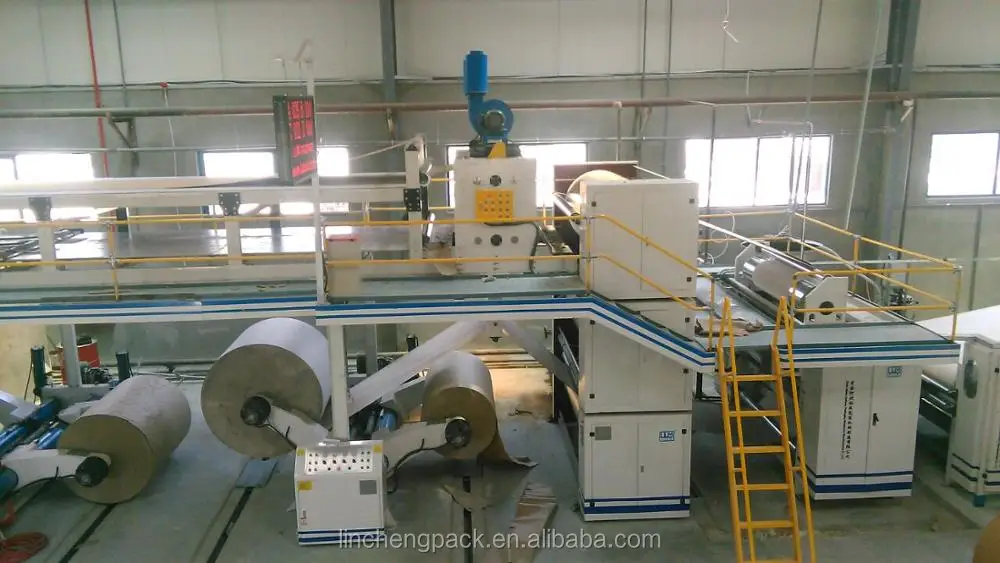

High speed corrugated cardboard production line, 3 ply, 5 ply, 7 ply line
With CE & ISO9001:2001 Certificate
LUM-A SF-280 single facer machine/ carton box packing machine
LUM-A SF-320 single facer machine- Gimble drive for 120m/min
LUM-A SF-360 single facer machine- (15 mins for change roller)
LUM-A SF-380 single facer machine ( Modular type)
LUM-C -2200 Automatic 3 & 5 Ply Corrugation Plant Line to Show :
Technical parameters of High speed corrugated cardboard production line:
NO. | Name | Technical parameters |
1 | Working width | 1400--2500mm |
2 | Design speed | 80m/min,120m/min, 150m/min, 200m/min |
3 | Operating direction | As customer’s required |
4 | Flute type | A,B,C,E,F,G flute as customer’s required |
5 | Basement | Casting HT200 |
6 | Thickness wallboard | Casting HT200/ thickness 240mm |
7 | Corrugated roller diameter | Φ280, 320,380mm /52CrMo alloy steel |
8 | Pressure roller diameter | Φ385mm /45 steel |
9 | Preheating roller diameter | Φ400mm/45 steel |
10 | Glue roller diameter | Φ240mm/45 steel |
11 | Main inverter motor | 30kw / 45kw inverter attached |
12 | Fan motor | 20kw(It depends on flute type) |
13 | Air source | 0.4—0.9Mpa. |
14 | Steam pressure | 0.8—1.3Mpa |
Briefly introduction:
LUM-A/B/C Corrugated Cardboard Production Line is the most professional equipment
for producing corrugated carton box and carton sheet to 2-ply,3-ply, 5-ply, 7-ply (layer) board as
user's or customer's demand.
For Automaitc carton production line,it mainly consist of following equipment:
1.Mill Roll Stand, 2.Pre-heater, 3.Single Facer, 4.Conveyor Over Bridge, 5.Double Gluing Machine,
6.Double Facer Machine,7.Thin Blade Slitter Scorer, 8.NC Cut-off Machine,9.Auto Stacker Machine,
10.Steam & Water treatment System,11.Glue Kitchen system,12. Production Management and Operation System; 13. Paperboard Flexo Printing Slotting Die Cutter Machine and etc.
Finally, customer will use stitching machine or folder gluing machine to make paperboard sheet
into beautiful and colorful carton for various carton packaging field.
As over-20-year professional manufacturer,our products as bellows:
| Our Product Range | |||||
1. Semi-auto & Automatic 2 ply single facer paperbaord prduction line; 2. Automatic 3 /5 /7 ply Corrugated Paperboard Production Line; 3. High Speed Flexo Printer Slotter Die cutter Machine; 4. Solution & Consultation are avaiable for all customer; | |||||
| Design speed | 80m/min | 120m/min | 150m/min | 200m/min | 250m/min |
| Working width | 1400mm,1600mm,1800mm,2000mm,2300mm,2500mm
| ||||
| Flute type | UV shape; A,B, C, E ,F, G flute for all the customers to choose; S shape flute is available and can be customerized; | ||||
| Heating system | Electric heating, Oil heating, Steam heating system | ||||
a. One year guarantee for whole machine except of easy broken parts.
b. 24 hours on-line service or consultation by e-mail.
c. Calling, E-mail or door-to-door service.
d. 5-10 engineers and technicians can go abroad for over-seas' training and installation.
e. Top quality, Competitive price, Timely delivery and Heart-to-heart service.
