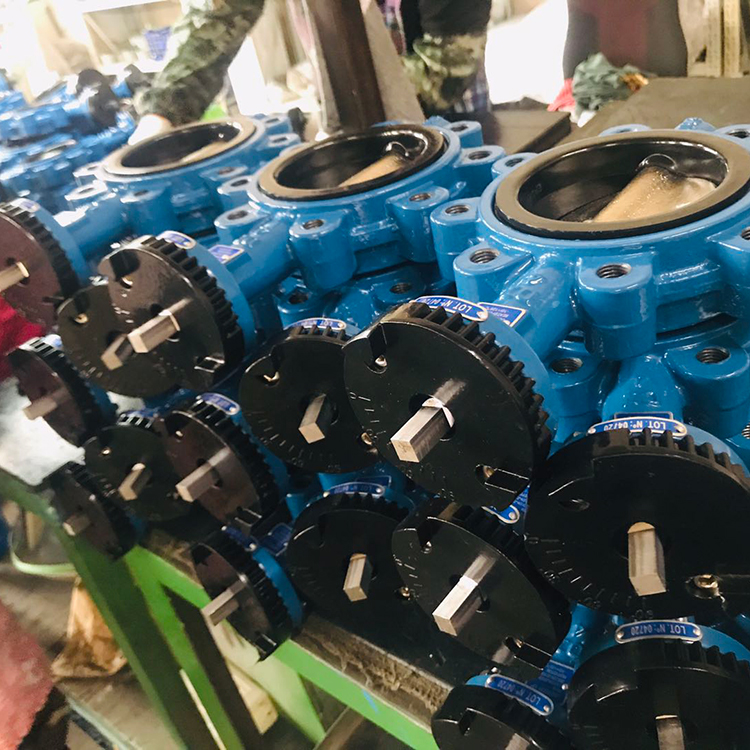

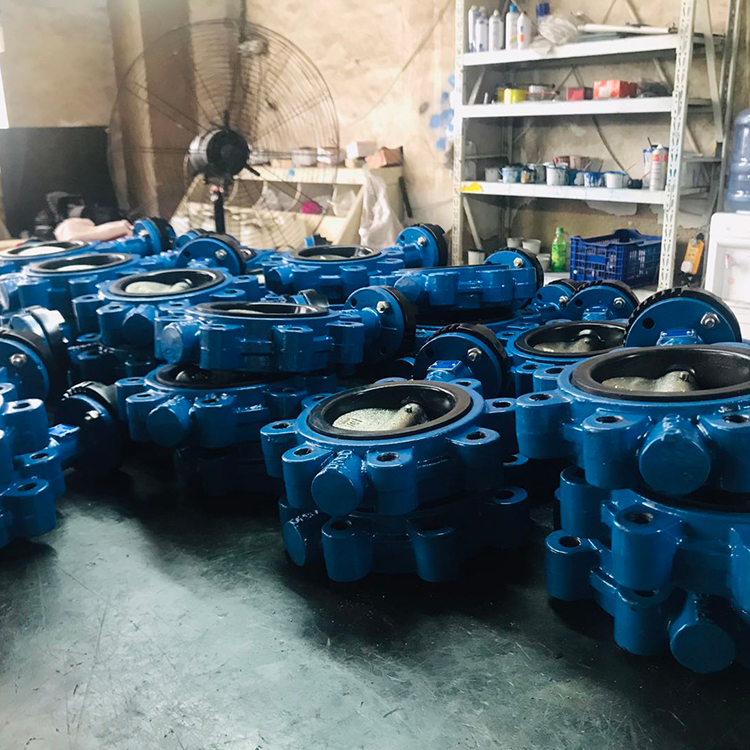

Lug ductile iron lugged type butterfly valve

ID:20110229879

Category: Manufacturing & Processing Machinery Valves & Pumps & Compressors

FOB Price:US$ 15.000 / Piece(s)

MOQ:1.00 Piece(s)

Product Keywords:

Iron Lugged Butterfly ValveButterfly Valve Lug TypeLug Type Butterfly ValveButterfly Valvesvalves

Payment Method:

T/T

Product Category
Manufacturing & Processing Machinery > Valves & Pumps & Compressors
Trademark
Product Package
Carton box
Specification
Place of Origin
China Tianjin
Port
Tianjin
Product Description

Brief introduction

The ductile iron lugged type butterfly valve is composed of lug type rubber seal butterfly valve, carbon steel or stainless steel valve plate and stem, also known as single wafer butterfly valve. It is suitable for water supply and drainage and gas pipelines with temperature ≤ 80 ℃, such as food, medicine, chemical industry, petroleum, electric power, light textile, papermaking, etc.

Working principle:

The ductile iron lugged type butterfly valve is a disc-shaped butterfly plate, which rotates around its own axis in the valve body, so as to open and close or adjust. When the butterfly valve is fully opened to fully closed, it is usually less than 90 degrees. The butterfly valve and butterfly rod are not self-locking. In order to locate the butterfly disc, worm gear reducer should be installed on the valve stem. The use of worm gear reducer can not only make the butterfly plate have self-locking ability, make the butterfly plate stop at any position, but also improve the operation performance of the butterfly valve

Performance specification
Nominal Pressure
PN10 / PN16/150LB
Testing Pressure
Shell: 1.5 times rated pressure,
Seat: 1.1 times rated pressure.
Working Temperature
≤100°C
Suitable Media
sea water,water
Material of main parts
Body material
Ductile iron, stainless steel
Disc material
Ductile iron, stainless steel
Seat material
EPDM, NBR
Stem material
SS420
