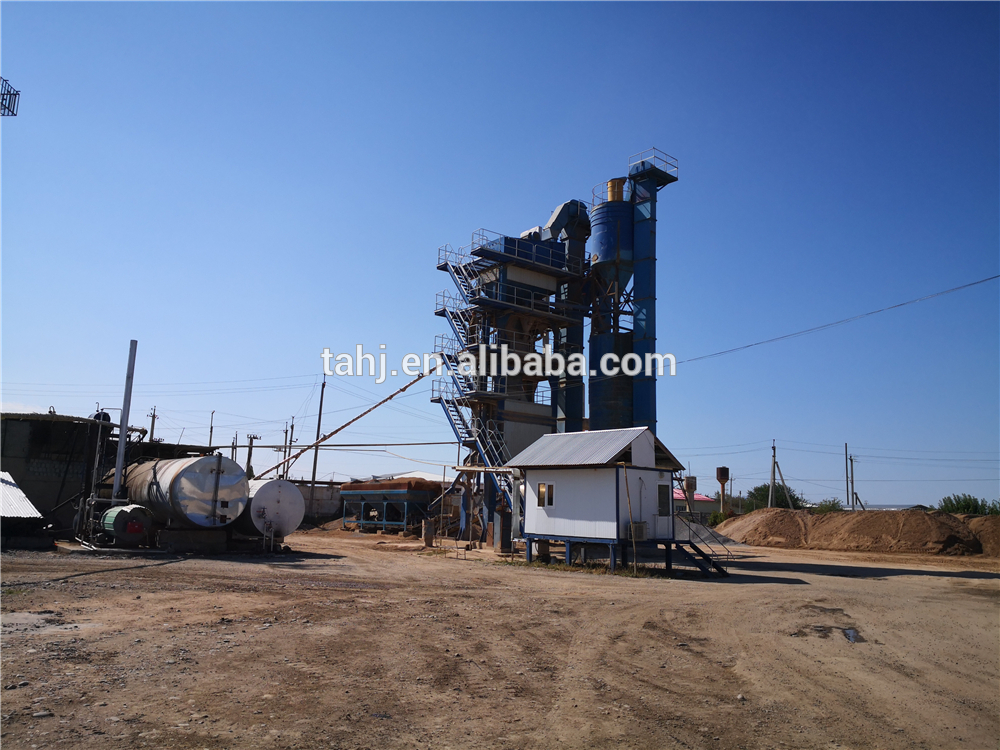

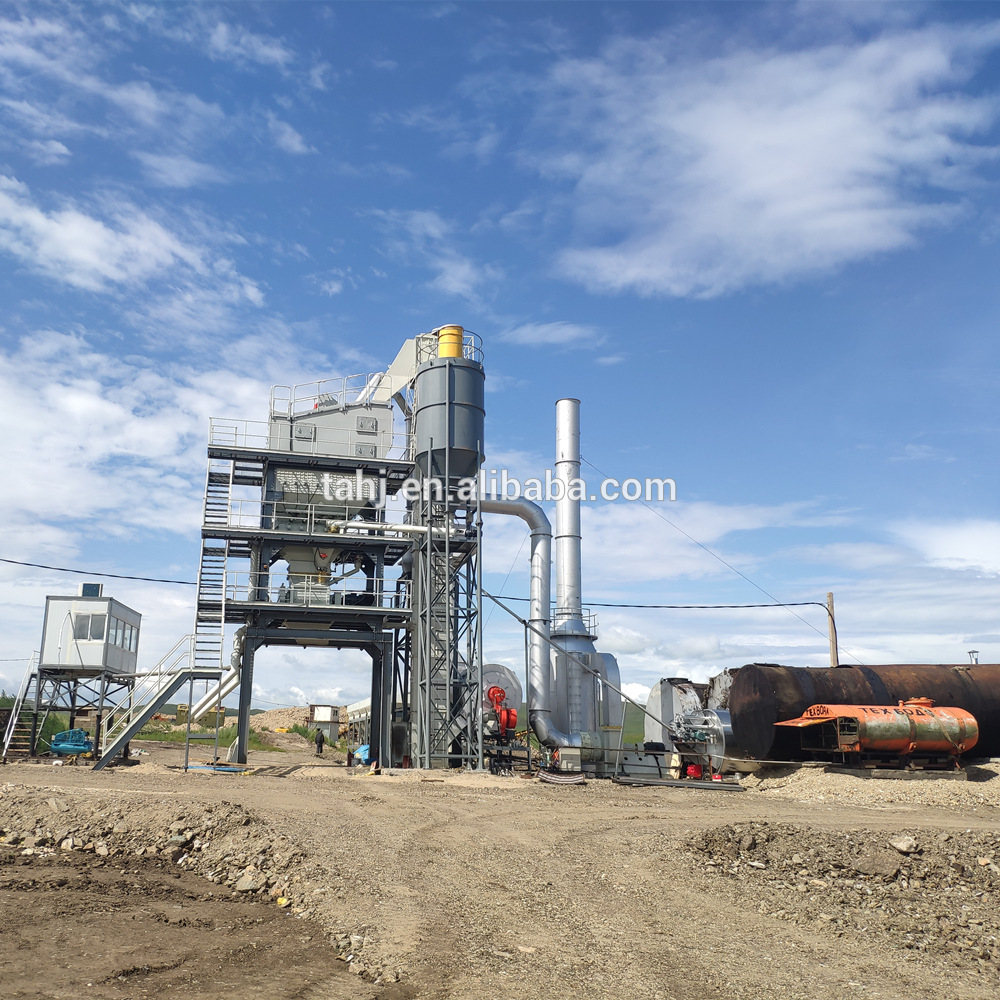

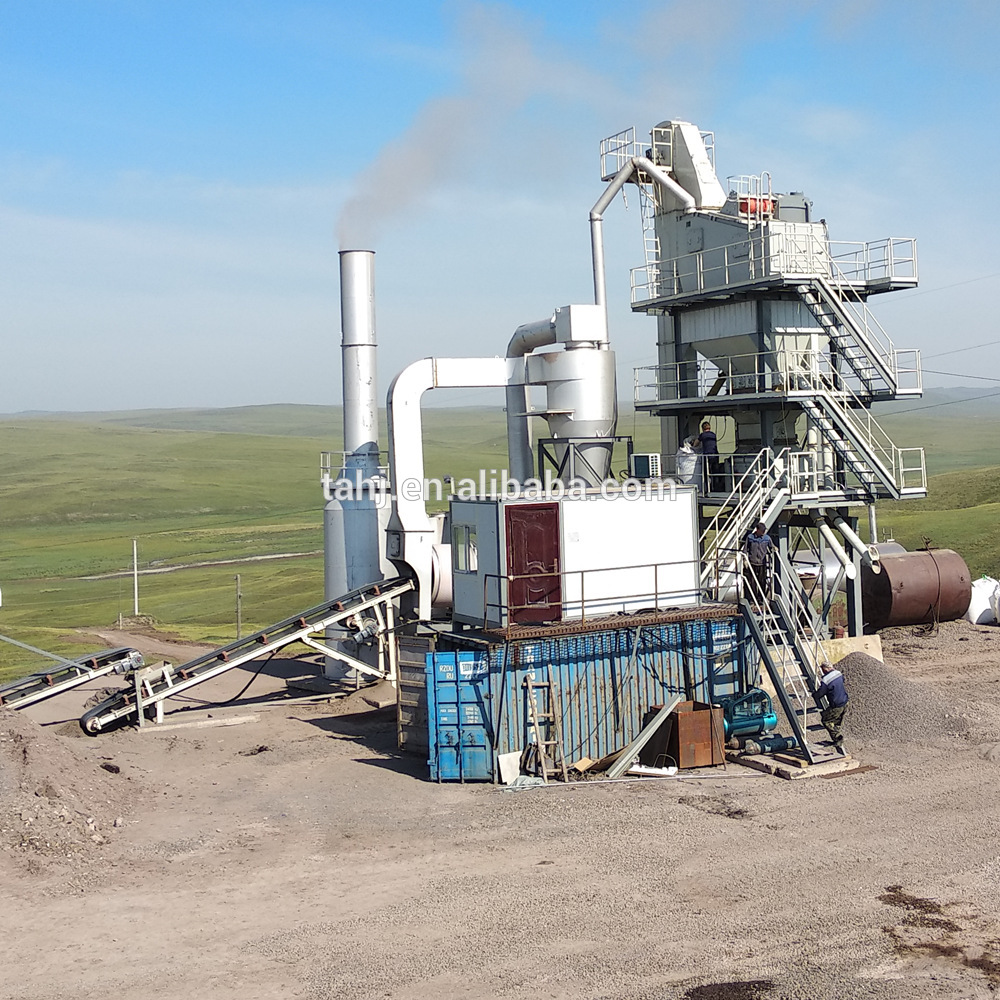

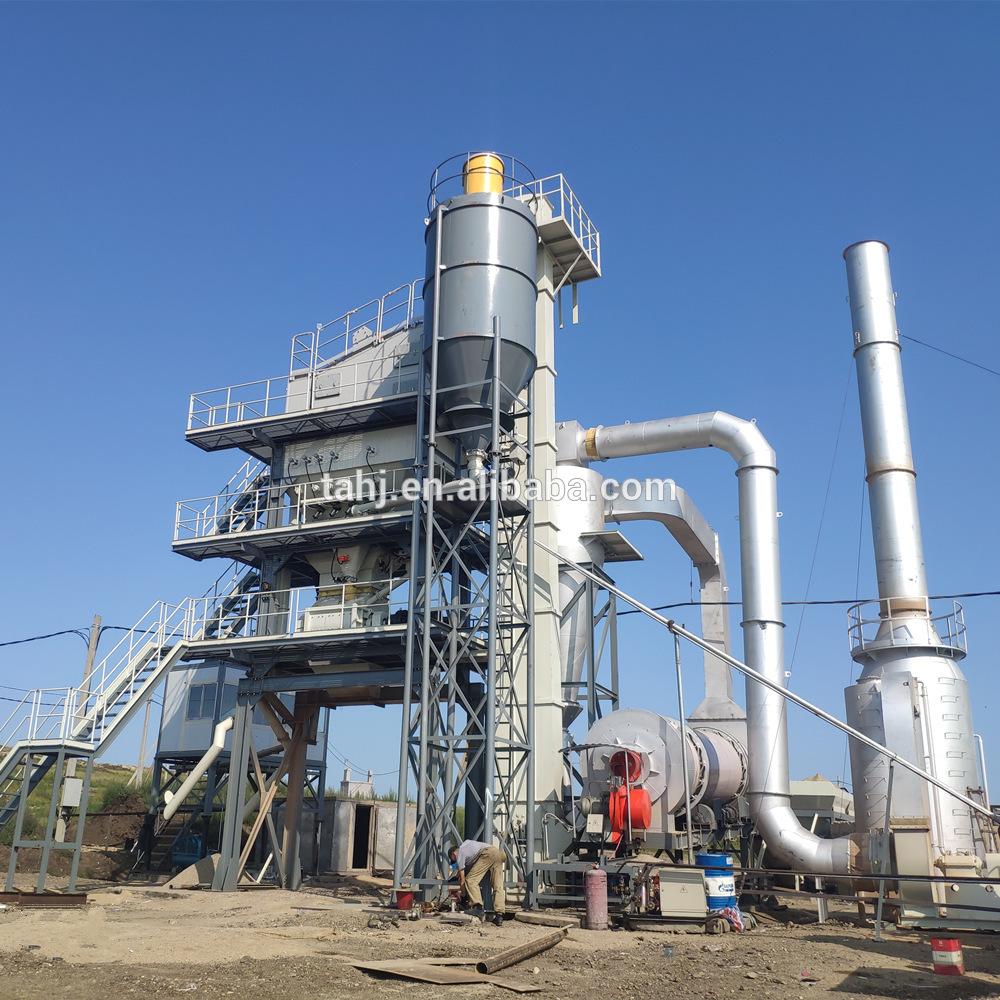

80t/h Asphalt Mixing Plant LB1000
Performance Feature
1) Adopt international advanced technology,adapt to all kinds of construction condition.
2) The modular structure is convenient and efficient for installing and removing.
3) High output,fast speed and stable performance.
4) The core parts adopt internatonal famous brand with reliable quality.
5) The humanized design provide simple and convenient operation.

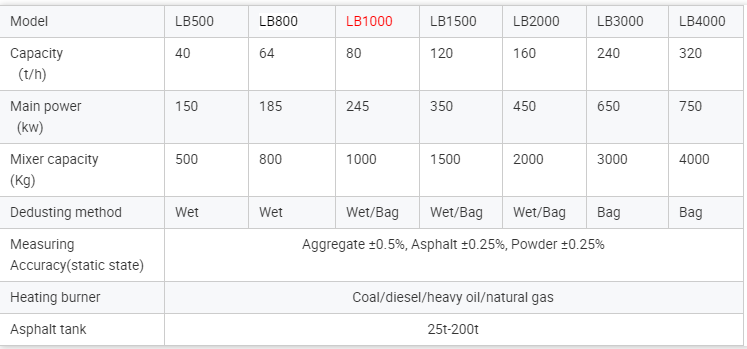

Technical Parameters
Product Details

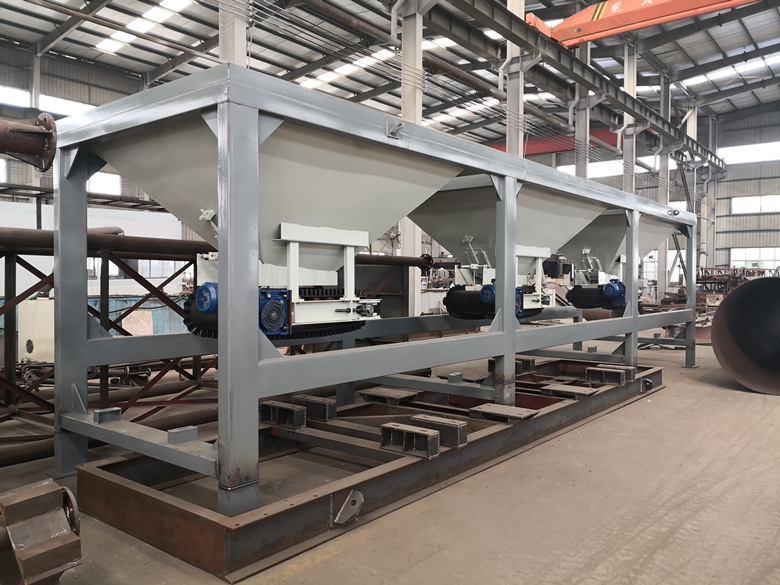

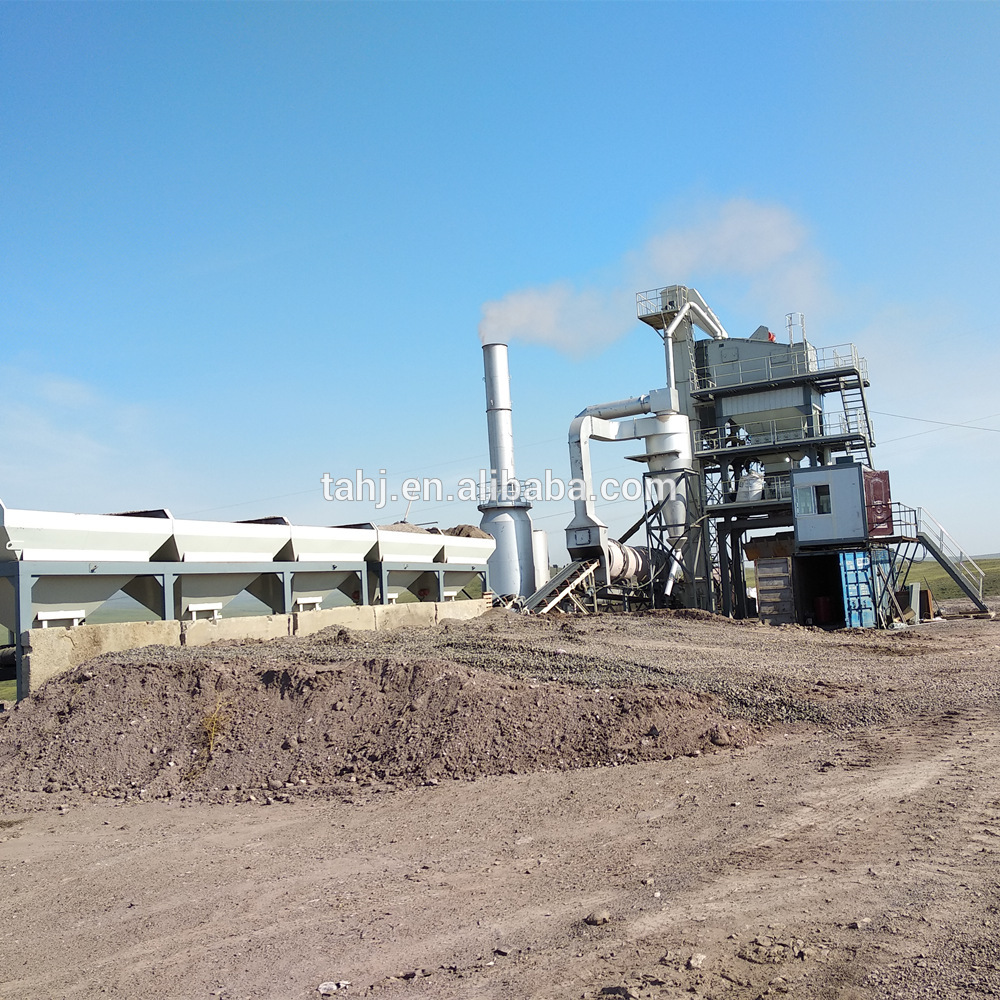

Aggregate Bins
Cold aggregate bins+ rubber belt conveyor
Single bin Capacity：8 m3 ；
Loading width：3.2 m；
height：3.2 m

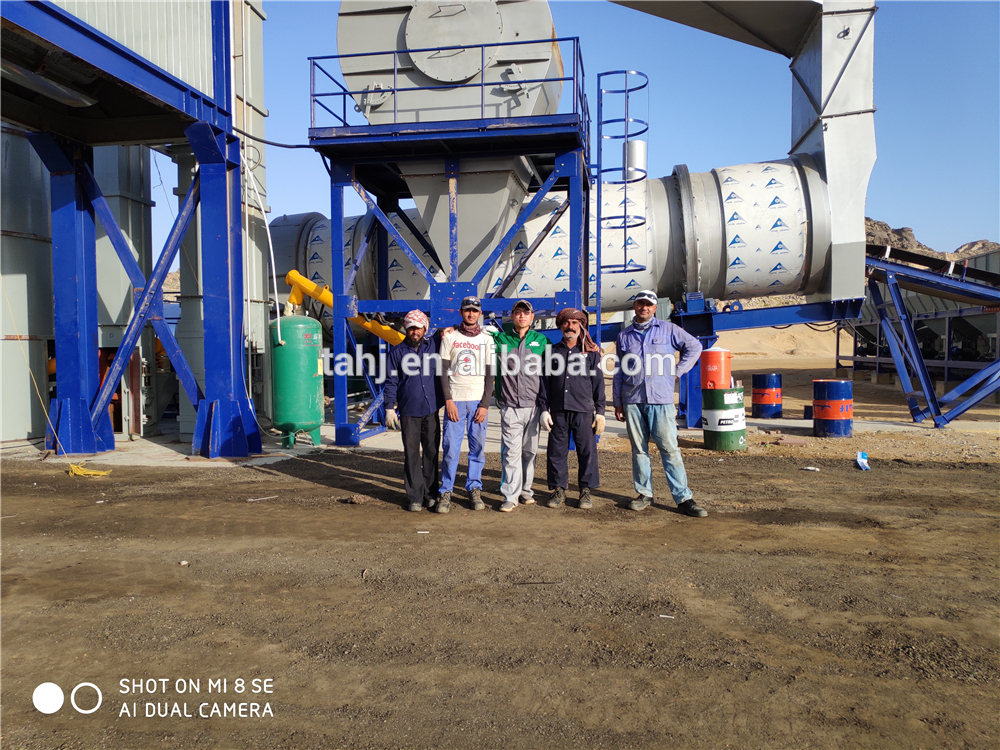

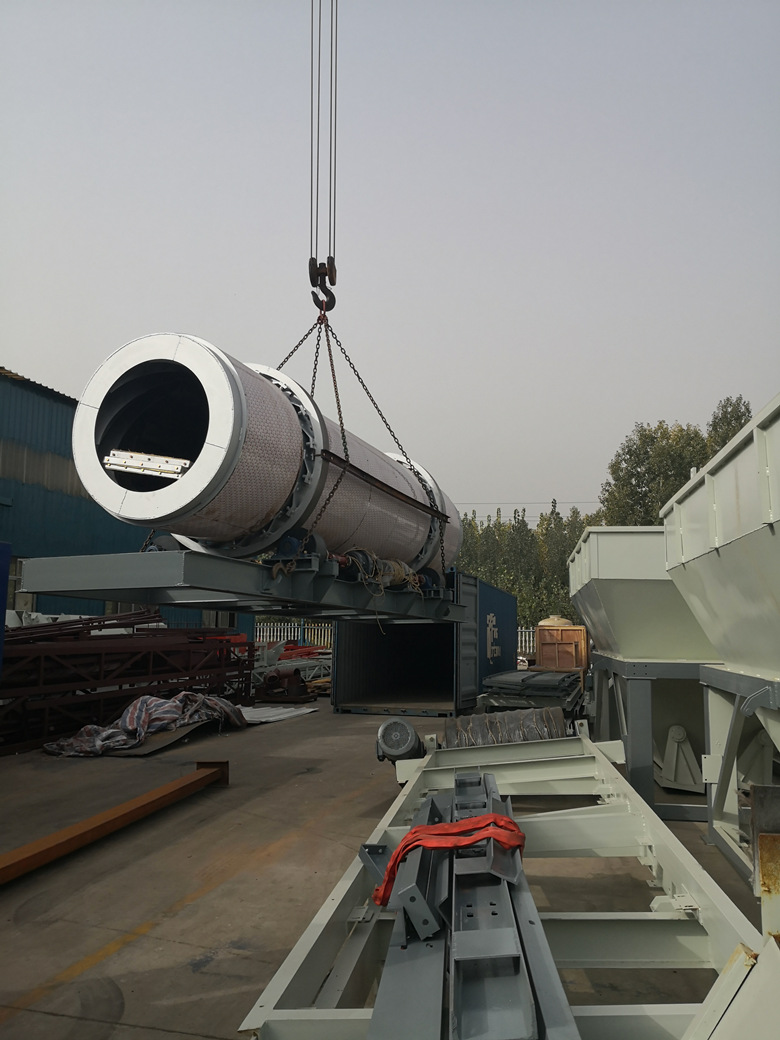

Drying Drum
Drum size: 1.54m(diameter)×6.68m(length)
Material：Q245R
Drive mode：friction drive by four drive wheels, 4 planet-cycloid reducers.
50 mm mineral wool covered with stainless steel.
Temperature control: Thermal resistance meter, measuring error ≤±3℃
Oil burner, RIELLO
Hot aggregate elevating, screen, weighing and mixing system
1)Hot aggregate elevating system
2)Vibrating screen
3)Hot aggregate bin
4)Hot aggregate weighing hopper
5)Asphalt weighing hopper
6)Powder weighing hopper
7)Horizontal twin-shaft forced paddle type mixer

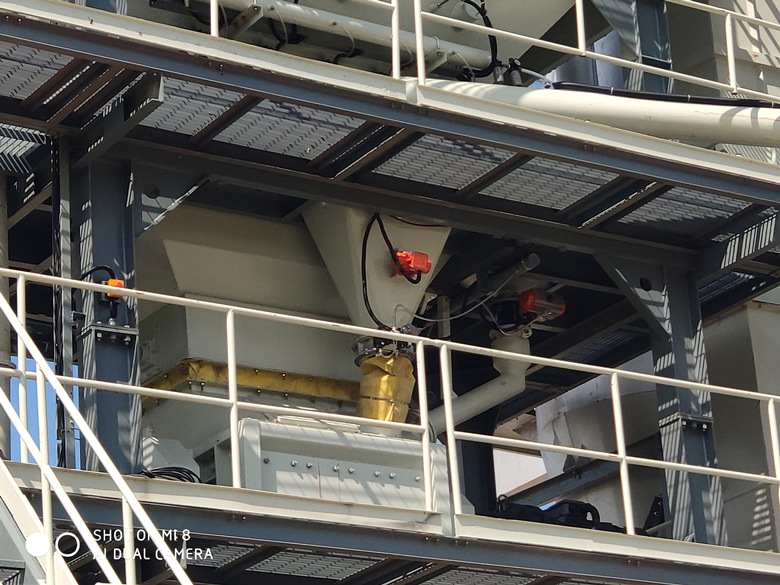

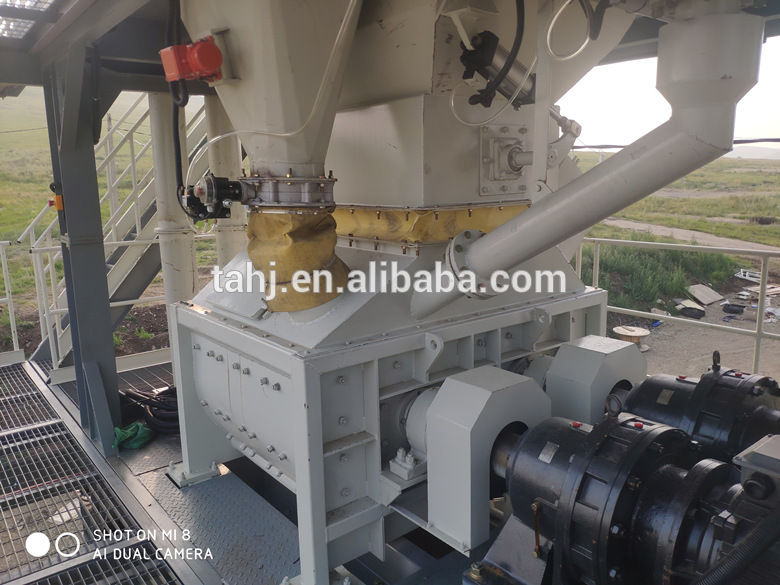

Mixer
1)Type：Double-shaft compulsory paddle type mixer
2)The mixer volume: 1000kg /batch
3)Motor：22kw×2
4)The driving manner: direct connection reducer+ synchronous gear
5)The discharging gate manner: overturning type discharging gate

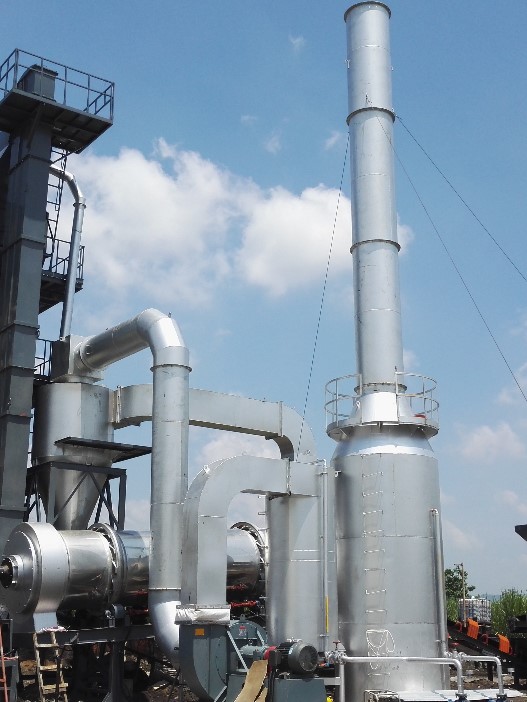

Dust collecting system
Primary cyclone dust collector
Secondary wet dust collector

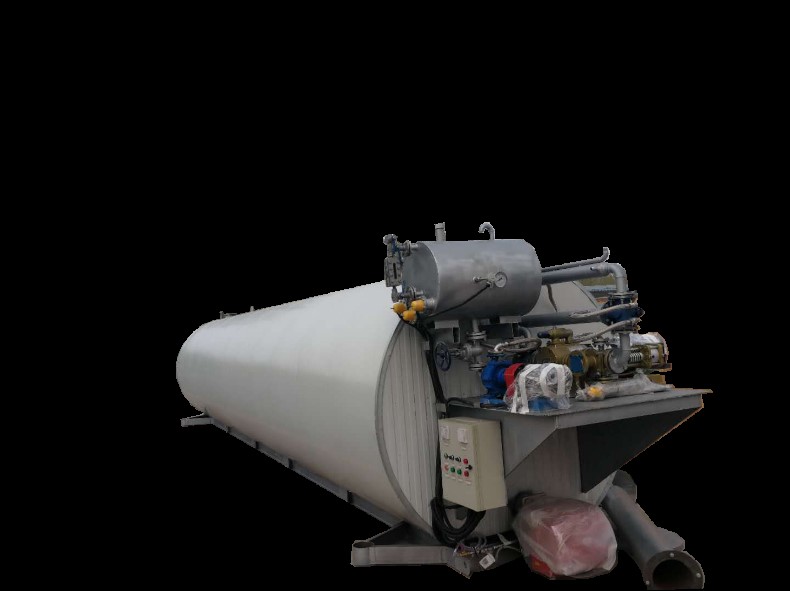

Asphalt tank (directly heating)
Capacity and qty.：30t×1 unit
Heating method: direct heating
RIELLO Oil burner: 1 set, 300000kcal
Asphalt pump: 1 set，5.5kw，15.1m3/h
For more details,please feel free to contact us
Our service
Pre-Sales Service
* 24h online inquiry and consulting support.
* Special design support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* Wearing parts supply
PACKING AND DELIVERY
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

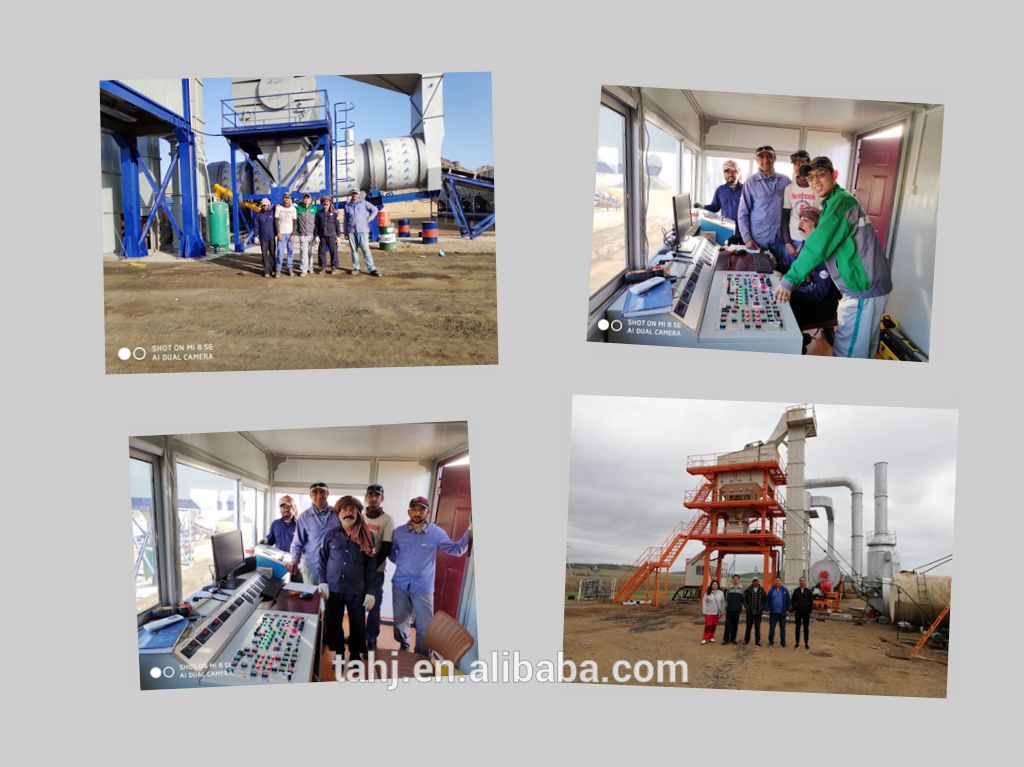

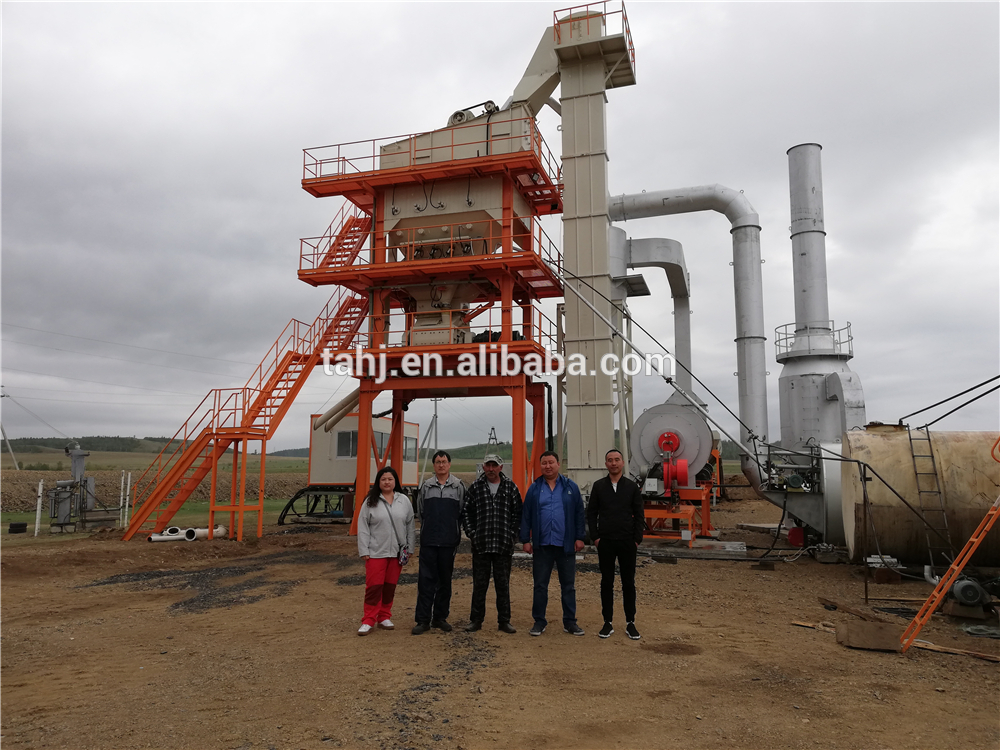

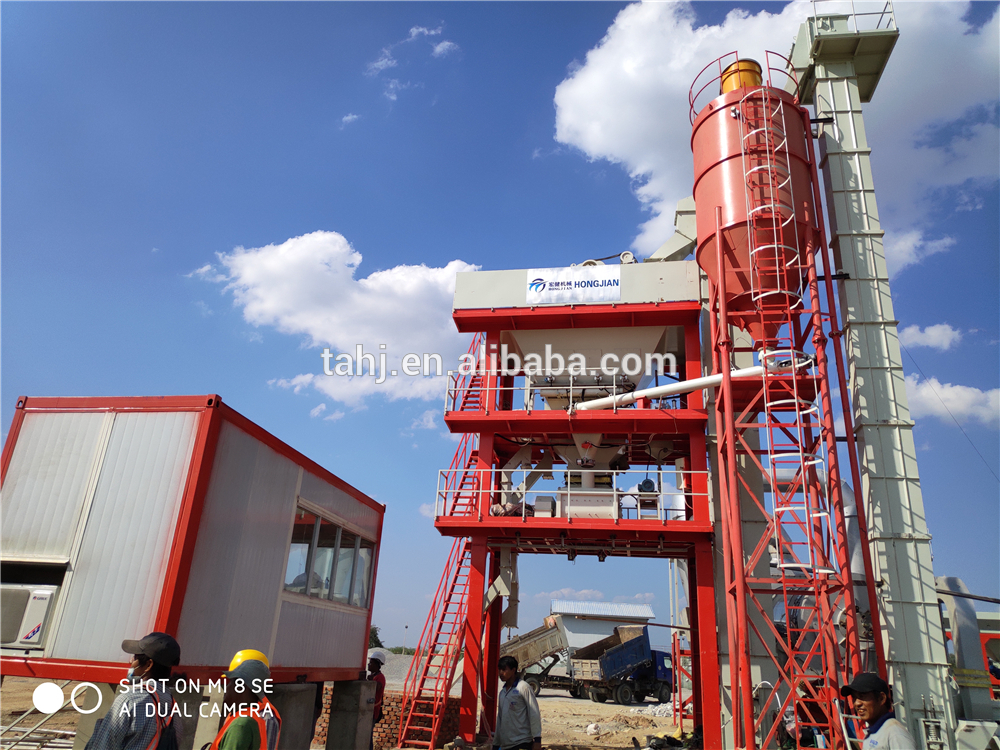

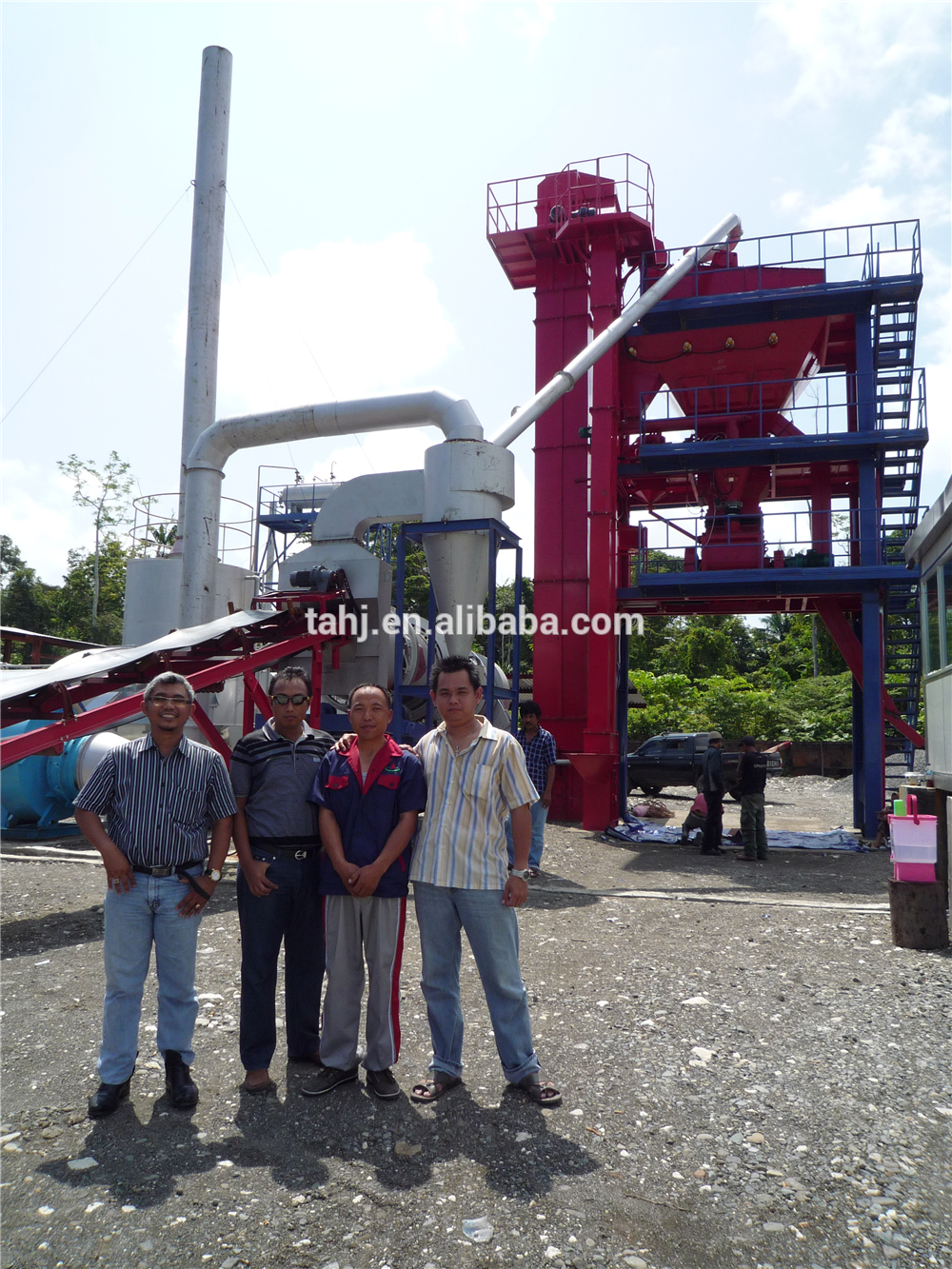

Cooperations Case Overseas
Tai'an Hongjian Machinery Science and Technology Co.,Ltd is an enterprise specializing in design, produce, sales and service of construction machines. Our company locates at Dawenkou Industrial park which is in the center of Shandong tourist hotline 'Mountain Tai, Dawen River and Confusious'. It is also industry galley core position of Tai'an programming.If by the high speed rail, two hours can be Beijing and three hours to Shanghai. It is 90km away from Jinan Yaoqiang International Airport, only 1 hour of driving. The factory is about 300km away from Qingdao International Sea Port which taken the highway all the way will be arrived directly. It is 70km away from Jinan railway station, which is convenient for international transportation also.

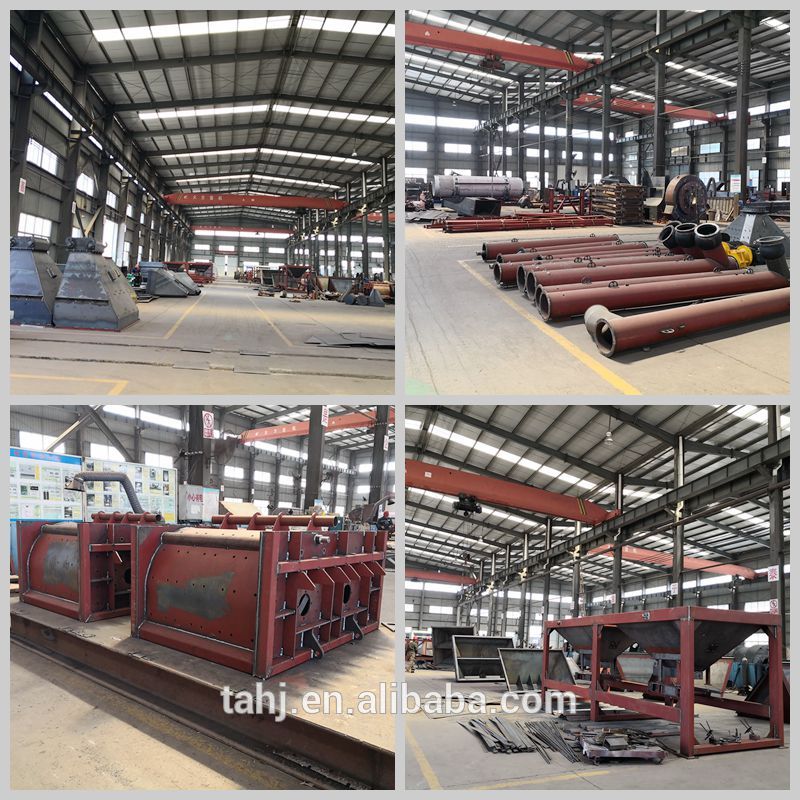

Our company covers an area of 60,000m2, with more than 200 employees. The company has advanced production and development equipments and a number of professionals who are engaged in the design and innovation of products for many years. professionals who engaged in producing of mixing plants. It has strong strength in product design, development,production and processing. Company business scope is designing, producing, sales, technical consulting service and installation service of mixing plants. Our main products are Concrete Mixing Plant, Asphalt Mixing Plant and Stabilized Soil Mixing Plant. Establish a good reputation in the industry.
We start international sales since 2007 and have gotten great reputation from foreign customers.We design and produce strictly according to customers' requirements and make customers satisfied. The main countries that we have been export to are: Russia, Kazakhstan, Uzbekistan, Saudi Arabia, Indonesia, Philippines, Cambodia, Nigeria, Ethiopia, Zambia, Mongolia, UAE, Yemen and so on.
China's construction machinery is now experiencing a surging forward stage of development, for the international market to greatly increase the demand, Chinese construction machinery industry develop rapidly. Our company grows into provide overall project design, products, application services in one of the complete solution enterprises from a manufacture type enterprise. All staff of our company pursue the enterprise spirit of self-support, self-improvement, strive for forward and success. Our management idea is survival relies on integrity , develop relies on quality, strictly on producing and rigorous on service installation. We supply perfect solutions for customers before and after sales.
