Model: KSFL-80W 80W Folding Solar Charger Panel
Photos Show
Model: KSFL-80W 80W Folding Solar Charger Panel
Technical Specifications
Maximum Power (Pmax.) | 80W | ||
Max. Power Voltage | 18.00V | ||
Max. Power Current | 4.44A | ||
Open Circuit Voltage | 21.00V | ||
Short Circuit Current | 4.89A | ||
Solar Cell Type | High Efficiency Monocrystalline Silicon | ||
Solar Cell Efficiency | up to 23.50% | ||
| USB Charging Port | 5V/2.40A | ||

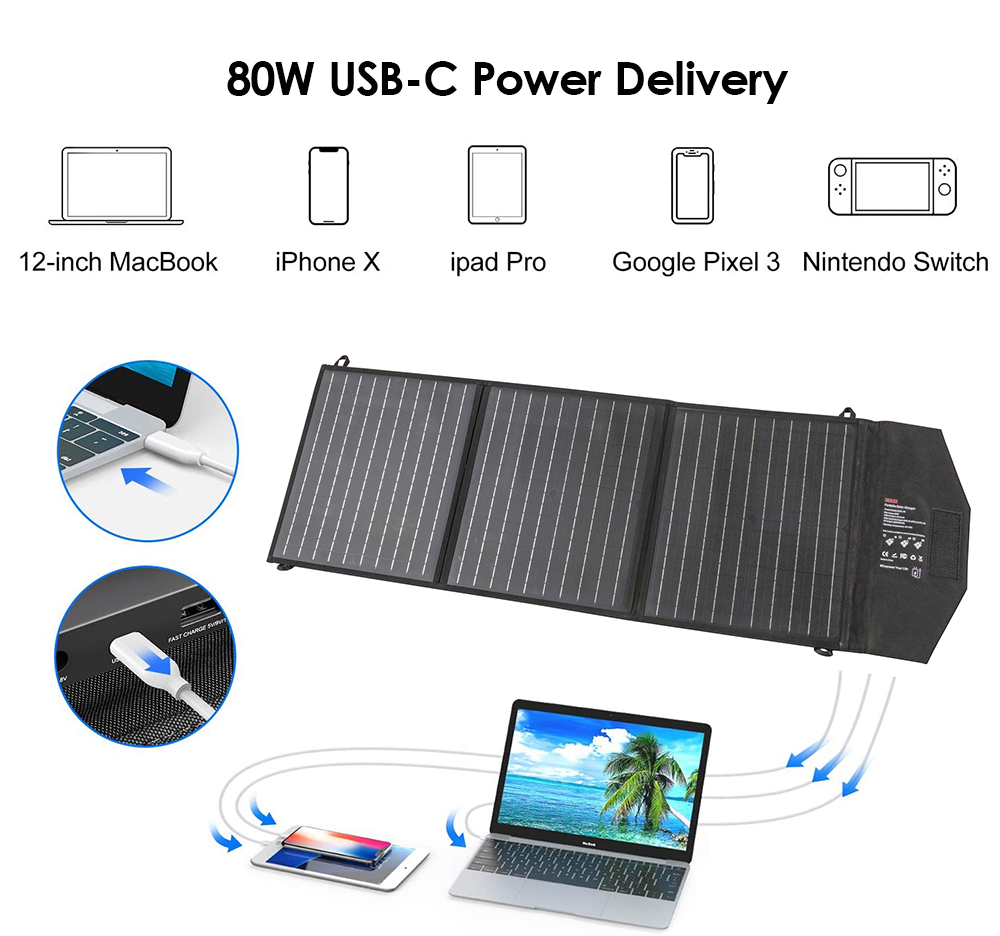

USB QC3.0 Charging Port | 5V/2.40A, 9V/2.00A, 12V1.50A | ||

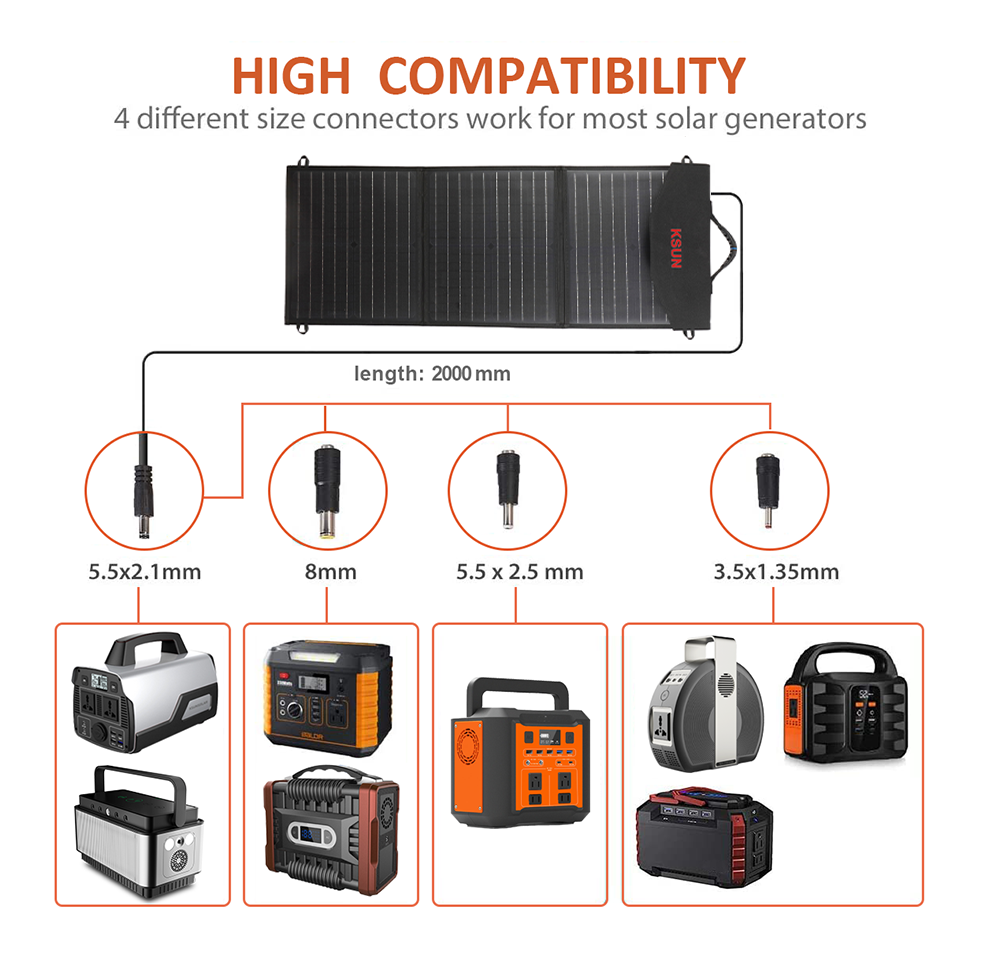

DC 5.5*2.1mm Charging Port | 18V/4.44A | ||
Working Temperature Range | -40°~+85° | ||
Product Folded Dimension | 405 x 350 x 45 mm | ||
Product Open Dimension | 1630 x 405 x 5 mm | ||
Ner Weight | 3.20 Kgs | ||
Gross Weight | 3.50 Kgs | ||

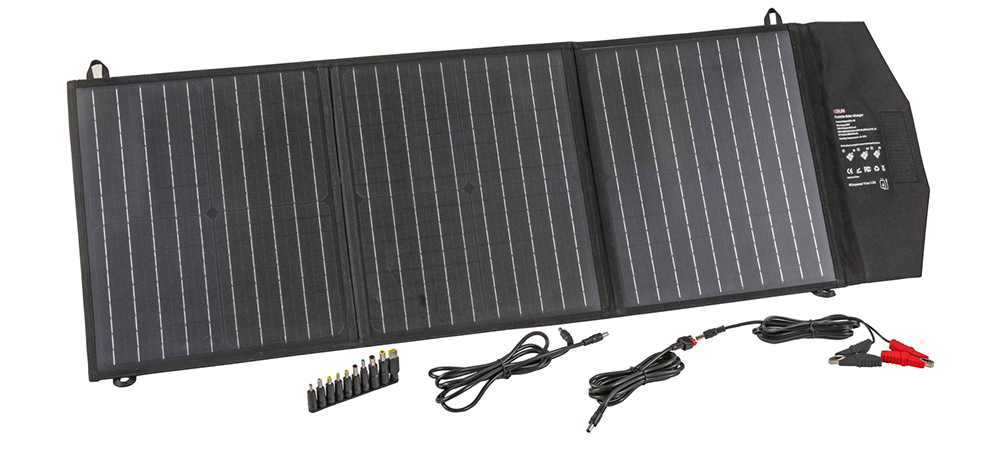

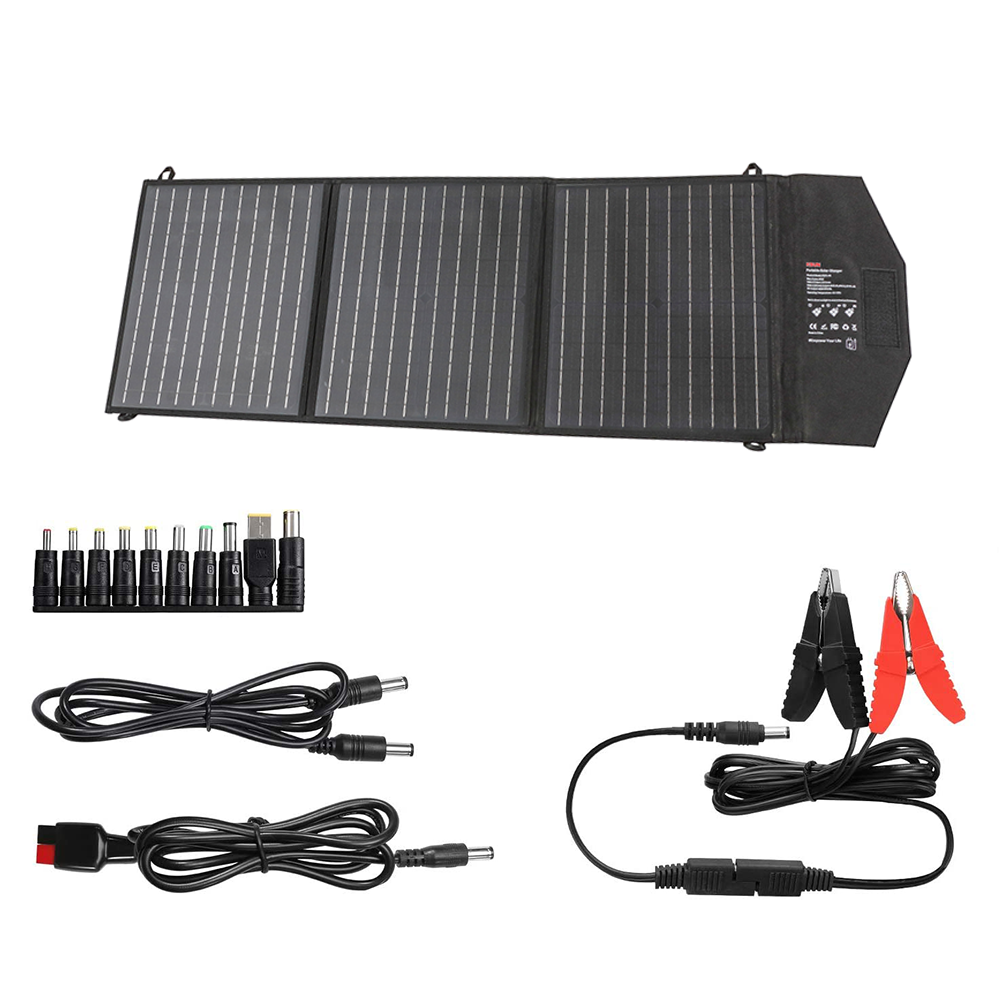

Package Contents | 1x User Manual | ||
1x 10-in-one DC Multi-Connector | |||
1x DC to Anderson | |||
1x DC to Clamp for Storage Battery | |||
1x DC5521 to DC5521 Cable | |||
1x KSUN 80W Solar Panel | |||
Warranty Period | 18 Months | ||
Model: KSFL-80W 80W Folding Solar Charger Panel
Application Cases
For more information and further inquiry, please do not hesitate contact us as below at any time.
