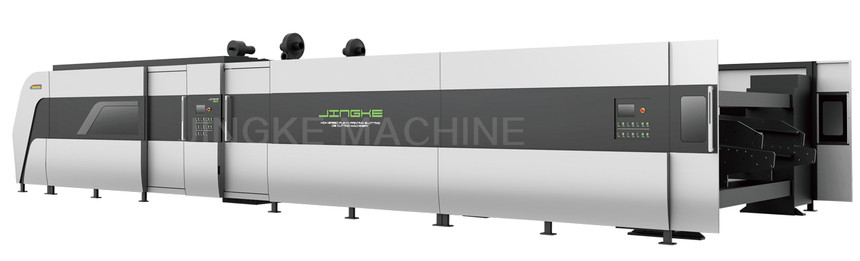

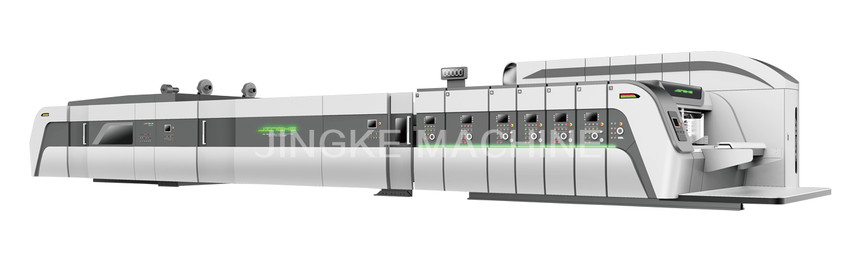

High speed and high efficiency priting slotting die-cutting gluer box linkage line

Feed unit

◆ Continuous or skip feeding

◆ Lead Edge roller feeder,can adjust the length of feeding paper.

◆ Frequency adjustment vacuum flow and pressure to adapt to diffent sizes cardboard and bending cardboard.

◆ Two rows of brush and dust  blower to clean the dust of cardboard surface(standard configuration)

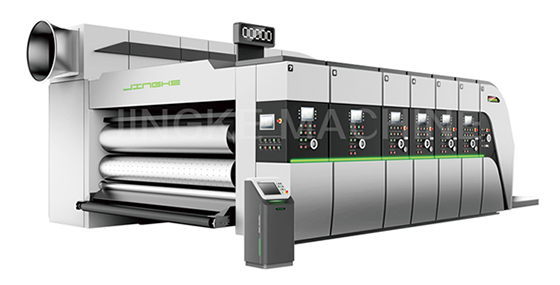

Printing unit

◆ Vacuum roller transfer printing.

◆ Masin hanging plate or reel hanging plate(option).

◆ Priting registration accuracy ±0.5mm.

◆ Scraper (double scraper, single scraper) or roller to roll to ink supply system (option).

◆ Adopt double acting diaphragm pump for ink recycling system.

◆ Automatic switching cleaning device, so that the recovery of ink or cleaning more convenient and fast.

◆ Automatic reset system after cleaning plate.

◆ Save ink function, when ink  change color or wash,every unit can save ink 0.4-0.5 kg per unit (applicable roller to roller ink supply system).

◆Efficient  environmental protection: Adopt the double diaphragm ink pump scraper  ink recycling micro ring system, can recovery and clean the ink of the roller and the scraper ink cavity in a short period of time(10minutes),saving water resources

◆ Each printing unit can be installed with hot air or infrared drying system (optional).

Slotting unit

◆ Single shaft and double knife slotting, box height adjustment using the intermal gear structure,so that the lubricating oil is not easy to pollute the carton.

◆ The structure of transverse move of slotting knives bases,the screw rod is matched with the guide shaft,so that  the movement is more flexible and accurate.

◆ Elastic corner cutter structure, three layers, five layers of cardboard cut corners without adjustment, the operation is more convenient.

◆ The first pre pressing wheels, the paper is not easy to break

◆ Equipperd with portable punch die base.

Die cutting unit

◆ Quickly change the blade die device (optional).

◆Anvil cover roller machanical s[oral the reversing 50mm autonetic movement horizontal structure.

◆ Anvil cover micro cutting ausrichten structuer ,keep the anvil cover surface is flat and level .and  can set adjustment anvil cover roller rotational speed,keep the die cutting plate in accordance with the cardboard.

◆ Anvil cover compensation adopts seperate motor drive,common cartons compensation range ±3mm.

★Servo motorized High-speed counting stacking transporting system

★Top fall collection,High frequency neat box correction system.

★Glue system with constant temperature.

★ precision setting guide wheels system/posterior segment vacuum transmission.

★High strength bridge arm,precision traverse-oriented system.

★CNC linkage control,multiple defusing system.

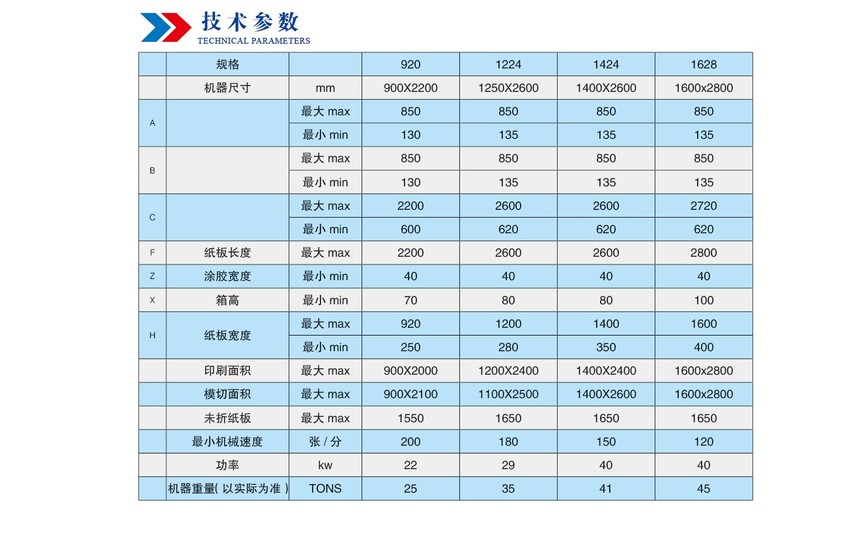

                                               This printing machine model number be arrived by 920mm to1650mm all can make to order.
