wafer butterfly valveGear Wafer Butterfly ValvePrice Butterfly Valve
T/T

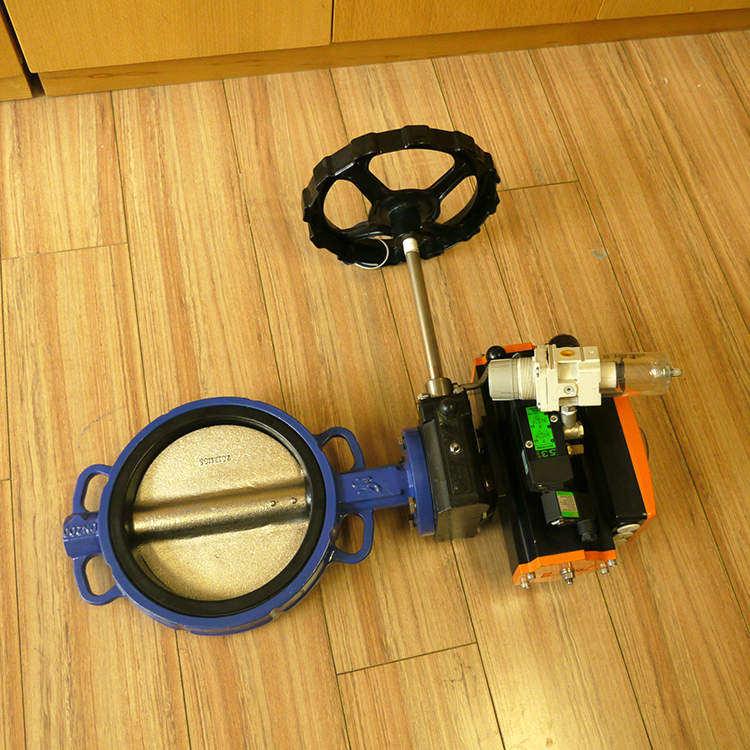

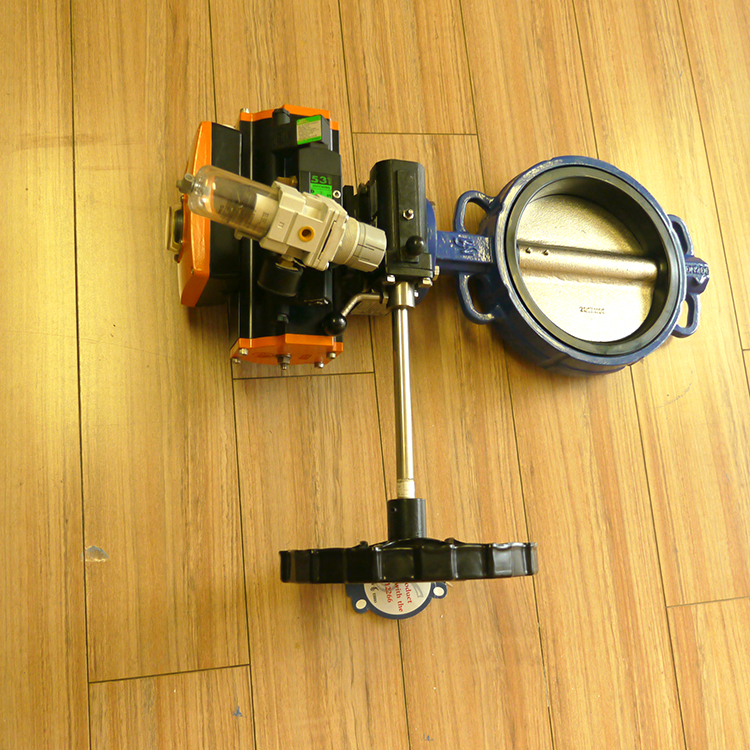

Wafer-style butterfly valves
The wafer style price butterfly valve is designed to maintain a seal against bi-directional pressure differential to prevent any backflow in systems designed for unidirectional flow. It accomplishes this with a tightly fitting seal; i.e., gasket, o-ring, precision machined, and a flat valve face on the upstream and downstream sides of the valve.
Lug-style butterfly valve
Lug-style valves have threaded inserts at both sides of the valve body. This allows them to be installed into a system using two sets of bolts and no nuts. The valve is installed between two flanges using a separate set of bolts for each flange. This setup permits either side of the piping system to be disconnected without disturbing the other side.
Triple-eccentric (offset) design and other type butterfly valve.
Properties test
| Item | Test standard Unit(MPa) | |||||||||
| 150Lb | 300Lb | 600Lb | 800Lb | 900Lb | 1500Lb | 1.6MPa | 2.5MPa | 4.0MPa | 6.3MPa | |
| Shell test(Water) | 3.0 | 7.5 | 16.5 | 21 | 22.5 | 37.5 | 2.5 | 3.75 | 6.0 | 9.45 |
| Hp seal test(Water) | 2.2 | 5.5 | 12.1 | 15.4 | 16.5 | 27.5 | 1.8 | 2.75 | 4.4 | 6.93 |
| Lp seal test(Air) | 0.5-0.7 | |||||||||
Constraction features
Main parts and materials
| No. | Accessary name | Material |
| 1 | Body | WCB |
| 2 | Seat | Rubber |
3 | Disc | WCB |
| 4 | Pin | 1Cr13 |
| 5 | Stem | 1Cr13 |
| 6 | Bolts | 35CrMoA |
| 7 | Handle | WCB |
| 8 | Worm gearing | Combined parts |
Technical specification
1.Design and manufacturing per GB/T 12238
2.Face to face dimensions per GB/T 12221
3.Flanged connection per GB/T 9913, JB/T 79
4.Test and inspection per JB/T 9092
5.Body material: WCB, CF8, CF8M, CF3, CF3M...
Main dimension and weights
| MPa | inch | mm | L | D | C | g | n-d | H | H1 | W | Kg |
| 1.0MPa | 2'' | 50 | 108 | 165 | 125 | 99 | 4-18 | 273 | 80 | 150 | 4.5 |
2?'' | 65 | 112 | 185 | 145 | 118 | 4-18 | 296 | 89 | 200 | 5 | |
| 3'' | 80 | 114 | 200 | 160 | 132 | 8-18 | 308 | 95 | 150 | 5.5 | |
| 4'' | 100 | 127 | 220 | 180 | 156 | 8-18 | 346 | 114 | 200 | 9.5 | |
| 6'' | 150 | 140 | 285 | 240 | 211 | 8-22 | 397 | 139 | 250 | 14 | |
| 8'' | 200 | 152 | 340 | 295 | 266 | 8-22 | 480 | 175 | 160 | 20 | |
| 10'' | 250 | 165 | 395 | 350 | 319 | 12-22 | 540 | 203 | 200 | 31 | |
| 12'' | 300 | 178 | 445 | 400 | 370 | 12-22 | 624 | 242 | 200 | 52 | |
| 14'' | 350 | 190 | 505 | 460 | 429 | 16-22 | 680 | 267 | 250 | 76 | |
| 16'' | 400 | 216 | 565 | 515 | 480 | 16-26 | 744 | 297 | 300 | 98 | |
| 18'' | 450 | 222 | 615 | 565 | 530 | 20-26 | 788 | 315 | 400 | 124 | |
| 20'' | 500 | 229 | 670 | 620 | 582 | 20-26 | 892 | 348 | 400 | 147 | |
| 24'' | 600 | 267 | 780 | 725 | 682 | 20-30 | 1076 | 444 | 500 | 204 |
