Vacuum transfer high definition printing slotting die cutting machine（6+1）

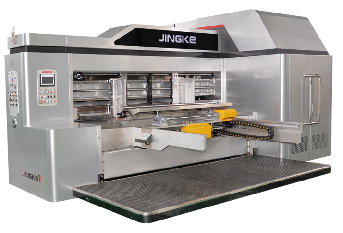

Feeder Unit：

◆Lead feeder with wheels feeding system, lead feeding can adjust cardboard  length according to cardboard specifications.

◆Frequency conversion adjustment vacuum negative pressure value, can adapt to different cardboard specification and curved cardboard.

◆Can be set up continuous or skip feeding cardboard.

◆Five rows brush and powerful negative pressure fan device, pipe concentrated dust collecting.

◆Optional vacuum transfer printing and independent force dust removal device.

◆The gears of whole machine is original from Taiwan.

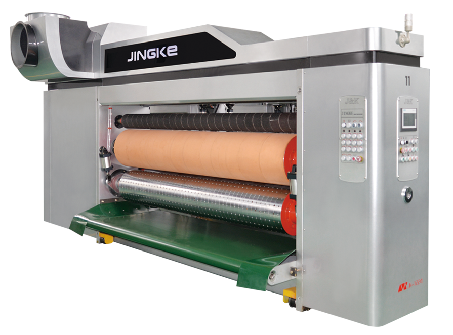

Printer Unit：

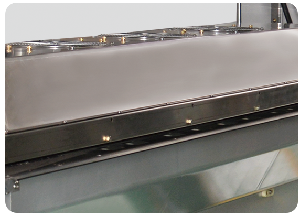

◆Vacuum adsorption ceramic wheels transfer,more rows ceramic wheels dislocation array to strengthen cardboard transmission stability.

◆The bellows damper can adjust by automatic according to the cardboard size:small,medium,large.

◆Avoid teeth and with positioning and automatic locking hangs device.

◆Precise integral net roller transmission structure, reduce the jump bar and double phenomenon.

◆Printing plate servo control, phase adjustment and print horizontal ball screw adjustment.

◆Can quickly change the anilox roller and rubber roller.

◆Anilox roller straight device, free chain or synchronous belt transmission.

◆Can choose single doctor blade or rubber roller two supply ink systems.

◆Anilox roller with automatic washing device,it's easy and quickly to receive the ink.

◆After the clean version can be automatically reset.

◆Adopts the efficient recovery system of double diaphragm pump and automatic valve change, recovery time is fast, ink waste reduction.

◆Every printing unit can choose hot air or infrared drying system.

Drying Unit：

◆Vacuum adsorption ceramic wheels transfer,more rows ceramic wheels dislocation array to strengthen cardboard transmission stability.

◆The bellows damper can adjust by automatic according to the cardboard size:small,medium,large.

◆Customers can choose three drying system according to their configuration:hot air or infrared or ultraviolet light.

◆The drying system by the import plc program automatic controlling,Man-machine dialog control and display.

◆Automatic temperature control, fault alarm protection, automatic detection alarm, fault status display.

◆The drying system can be activated or closed with the host double protection system ，It completely solves the problem of burning when the UV lamp is directly irradiated when the machine is down.

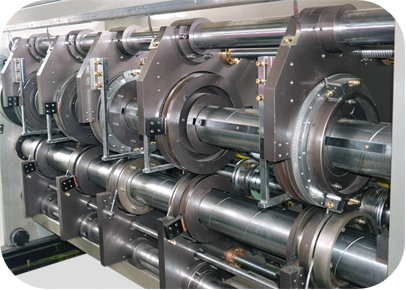

Slotter Unit：

◆Slotting unit six shafts design,pre-crease-crease-slotting.

◆Pre-crease is designed by compact structure, shaft diameter is bigger and good rigidity.

◆Double ball screw transverse adjusting structure, accurate for the blade, movement stability.

◆The blade seat transverse servo motor control, moving blade high precision and fast positioning.

◆The blade seat transverse graphite copper transverse, wear-resisting, maintenance is convenient.

◆Elastic Angle cutter structure，cut three layer and five layer cardboard no need to adjust.

◆Can choose make hole device.

Die cutting Unit：

◆Die cutting pressure: under the eccentric adjustment structure, gravity downward to reduce the mold base beating.

◆The anvil cover roller with mechanical horizontal moving device, along with the machine speed to adjust adaptive transversal velocity.

◆The anvil cover roller with separate motor drive,can compensate the carton length.

◆Optional die-cutting independent servo drive.

◆With repair anvil cover device.

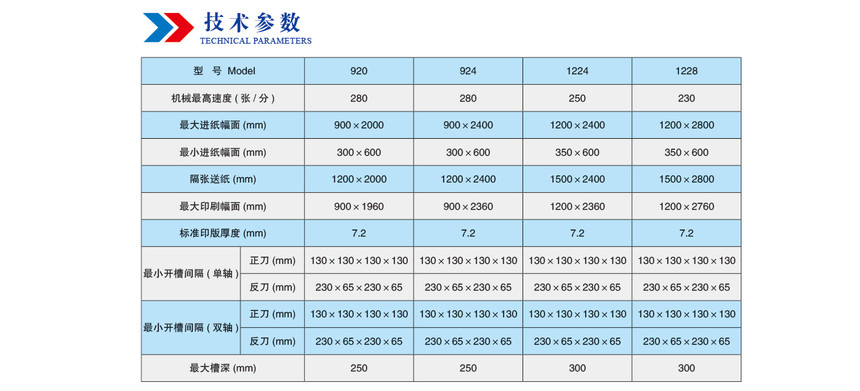

                                This printing machine model number be arrived by 920mm to1650mm all can make to order.
