milling cutterendmillcarbide end millHRC55 Ball Nose End millBall Noseend mill cuttersHRC 45/55/65 Cutters
L/CT/TWestern UnionPaypalOthers

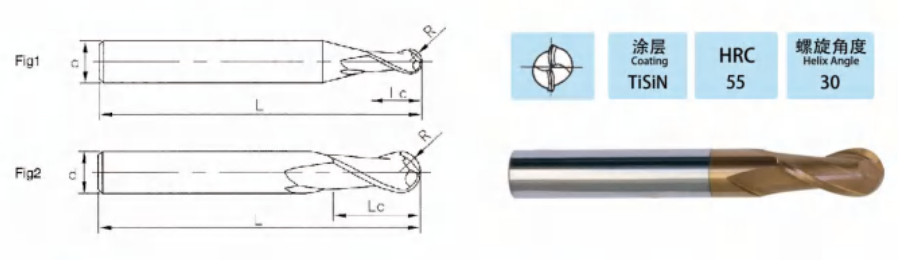

| MTS HRC55 2 Flutes Ball Nose End Mill | |||||
| Code NO. | Cutting Edge diameter(D) | Shank Diameter(d) | Edge length(L1) | Flute(F) | Total length(L) |
| R0.5*4D*50L-2T | R0.5 | 4 | 2 | 2 | 50 |
| R0.75*4D*50L-2T | R0.75 | 4 | 3 | 2 | 50 |
| R1.0*4D*50L-2T | R1.0 | 4 | 4 | 2 | 50 |
| R1.25*4D*50L-2T | R1.25 | 4 | 5 | 2 | 50 |
| R1.5*3D*50L-2T | R1.5 | 3 | 6 | 2 | 50 |
| R1.5*4D*50L-2T | R1.5 | 4 | 6 | 2 | 50 |
| R1.75*4D*50L-2T | R1.75 | 4 | 7 | 2 | 50 |
| R2.0*4D*50L-2T | R2.0 | 4 | 8 | 2 | 50 |
| R2.5*5D*50L-2T | R2.5 | 5 | 10 | 2 | 50 |
| R2.5*6D*50L-2T | R2.5 | 6 | 10 | 2 | 50 |
| R3.0*6D*50L-2T | R3.0 | 6 | 12 | 2 | 50 |
| R4.0*8D*60L-2T | R4.0 | 8 | 16 | 2 | 60 |
| R5.0*10D*75L-2T | R5.0 | 10 | 20 | 2 | 75 |
| R6.0*12D*75L-2T | R6.0 | 12 | 24 | 2 | 75 |
| R7.0*14D*100L-2T | R7.0 | 14 | 28 | 2 | 100 |
| R8.0*16D*100L-2T | R8.0 | 16 | 32 | 2 | 100 |
| R9.0*18D*100L-2T | R9.0 | 18 | 36 | 2 | 100 |
| R10.0*20D*100L-2T | R10.0 | 20 | 40 | 2 | 100 |
| R0.5*4D*75L-2T | R0.5 | 4 | 2 | 2 | 75 |
| R0.75*4D*75L-2T | R0.75 | 4 | 3 | 2 | 75 |
| R1.0*4D*75L-2T | R1.0 | 4 | 4 | 2 | 75 |
| R1.5*4D*75L-2T | R1.5 | 4 | 6 | 2 | 75 |
| R2.0*4D*75L-2T | R2.0 | 4 | 8 | 2 | 75 |
| R3.0*6D*75L-2T | R3.0 | 6 | 12 | 2 | 75 |
| R4.0*8D*75L-2T | R4.0 | 8 | 16 | 2 | 75 |
| R2.0*4D*100L-2T | R2.0 | 4 | 8 | 2 | 100 |
| R3.0*6D*100L-2T | R3.0 | 6 | 12 | 2 | 100 |
| R4.0*8D*100L-2T | R4.0 | 8 | 16 | 2 | 100 |
| R5.0*10D*100L-2T | R5.0 | 10 | 20 | 2 | 100 |
| R6.0*12D*100L-2T | R6.0 | 12 | 24 | 2 | 100 |
| R3.0*6D*150L-2T | R3.0 | 6 | 12 | 2 | 150 |
| R4.0*8D*150L-2T | R4.0 | 8 | 16 | 2 | 150 |
| R5.0*10D*150L-2T | R5.0 | 10 | 20 | 2 | 150 |
| R6.0*12D*150L-2T | R6.0 | 12 | 24 | 2 | 150 |
| R7.0*14D*150L-2T | R7.0 | 14 | 28 | 2 | 150 |
| R8.0*16D*150L-2T | R8.0 | 16 | 32 | 2 | 150 |
| R9.0*18D*150L-2T | R9.0 | 18 | 36 | 2 | 150 |
| R10.0*20D*150L-2T | R10.0 | 20 | 40 | 2 | 150 |
Raw materil:Using Zigong ZK30UF, High hardness, Good wear resistance and corrision resistance
Customized products are available.
