Functions and characteristics: 1. The machine is driven by servo of Japanese An Chuan and Mitsubishi brands, which is precise and accurate, and has few mechanical transmission parts, which can effectively reduce the failure rate of machinery; 2. The contactor in the whole control box adopts Mitsubishi brand of Japan; 3. The relay adopts Schneider brand in France, the circuit breaker adopts Mitsubishi brand in Japan, and the photoelectric and proximity switch adopts Omron brand in Japan. Cylinder and solenoid valve are Taiwan Yadeke brand; 4. The whole set of nail heads are all made of special steel and are precisely processed by computer numerical control; 5. The bottom die and blade are made of Japanese tungsten steel (wear resistance); 6, can be nailed with a cover box; 7. The driving force of the nail head is Yaskawa servo motor, and the mechanical speed is 800 nails/minute; 8. This machine adopts ten servo drive motor systems; 9. One machine can be used for both purposes, and one-piece nail carton and two-piece nail carton can be nailed; 10. Single nail can be nailed, and double rows of nails can be completed at one time; 11. The stacking department automatically counts and outputs, and the finished products are sent out for easy bundling; 12. The machine adopts computer screen to display fault description; 13, the whole machine electrical isolation transformer protection device; 14, automatic wire feeding system, no wire alarm, 20KG large plate of flat wire, saving time; 15. It is applicable to three, five and seven layers of corrugated board (special instructions are required for the seventh layer).

 Detailed description:

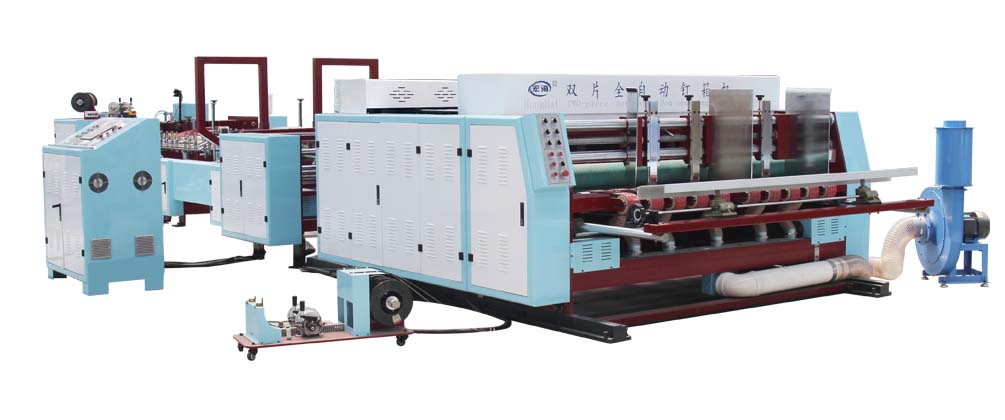

  Two-piece full-automatic box nailing machine is composed of seven parts: leading edge adsorption paper feeding part, thread touching part, paper receiving part, folding part, nail box part, counting output part and electric appliance control part. PLC is used to control the touch screen to input data, and the action of nail box is controlled by servo motor. The operation is simple and reliable. Automatic paper feeding, automatic line touching, automatic folding, automatic correction, automatic nailing, automatic counting and automatic stacking output. Advanced technology and reliable quality.

 A. paper feeding part and line touching part:

1. The main motor adopts frequency conversion speed regulation, the system has no noise, and the speed regulation is flexible and stable.

 2. Using double servo paper feeding mode, the adjustment is stable, efficient and accurate.

 3. After feeding paper, touch the cardboard to achieve better nail box effect.

 4. The front paper feeding part can be electrically adjusted, which is suitable for the paper supply requirements of cartons of various specifications, and is convenient and quick.

 5. Equipped with side lapping device to ensure that paper feeding is not skewed.

  B, head nail box:

 The leading edge is sent into the nail box of the head group, and the nail hole of the head group can be finely adjusted and controlled to meet the standard requirements.

C. paper receiving part:

 The paper receiving part is a buffer connection for the cardboard nailed by the head group to be input into the folding part immediately after being sent out.

  D, folding part

 1, linked with the paper supply department, frequency conversion speed regulation.

 2. Imported porous belts are used to transport cardboard, which is automatically folded and adsorbed in the whole process, thus effectively avoiding the phenomenon of skew and slipping sheet piling in the work of various cardboard such as weighting boxes, laminating boxes and glazing boxes, and making the whole machine more stable and efficient.

 E, correction department

 1. There will be a shaping device behind the folding part and in front of the nail box, and the folded carton will be shaped and snapped again before the nail box, so as to ensure that the nailed carton has no scissors mouth.

2. Servo motor is used in the correction section.

   F, nail box

 1. The head of nail box is made of special material, which is wear-resistant and not easy to be damaged.

 2. The machine features that the machine head is directly driven by servo motor, and the speed is stable and accurate

3. Two sets of 20kg large flat wire automatic wire feeding devices are used for nailing at one time, which reduces the number of wire changes and improves the production efficiency; The nail wire model needs special customization.

 4. This machine can implement the multifunctional operation of single nail and double nail for cartons.

 5. The nail speed per minute can reach 800 nails/minute

G、Counting and stacking output unit

Complete the carton, and then pat, count, stack and send out the carton automatically.
