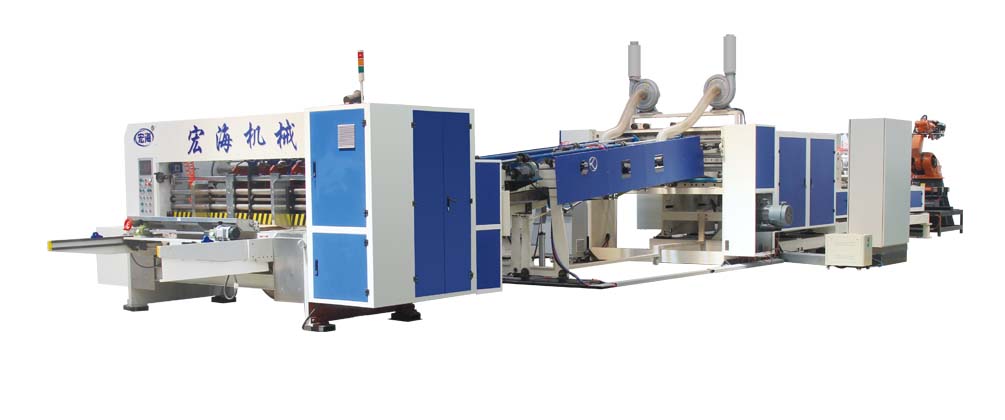

Intelligent automatic down folding double head nail binding production line Configuration list

Functions and features：

? The whole process adsorption ensures that the paperboard is not inclined;

? Host frequency control, rolling line, power servo motor whole process internal and external control;

? The power difference between the upper and lower belts comes from the servo motor;

? Roller is standard for gluing, and dispensing machine is optional;

? Two nail heads can be switched arbitrarily;

? The two heads can switch freely, and the speed of the nail head is high, up to 1200 nails / min；

? The whole machine is adjusted automatically；

? Can realize single order, double nail free switching；

? 20kg staple thread, automatic thread change；

? It can change the nail line without stopping the machine.

detailed description：

This machine is specially designed for the following process of printing press or forming machine.

The whole machine is controlled by the control system for the operation and adjustment of the whole machine. All servo motors of the whole machine are of the absolute value type. The optical fiber transmission speed of the whole machine is high and the response is fast. The speed of the whole machine can be adjusted automatically according to the speed of the previous process machine.

This machine is characterized by high speed, good molding effect, high efficiency and good environmental protection.

1、Folding part：

This part is the down folding part. After the previous process, it passes through the secondary rolling line. During the whole folding process, all the cartons are folded under the control of the line. During the folding process, there are devices to control the rolling line inside and outside, which can control the size and size of the folded carton and scissors fork.

2、Nail box：

The invention patent of the whole machine, two heads can be used in the process of nailing box, and one head can be switched at will, which ensures that the machine stops due to changing the nail line in the process of nailing box, and all the power comes from the servo motor.

3、Counting and stacking section：

This unit adopts the second beat up device, frequency conversion speed regulation, good effect, fast speed and accurate counting.

Main mechanical parameters：

Parameters of stacking section：

Main components：

1. Servo motor and PLC are Japanese Mitsubishi brands；

2. The servo motor reducer is Taiwan Liming or Faston brand；

3. Contactor, circuit breaker, intermediate relay, frequency converter and touch screen are Japanese Mitsubishi brand；

4. Photoelectric switch and proximity switch are Omron brand；

5. The main components of the nail head are assembled by Taiwan parts; the cutting blade and bottom die are made of tungsten steel imported from Germany；

6. All parts of the machine are processed by precision CNC machining center；

7. The whole machine is adjusted by order, and the order storage is 999. It takes only 1-3 minutes to adjust the size, which is controlled by the whole computer, fast and accurate.
