water filter valve water softener valve control valves

ID:20110431328

Category: Manufacturing & Processing Machinery Valves & Pumps & Compressors

FOB Price:US$ 6.000 / Piece(s)

MOQ:1.00 Piece(s)

Product Keywords:

Auto Valvesvalvewater filter valvemanual valveManual filter valve control valve automatic softener valveautomatic valvewater treatment productsWater Filter Parts

Payment Method:

L/CT/TD/P

Product Category

Manufacturing & Processing Machinery > Valves & Pumps & Compressors

Trademark

Product Package

Specification

Place of Origin

Port

Shanghai

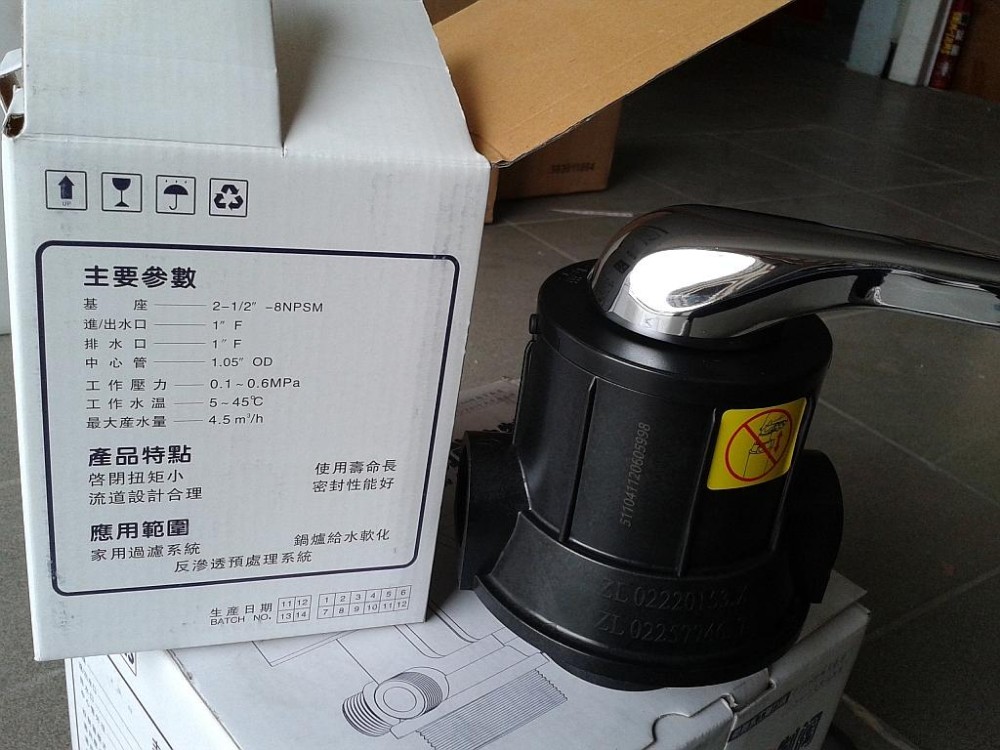

manual filter valve back flush runxin control valve F56A 51104

Technical Parameters:
Water Pressure----------------------------------------------0.15—0.6MPa
Water Temperature-----------------------------------------5℃-45℃
Water Turbidity-----------------------------------------------<20FTU
Inlet/Outlet-----------------------------------------------------1″F
Drain------------------------------------------------------------1″F
Base-------------------------------------------------------------2.5″-8NPSM
Riser Pipe------------------------------------------------------1.05″OD
Max Flow Rate-------------------------------------------------4 m3/h
Suitable Tank Size (in)---------------------------------------6″~12″

Product Characteristics:
It adopts hermetic head faces with high degree pottery and corrosion resistance for opening and closing.
No water passes the valve in rinse in single tank type.
Reasonable design of the flow passage: Service→ Fast Rinse→ Backwash → Fast Rinse → Backwash →Service.
It can be changed to be side-mounted valve with side-mounted connector.
It can operate under pressure, without leakage.

Range of Application:
Residential filtration system
Swimming pool filtration equipment
Active carbon or sand filter in RO pretreatment filtration system
