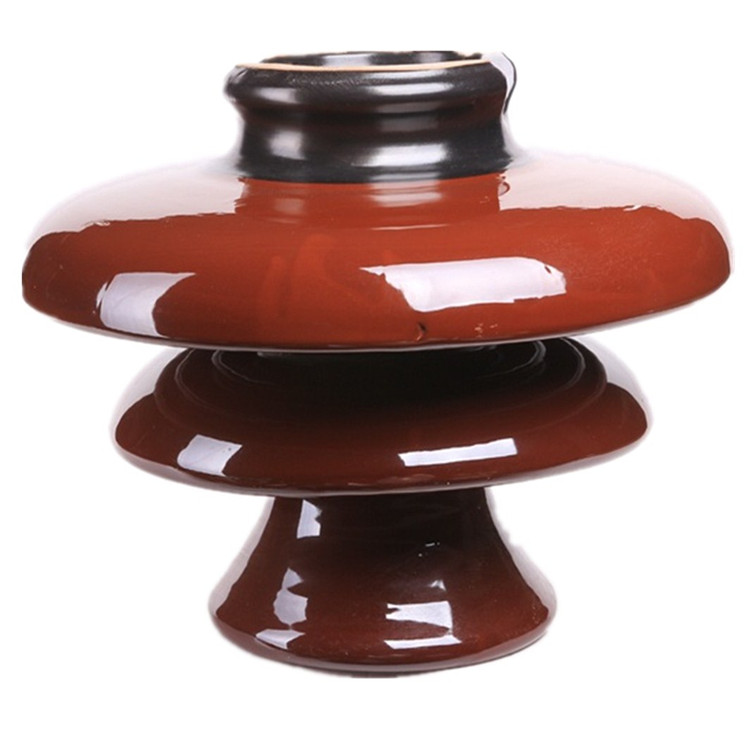

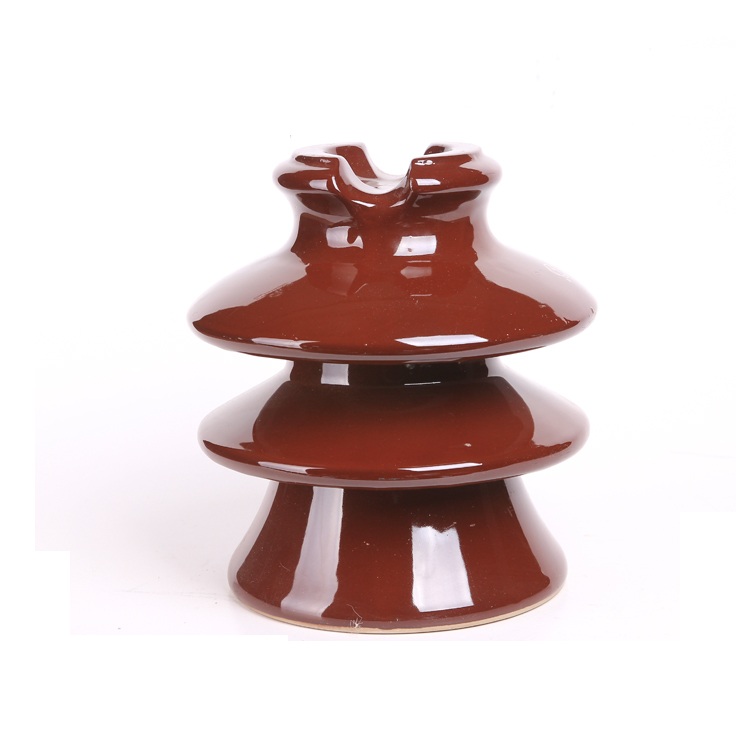

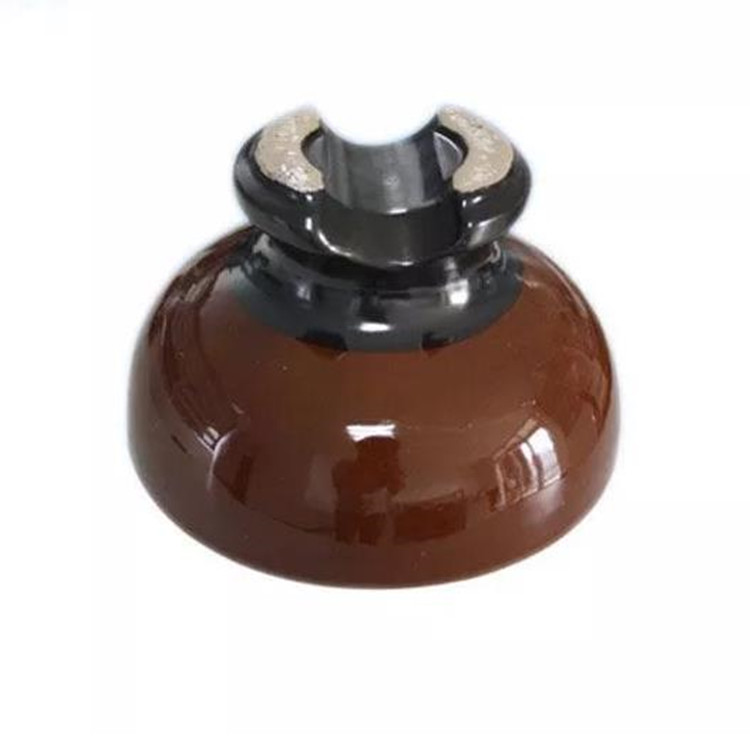

porcelain insulator 53-2 power insulator ASTM Standard insulator power line Accessories Shackle Insulator (ED-2B)insulator 56-2 12kv pin type insulator
L/CT/TD/PWestern UnionPaypalMoney Gram

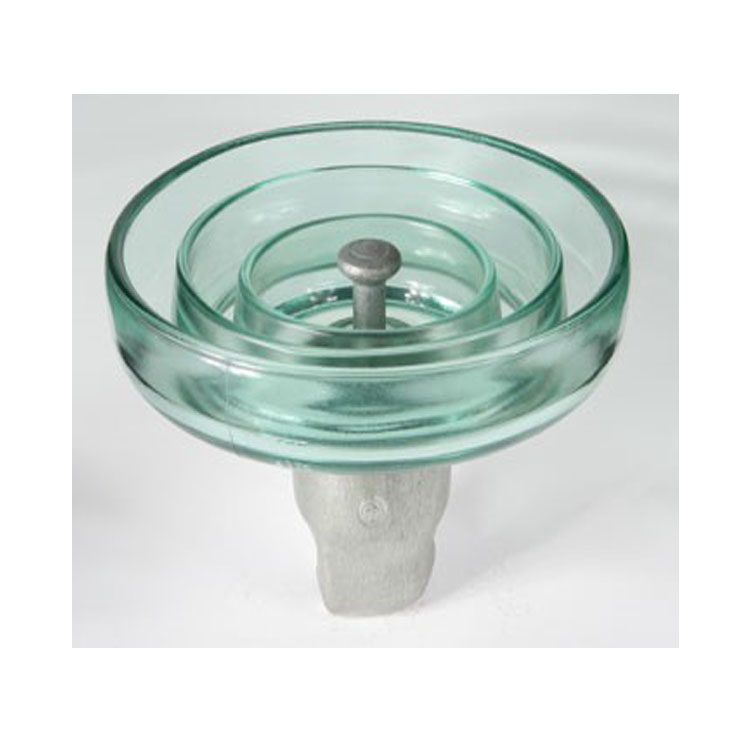

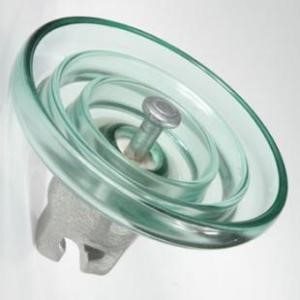

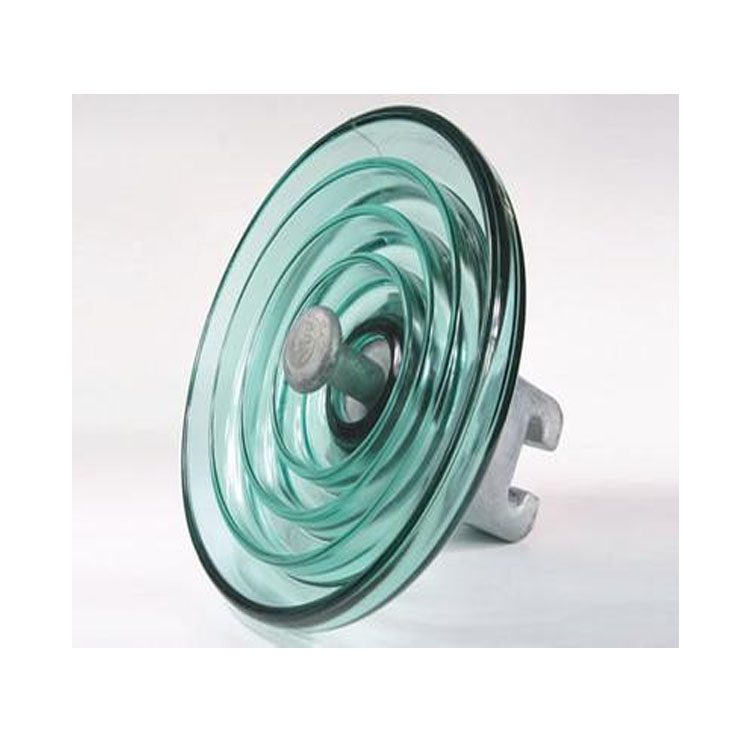

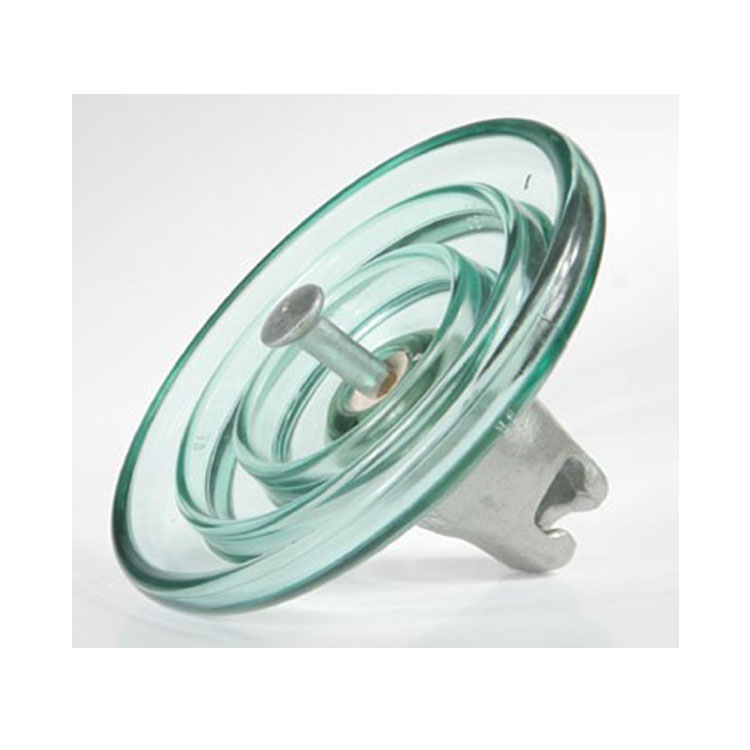

Supply Aerodynamic Type Toughened Glass Disc Insulators
suspension insulators
The porcelain insulator are used on substation & transmission Line. It helps to support and hand wire, insulation wires against tower.
Advantage:
1, Strong aging resistance
2, Long service life
3, Reasonable price
4, Porcelain uniform
5, Nice Appearance
6, Superior properties of high and low tempreture resistance,
mechnical capability, electrical function.
Parameter Table
| CLASS IEC | XHP-120 | ||
| U120BP | |||
| Unit spacing(H) mm | 146 | ||
| Nominal Creepage Distance (L) mm | 432/450 | ||
| Power Frequency Withstand Voltage | Dry (KV) | 80 | |
| Wet(KV) | 45 | ||
| Dry Lightning Impulse Withstand Votlage (KV) | 120 | ||
| Power Frequency Withstand Votlage | 120 | ||
| Nominal Dianeter (D) mm | 255/280 | ||
| Impulse Failing Load N·m | 7 | ||
| Roune Tension Load KN | 60 | ||
| Unit Mass | 760/820 | ||
Table shows typical models. Higher voltages and other dimensions or fittings combinations are available on request.
