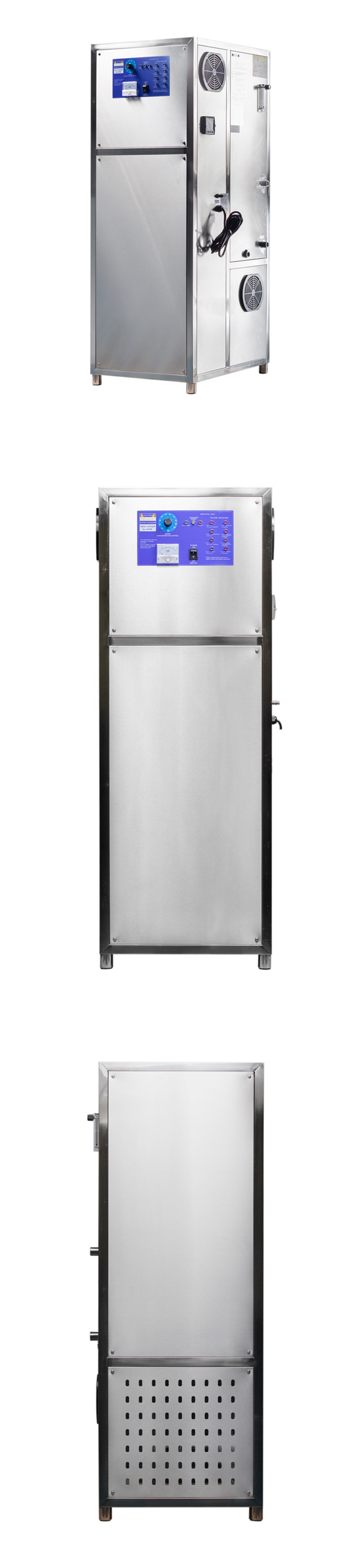

BNP SOZ-YOW-40g50g60g80g100g industrial integrated water ozone generator with oxygen concentrator

Product Detail:

The seires of product utilize oxygen from internal oxygen generator as gas source and high concentration ozone is generated by ozone generaion part.The product has integrated oil-free air compressor and filtering system thus ozone is produced  by just power on it.The products use heat-resistant HQG non-glass structure discharge unit(BNP patent),the structure is extremely stable,has long lifespan and high discharge efficiency and not easily damaged in case of back flow water.

Product Features:

1. This seires of products use American zeolite molecular sieve adsorbent,separating oxygen from nitrogen in the air using pressure swing adsorption(PSA) pricinple,filtering other substances in the air to obtain a high concentation oxygen in line with medical oxygen standards.

2. Multi-point malfuction monitoring,main board temperature detection,high voltage transformer temperature detection,cooling water temperature detection,PSA input air temperature detection,backflow water detection.The equipment stops opereating and the corresponding fault indicator on the control panel lights up when a fault is detected.

3. Standard 4~20mA signal control.

4. The whole gas circuits work in low pressure which makes it safe and reliable.

5. Air source input with no additive required and lower power consumption which ensures lower total cost.

6. Two oxygen generation units work alternatively and automatically.

Component:

1.PSA oxygen generation units(American UOP modular sieve)
2.Heat exchanger
3.Solenoid valve(CKD and SMC from Japan, AIRTAC and SNS from Taiwan)
4.Switching board
5.Strong ozone generator unit
6.Oil free air compressor
7.Ozone generation unit
8.Intelligent control system
9.Ammeter
10.Taiwan 150 type fan
11. Gas flow meter
12.Ozone regulation knob etc
13.Temperature controller

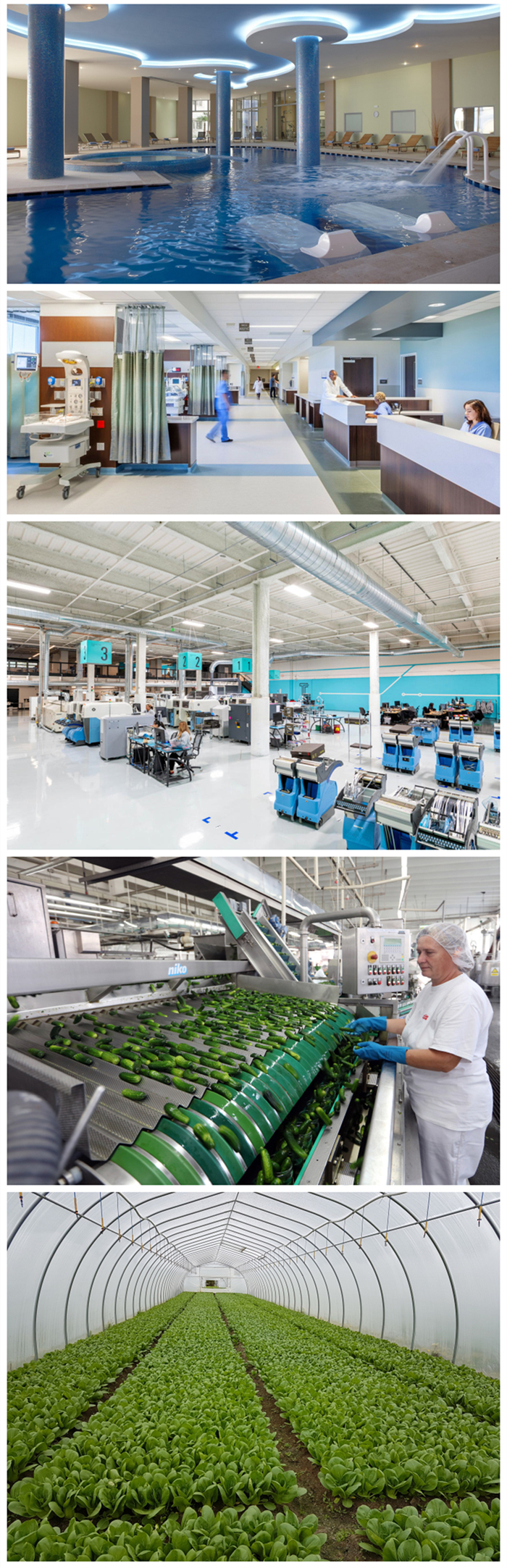

Application

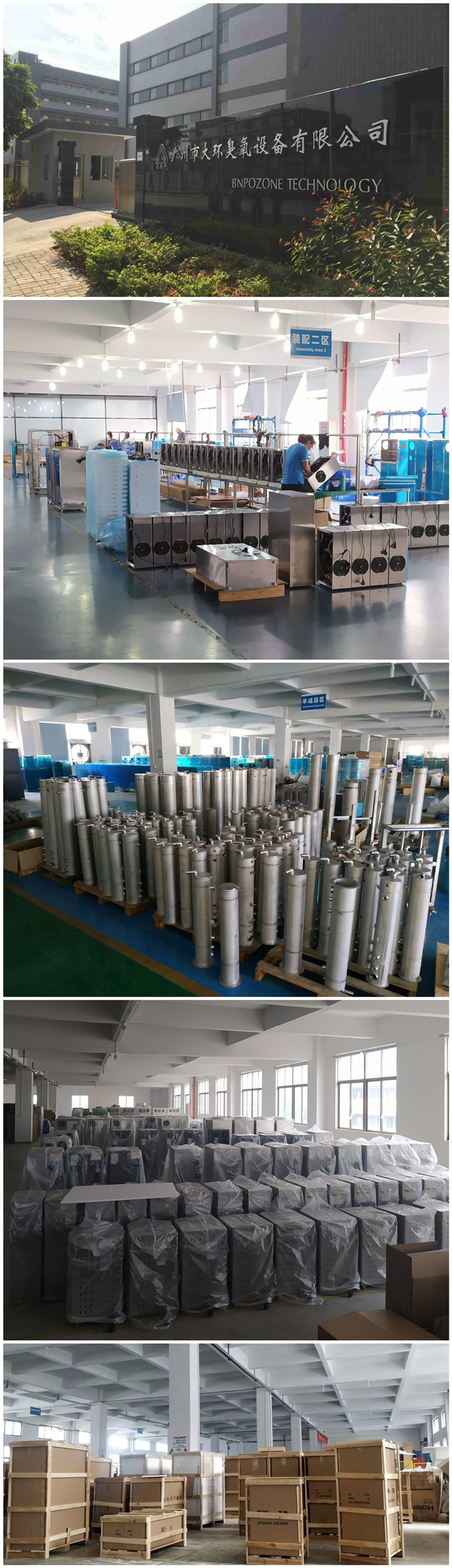

Factory Details
