4 6 12 core SM MM ADSS fiber optic cable

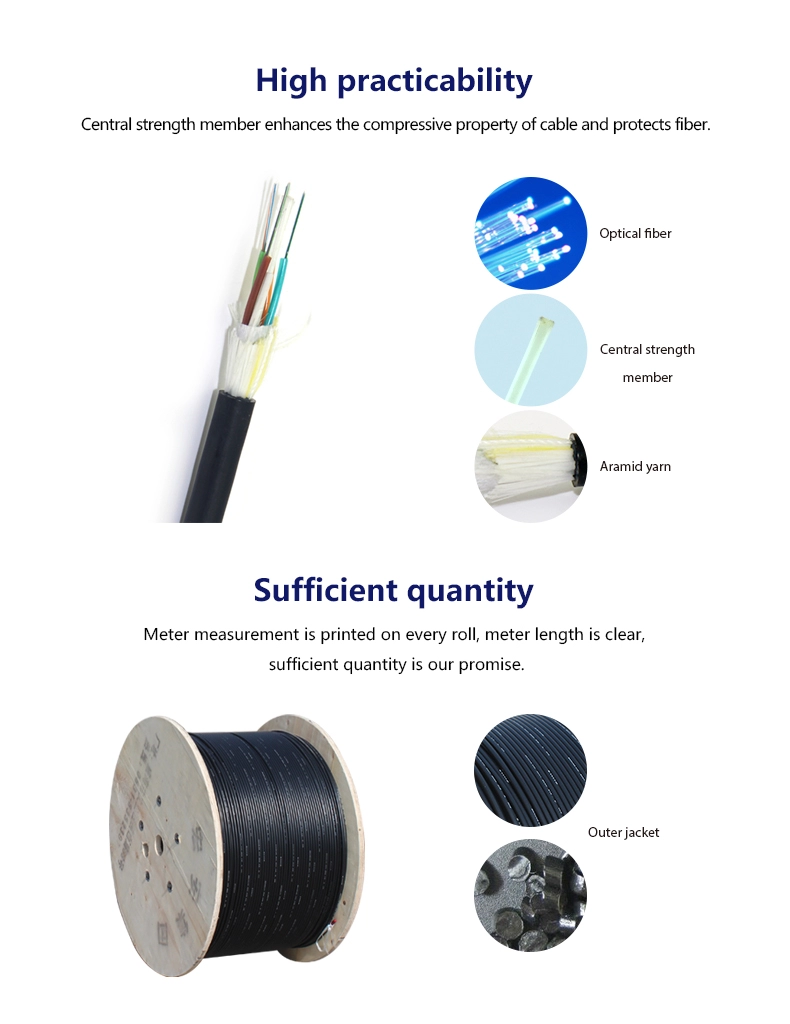

All-dielectric self-supporting (ADSS) cable is a type of optical fiber cable that is strong enough to support itself between structures without using conductive metal elements. It is used by electrical utility companies as a communications medium, installed along existing overhead transmission lines and often sharing the same support structures as the electrical conductors.ADSS is an alternative to OPGW and OPAC with lower installation cost. The cables are designed to be strong enough to allow lengths of up to 700 metres to be installed between support towers. ADSS cable is designed to be lightweight and small in diameter to reduce the load on tower structures due to cable weight, wind, and ice.

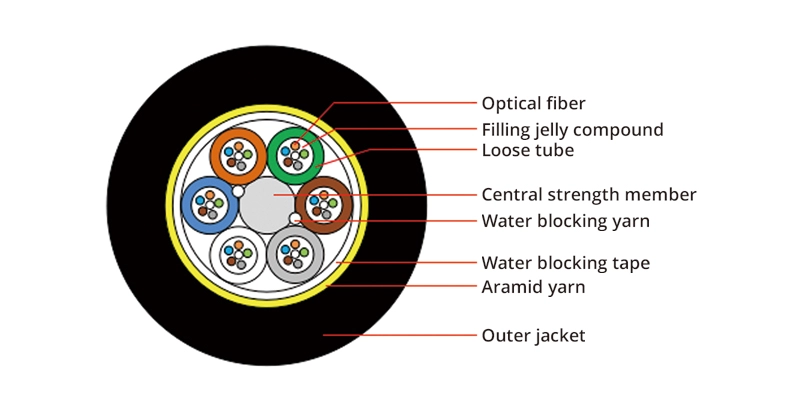

Fiber count | Structure | Fibers per tube | Loose tube diameter(mm) | CSM diameter/pad diameter(mm) | Thickness of outer jacket(mm) | Cable diameter(mm) | Cable weight(kg/km) |
4 | 1+6 | 4 | 2.0±0.1 | 2.3/2.3 | 1.7±0.1 | 10.5±0.5 | 82 |
6 | 1+6 | 6 | 2.0±0.1 | 2.3/2.3 | 1.7±0.1 | 10.5±0.5 | 82 |
8 | 1+6 | 4 | 2.0±0.1 | 2.3/2.3 | 1.7±0.1 | 10.5±0.5 | 82 |
12 | 1+6 | 6 | 2.0±0.1 | 2.3/2.3 | 1.7±0.1 | 10.5±0.5 | 82 |
24 | 1+6 | 6 | 2.0±0.1 | 2.3/2.3 | 1.7±0.1 | 10.5±0.5 | 83 |
36 | 1+6 | 6 | 2.0±0.1 | 2.3/2.3 | 1.7±0.1 | 10.5±0.5 | 84 |
48 | 1+6 | 12 | 2.2±0.1 | 2.6/2.6 | 1.7±0.1 | 11.1±0.5 | 94 |
72 | 1+6 | 12 | 2.2±0.1 | 2.6/2.6 | 1.7±0.1 | 11.1±0.5 | 95 |
96 | 1+8 | 12 | 2.2±0.1 | 3.0/3.9 | 1.7±0.1 | 12.5±0.5 | 122 |

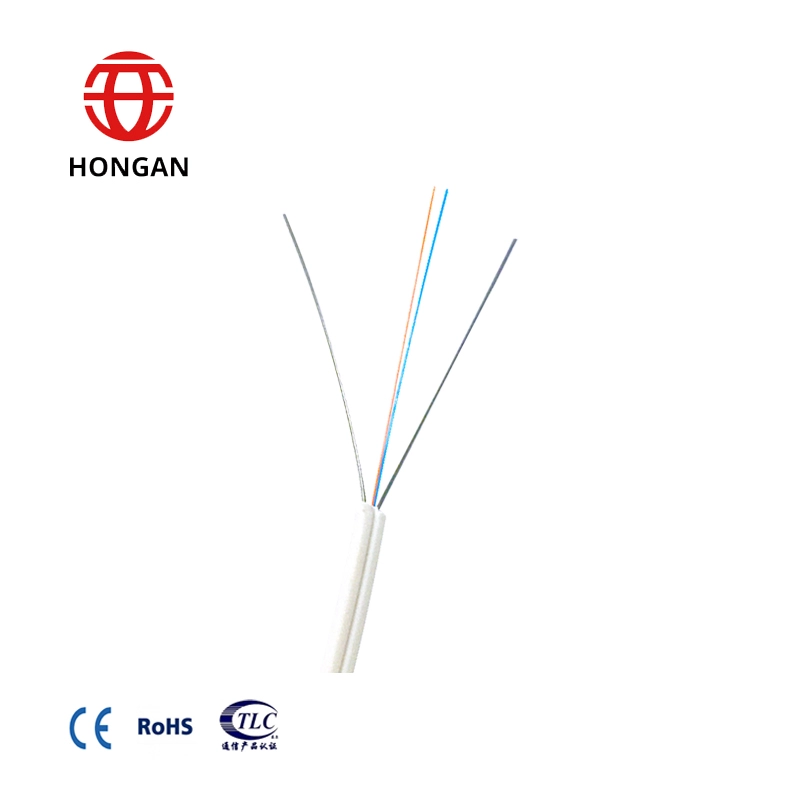

Indoor FTTh drop cable

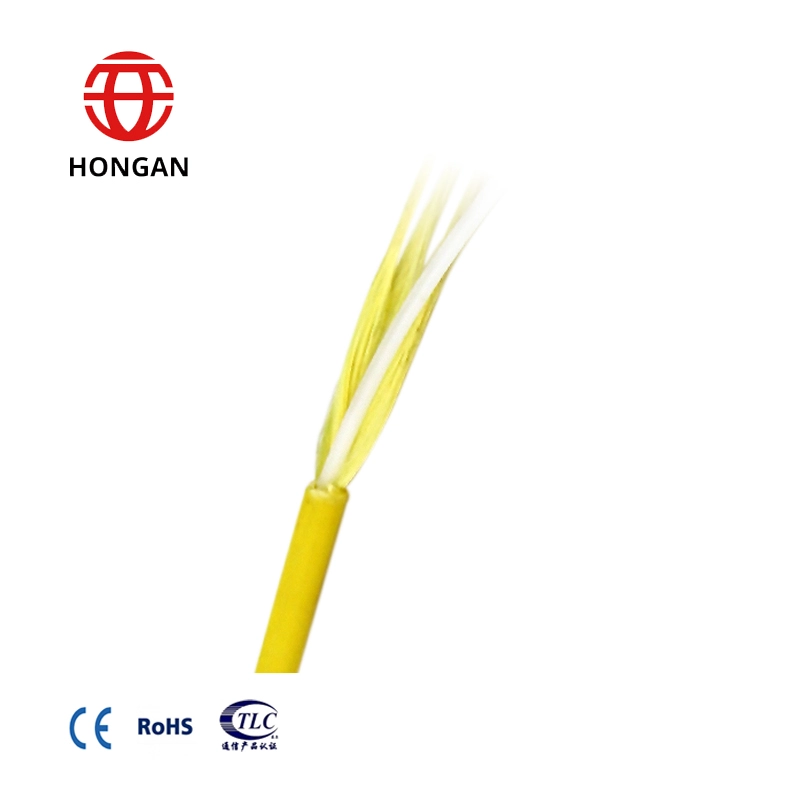

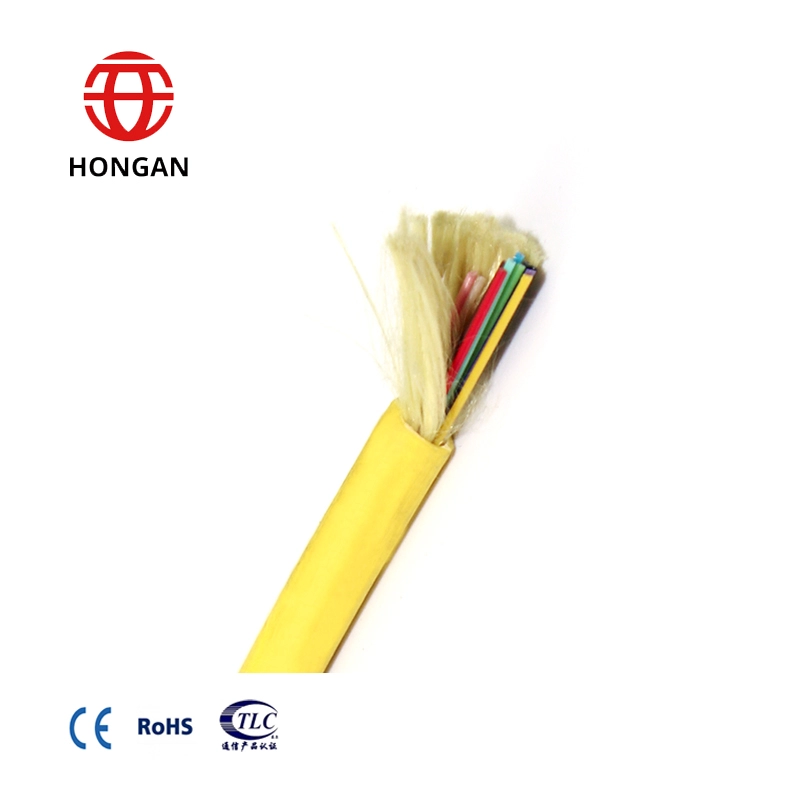

Tight buffer cable
Roud distribution cable GJPFJH

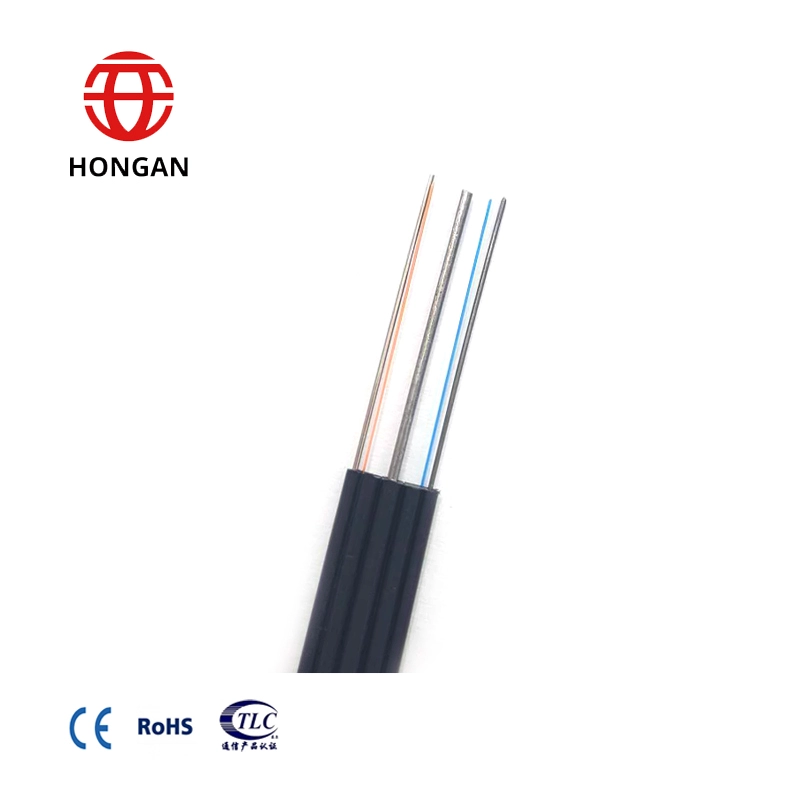

Twin drop cable GJYXCH

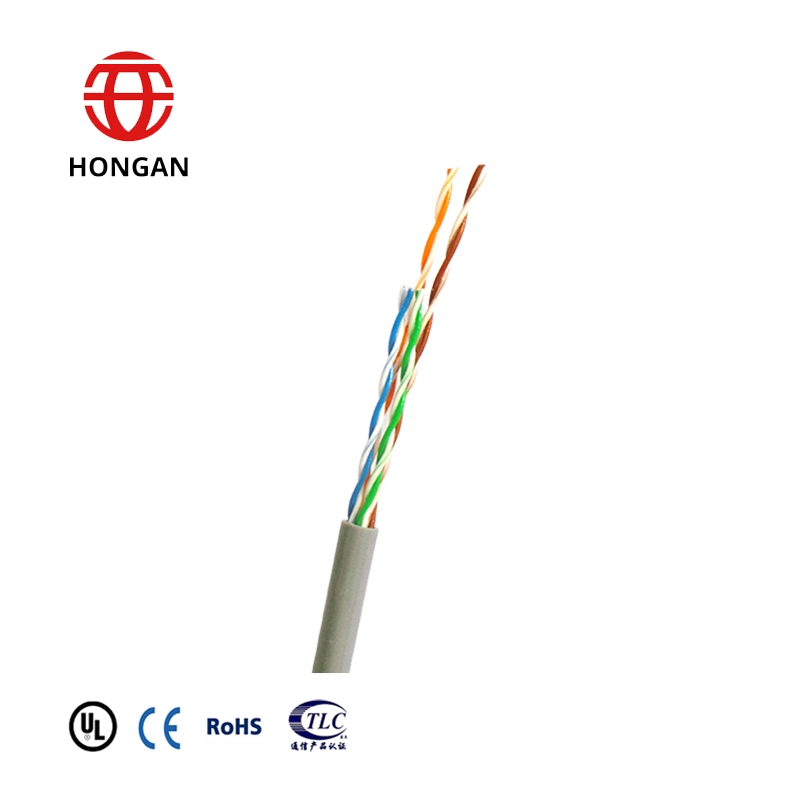

Cat5e network lan cable

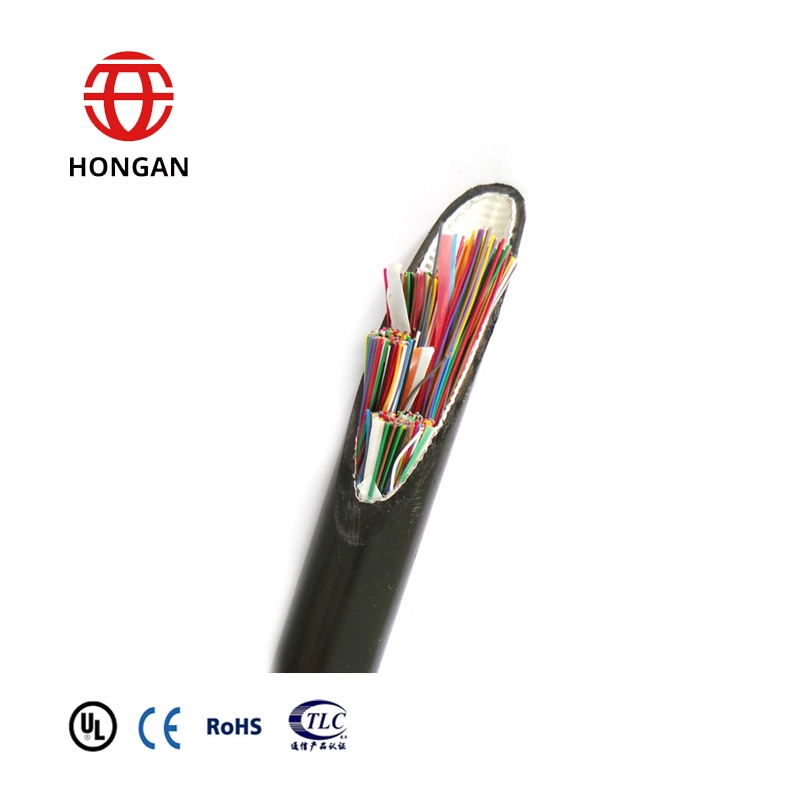

Telephone cable HYA

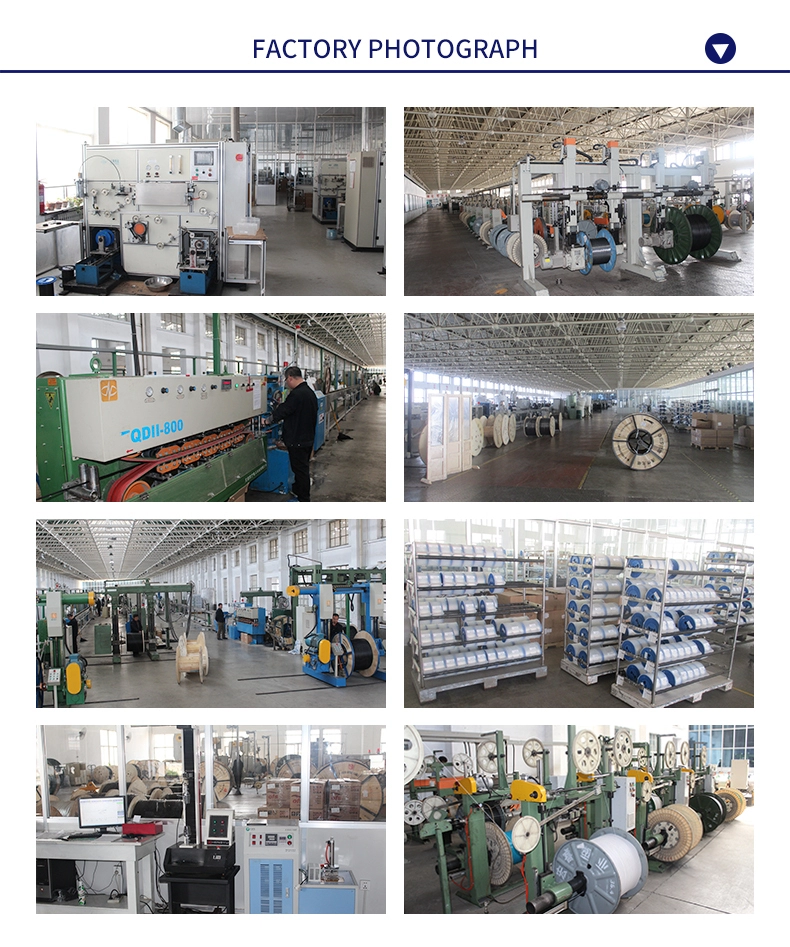

Yes,our factory, locates in Shandong Province, with more than 30 years experience,near to Qingdao Port. Welcome to visit.
Most fiber is from Weixin, a fiber brand owned by Hongan ourselves. But we also purchase fiber from Corning, YOFC and other brands.
Our main products are outdoor and indoor fiber optic cable, FTTx cable, network cable and telephone cable.
30% in advance, 70% before delivery.
