All-dielectric self-supporting (ADSS) cable is a type of optical fiber cable that is strong enough to support itself between structures without using conductive metal elements. It is used by electrical utility companies as a communications medium, installed along existing overhead transmission lines and often sharing the same support structures as the electrical conductors.
ADSS is an alternative to OPGW and OPAC with lower installation cost. The cables are designed to be strong enough to allow lengths of up to 700 metres to be installed between support towers. ADSS cable is designed to be lightweight and small in diameter to reduce the load on tower structures due to cable weight, wind, and ice.

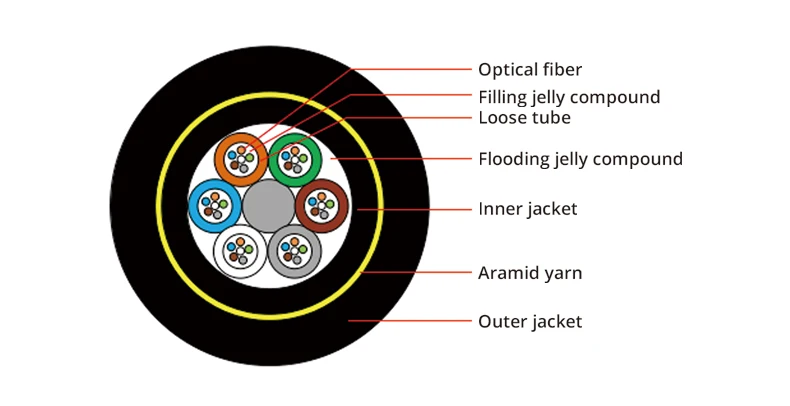

Item | Parameters | |
Loose tube | Material | PBT |
Color | All colors display | |
Filler | Material | PE |
Color | Black | |
CSM | Material | FRP |
Inner jacket | Material | MDPE |
Color | Black | |
Non-metal reinforced pieces | Material | Aramid yarn |
Outer jacket | Material | MDPE |
Color | Black | |
Min. bending radius | Static | 12.5 times cable diameter |
Dynamic | 25 times cable diameter | |
Repeating bending | Load：150N;number of cycles:30 No obvious addition attention, no fiber break and no cable damage. | |
Tensile performance | RTS MAT EDS 21000 9200N 5000 | |
Crush | Short term | 3000N/100mm |
Torsion | Load：150N; number of cycles:10; twist angle:±180° No obvious addition attention, no fiber break and no cable damage. | |
Impact | Impact energy：450g×1m; radius of hammer head:12.5mm; number of impact: 5 No obvious addition attention, no fiber break and no cable damage. | |

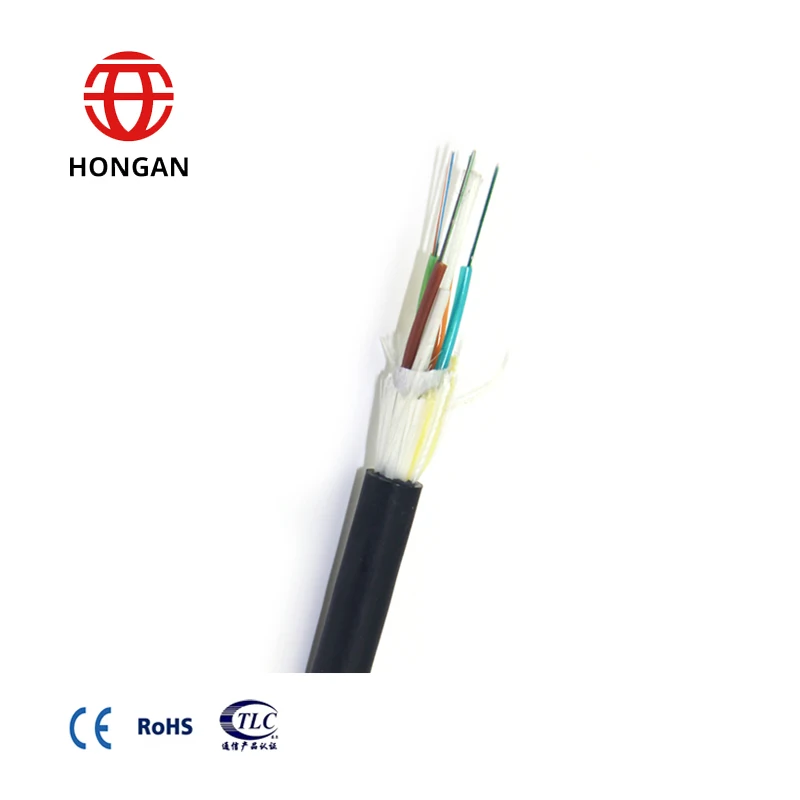

Single sheath ADSS

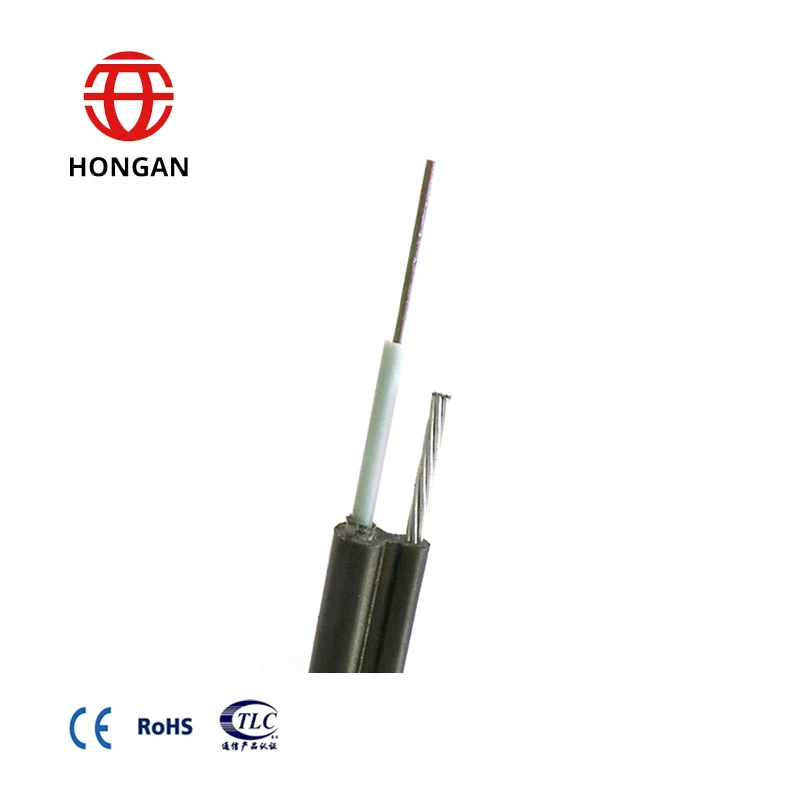

Figure 8 GYXC8Y
Parallel Wire GYXTW

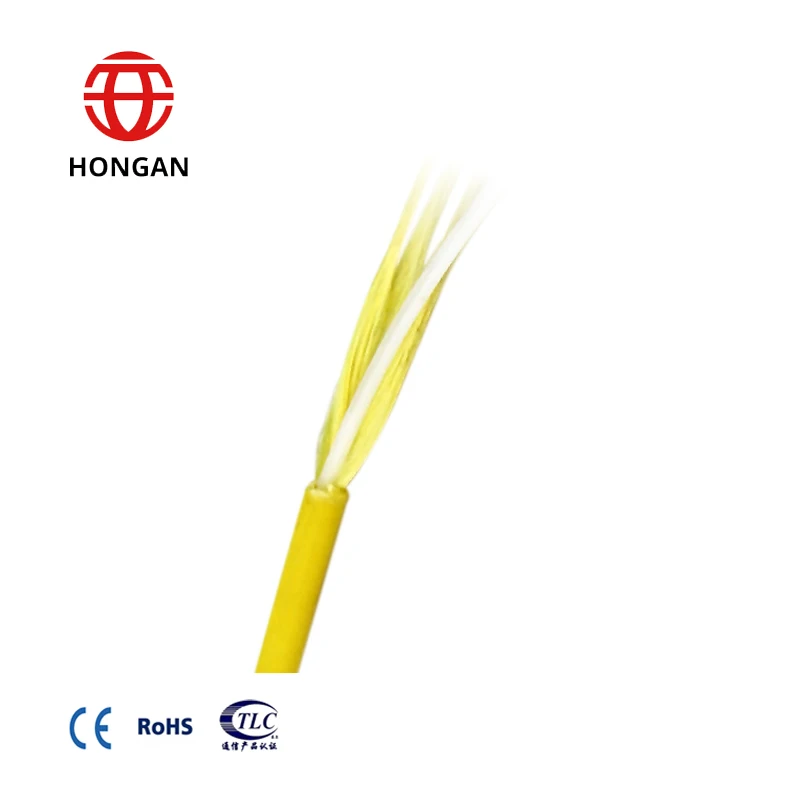

Tight buffer GJFJH

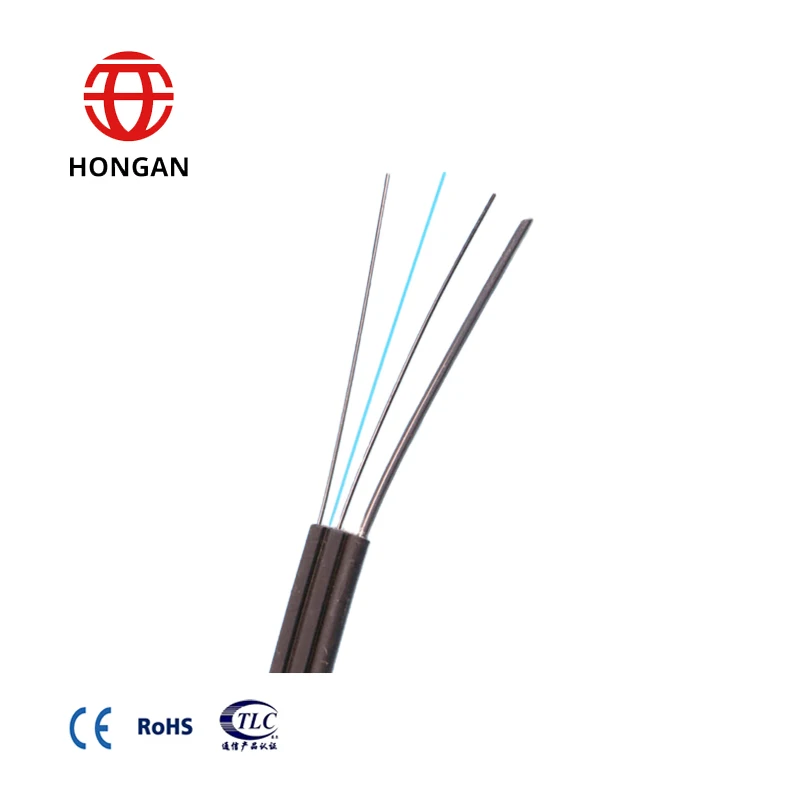

Indoor drop cable GJYXCH

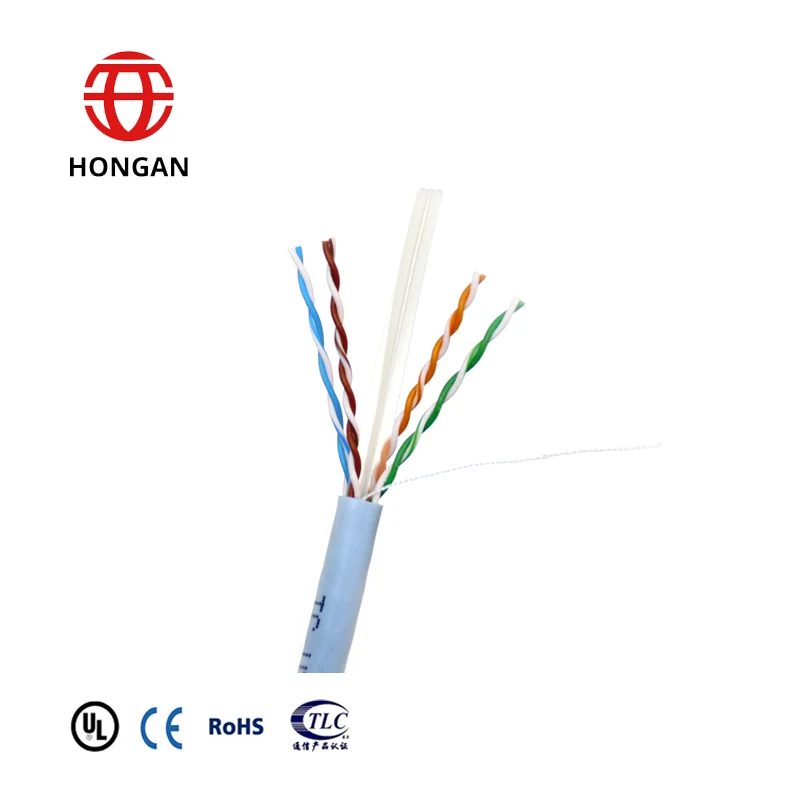

CAT6 network cable
Yes,our factory is located in Shandong Province, near to Qingdao Port，having more than 30- years munufature experience. Welcome to visit.
2. What is your fiber brand?
Most fiber is from Weixin, a fiber brand owned by Hongan ourselves. But we also purchase fiber from Corning， YOFC and other brands.
3.What is your main products?
Our main products are outdoor and indoor fiber optic cable, FTTx cable, network cable and telephone cable.
4.What is your payment term?
30% in advance, 70% before delivery.
