4-wall Polycarbonate Hollow Sheet

Polysun? polycarbonate hollow sheet has the characteristics of light weight, high strength and good thermal insulation properties. Compared with the traditional twin-wall sheet, Polysun? 4-wall Rectangle Structure Polycarbonate PC Hollow Sheet has better thermal insulation performance and is suitable for the occasion with higher requirements for thermal insulation and energy saving. Unique design ensures that the sheet can be installed conveniently and quickly, cutting or drilling will not cause the sheet to crack or damage easily. The surface co-extruded UV layer guarantees the weatherability of the sheet and provides 10-year quality assurance.


PRODUCT ADVANTAGES
*Light weight
*High impact strength
*Good lighting performance
*Ultraviolet resistance(Anti-UV)
*Weather resistance
*Thermal insulation
*Easy to install and process

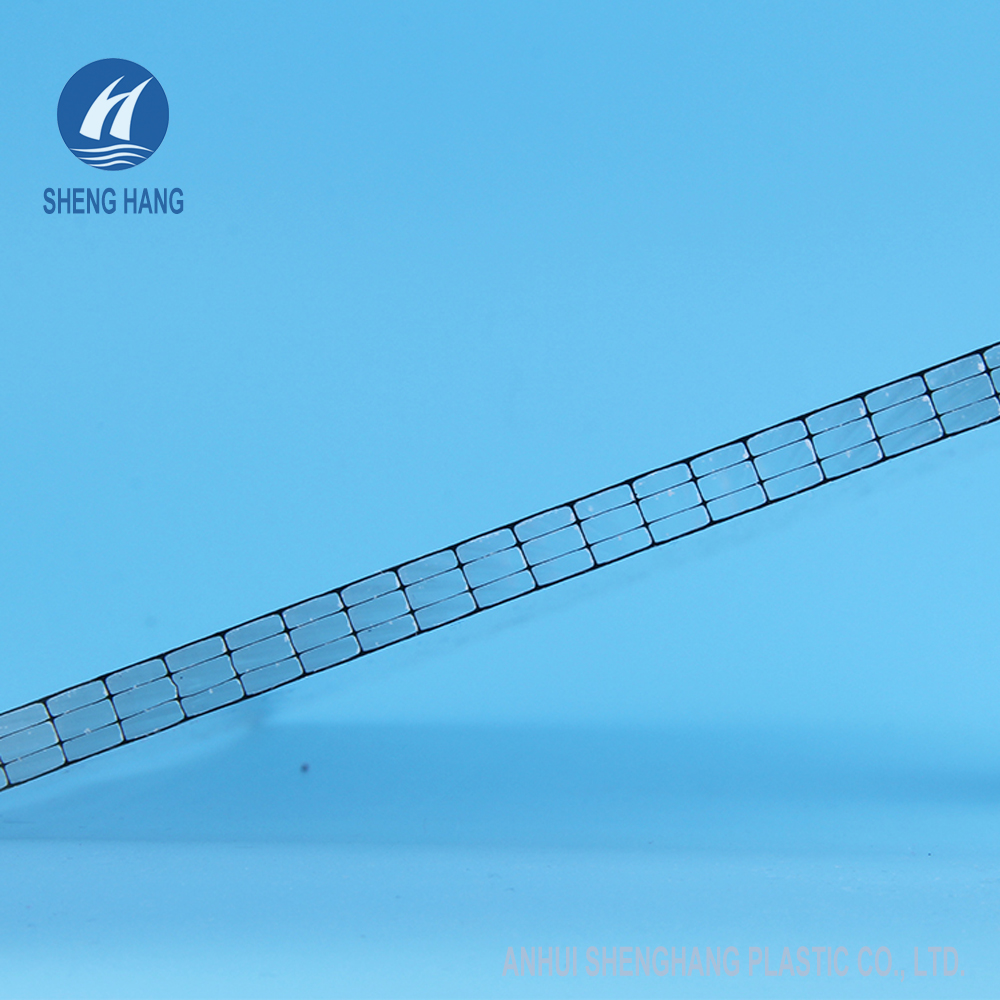

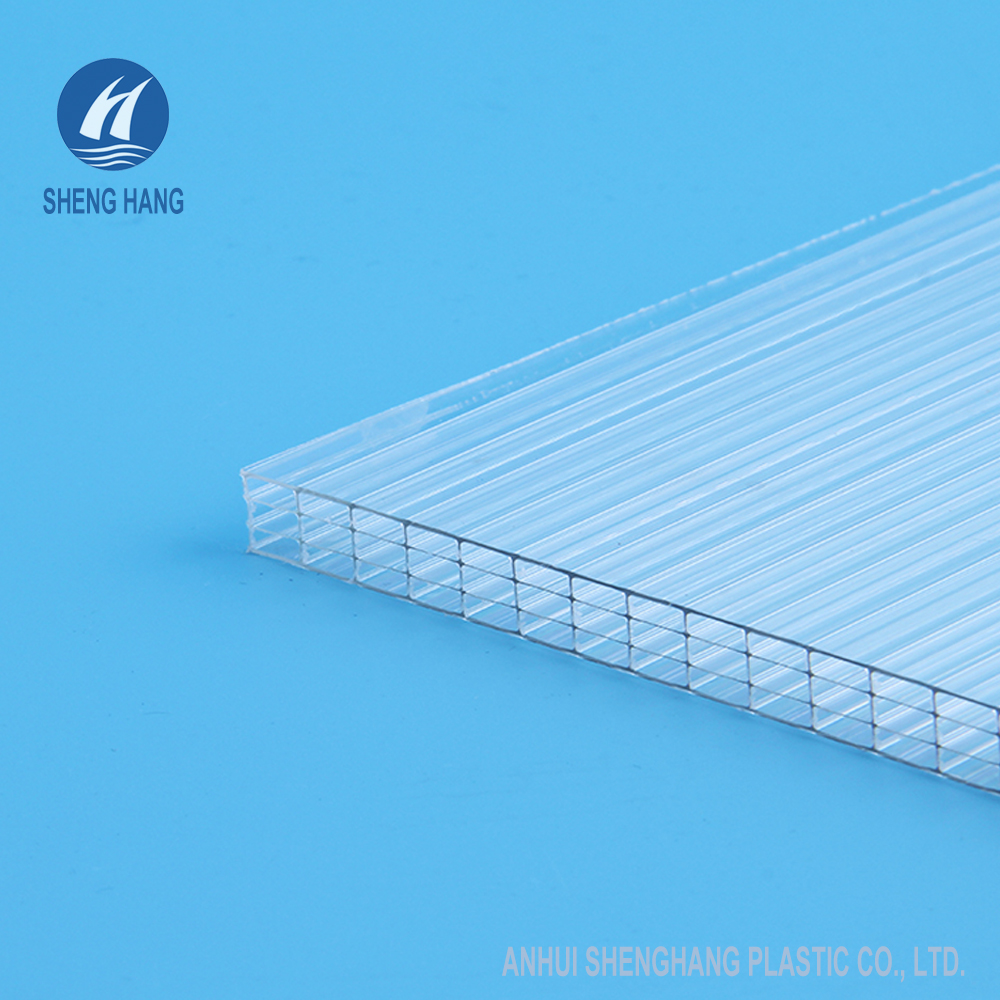

PRODUCT SHOW

SPECIFICATIONS
1) Thickness: 8mm~18mm(Mainly 10mm/12mm/14mm/16mm)

2) Standard size: 2100*6000mm, 2100*5800mm

3) Conventional colors: Transparent, Brown, Lake blue, White, Blue, Green

4) Dimensions and colors both can be customized.

5) Both sides covered with PE protective film.The Printing on PE film can be customized.

FEATURES

1) Light weight: Only 1/12 of the weight of glass of the same thickness

2) High impact strength: 80 times that of glass, 15 times that of acrylic sheet

3) Frame retardant: UL94 V-2, UL94 V-0

4) Good light transmittance: Up to 85%

5) Ultraviolet resistance: 50um~80um anti-UV coating

6) Excellent physical, mechanical, and electrical properties

7) Weather resistance: -40°C ~+120°C

8) Excellent thermal insulation performance


OPTIONAL FUNCTIONS
1. Anti-drip
The new generation of anti-drip sheet is made of hydroxyl-coated nano-silicone anti-fogging material imported from the original. This hydrophilic anti-fogging material can increase the tension of water vapor on the surface of the sheet. Its typical contact angle of water droplets can be as low as 8 degrees. The water droplets formed by the accumulation of fog will quickly distribute downward along the slope of the inner wall of the sheet. It is suitable for lighting roofs that do not allow droplets, especially for swimming pools, agricultural greenhouse and plant ecological garden.

2. Frosted
The twin-wall sheet is modified by special BAYER brilliant masterbatch while maintaining high transmittance. Its inner wall particle effect changes the glare band formed by light refraction of
ordinary board, so that the sunlight becomes soft and not glare.

TYPICAL APPLICATIONS
1. Awning for stadium, bus stop, airport.

2. Lighting system for passage, walkway, entrance of subway.

3. Agriculture greenhouse, canopy for vegetables, animals, flowers.

4. Heat insulation, soundproof for expressway, buildings.

5. Canopy for bus stop, advertising lamp box, ATM.

6. Lighting decoration for workshop, commercial canopy, villas.

7. Lighting system for skylight, cellar, dome.

8. Decoration panel for inner/outer wall, roof.

9. Indoor partition. Simple windows and doors.

10. Building curtain walls.

CONTAINER LOADING QUANTITY
