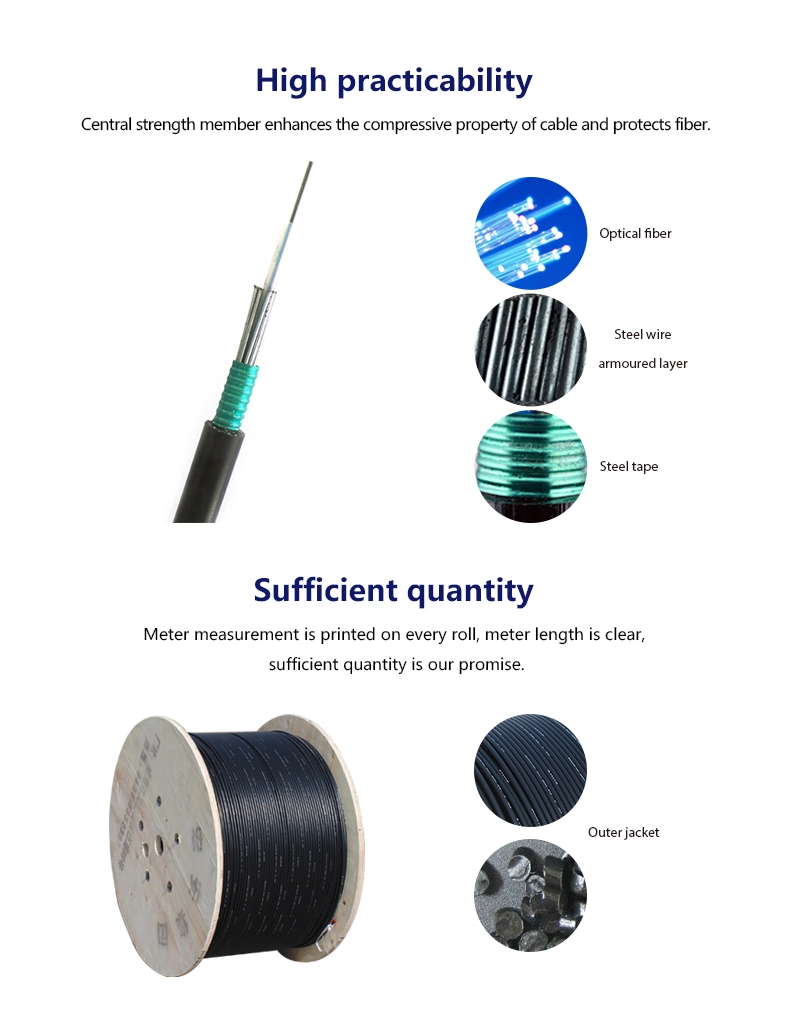

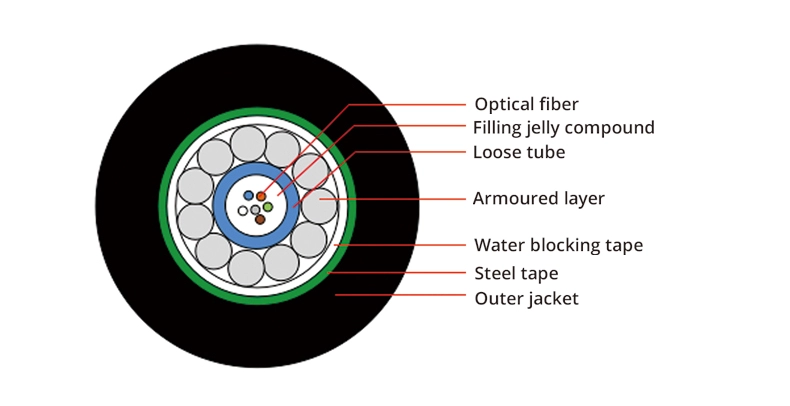

For the GYXS optical cable, the single mode or multimode optical fibers are put into the central tube made of high modulus polyester. The tube is full of the waterproof filling compound. It is armoured by a circle of steel wire which provide an excellent pressure resistant performance. Outside is wrapped longitudinally by a layer of waterproof tape and steel tape.
Fiber count | Structure | Fibers per tube | Loose tube diameter(mm) | Thickness of outer jacket(mm) | Cable diameter(mm) | Cable Weight(kg/km) |
2 | Unitube | 2 | 2.4±0.1 | 1.6±0.1 | 9.2±0.5 | 125 |
4 | Unitube | 4 | 2.4±0.1 | 1.6±0.1 | 9.2±0.5 | 125 |
6 | Unitube | 6 | 2.4±0.1 | 1.6±0.1 | 9.2±0.5 | 125 |
8 | Unitube | 8 | 2.4±0.1 | 1.6±0.1 | 9.2±0.5 | 126 |
10 | Unitube | 10 | 2.4±0.1 | 1.6±0.1 | 9.2±0.5 | 126 |
12 | Unitube | 12 | 2.4±0.1 | 1.6±0.1 | 9.2±0.5 | 126 |
14 | Unitube | 14 | 3.2±0.1 | 1.6±0.1 | 10.0±0.5 | 149 |
16 | Unitube | 16 | 3.2±0.1 | 1.6±0.1 | 10.0±0.5 | 150 |
18 | Unitube | 18 | 3.2±0.1 | 1.6±0.1 | 10.0±0.5 | 150 |
20 | Unitube | 20 | 3.2±0.1 | 1.6±0.1 | 10.0±0.5 | 150 |
22 | Unitube | 22 | 3.2±0.1 | 1.6±0.1 | 10.0±0.5 | 150 |
24 | Unitube | 24 | 3.2±0.1 | 1.6±0.1 | 10.0±0.5 | 150 |
Item | Parameters | |
Loose tube | Material | PBT |
Color | Natural color | |
Wire armoured | Material | Galvanized steel wire |
Steel diameter | 0.9mm | |
Armoured | Material | Plastic coated Steel strip |
Outer jacket | Material | MDPE |
Color | Black | |
Min. bending radius | Static | 10 times cable diameter |
Dynamic | 20 times cable diameter | |
Tensile performance | Short term | 1500N |
Crush | Short term | |

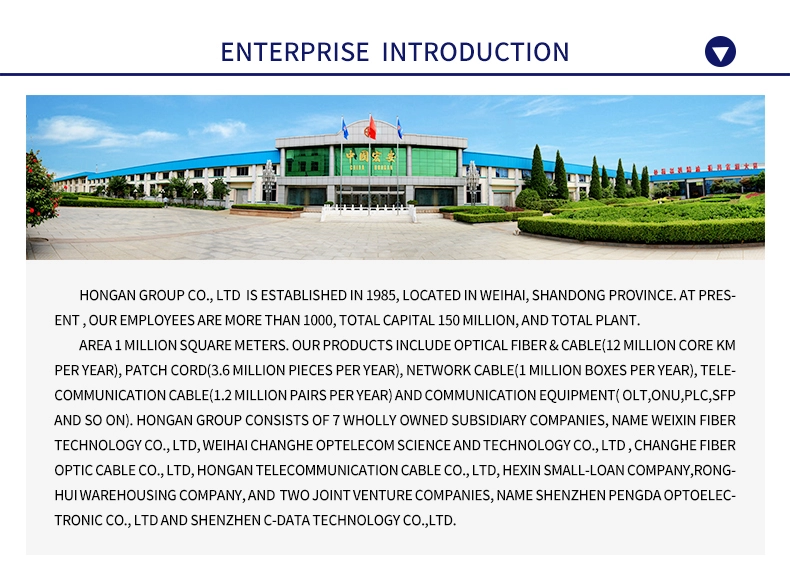

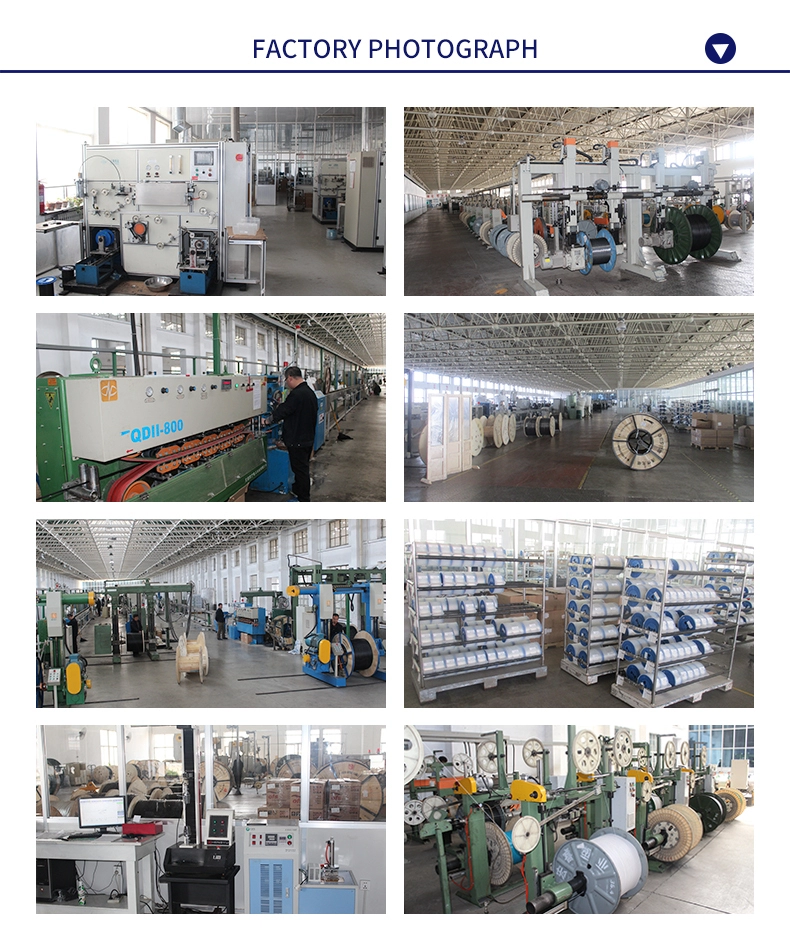

Yes,our factory is located in Shandong Province, near to Qingdao Port，having more than 30- years munufature experience. Welcome to visit.
2. What is your fiber brand?
Most fiber is from Weixin, a fiber brand owned by Hongan ourselves. But we also purchase fiber from Corning， YOFC and other brands.
3.What is your main products?
Our main products are outdoor and indoor fiber optic cable, FTTx cable, network cable and telephone cable.
4.What is your payment term?
30% in advance, 70% before delivery.
