Mill Roll Stand For Corrugated Paperboard Production Line

 Electrical Mill Roll Stand machine for raw paper/ paperboard making machine/ packages machine price

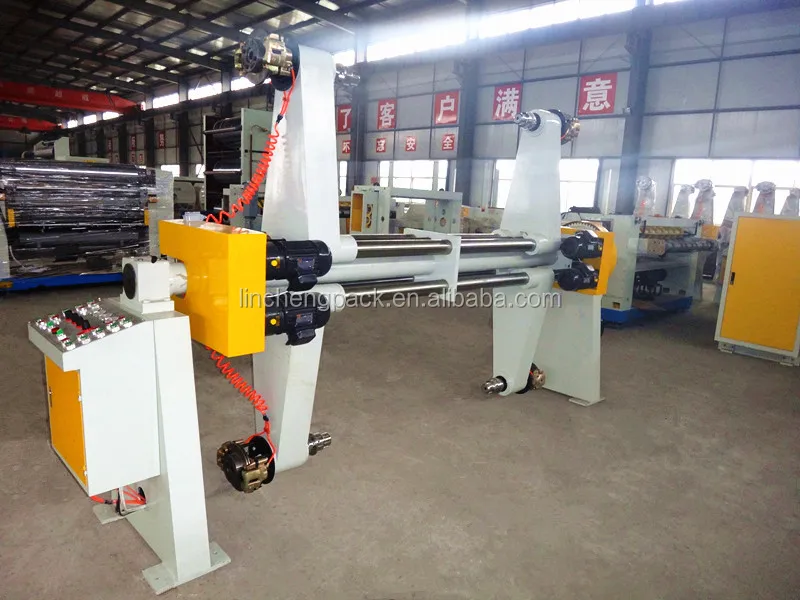

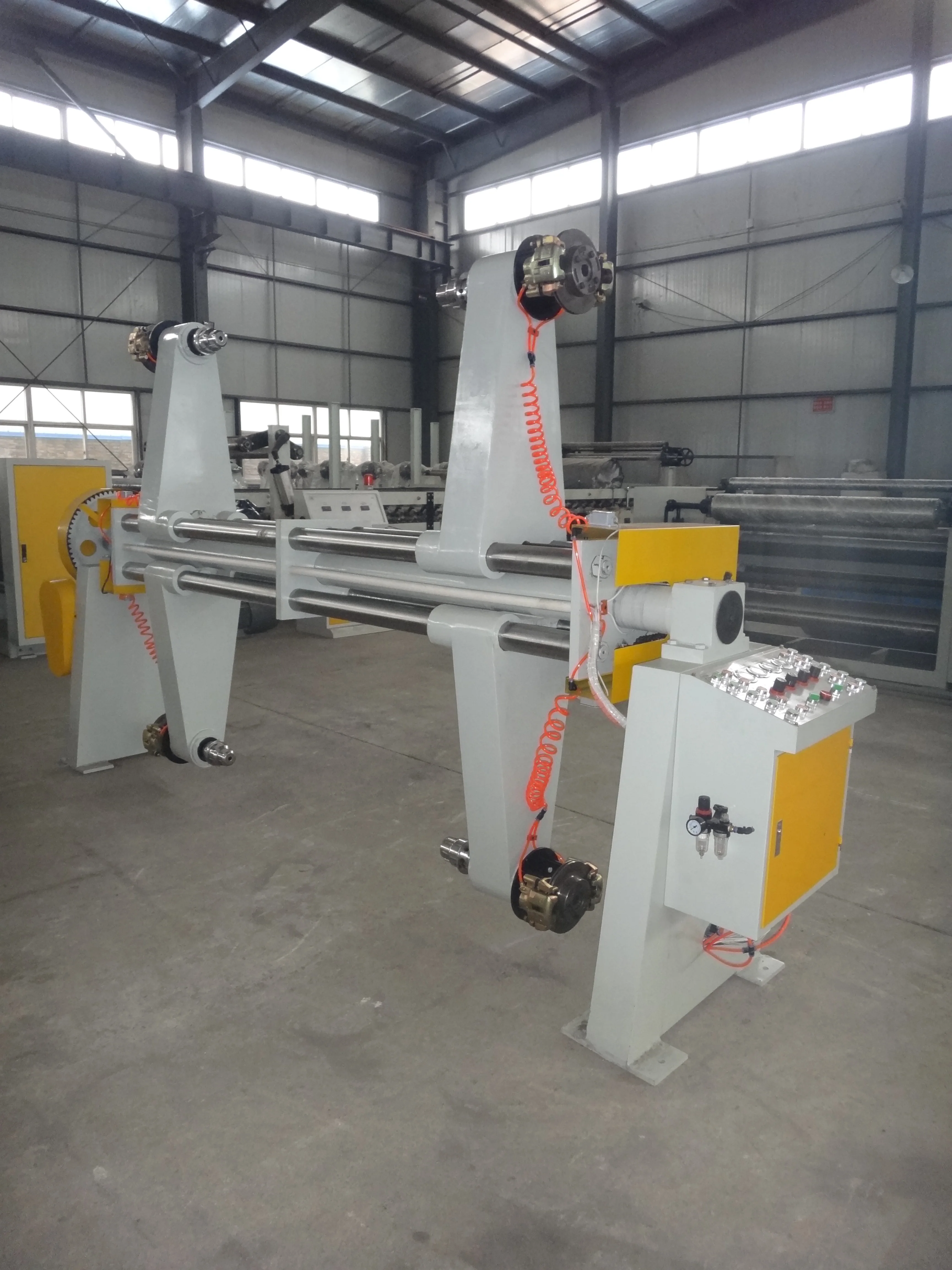

Machine in factory show:



Techniacl parameters:

1. Max diameter of raw paper can be hold: ?1500mm
2. Expiry width: 400mm-1800mm

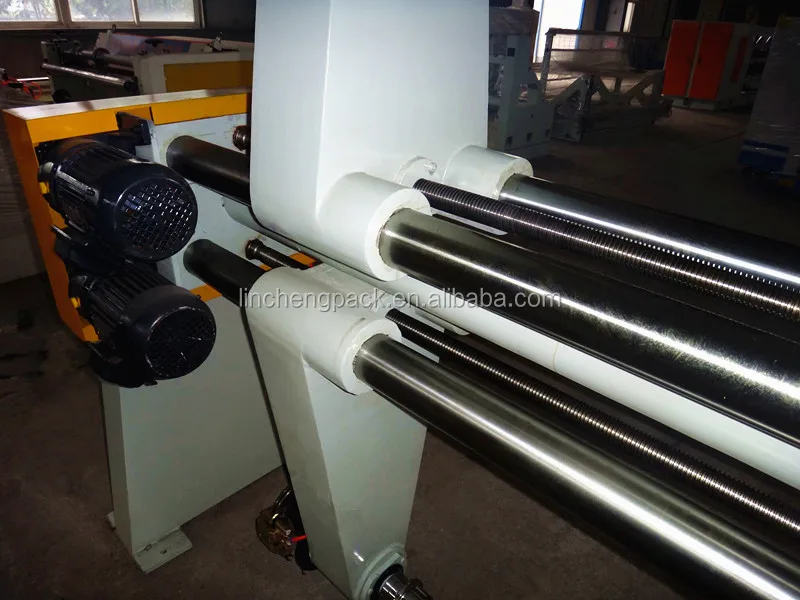

3. Five motors in total
4. Five rollers in total
5. Max holding weight: 2000kg(one arm)
6. Raw paper lift-lower, clamp,loosen,movement,contraposition are controlled by electrical.
7. Raw paper tension adjustment adopts pneumatic or manual brakes
8. The top jaw is taper or bulge style
9. Max paper roll diameter: 1600mm
10. Drive or arm: Electric action of up and down, loose and tight, move and center.
11. Tension control equipped with pneumatic brake, manual control, also can connect with the machine online control.

Structural Features:

1. Symmetrical structure can hold two bunches paper rollers at the same time and can working
with nonstop; Mechanical driving to achieve clamping, loosening, lifting-lowering, centering,left-right translation of raw paper.

2.Expiry woeking speed:1600mm.
3. Max holding weight for single arm: 2000kg
4. Each stand is equipped with two paper feeding guide rail and two paper feeding trolley; The guide rails longs 4500mm, and are made by the welding of 14 channel steel and guidepost, the trolleys are welded by steel plate whose length is 10 mm.

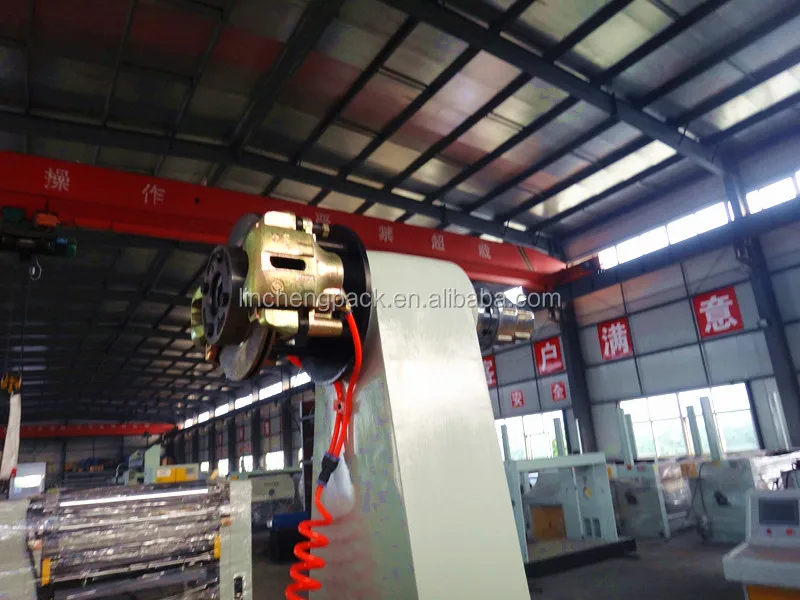

5. Disc brake with positioning screw below.
6. Electrical components centralized control with automatic inflatable paper clamp.

Packaging Details:

Export standard packaging machine

Delivery Detail:

20 days

1. Are you a factory or trading company?
Jidong Light Industry Machinery is a factory and manufacturer in this field about 20 years.

2. What is the terms of payment you accept?
We usually accept the T/T payment, we need 40% of total amount as deposit, pay the 60% balance before delivery, but we can also accept the L/C.

3. Where is your factory located ? How can I visit there?
Our factory located in Dongguang County,Hebei Province,China., near to the capital city Beijing and port Tianjin(Xingang). You can fly to Beijing or Jinan airport directly and we will pick you up there.

4. How does your factory do regarding quality control?
Quality is priority.We always regard great importance to quality controlling from the very small thing(even a small accessories we will choose the best quality) from the beginning.

5. Why we choose Hebei Linncheng Packing Machinery?
Exporting to over ten countries, we have gained a lot of experience that enable us to meet more and more customers.
