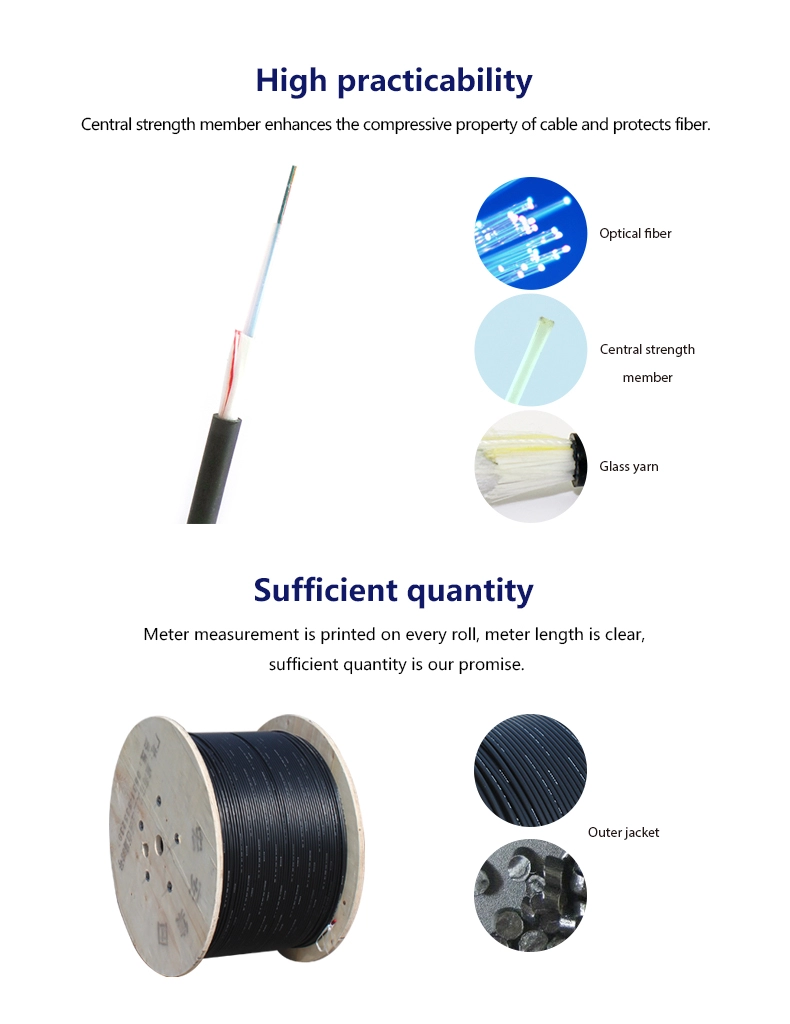

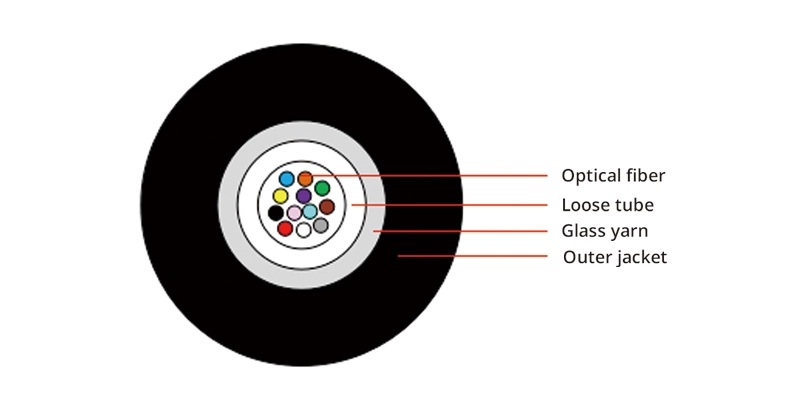

GYFXY fiber optic cable is a non-metallic one tube structure cable ensuring light weight, small diameter. The cable tubes, which are filled with water resistance filling compound, two parallel FRP strength member are placed two sides. PE sheath protects the cable from UV
Fiber count | Structure | Fibers per tube | Loose tube diameter(mm) | Thickness of outer jacket(mm) | Cable diameter(mm) | Cable Weight(kg/km) |
2 | Unitube | 2 | 2.4±0.1 | 1.6±0.1 | 6.6±0.5 | 37 |
4 | Unitube | 4 | 2.4±0.1 | 1.6±0.1 | 6.6±0.5 | 37 |
6 | Unitube | 6 | 2.4±0.1 | 1.6±0.1 | 6.6±0.5 | 37 |
8 | Unitube | 8 | 2.4±0.1 | 1.6±0.1 | 6.6±0.5 | 37 |
10 | Unitube | 10 | 2.4±0.1 | 1.6±0.1 | 6.6±0.5 | 37 |
12 | Unitube | 12 | 2.4±0.1 | 1.6±0.1 | 6.6±0.5 | 37 |
14 | Unitube | 14 | 3.2±0.1 | 1.6±0.1 | 7.2±0.5 | 44 |
16 | Unitube | 16 | 3.2±0.1 | 1.6±0.1 | 7.2±0.5 | 44 |
18 | Unitube | 18 | 3.2±0.1 | 1.6±0.1 | 7.2±0.5 | 44 |
20 | Unitube | 20 | 3.2±0.1 | 1.6±0.1 | 7.2±0.5 | 44 |
22 | Unitube | 22 | 3.2±0.1 | 1.6±0.1 | 7.2±0.5 | 44 |
24 | Unitube | 24 | 3.2±0.1 | 1.6±0.1 | 7.2±0.5 | 44 |
Item | Parameters | |
Loose tube | Material | PBT |
Loose tube | Color | Natural color |
Reinforced pieces | Material | Glass yarn |
Outer jacket | Material | MDPE |
Color | Black | |
Min. bending radius | Static | 10 times cable diameter |
Min. bending radius | Dynamic | 20 times cable diameter |
Tensile performance | Short term | 500N |
Crush | Short term | 500N/100mm |

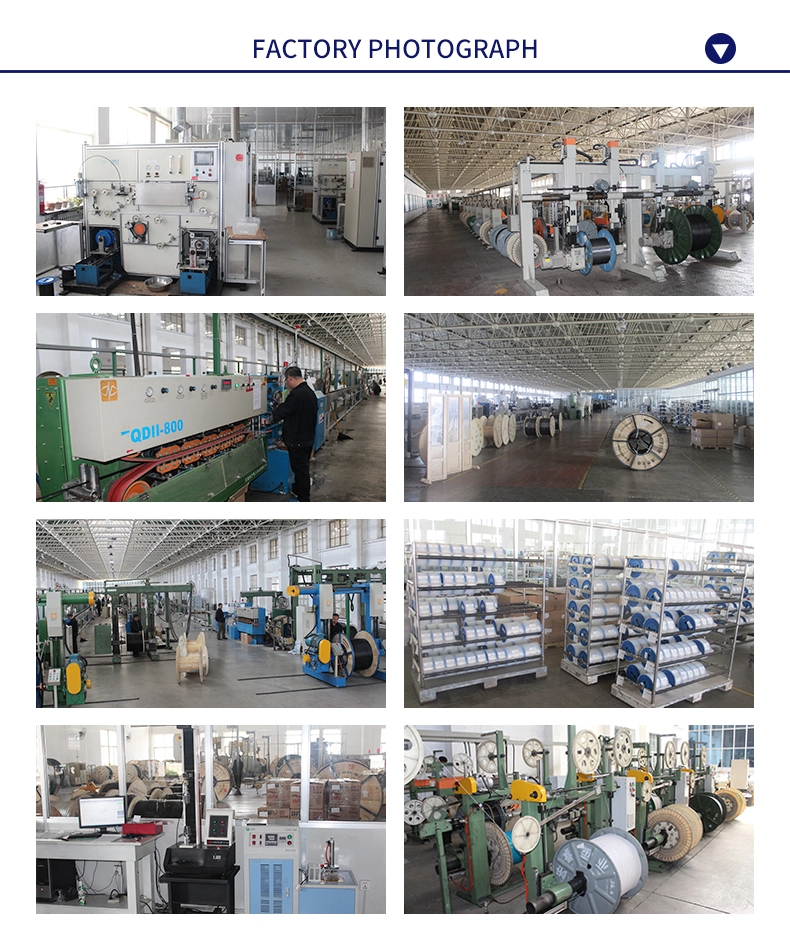

Yes,our factory is located in Shandong Province, near to Qingdao Port,having more than 30- years munufature experience. Welcome to visit.
2. What is your fiber brand?
Most fiber is from Weixin, a fiber brand owned by Hongan ourselves. But we also purchase fiber from Corning, YOFC and other brands.
3.What is your main products?
Our main products are outdoor and indoor fiber optic cable, FTTx cable, network cable and telephone cable.
4.What is your payment term?
30% in advance, 70% before delivery.
