Automatic feeding Thin Blade Slitter Scorer

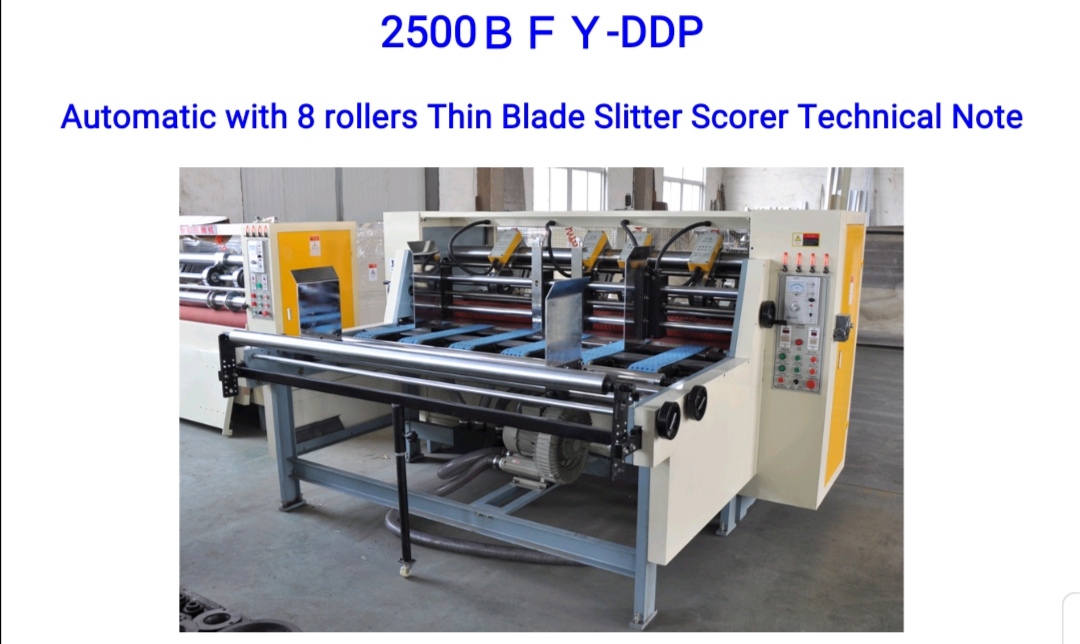

2500ＢＦＹ-DDP

Automatic with 8 rollers Thin Blade Slitter Scorer Technical Note

Main application characteristics：

Feeding Part:

Cardboard size is adjusted by screw adjusting mechanism, one man operation, simple and quickly. Convenient adjustable yards paper structure. Better adapt to all kinds of cardboard length, to deliver the paper steady accurate. Belt into paper USES the high quality import rubber seamless belt, high friction, and long life.

Cutting Part:

BFY-8 type slitter scorer machine adopt the Thin Blade Cutting, the blade is more sharp after grinding by the grinding wheels, it’s make the cardboard edge more clean and more tidy after cutting, crushed phenomenon is very small. It improved the paper’s appearance quality and overall quality, and it’s good for the feeding of printing, so as to reduce waste and improve the quality of the carton.

The machine adopt tow grinding blade ways, manual and automatic, it’s can according the time and the speed of the running paper to choice the grinding way and the grinding time. Keep the blade sharp and make the cutting carton smooth and tidy.

 *Electric adjustment blade distance, pneumatic automatic lock fixed. Manually adjust the pressing line width, adopt the structure of the single-tool cutter lifting alone. can according to the number of the cutting carton change; the grinding part can be adjusted according to the blade size up and down. .

  Trait: Adopt glue shaft feeding first, and cutting after, then, across the glue shaft feeding, at the last Line pressing molding. Adopt the use process when creasing can clear depth. The cutting part adopt high hardness Paper Cutter, and the blade adopt synchronous belt drive, When replacing the blade can be rapidly when a change. Adopt the glue shaft to lead the carton, it’s better than others’ same equipment made before.

 Main Technical specifications

:    2.1    The machine allows the cardboard width:            2300mm

     2.2     Highest mechanical speed:

(User requirements can be added or removed)       120m/min)

2.3   The cutting knifes number：

（can change according to user requirements）：   5 pieces

 2.5     Minimum cutting width:                            140mm

 2.6     Minimum pressing line width:                       55mm

 2.7     The blade external diameter:                     200mm

     2.8     The blade thickness:                             1.3mm (Alloy)

 2.9     Main motor power:                               5.5kw

2.10   Blower power:                                    3.4KW

2.11    Machine envelop dimensions:                      3200×2300×1500mm

2.12    The machine weight::                             2200kg

2.13    Minimum into paper size:(Two glue wheelbase)
