Coal fired BoilerCoal Steam Boilerchain grate boilerwater tube steam boiler
L/CT/TOthers
| Item/Type | Double Drums Chain Grate Coal/Biomass Fired Steam Boiler | ||||||||
| Rated capacity t/h | 4 | 6 | 8 | 10 | 12 | 15 | 20 | 25 | |
| Rated steam pressure MPa | 1.25/1.6/2.5 | 1.25/1.6/2.5 | 1.25/1.6/2.5 | 1.25/1.6/2.5 | 1.25/1.6/2.5 | 1.25/1.6/2.5 | 1.25/1.6/2.5 | 1.25/1.6/2.5 | |
| Rated steam temperature ℃ | 194/204/226 | 194/204/226 | 194/204/226 | 194/204/226 | 194/204/226 | 194/204/226 | 194/204/226 | 194/204/226 | |
| Feed water temperature ℃ | 20 | 20 | 60 | 60 | 60 | 104 | 104 | 104 | |
| Boiler thermal efficiency % | 81.54 | 81.6 | 81.8 | 82.2 | 82.5 | 82.5 | 82.8 | 83.7 | |
| Heating area m2 | Boiler body | 99.68 | 155.5 | 181.63 | 233.6 | 298 | 316.7 | 456 | 625.3 |
| Economizer | 69.76 | 140.6 | 183.1 | 209.3 | 209.3 | 225 | 242.4 | 267.8 | |
| Fuel & consumption | Fuel type | Class II Soft Coal, Biomass, Wood Chips, Wood Pellets, Rice Husk, Palm Kernel Shell, etc. | |||||||
| Coal kg/h | 350.99 | 526.10 | 699.75 | 870.43 | 1040.72 | 1300.90 | 1728.25 | 2137.08 | |
| Biomass kg/h | 507.26 | 760.33 | 1011.29 | 1257.96 | 1504.06 | 1880.08 | 2497.69 | 3088.54 | |
| Size of boiler largest parts mm | Length | 7500 | 6800 | 6900 | 7900 | 8100 | 9300 | 11500 | 11500 |
| Width | 2800 | 3200 | 3100 | 3400 | 3100 | 3300 | 3300 | 3300 | |
| Height | 3500 | 3500 | 3500 | 3500 | 3500 | 3500 | 3500 | 3500 | |
| Weight of largest parts of boiler ton | 30 | 40 | 55 | 45/30 | 50/30 | 52/31 | 55/34 | 56/37 | |

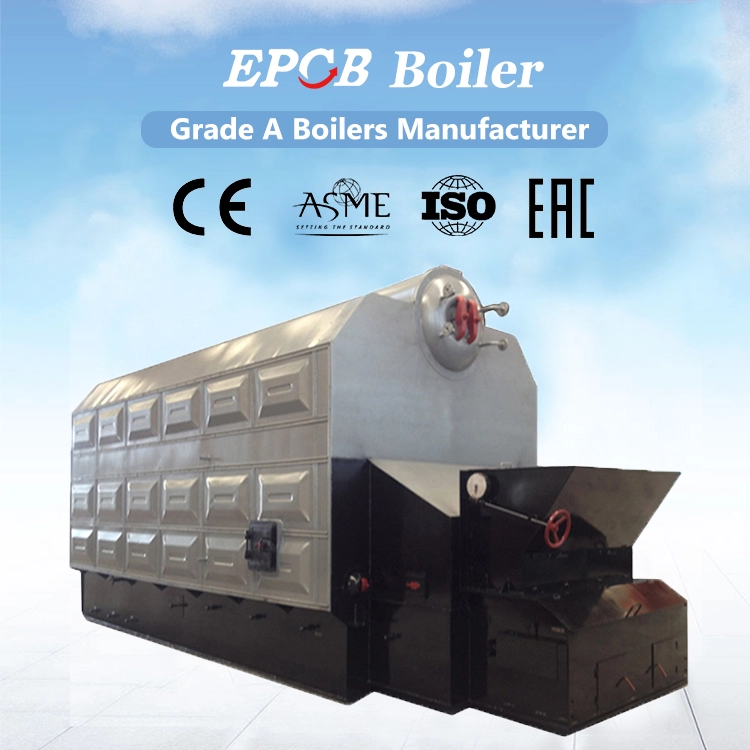

I. The unique features of water tube coal fired steam boiler
1. It adopts automatic operation chain grate, double drum, water tube structure which ensures boiler safe operation and extend service life.
2. Boiler equips Inverter control, fuel combustion can achieve automatic adjustment to save energy, also decrease the dust emission & SO2
emission & NOx emission.
3. Boiler equips Energy Saver which can improve boiler thermal efficiency more than 2-3% & decrease the temperature of exhaust smoke.
4. It’s suitable for all kinds of coal.
II. Why are you choice our boiler?
1. Lower dust emission & SO2 emission & NOx emission,
dust emission concentration < 100mg/m3
SO2 & NOx emission concentration < 200mg/m3
2. Boiler equips Inverter control, fuel combustion can achieve automatic adjustment.
3. We supply 2 units Water Pump (one duty one standby) which from the famous pump manufacturer.
4. Boiler can achieve automatic temperature control & pressure control & feed water control & feed fuel control & safety indication .
We also freely supply you a set of inner parts of Electric controller for standby.
5. Boiler with anti-corrosion & anti-rust & beautiful appearance painting.
6. Comprehensive after-sales service.
We can design layout drawings of boiler system according to your actual requirement.
Also can dispatch engineer to guide installation & commissioning.

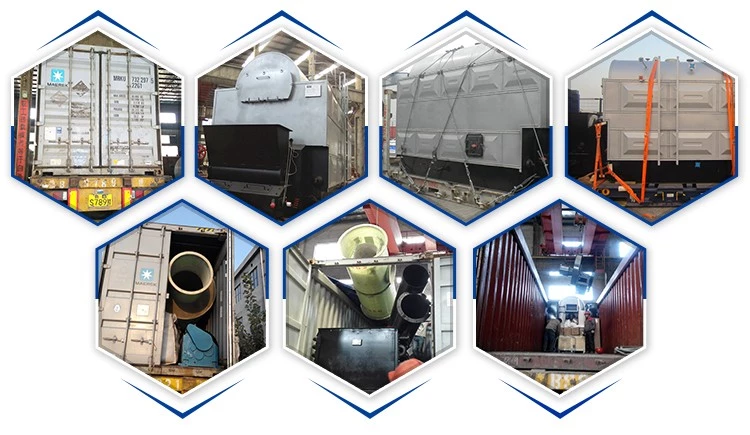

We choose the best way to pack and load our boilers. All parts will be complete and work well. Professional factory offers professional and safe service.

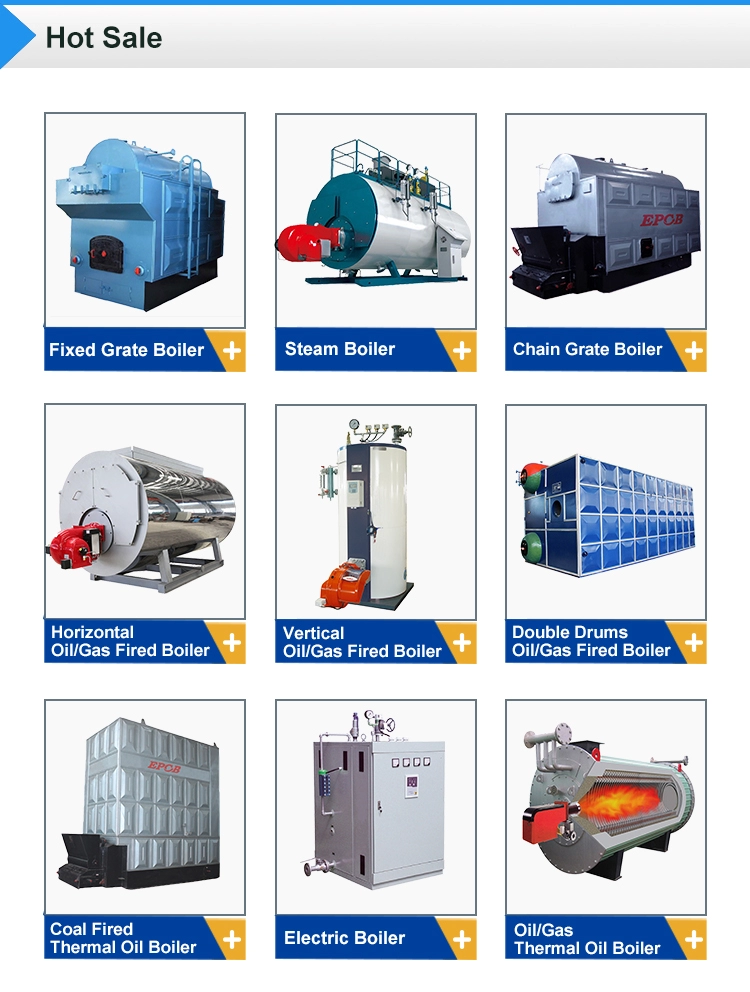

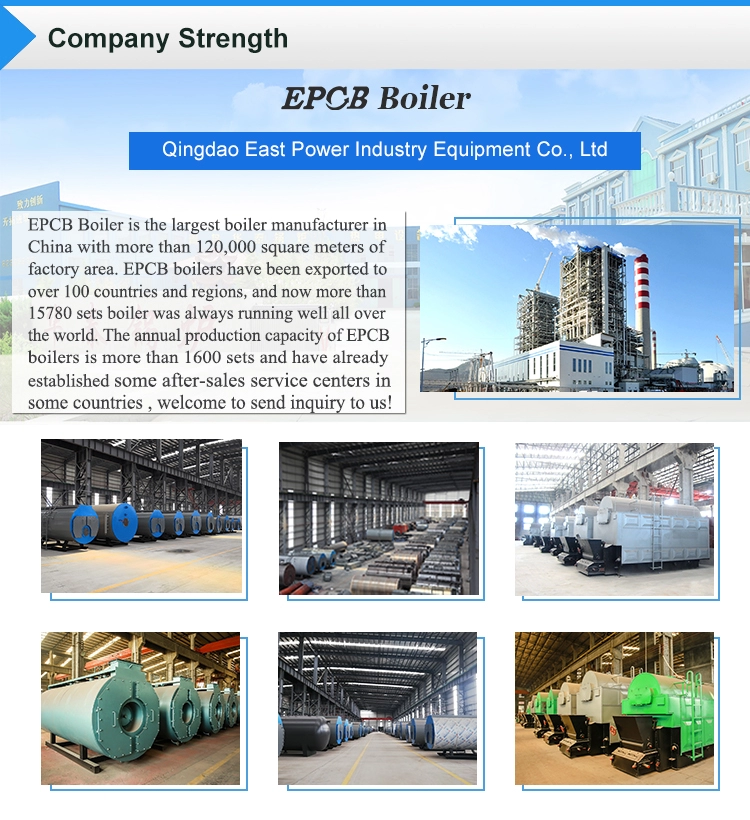

Our company EPCB is specializing in the design and production of boilers. Our main products include coal fired boilers, biomass fired boilers, CFB circulating Fluidized Steam Bed Boilers, oil gas fired boilers, thermal oil heaters and some boiler accessories.
All of our boilers have been approved by the Provincial Environment Department and have been widely used in many kinds of industrial production areas for steam supplying, such as textile industry, sugar industry, chemical factories, paper factories, food industry, schools, hospitals, military industry and other commercial operations.
Our Services:
1. Assist clients to prepare for the first construction, and also can arrange engineer on-site instruction of installation and commissioning
2. Install and debug the equipment;
3. Train the first-line operators, application of theoretical learning + product cognitive learning + examination + practical repeated operation learning + phased procuratorial learning effect
4. Examine the equipment, adopt a patrol inspection system, telephone and video guidance system.
Q: Are you manufacturer?
A: Yes, we are the largest boiler manufacturer in China. We have our own factory with 120,000m2 area.
Q: How can I choose the suitable model for our factory?
A: Please tell us the boiler capacity, the fuel you plan to use and the steam pressure you need, and then we can choose the suitable boiler model and send quotation to you immediately.
Q: How can I get the best price quickly?
A: Please tell us your name, email address and company name, and then we will send you price list immediately. And if you use Whatsapp, Skype or Wechat, you can provide us your ID, it will be more convenient for our communication.
Q: What about the delivery time?
A: Usually the delivery time is about 30 days, if you need boiler urgently, we can discuss about it again and reduce the production time to help you get boiler earlier.
Q: How can you convince me of your boiler quality?
A: Our factory has more than 35 years experience in industrial boiler production, and we have exported to more than 60 countries; and our product has passed Chinese-government Standard, ASME standard, CE standard and get ISO9001, EAC, SGS Inspection Certificates.
Q: What about the installation?
A: After you receive the boiler, we will guide you to make some preparation for installation. If necessary, we can send engineers to your local to guide the installation.
Q:What is the using life of your boiler?
Normally the boiler is design for 20 years life, but with right operation and good maintenance, the boiler can be use 20-25 years.
