Cryogenic Cylinder

1. Technology: high-vacuum multi-layer insulation

2. Application: LOX, LIN, LAR, LCO2, LNG storage and transportation.

3. Standard:  GB24159 and other international standards

High-performance super insulation

Minimum product vapor loss

Convenient storage and transportation

Customized vaporization coils provide constant gas flow rates

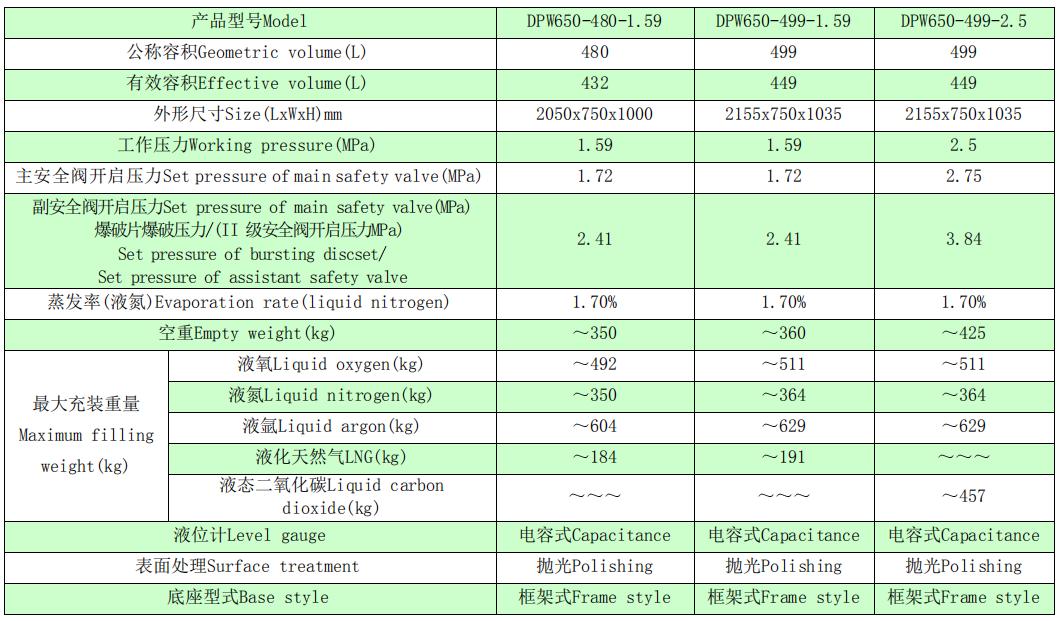

TECHNICAL SPECIFICATIONS

Water capacity: 175 L - 500L ,this type mainly is bigger size 500L .

Working pressure: 1.37Mpa, 2.02Mpa, 2.4Mpa, 2.84Mpa etc.

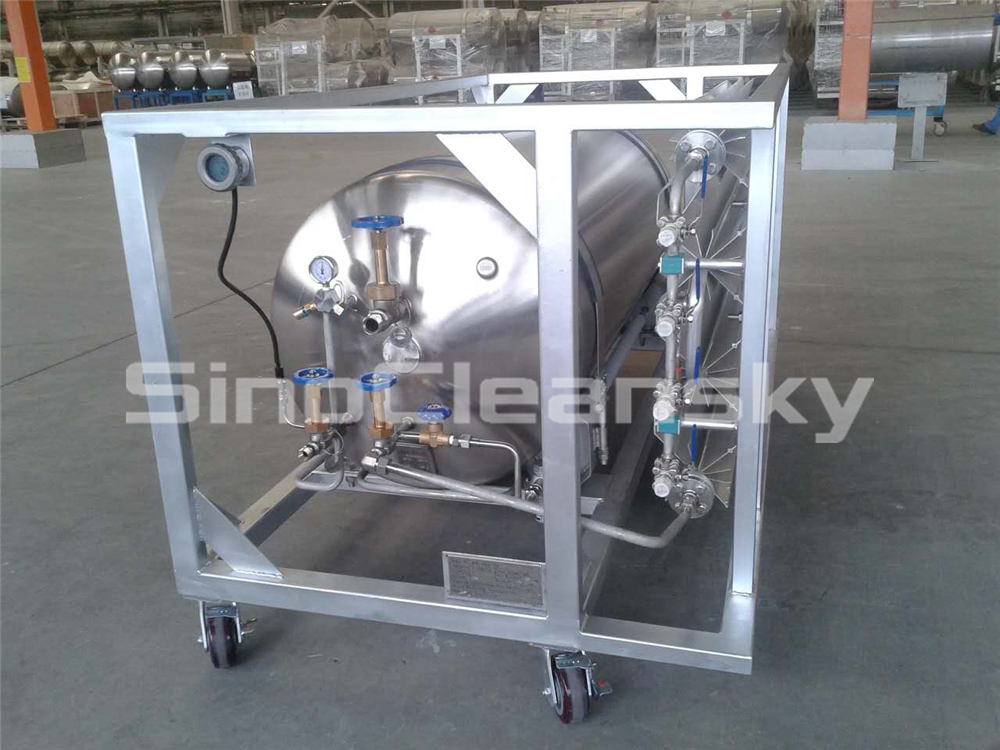

Typical types (Vertical) & Big capacity popular types（Vertical / Horizontal optional）both can supply

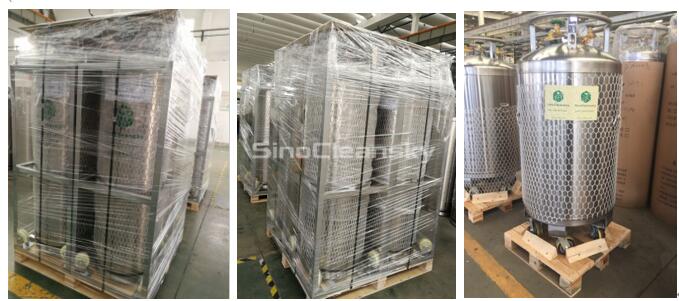

PACKAGING & SHIPPING

All the cylinders will be packed with plastic film or carton or wooden boxes for protection of

surface. And the cylinders can be delivered with pallet, or loose in container.

REPORT & CERTIFICATIONS

Cylinders are delivered with detailed factory test report. SinoCleansky Factory Report

shows all the tests required by GB24159 std, which include: chemical composition

test, radiographic inspection, etc.

FAQ

1. What about the shipment for these cylinders?

For popular types like DPL450-175L/195L/210L /500L usually they will be shipped

by 20ft container .

2. What about the delivery time of this type of cylinder?

For a 20ft-container quantity, it usually takes 4-6 weeks to finish the production.

But if there are stocks, then the delivery time could be about 2 to 3 weeks.
