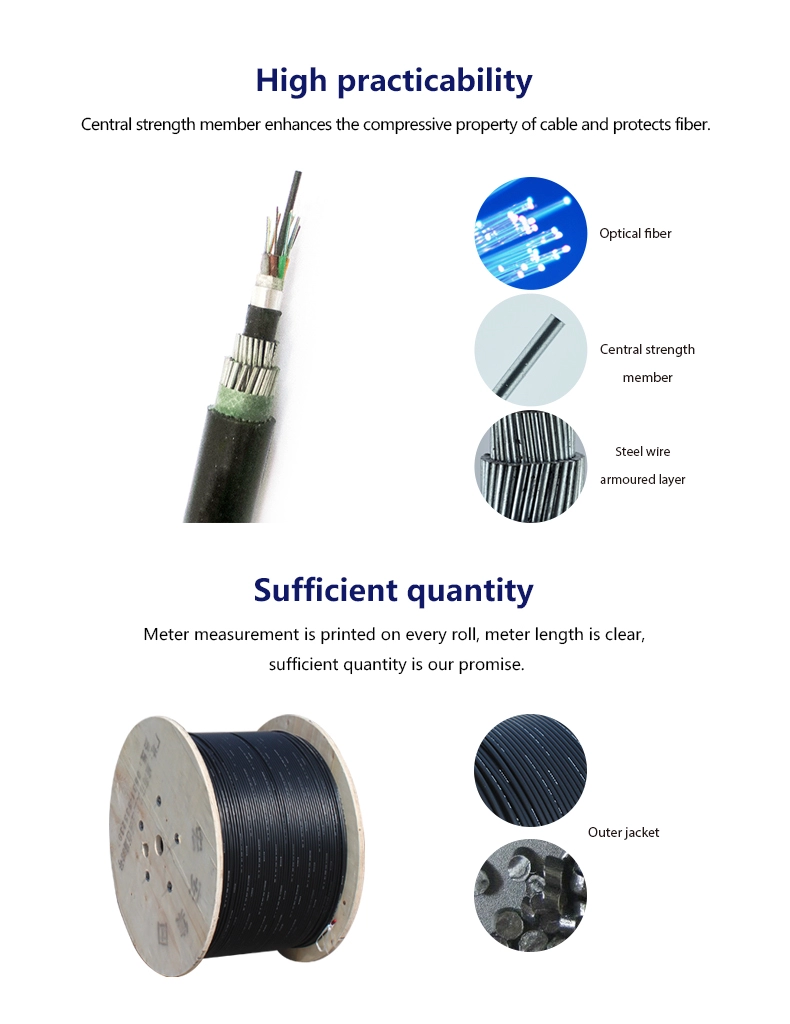

GYTA333 fiber optic cable is the type of fiber optic cable used in shallow-water as well as climbing lay. In other words, GYTA333 fiber optic cable is referred as an underwater cable since is used under water. In most cases, the GYTA333 fiber optic cable is laid in the water drainage and it has fantastic feature that enables it to perform effectively under water environments. Additionally, GYTA333 fiber optic cable has a humidity resistance as well as excellent mechanical property that prevents it from breaking. Also, it is rodent-proof as well as termite-proof and that makes it adapt well to watery environment.
Fiber count | Structure | Fibers per tube | Loose tube diameter(mm) | CSM diameter/pad diameter(mm) | Thickness of Inner jacket(mm) | Thickness of outer jacket(mm) | Cable diameter(mm) | Cable Weight(kg/km) |
4 | 1+5 | 4 | 1.7±0.1 | 1.4/1.4 | 0.9±0.1 | 1.8±0.1 | 14.8±0.5 | 464 |
6 | 1+5 | 6 | 1.7±0.1 | 1.4/1.4 | 0.9±0.1 | 1.8±0.1 | 14.8±0.5 | 464 |
8 | 1+5 | 4 | 1.7±0.1 | 1.4/1.4 | 0.9±0.1 | 1.8±0.1 | 14.8±0.5 | 465 |
12 | 1+5 | 6 | 1.7±0.1 | 1.4/1.4 | 0.9±0.1 | 1.8±0.1 | 14.8±0.5 | 465 |
18 | 1+5 | 6 | 1.7±0.1 | 1.4/1.4 | 0.9±0.1 | 1.8±0.1 | 14.8±0.5 | 465 |
24 | 1+5 | 6 | 1.7±0.1 | 1.4/1.4 | 0.9±0.1 | 1.8±0.1 | 14.8±0.5 | 466 |
30 | 1+5 | 6 | 1.7±0.1 | 1.4/1.4 | 0.9±0.1 | 1.8±0.1 | 14.8±0.5 | 466 |
36 | 1+6 | 6 | 1.7±0.1 | 1.8/1.8 | 0.9±0.1 | 1.8±0.1 | 15.2±0.5 | 491 |
48 | 1+5 | 12 | 2.0±0.1 | 1.4/1.4 | 0.9±0.1 | 1.8±0.1 | 15.5±0.5 | 498 |
60 | 1+5 | 12 | 2.0±0.1 | 1.4/1.4 | 0.9±0.1 | 1.8±0.1 | 15.5±0.5 | 499 |
72 | 1+6 | 12 | 2.0±0.1 | 2.0/2.0 | 0.9±0.1 | 1.8±0.1 | 16.2±0.5 | 556 |
84 | 1+7 | 12 | 2.0±0.1 | 1.8/2.9 | 0.9±0.1 | 1.8±0.1 | 17.1±0.5 | 601 |
96 | 1+8 | 12 | 2.0±0.1 | 1.8/3.5 | 0.9±0.1 | 1.8±0.1 | 18.2±0.5 | 696 |
108 | 1+9 | 12 | 2.0±0.1 | 1.8/4.2 | 0.9±0.1 | 1.8±0.1 | 18.9±0.5 | 744 |
120 | 1+10 | 12 | 2.0±0.1 | 1.8/4.9 | 0.9±0.1 | 1.8±0.1 | 20.4±0.5 | 926 |
132 | 1+11 | 12 | 2.0±0.1 | 1.8/5.5 | 0.9±0.1 | 1.8±0.1 | 21.0±0.5 | 959 |
144 | 1+12 | 12 | 2.0±0.1 | 1.8/6.3 | 0.9±0.1 | 1.8±0.1 | 21.8±0.5 | 1024 |

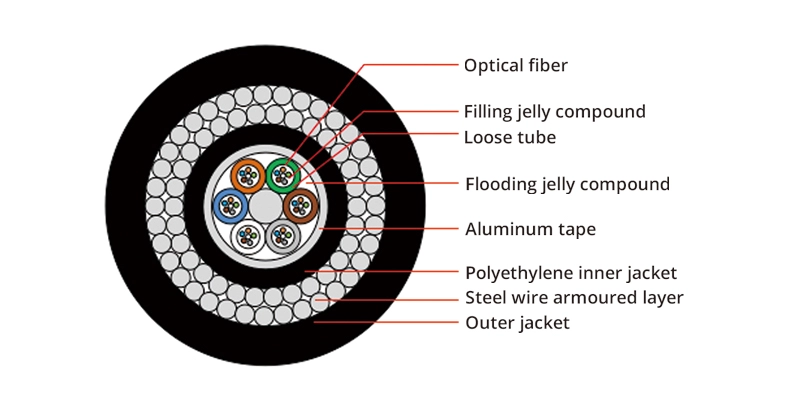

Item | Parameters | ||
Loose tube | Material | PBT | |
Color | All colors display | ||
Filler | Material | PE | |
Color | Black | ||
CSM | Material | Phosphating steel wire | |
Armoured | Material | Plastic coated aluminum strip | |
Inner jacket | Material | MDPE | |
Color | Black | ||
Steel wire armoured | Material | Galvanized steel wire | |
Outer jacket | Material | MDPE | |
Color | Black | ||
Min. bending radius | Static | 15times cable diameter | |
Dynamic | 30times cable diameter | ||
Repeating bending | Load：250N;number of cycles:30 No obvious addition attenuation, no fiber break and no cable damage. | ||
Tensile performance | Short term | 20000N | |
Crush | Short term | 5000N/100mm | |
Torsion | Load：250N; number of cycles:10; twist angle:±180° No obvious addition attenuation, no fiber break and no cable damage. | ||
Impact | Impact energy：1kg×1m; radius of hammer head:12.5mm; number of impact: 5 ,no fiber break and no cable damage. | ||

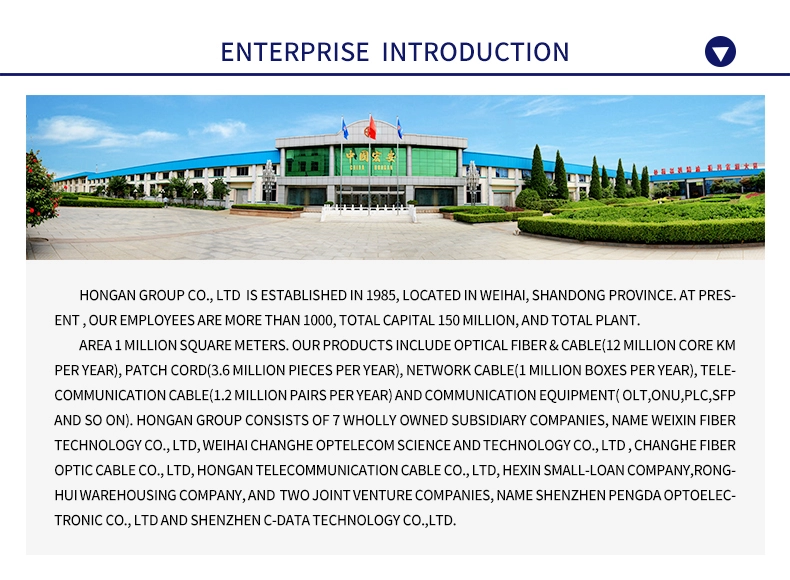

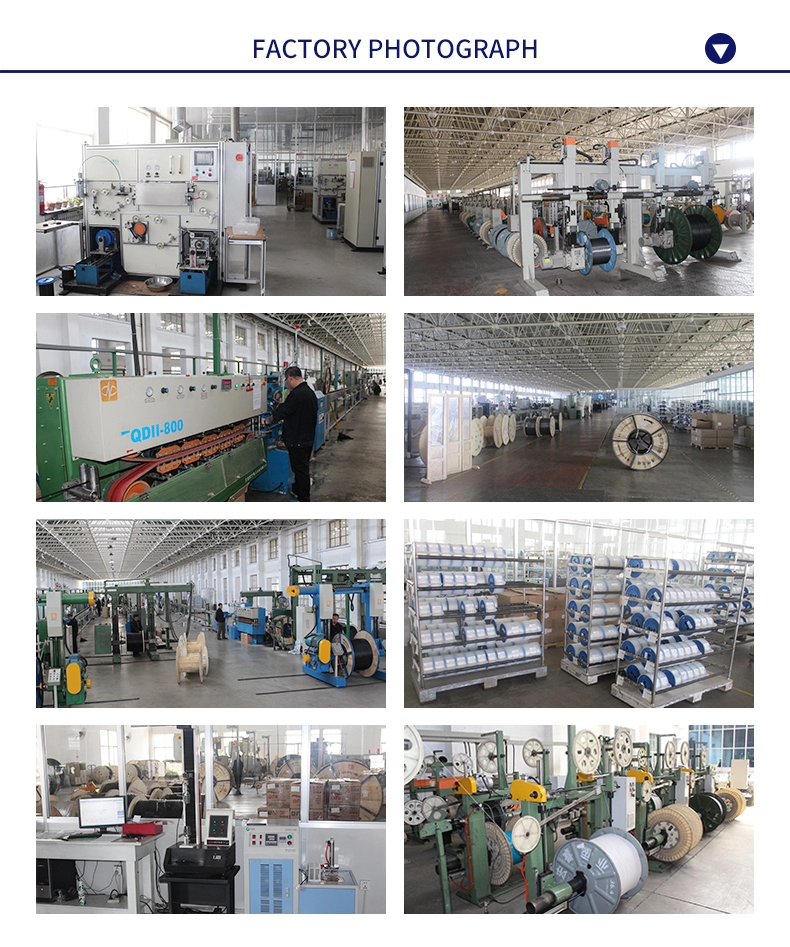

Yes,our factory is located in Shandong Province, near to Qingdao Port，having more than 30- years munufature experience. Welcome to visit.
2. What is your fiber brand?
Most fiber is from Weixin, a fiber brand owned by Hongan ourselves. But we also purchase fiber from Corning， YOFC and other brands.
3.What is your main products?
Our main products are outdoor and indoor fiber optic cable, FTTx cable, network cable and telephone cable.
4.What is your payment term?
30% in advance, 70% before delivery.
