GYTC8A is a typical self supporting outdoor fiber optic cable with features of moisture resistance and crush resistance suitable for aerial application.

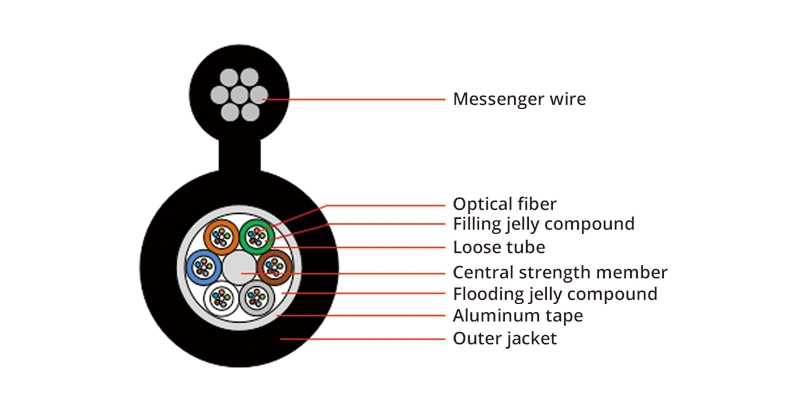

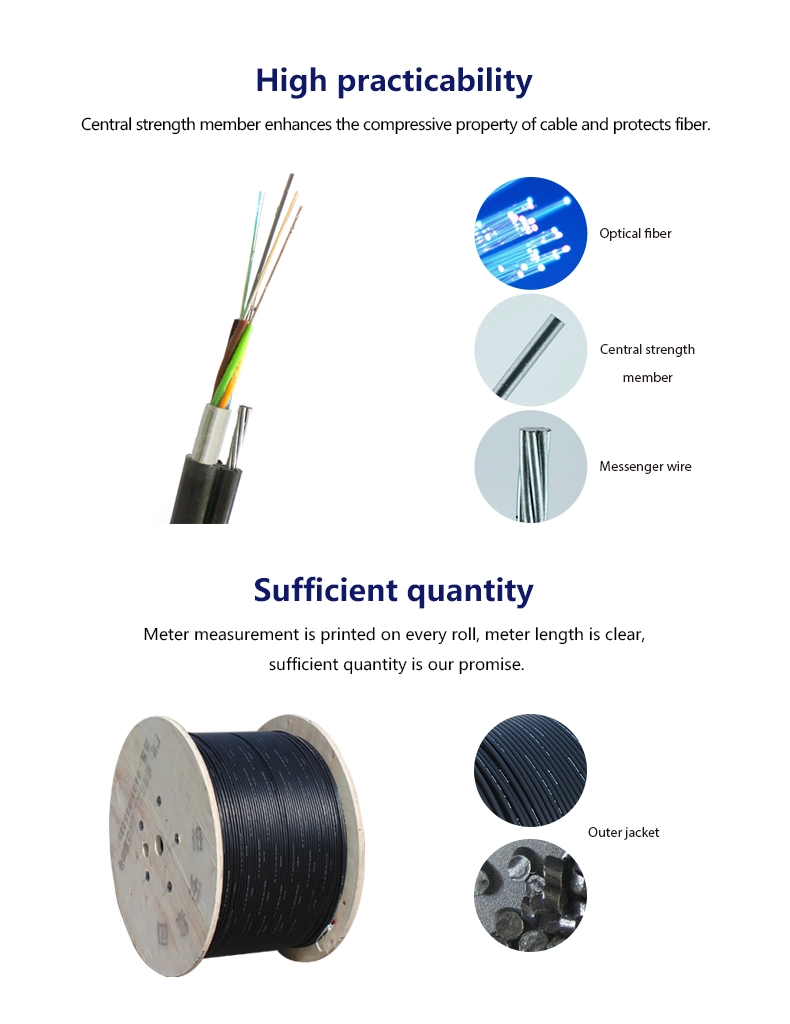

The stranded wires as the supporting part are completed with a polyethylene(PE) sheath to be figure 8 structure. Aluminum tape armored and PE outer sheath provide crush resistance and gun shot resistance features. The steel-wire as the central strength improves the tensile strength and it is surrounded by the loose tube and water blocking system. The impact structure ensures excellent mechanical and environmental performance.
Both single mode type and multimode types are available. Various lengths and fiber number can be customized according to customers’ requirements.
Applications:
1.Communication Workshop
2.FTTH
3.Local Area Network
4.Fiber Sensor
5.CATV 6.Fiber Optical Communication System
Full cross-section water-blocking structure and double-sided coated film steel belt longitudinal application ensure good water blocking and moisture resistance.
Loose tube is filled with special grease to ensure good water blocking and moisture performance
The phosphate wire center stiffening member is of high modulus and corrosion resistance.
The figure 8 aerial-self supporting structure is featured with high tensile strength, easy overhead laying, and low cost of installation.
More than 30 years of service life.
Fiber count | Structure | Fibers per tube | Loose tube diameter | CSM diameter /pad diameter (mm) | Thickness of outer jacket (mm) | Cable diameter/ Height (mm) | Cable Weight (kg/km) |
4 | 1+5 | 4 | (mm) | 1.4/1.4 | 1.6±0.1 | 9.0 ±0.5/15.9 ±0.8 | 135 |
6 | 1+5 | 6 | 1.4/1.4 | 1.6±0.1 | 9.0 ±0.5/15.9 ±0.8 | 135 | |
8 | 1+5 | 4 | 1.7±0.1 | 1.4/1.4 | 1.6±0.1 | 9.0 ±0.5/15.9 ±0.8 | 135 |
12 | 1+5 | 6 | 1.7±0.1 | 1.4/1.4 | 1.6±0.1 | 9.0 ±0.5/15.9 ±0.8 | 135 |
24 | 1+5 | 6 | 1.7±0.1 | 1.4/1.4 | 1.6±0.1 | 9.0 ±0.5/15.9 ±0.8 | 136 |
36 | 1+6 | 6 | 1.7±0.1 | 1.8/1.8 | 1.6±0.1 | 9.4 ±0.5/16.3 ±0.8 | 150 |
48 | 1+5 | 12 | 2.0±0.1 | 1.4/1.4 | 1.6±0.1 | 9.7 ±0.5/16.6 ±0.8 | 146 |
72 | 1+6 | 12 | 2.0±0.1 | 2.0/2.0 | 1.6±0.1 | 10.4 ±0.5/17.3 ±0.8 | 170 |
96 | 1+8 | 12 | 2.0±0.1 | 2.2/3.5 | 1.6±0.1 | 12.0 ±0.5/19.2 ±0.8 | 204 |

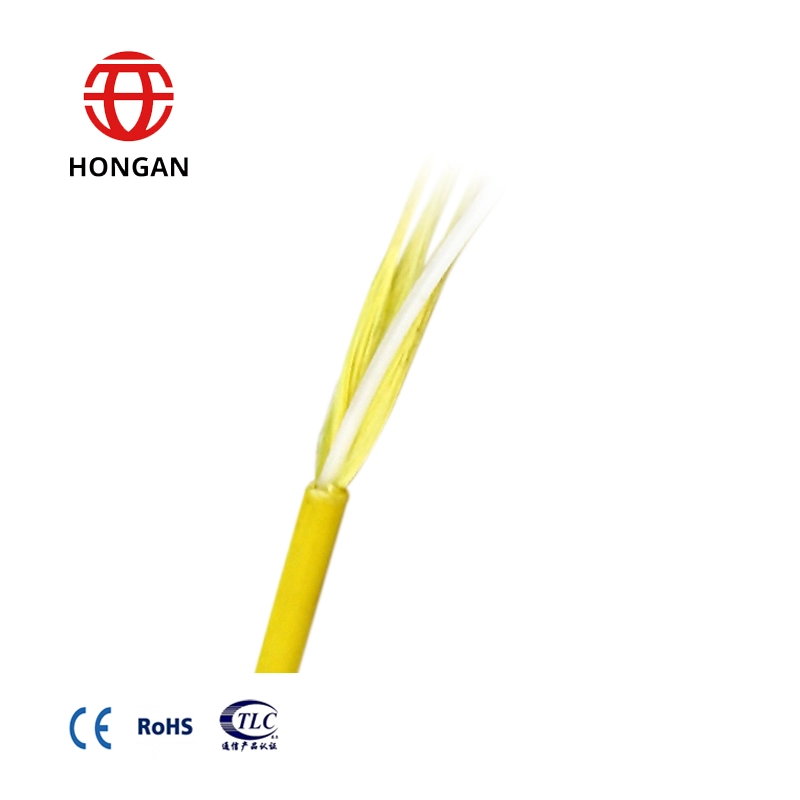

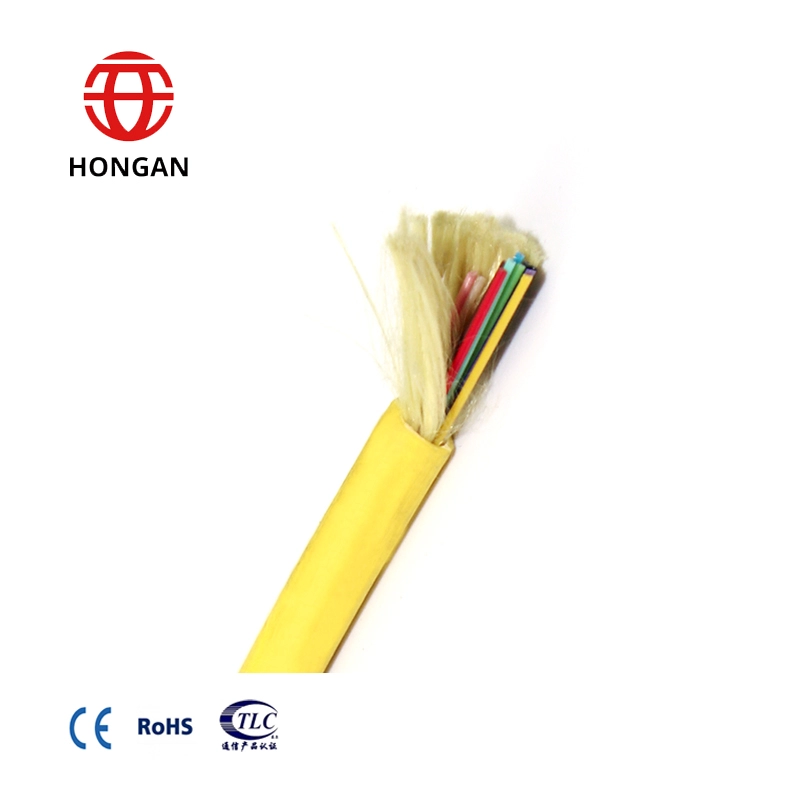

Indoor tight buffer cable

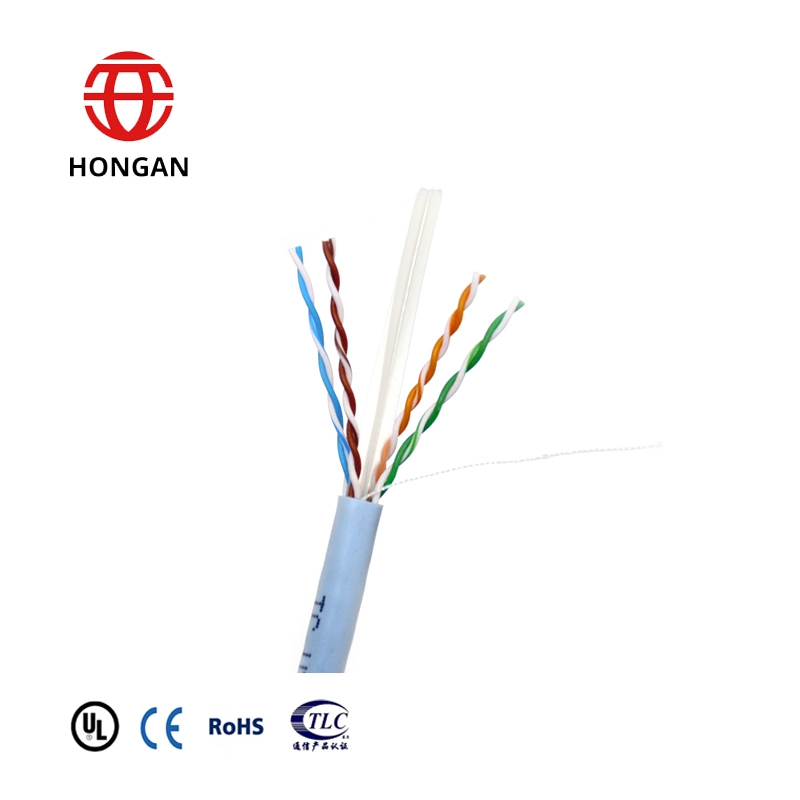

Cat6 network cable

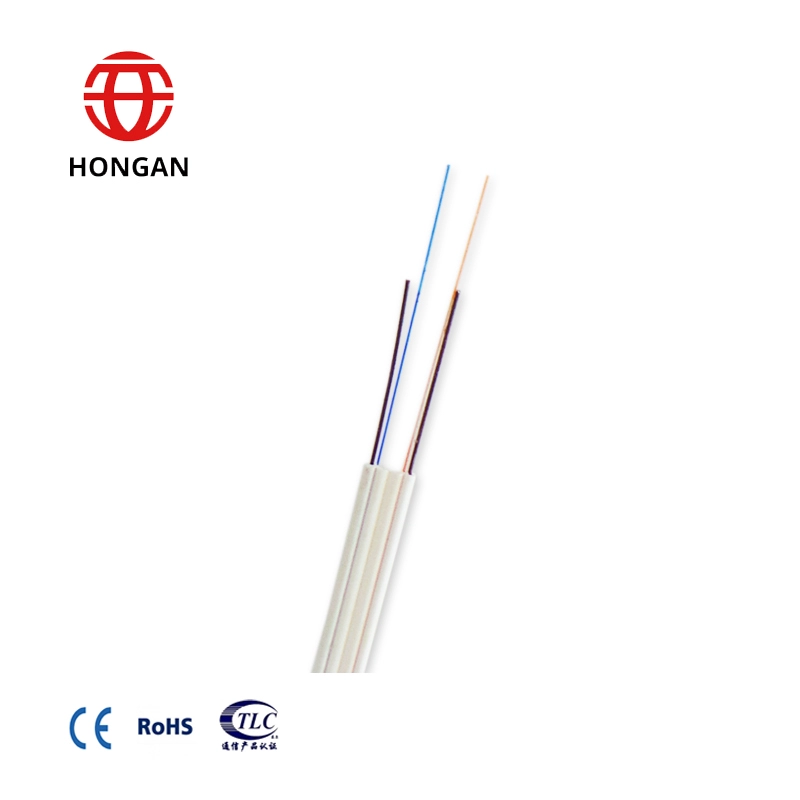

Independe FTTh drop cable

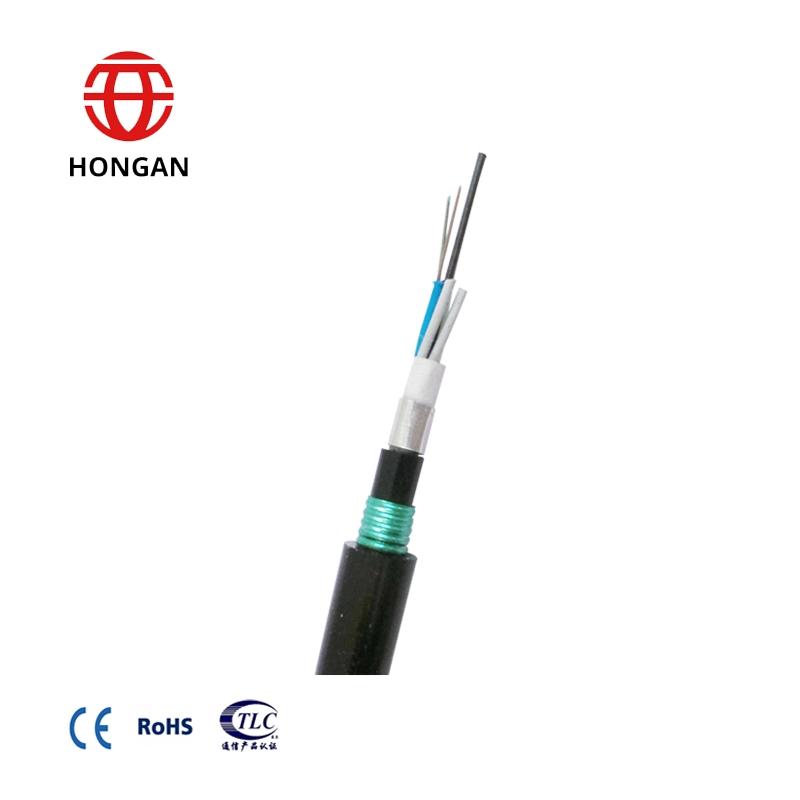

Double jacket armored fiber optic cable GYTA53
Single steel wire armored unitube fiber optic cable GYXS

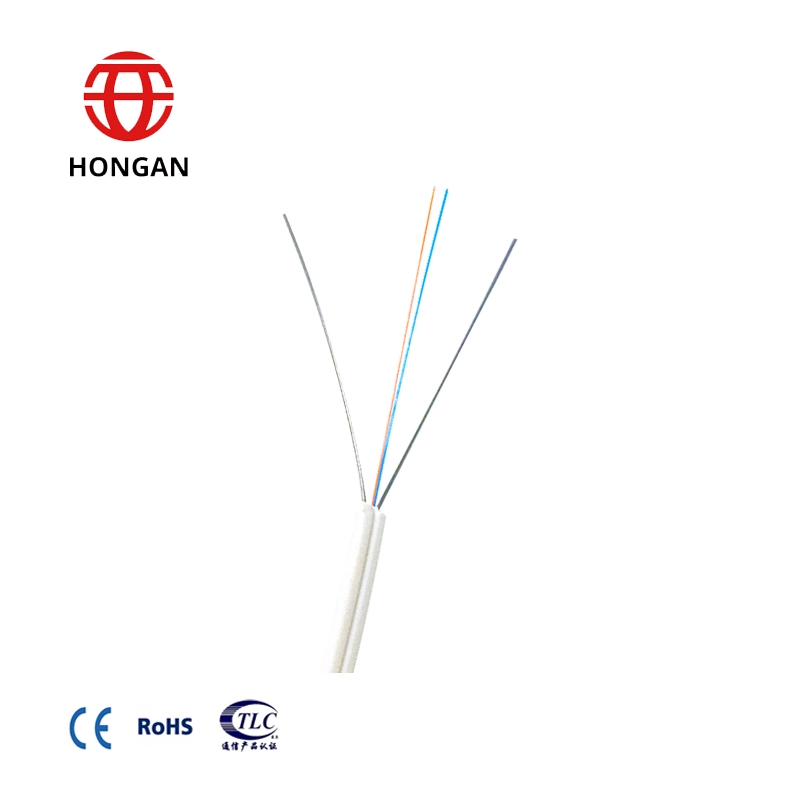

Indoor FTTh drop cable

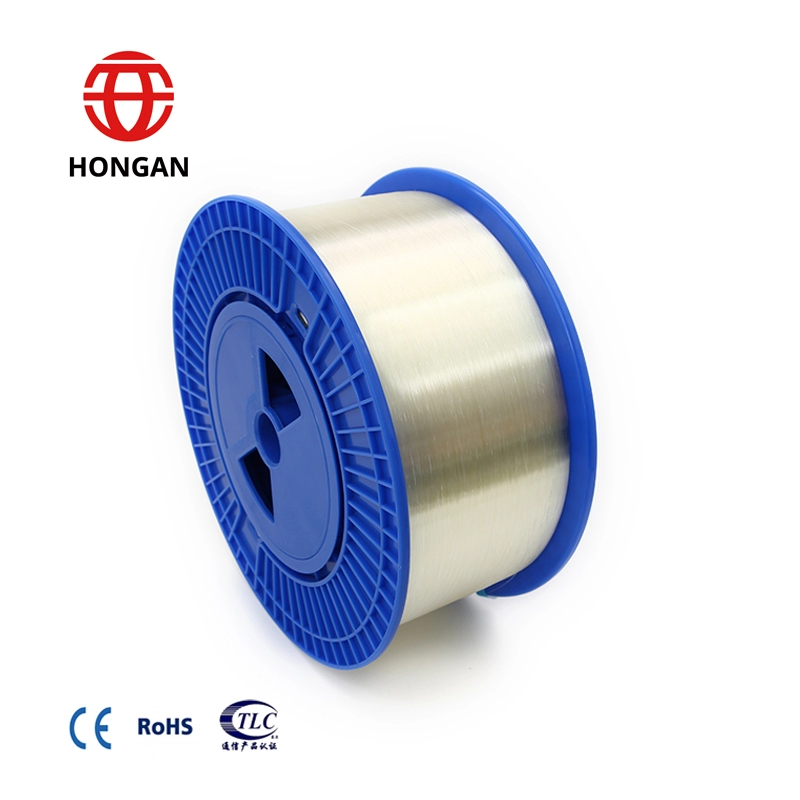

Single mode optical fiber
Roud distribution cable GJPFJH

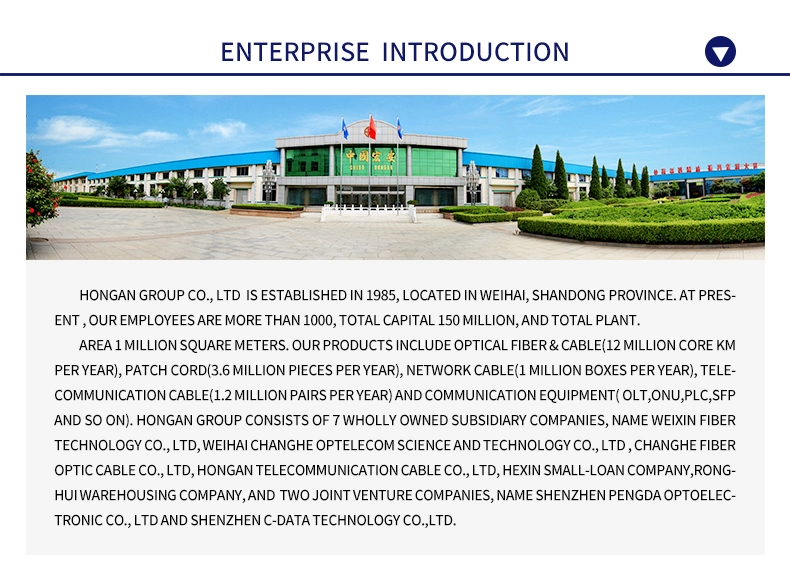

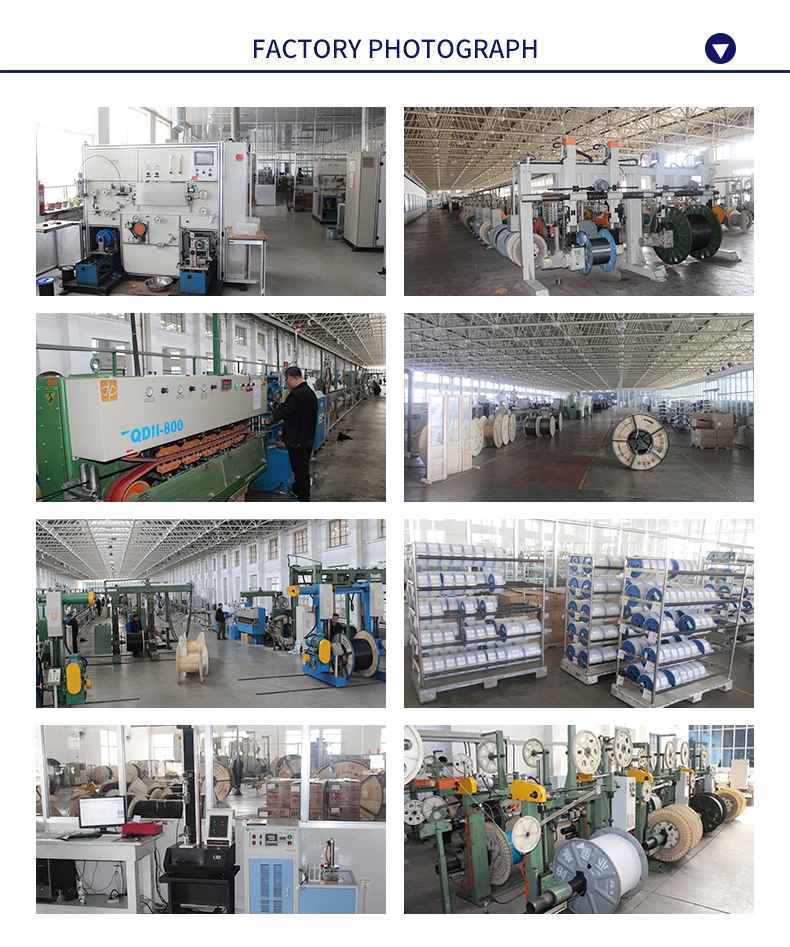

Yes,our factory, locates in Shandong Province, with more than 30 years experience,near to Qingdao Port. Welcome to visit.
