Selfsupporting figure 8 coil fiber optic cable
GYTC8S is a typical self supporting outdoor fiber optic cable with features of moisture resistance and crush resistance suitable for aerial application.

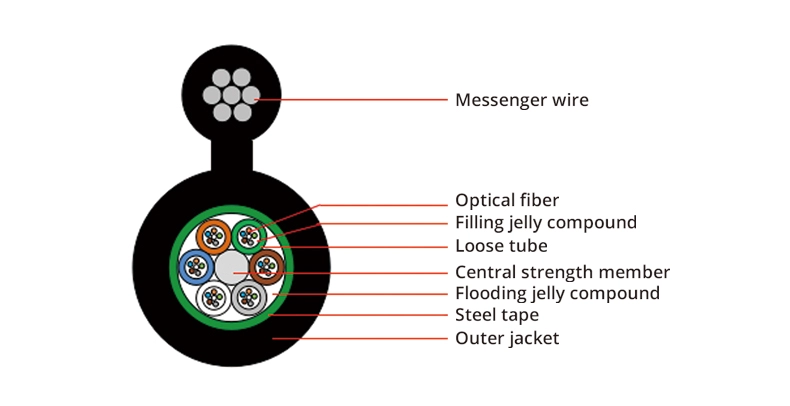

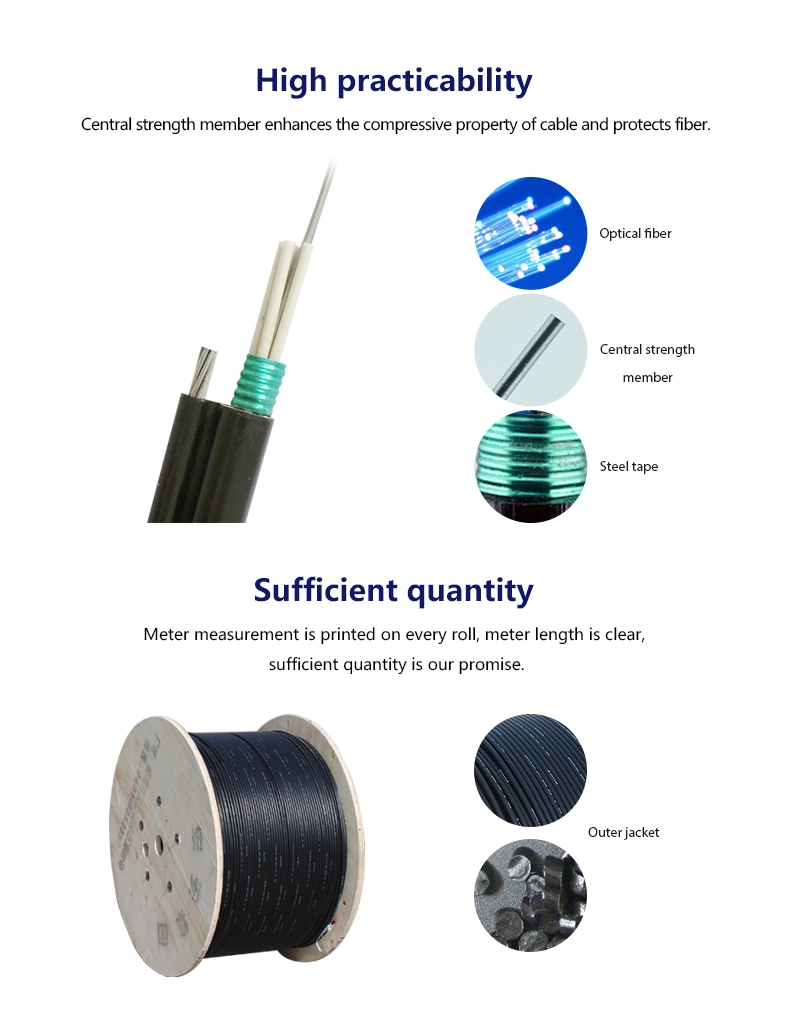

The stranded wires as the supporting part are completed with a polyethylene(PE) sheath to be figure 8 structure. Corrugated steel tape armored and PE outer sheath provide crush resistance and gun shot resistance features. The steel-wire as the central strength improves the tensile strength and it is surrounded by the loose tube and water blocking system. The impact structure ensures excellent mechanical and environmental performance.
Both single mode type and multimode types are available. Various lengths and fiber number can be customized according to customers’ requirements.
Applications:
· Inter-building voice or data communication backbones.
· Duct and Self-Supporting aerial
Characteristics:
· Loose tube gel-filled construction for superior fiber protection.
· Corrugated steel tape armor to protect cable from mechanical damage.
· Self-supporting Figure 8 design.
Fiber count |
Structure | Fibers per tube | Loose tube diameter (mm) |
CSM diameter /pad diameter (mm) | Thickness of outer jacket (mm) |
Cable diameter/ Height (mm) |
Cable Weight (kg/km) |
4 | 1+5 | 4 | 1.7±0.1 | 1.4/1.4 | 1.6±0.1 | 9.0 ±0.5/15.9 ±0.8 | 146 |
6 | 1+5 | 6 | 1.7±0.1 | 1.4/1.4 | 1.6±0.1 | 9.0 ±0.5/15.9 ±0.8 | 146 |
8 | 1+5 | 4 | 1.7±0.1 | 1.4/1.4 | 1.6±0.1 | 9.0 ±0.5/15.9 ±0.8 | 146 |
12 | 1+5 | 6 | 1.7±0.1 | 1.4/1.4 | 1.6±0.1 | 9.0 ±0.5/15.9 ±0.8 | 146 |
24 | 1+5 | 6 | 1.7±0.1 | 1.4/1.4 | 1.6±0.1 | 9.0 ±0.5/15.9 ±0.8 | 147 |
36 | 1+6 | 6 | 1.7±0.1 | 1.8/1.8 | 1.6±0.1 | 9.4 ±0.5/16.3 ±0.8 | 162 |
48 | 1+5 | 12 | 2.0±0.1 | 1.4/1.4 | 1.6±0.1 | 9.7 ±0.5/16.6 ±0.8 | 162 |
72 | 1+6 | 12 | 2.0±0.1 | 2.0/2.0 | 1.6±0.1 | 10.4 ±0.5/17.3 ±0.8 | 185 |
96 | 1+8 | 12 | 2.0±0.1 | 2.2/3.5 | 1.6±0.1 | 12.0 ±0.5/19.2 ±0.8 | 223 |
1.Are you a factory or trade company?
We are TOP 10 cable manufacturer in China, and we have legal import-export operation right.
2.Where is your location ? How can I visit there ?
Our factory is located in Wendeng District, Weihai City, Shandong Province , China.
We warmly welcome you to book a factory tour to visit us when you are free.
3.What is your after-sale service?
2 years warranty and professional technical persons to deal with your problems.
4.Do you provide any sample?
Yes, we provide samples for your reference, your feedback will be highly appreciated.
Free sample is available and can be sent within 3 working days once confirmed.
5.How do you arrange OEM, ODM?
You can send us your design and drawing, and we welcome you to visit us for authorization and incumbency discussion.
