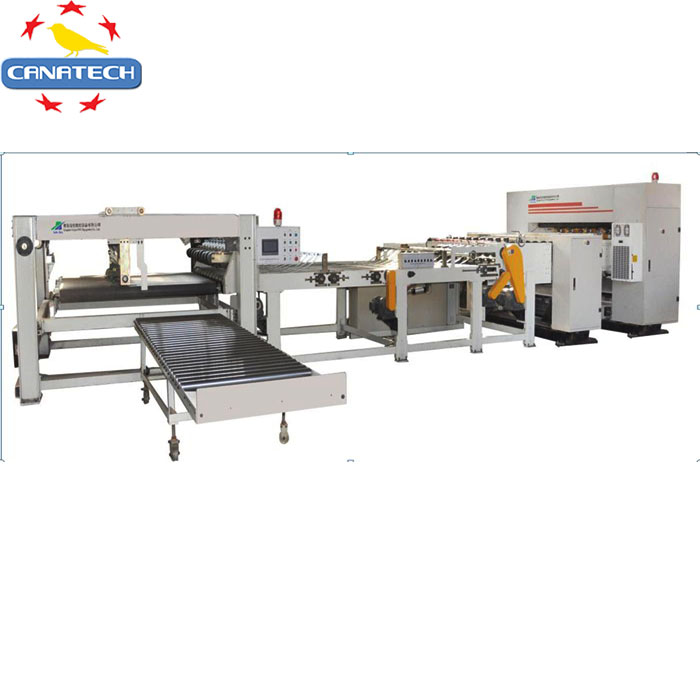

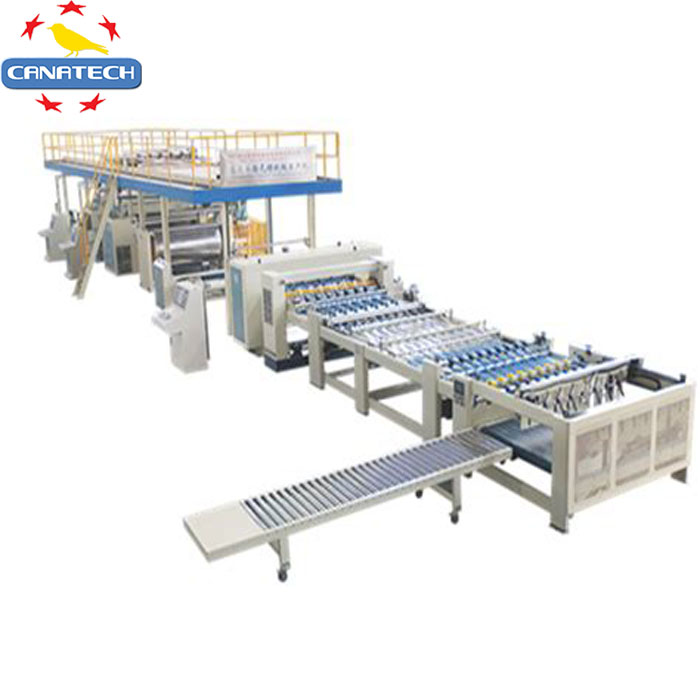

Single-Face Corrugated Board Production Line

Single-Face Corrugated Board Production Line

High-speed single-sided corrugated board production line using shaft-free bracket, preheater, single-sided machine, bridge, computer Tanwa vertical and horizontal cutting stacking machine composition, so that single-sided corrugated board to achieve high-speed production.

High-speed single-sided corrugated board production line using computer control, cutting precision, automatic points, automatic stacking, automatic output, automatic operation, improve production efficiency, save manpower, reduce the labor intensity of operators, suitable for color box enterprise rate production.

High-speed single-sided corrugated board production line work flow: The paper roll into the original paper bracket, through the preheater heating adjust and adjust the humidity and adjust the tension; then into the single-sided corrugated machine, after the pressure corrugated, and the other side of the paper bonding into a single-sided corrugated board; Conveyor Bridge to the single-sided corrugated board alignment and transport, to the computer high-speed paper cutting machine, corrugated cardboard has been According to the needs of the order, corrugated cardboard also need to be through the wire slitting machine longitudinal cutting and pressing line, and then through the cardboard crosscutting machine for horizontal cutting, a quadrilateral corrugated board has been produced, after the conveyor and stacking machine stacking and tensor statistics, you can output the finished product.

Function and Characteristics：

This pmdu~line is the semiautomatic product line consist by rotary stand．corrugating cardboard molding machine．rotary cutter．Using web as material can continuously produce and cut specification single corrugating paper which necessary． It has advanced producing flow．high effiency．strong batch adjustability，good work condition etc trait．it is the perfect equipment of the middle，small shfle carton factory to pro- ceeding the technique．

Technical Parameters：

Width:1200-2200mm

Speed:100-150mm/min

Precision:±1mm

Total Length: About 30-50m

Total Weight:About 15-20T
