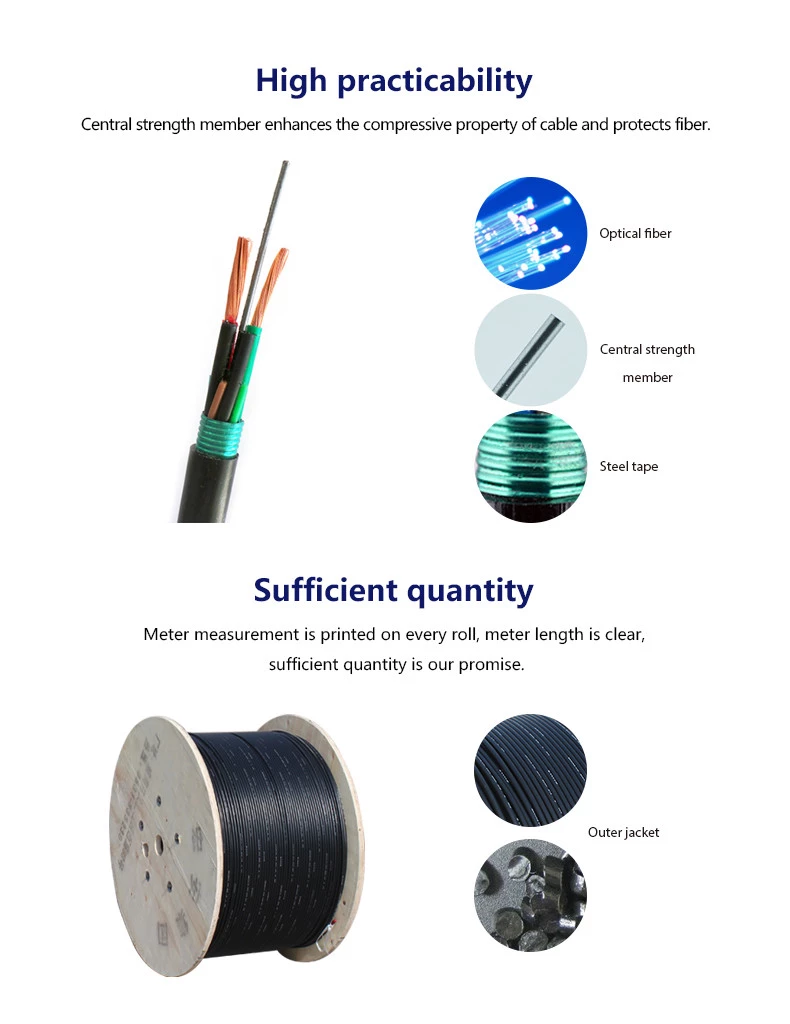

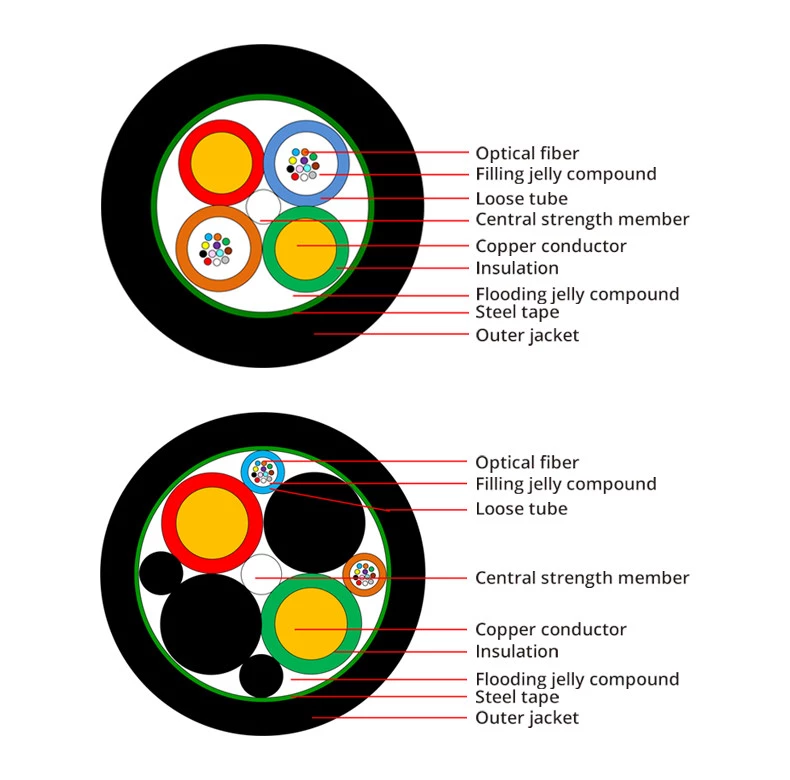

GDTA/GDTS hybrid optical and electrical stranded loose tube cable consist of optical unit and electrical unit.
The optical and electrical hybrid design can decrease the construction and installation cost, suitable for remote power and data supply for RRU.
Fiber count | Structure | Fibers per tube | Loose tube diameter(mm) | Conductor cross-section (mm2) | CSM diameter/pad diameter(mm) | Thickness of outer jacket(mm) | Cable diameter(mm) | Cable Weight(kg/km) |
24 | 1+6 | 6 | 2.5±0.1 | 1 | 1.8/2.8 | 1.6±0.1 | 12.8±0.5 | 166 |
24 | 1+6 | 6 | 3.0±0.1 | 1.5 | 1.8/3.3 | 1.6±0.1 | 14.3±0.5 | 203 |
24 | 1+4 | 6 | 1.8±0.1 | 2.5 | 1.8/1.8 | 1.6±0.1 | 14.1±0.5 | 220 |
24 | 1+4 | 6 | 1.8±0.1 | 4 | 1.8/1.8 | 1.6±0.1 | 15.2±0.5 | 267 |
24 | 1+4 | 6 | 1.8±0.1 | 6 | 2.0/2.0 | 1.6±0.1 | 16.6±0.5 | 330 |
24 | 1+4 | 6 | 1.8±0.1 | 10 | 1.8/2.8 | 1.6±0.1 | 20.1±0.5 | 470 |
24 | 1+4 | 6 | 1.8±0.1 | 16 | 1.8/3.3 | 1.6±0.1 | 22.8±0.5 | 634 |
Item | Parameters | |
Loose tube | Material | PBT |
Color | All colors display | |
Filler | Material | PE |
Color | Black | |
Electrical unit | Material of Insulation | HDPE |
CSM | Material | Phosphating steel wire |
Armoured | Material | Plastic coated Steel strip |
Outer jacket | Material | MDPE |
Color | Black | |
Min. bending radius | Static | 12.5times cable diameter |
Dynamic | 25 times cable diameter | |
Tensile performance | Short term | 1500N |
Crush | Short term | 1000N/100mm |

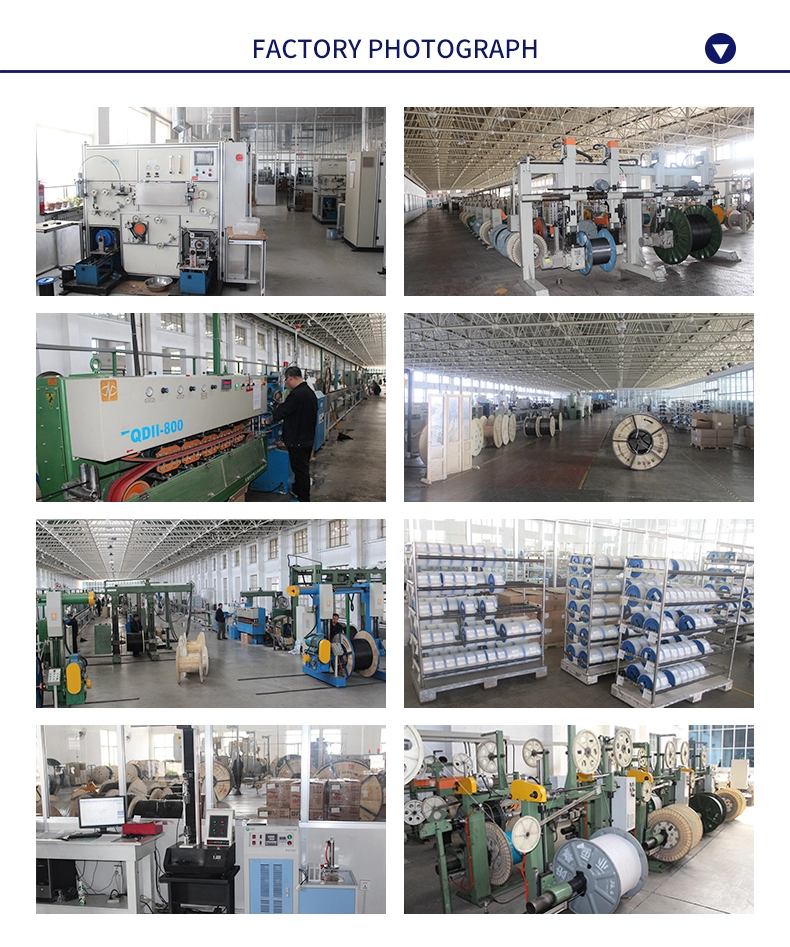

Yes,our factory is located in Shandong Province, near to Qingdao Port，having more than 30- years munufature experience. Welcome to visit.
2. What is your fiber brand?
Most fiber is from Weixin, a fiber brand owned by Hongan ourselves. But we also purchase fiber from Corning， YOFC and other brands.
3.What is your main products?
Our main products are outdoor and indoor fiber optic cable, FTTx cable, network cable and telephone cable.
4.What is your payment term?
30% in advance, 70% before delivery.
