FTTH Micro Steel Tube Type PLC Splitter 1x8 Lower Insertion Loss OEM Accepted
? Quick Details
- Product Model: 1x8 PLC splitter
- Connector: SC, LC, FC, ST
- Ferrule: APC, UPC
- Splitting ratio: 1*8
- Fiber diameter: 0.9mm
- Certification: Telcordia GR-1209 & GR-1221 compliance, ISO 9001, ISO 14000 & OHSAS18000
- Operation Temperature: -40℃ to + 85℃
- Operating wavelength(nm): 1260-1650
? Specification
| Parameter | Unit | 1x2 | 1x4 | 1x8 | 1x16 | 1x32 | 1x64 |
| Premium Grade | |||||||
| Insertion Loss at 23°C | Max. dB | 4.0 | 7.0 | 10.4 | 13.5 | 16.8 | 20.5 |
| Channel Uniformity | Max. dB | 0.6 | 0.8 | 1.0 | 1.4 | 1.6 | 2 |
| PDL | Max. dB | 0.2 | 0.3 | 0.3 | 0.3 | 0.3 | 0.5 |
| Standard Grade | |||||||
| Insertion Loss at 23°C | Max. dB | 4.2 | 7.3 | 10.6 | 13.8 | 17.1 | 20.8 |
| Channel Uniformity | Max. dB | 0.6 | 0.8 | 1.0 | 1.4 | 1.6 | 2 |
| PDL | Max. dB | 0.2 | 0.3 | 0.3 | 0.3 | 0.3 | 0.5 |
| Operating Wavelength | nm | 1260~1650 | |||||
| Return Loss | Min. dB | 60(Premium Grade) / 55( Standard Grade) | |||||
| Directivity | Min. dB | 55 | |||||
| Operating Temperature | °C | -45 to +85 | |||||
| Storage Temperature | °C | -45 to +85 | |||||
| Fiber Type | - | G657A or Customized | |||||
| Basic Type PLC Splitter | mm | 4x4x40 | 4x4x50 | 4x7x55 | 4x12x60 | ||
| 900um Fan-out Type PLC Splitter | 4x4x40 | 4x4x50 | 4x7x55 | 4x12x60 | |||
| 900um SFF Type PLC Splitter | 4x7x50 | 4x7x55 | 4x12x60 | 6x20x80 | 6x40x100 | ||
| Cassette Type PLC Splitter | 10x80x100 | 18x80x120 | 18x115x140 | ||||
| Rack Type PLC Splitter Module | 482x240x45 (19 inch 1U) | 2U | |||||
| Flat Quick-Connect Termination Type PLC Splitter Module | 130x100x25 | 130x100x50 | 130x100x76 130x100x102 | 130x100x154 130x100x206 | |||

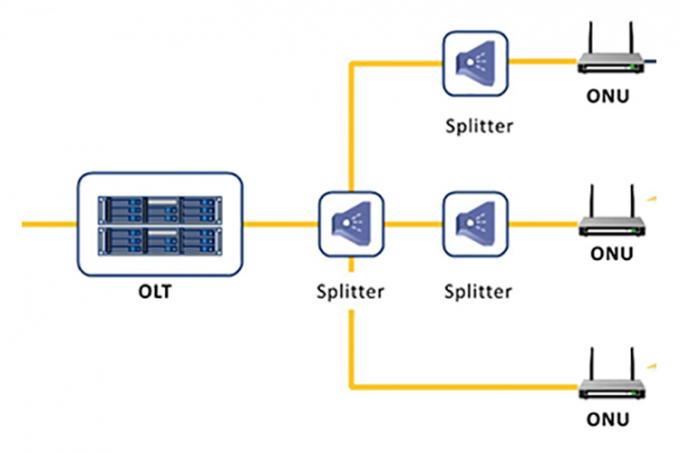

? Application
- FTTX networks
- PON networks
- CATV links
- Data Communication
? Packing and Shipment

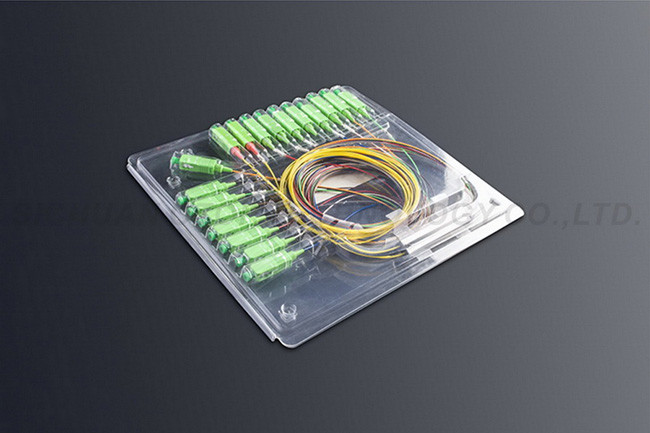

- Standard blister packing
- DHL, UPS and FEDEX or by ship.
PLC Splitter
A fiber optic splitter, also known as a beam splitter, is based on a quartz substrate of an integrated waveguide optical power distribution device, similar to a coaxial cable transmission system.
The optical network system uses an optical signal coupled to the branch distribution. The fiber optic splitter is one of the most important passive devices in the optical fiber link.
It is an optical fiber tandem device with many input and output terminals, especially applicable to a passive optical network (EPON, GPON, BPON, FTTX, FTTH etc.) to connect the MDF and the terminal equipment and to branch the optical signal(from ' Wikipedia ').
The PLC splitter is a micro-optical element using photolithographic techniques to form optical waveguide at medium or semiconductor substrate for realizing branch distribution function (from ' Wikipedia ').
