HDPE INSULATOR PIN TYPE

ID:20110532172

Category: Electrical & Power Energy Electrical Switches & Supplies

FOB Price:US$ 300.000 / Piece(s)

MOQ:50.00 Piece(s)

Product Keywords:

ASTM Standard insulator power line Accessories Shackle Insulator (ED-2B)insulator 56-2 12kv pin type insulator160kn disc porcelain insulator52-1 52-2 52-3 insulator 11kv pin insulator HDPE Pin Type Insulator

Payment Method:

L/CT/TD/PWestern UnionPaypalMoney Gram

Product Category

Electrical & Power Energy > Electrical Switches & Supplies

Trademark

SASUN

Product Package

Paper Carton

Specification

45 X 46 X 28

Place of Origin

CHINA

Port

YIWU

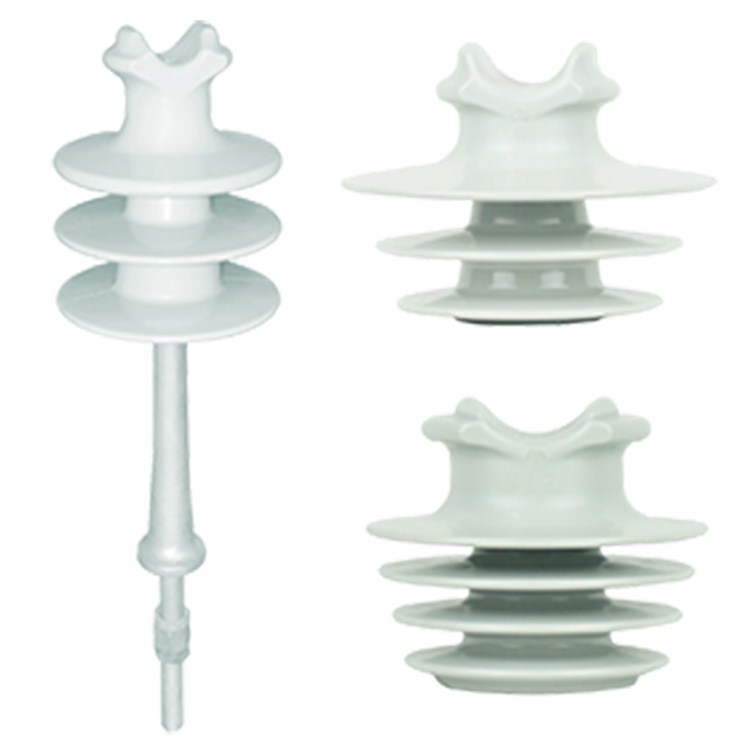

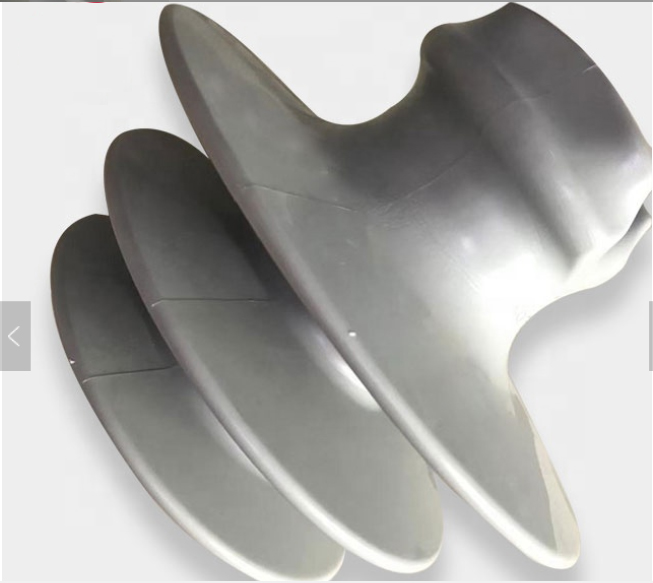

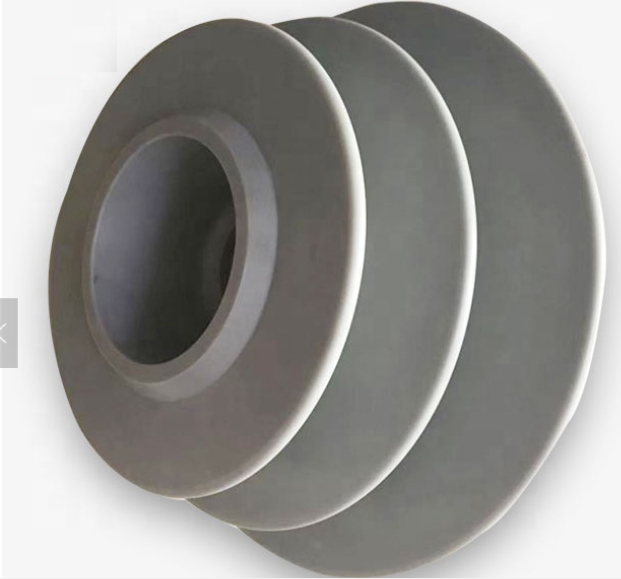

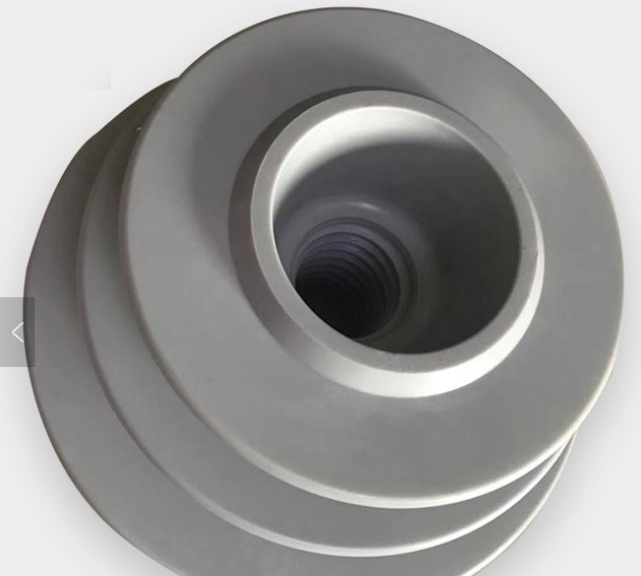

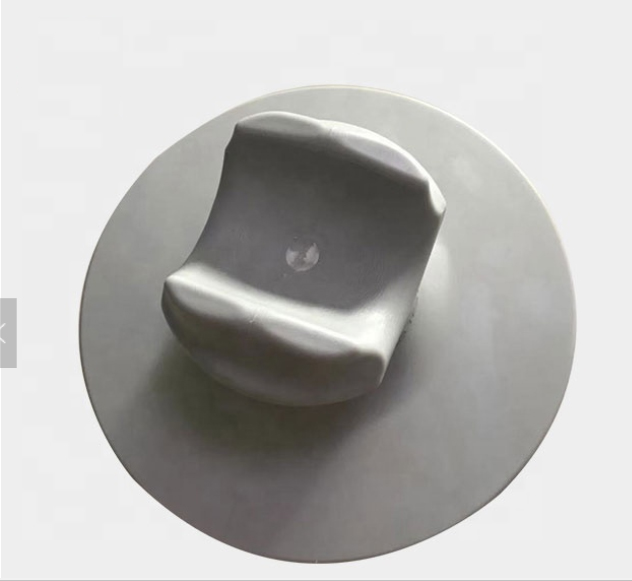

Modified Polyethylene(HDPE) Pin Type Insulator

Technical parameters

Fig No.		1	2	3
Catalog number		JHG-IP-15F	JHG-IP-25F1	JHG-IP-35F
Class ANSI		55-4	55-5	55-6
Nominal voltage(kv)		15	25	35
Creepage distance(mm)		360	390	508
Power frenquency withstand voltage	Dry(kv/min)	70	70	110
	Wet(kv/min)	40	50	75
Low-frenquency flashover voltage	Dry(kv)	75	89	90
	Wet(kv)	50	60	70
Critical dry impulse flashover voltage	Pos/kv	110	140	160
	Neg/kv	145	170	200
Puncture voltage(kv)		160	180	200
Dry arcing distance(mm)		160	183	254
Cantilever failing load(KN)		13	13	13
Main dimensions(mm)	A	129.5	150	181
	B	140	190	191
	C	88	99	140
	D	68	68	85
	E	25.4	25.4	25.4
	F	16	20	19
Weight(kg)		0.6	0.85	1.1
