33kv pin type insulator with factory price
Our main products are over 10series, such as cap and pin type suspension insulator for high voltage, cap and pin type suspension antipollution insulator, pin type insulator, line post insulator, ceramic bridge insulator, stay insulator, spool insulator, shackle insulator etc.
A. Professional Manufacturer of insulators above twenty years experience
B. Certificates: ANSI, IEC, XIHARI, BS, AS, SA
C. A wide range of low and high voltage insulators
specifications of 33kv pin type insulator with factory price
1.porcelain material
2.sample is available
3.competitive price

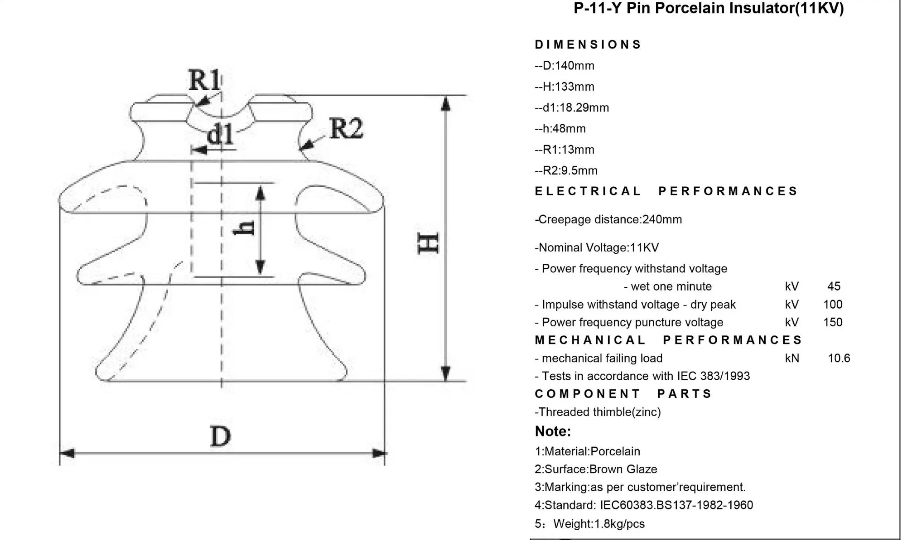

Types of 33kv pin type insulator with factory price : p-11-y , p-22-y, p-33-y, p-15-y
ANSI CLASS | p-11-y | p-15-y | p-22-y | p-33-y | Pw-15-y | |
Fig. No. | 1 | 1 | 2 | 3 | 4 | |
Main Dimension(mm)
| D | 140 | 152 | 230 | 279 | 170 |
H | 133 | 137 | 165 | 244 | 185 | |
d1 | 18.29 | 18.29 | 27.78 | 27.78 | -- | |
h | 48 | 48 | 52.63 | 52.63 | 52.63 | |
R1 | 13 | 13 | 19 | 19 | 16 | |
R2 | 9.5 | 12.7 | 14.3 | 13 | 16 | |
d | -- | -- | -- | -- | 76 | |
Dreepage Distance (mm) | 240 | 289 | 432 | 630 | 432 | |
Cantilever Strength (Kn) | 11 | 11 | 11 | 13.8 | 11 | |
Withstand Voltage | Dry Inpulse withstand voltage | 80 | 95 | 125 | 170 | 95 |
One Minute Wet Power Frequency Withstand Voltage Kv | 45 | 50 | 70 | 90 | 50 | |
Power Frequency Puncture Voltage(peak) KV
| 150 | 150 | 200 | 210 | 150 | |
Radio Influence voltage | Test Voltage to ground/kV | 15 | 15 | 22 | 30 | 22 |
Maximum RIV at 1MHz/uV | 8000/100 | 8000/100 | 12000/100 | 16000/100 | 12000/100 | |
