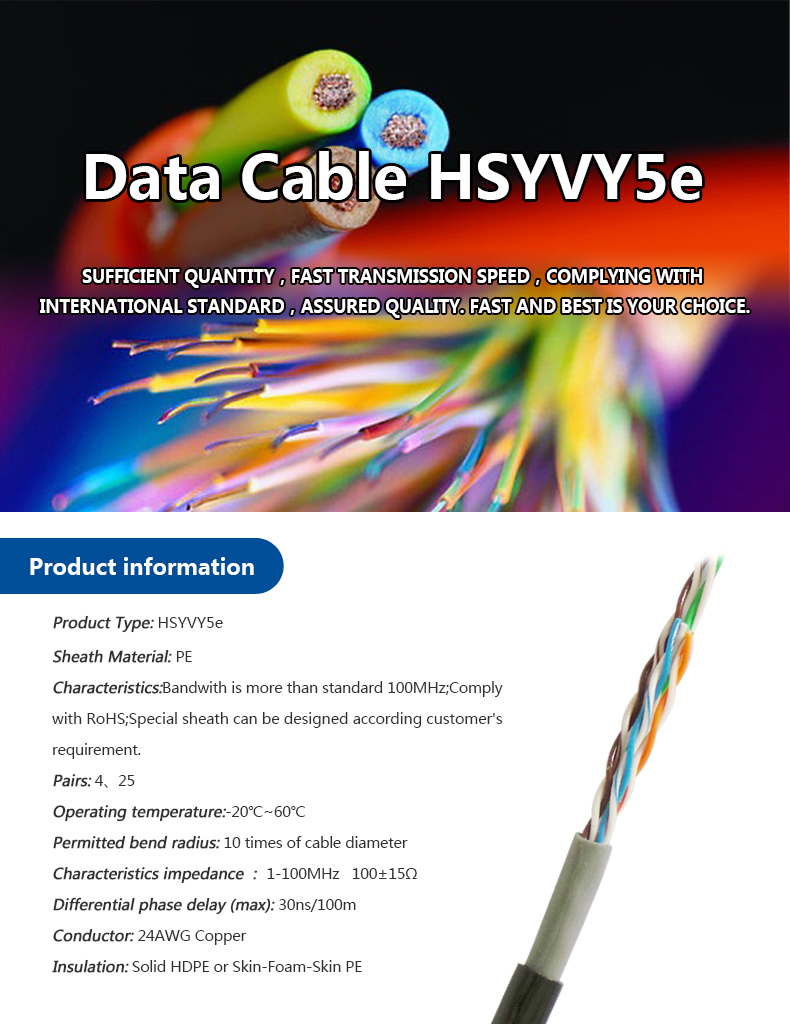

UTP CAT5e HSYVY5e
outdoor double sheaths horizontal symmetrical twisted pair unshielded cable for digital communication
UTP category 5e
| cable type | unshielded twisted network cable |
| description | PE insulation PVC inner jacket PE outer jacket |
| operation temperature | -20~+60°C |
| wire gauge | 24awg |
| pairs | 4 |
| diameter (mm) | 5.8 |
| applications | *10 Base-T *100 Base-T4 *100 Base-TX *100 Base-VG-ANYLAN *155 Mbps ATM *622 Mbps ATM *1000 Base-T |
| standards | *ISO/IEC 11801 *ANSI/TIA/EIA-568-C *YD/T 1019-2013 *UL 444 *IEC 61156 |

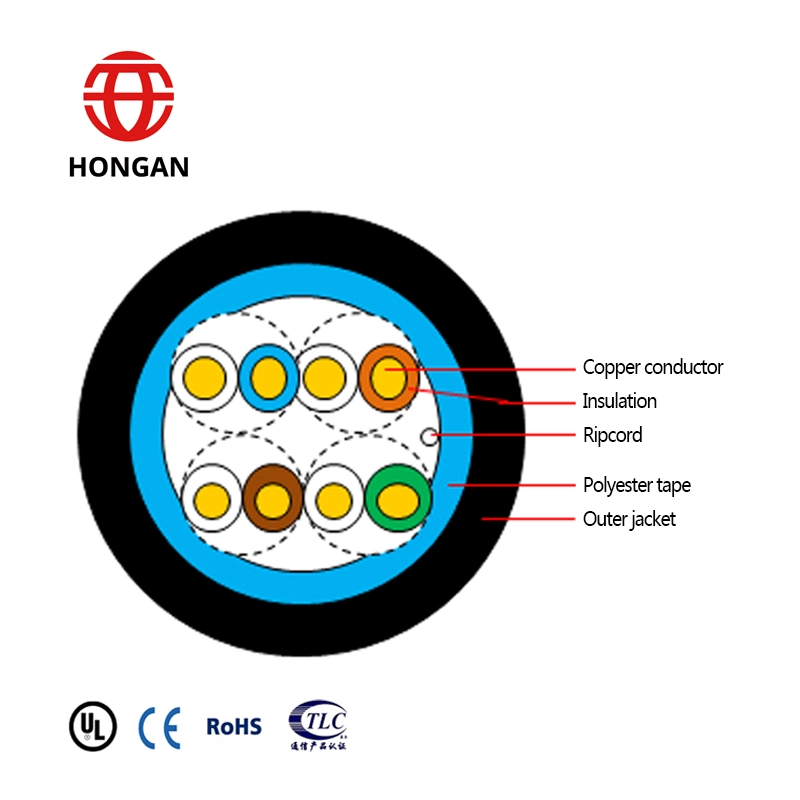

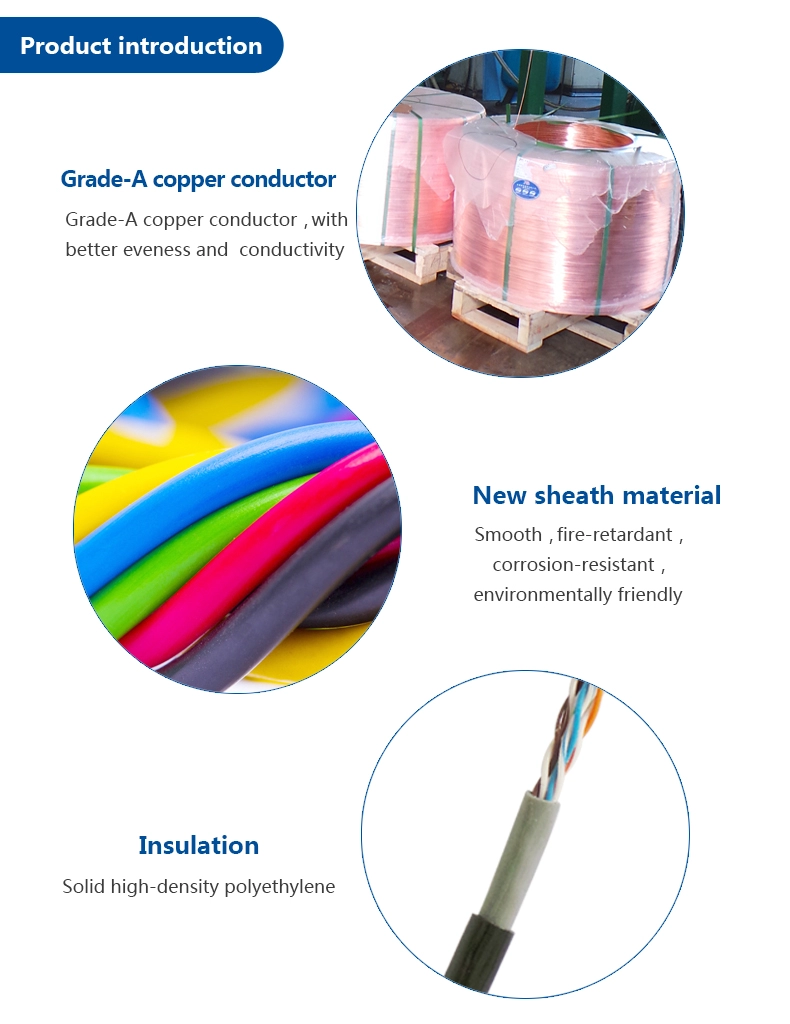

| material instructions | *conductor : 24AWG copper *insulation : solid HDPE or skin-foam-skin PE *inner sheath : environment friendly PVC *outer sheath : PE or flame resistant PE |
| characteristics | *more bandwidth excess than 100 MHz standard required *comply with ROHS standard *the products of special outer sheath or purpose can be designed according to customer's demands *moisture and UV resistant PE outer sheath |
| physical electrical characteristics | *D.C resistance (max) : 9.5 Ω/100 m at 20 celsius degree *mutual capacitance (max) : 5.6nF/100m *dielectric strength between conductors (min): 2.5kv/2s *impedance : 1-100 MHz 100±15Ω *differential phase delay (max) : 30ns/100m *permitted bend radius : over 8 times diameter of the cable |
transmission performance
| frequency (MHz) | max attenuation (dB/100m) | min NEXT (dB/100m) | min ELFEXT (dB/100m) | min RL (dB) | min phase velocity (m/s) | max phase delay (ns/100m) |
| 4 | 4.1 | 57 | 52 | 23 | 0.604c | 552 |
| 10 | 6.5 | 51 | 44 | 25 | 0.612c | 545 |
| 16 | 8.2 | 48 | 40 | 25 | 0.614c | 543 |
| 20 | 9.3 | 46 | 38 | 25 | 0.615c | 542 |
| 31.25 | 11.7 | 43 | 34 | 24 | 0.617c | 540 |
| 62.5 | 17.0 | 39 | 28 | 22 | 0.619c | 539 |
| 100 | 22.0 | 36 | 24 | 20 | 0.620c | 538 |
Hongan Group Co., Ltd, since 1985
| employee | total assets | area | |
| 1500 | 1.5 billion RMB | 2 million square meters | |

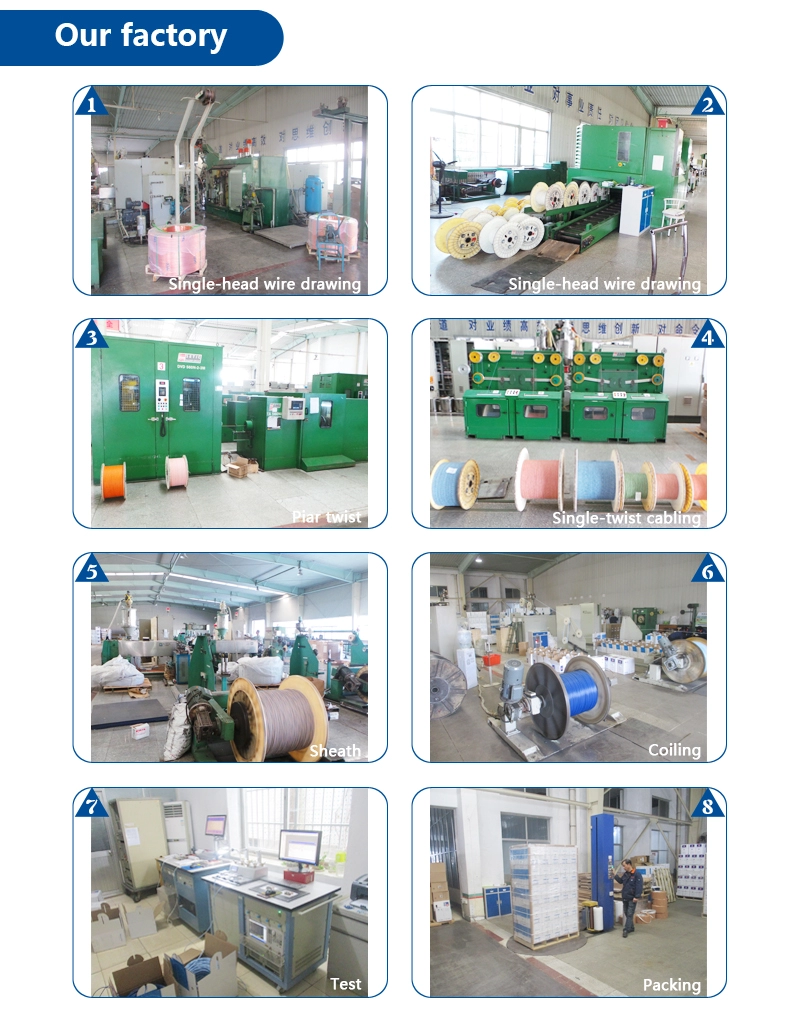

advanced machines: | |||
KOSOCA-CTF2000 insulated wires production line made by Japanese KOBE STEEL Co., Ltdtesting and monitoring equipment made by US DCM companyDAVIS-2500 of 4 production lines of insulated wires made by US DAVIS company four pairs group twist production line made in Canada secondary coating plastic production line and fiber coloring machine made by NOKIA company back twist pair twister and rotary traction cabling machine from France ring winding machine from US insulated wire from Rosendahl Australia SZ cabling machine from Switzerland | |||
main products form a big whole industry chain, and can be devided into 9 categories:
1.optical fiber
2.indoor & outdoor optical fiber cable (armored & nonarmored cable , drop cable etc)
3.CAT5 CAT5E CAT6 CAT7 network lan cable (both UTP and FTP)
4.municipal telephone cable
5.patchcord, fiber jumper
6.fiber pigtail
7.EPON,GPON , data center solutions and equipments
8.FTTH products
9.OEM products, customized new cable
Main product model
outdoor layer stranded optical cable
GYTA,GYTS,GYTA53,GYTY,GYTY53,GYTZA,GYTZS,GYTZA53,GYTA5333,GYTA33,GYTA333,GYFTY,GYFTA,GYFTS,GYXS,GYFXY,GYFTY53,GYFTA53,GYFY,GYFTY73,ADSS,GYTC8A,GYTC8S,GYTC8Y,GYFC8Y,GYXC8Y,GCYFY
outdoor central tube optical cable
GYXTW,GYXTW53,GYXTS
ribbon cable
GYDTA,GYDTS,GYDXTW
drop cable
GJFJV,GJFJH,GJXH,GJXV,GJXFH,GJXFV,GJYXCH,GJYXFCH,GJXDH,GJYXDCH,as well as twin cable
indoor optical cable
GJFJBV,GJPFJH,GJPFJV,GJBFJV
data cable
indoor & outdoor CAT5E, indoor & outdoor CAT6, HSYV3 25& 50& 100 pairs, HSYV5 25& 50&100 pairs
municiple telephone cable
HYA,HYA53,HYAT,HYAC,HYAT53,HYV
optic-electric composite cable
GDTA,GDTS
distribution cabling system
RJ-45 panel, 110 patch panel, CAT5E & CAT6 various patch panel, patchcord& pigtail, fiber optic coupler, optical distribution frame, fiber optic cable connector box, optical fiber terminal box, OLT, ONU, network module, PLC splitter, FTTH splitters distribution box, optical cable cross connecting cabinet, fiber closure, PCI-E server adaptor, etc
yearly productive capacity
| fiber | cable | annual export volume |
4 million
fkm | optic cable 1.2 million core km data cable 96000 cases telephone cable 6 couple million 6 couple km | 200,000km length cable 21% of total annual production |
main reference of key performance
1.exports area: Combodia , Vietnam, Myanmar, Laos, Bahrain, United Arab Emirates, Saudi Arabia, Brazil, Cameroon, Iraq, South Africa, Nicaragua, Costa Rica
2.Trunk Line Communication Network in Vietnam, Myanmar and Cambodia
3.village to village projects in Laos
4.integrated wiring projects in Bahrain, United Arab Emirates, Saudi Arabia, Brazil and the US
5.Backbone cabling projects of China Unicom , China Telecom in many provinces
6.nominated for 9 provincial radio and television projects, such as Shandong, Fujian, Hebei, Heilongjiang
7.subway projects of Shanghai , Qingdao and other cities
8.projects for Jinan Military , Nanjing Airforce and Engineering Command of PLA
9.Broadband access integrated projects for the Great Wall broadband, Founder and other broadband
10. ATL Projects in Shandong
for optic cable
inner packaging--wooden /non-wooden /wooden-iron drum
outer packaging--wooden batten and a metal tape secured outside to protect the cable
for network cable
305m(1000ft ) per box or 500-1000m per reel
other lengths are available upon request
shipping
for sample--DHL,UPS,FedEX,TNT,airline
for bulk export--sea shipping ,airline ,road transport (optional)
1.Are you a factory or trade company?
We are TOP 10 cable manufacturer in China, and we have legal import-export operation right.
2.Where is your location ? How can I visit there ?
Our factory is located in Wendeng District, Weihai City, Shandong Province , China.
We warmly welcome you to book a factory tour to visit us when you are free.
3.What kind of material do you use?
High quality PE, PVC, LSZH etc.
4.What is your after-sale service?
2 years warranty and professional technical persons to deal with your problems.
5.Do you provide any sample?
Yes, we provide samples for your reference, your feedback will be highly appreciated.
Free sample is available and can be sent within 3 working days once confirmed.
6.Could I order a small quantity for the first stage ?
Yes, we accept small order.
7.How many years is fiber cable's working time?
25 years.
8.How do you arrange OEM, ODM?
You can send us your design and drawing, and we welcome you to visit us for authorization and incumbency discussion.
9.How can I pay my purchase?
We accept payment by L/C, T/T, D/P, Western Union, Money Gram,Paypal and credit card.
10. price
pls note that this price is FOB Qingdao 40GP full container load price, pls contact us for less than container load price.
trade terms : FOB, CIF, CNF, etc
11.What's your international certificate?
CE,ROHS,SGS.
12.Do you have certificate for raw material ?
We build long-term friendly relationship with qualified ROHS raw material suppliers.
13.Do you have any other distributor in any other country ?
For overseas market, we sell our products to customers directly, and factory price is offered for you.
14.How to proceed an order?
1),let us know your requirements
2),we quote our price
3),customer confirms the sample and places deposit for formal order
4),we arrange the production
15.lead time
samples need 3 days
mass production needs 1 week for order quantity more than 100km
