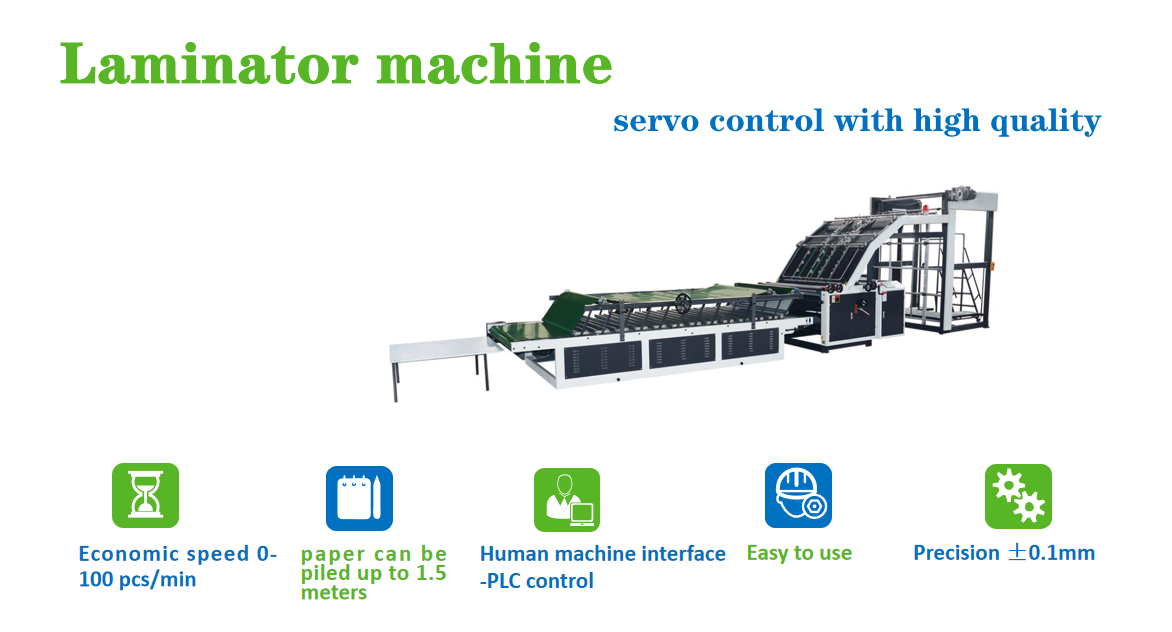

Flute Laminating MachineLaminator Machine
L/CT/T
1. Suitable for laminating of cardboard and corrugated cardboard in 150-600 g/m2 .2. The vacuum suction-type feeding system can lead the paper accurately into the machine;cycle stacking planes in a state of non-stop the next batch of paper stack well, so that more efficient.
3. Using suction automatic feeding of bottom sheet, according to the main machine operating speed, continuous automatic tracking.
4. The machine operation is stable, surface paper with corrugated paper joint very accurate.
5. The corrugated paper never pull ahead, surface paper's location is easy adjust. Machine uses touch-screen/PLC/servo motor control system, double frequency control type , the circuit system is stable, and can automatically display the failure alarm.
6. Automatic gluing, and the glue can be used circulatory,
avoid glue waste.
7. Measure roller line-speed design scientifically, avoid glue fly out when the speed is high.
8. Pressure rollers adopt unilateral adjustment, convenient and fast. Cleaning type : bottom roller is extruded by rubber roller to clean the bottom laminating pressure roller, ensure the cleaner on the reverse of the bottom paper . Make glue etc. foreign matter after washing direct subside in tank. At the same time , adopting the gear and chain to control the lifting of tank, can take out the tank easily and convenient to wash .
9. The pressure conveyor adopt floating movable structure , total length 5m , equipped with 28 paper pressing rollers , make the cardboard uniform bearing strength in pressing process.
10. Counter designs scientifically, easy recording the amount you have been worked.
11. Small pressure table (optional) . length 2.5m , big pressure table length 5m.
Technical parameter:
| Model | SM-1300A-Ⅲ | SM-1450A-Ⅲ |
Max laminating size | 1300mm×1250mm | 1400mm×1250mm |
Min laminating size | 400mm×400mm | 400mm×400mm |
| Economic speed | 0-100sheets/min | 0-100sheets/min |
| Laminating precision | ±1.5 | ±1.5 |
| Power | 10kw | 12kw |
| Size | 13.5m×2m×2.4m | 13.5m×2.05m×2.4m |
| Weight | About 4.8t | About 5t |
Bottom paper thickness | A/B/C/E/F flute,2/ 3/4/5/7/ layer , less t han 12mm thickness | |
Surface paper gram weight | 150-600 g/m2 | |
1. Q: Are you a manufacturer, trading company or a third party?
A: We are a manufacturer, located in South of Dongguang county, Cangzhou city,Hebei province,China.Warmly welcome to visit our company.
2. Q: How about the after-sale service?
A: 1) TM online for 24 hours, also contact by email, wechat, skype, Facebook, whatsapp, etc.
2) To solve the problems with videos/pictures.
3) One year warranty for spare parts change.
