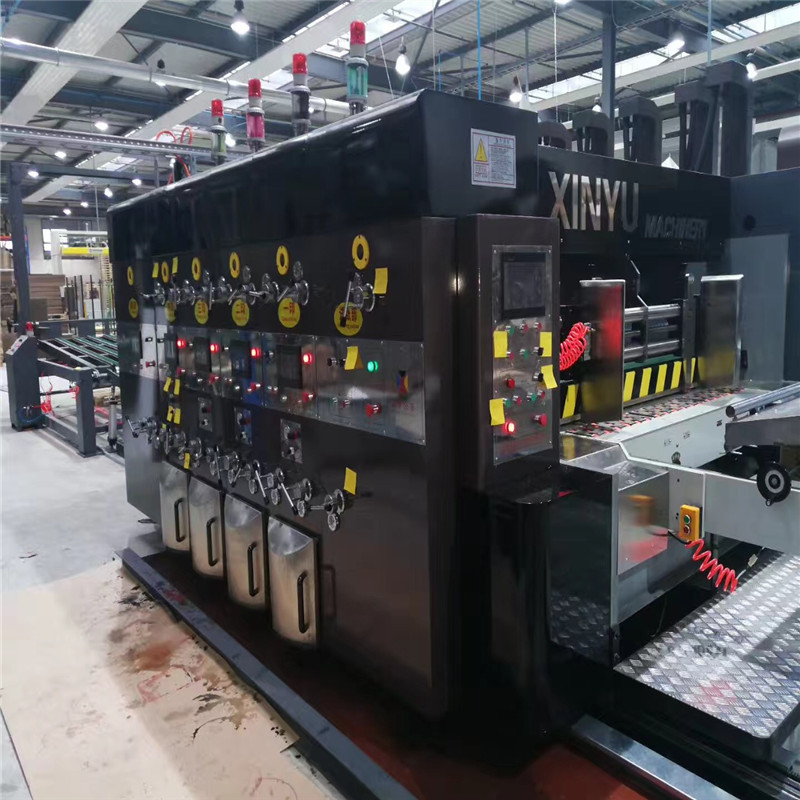

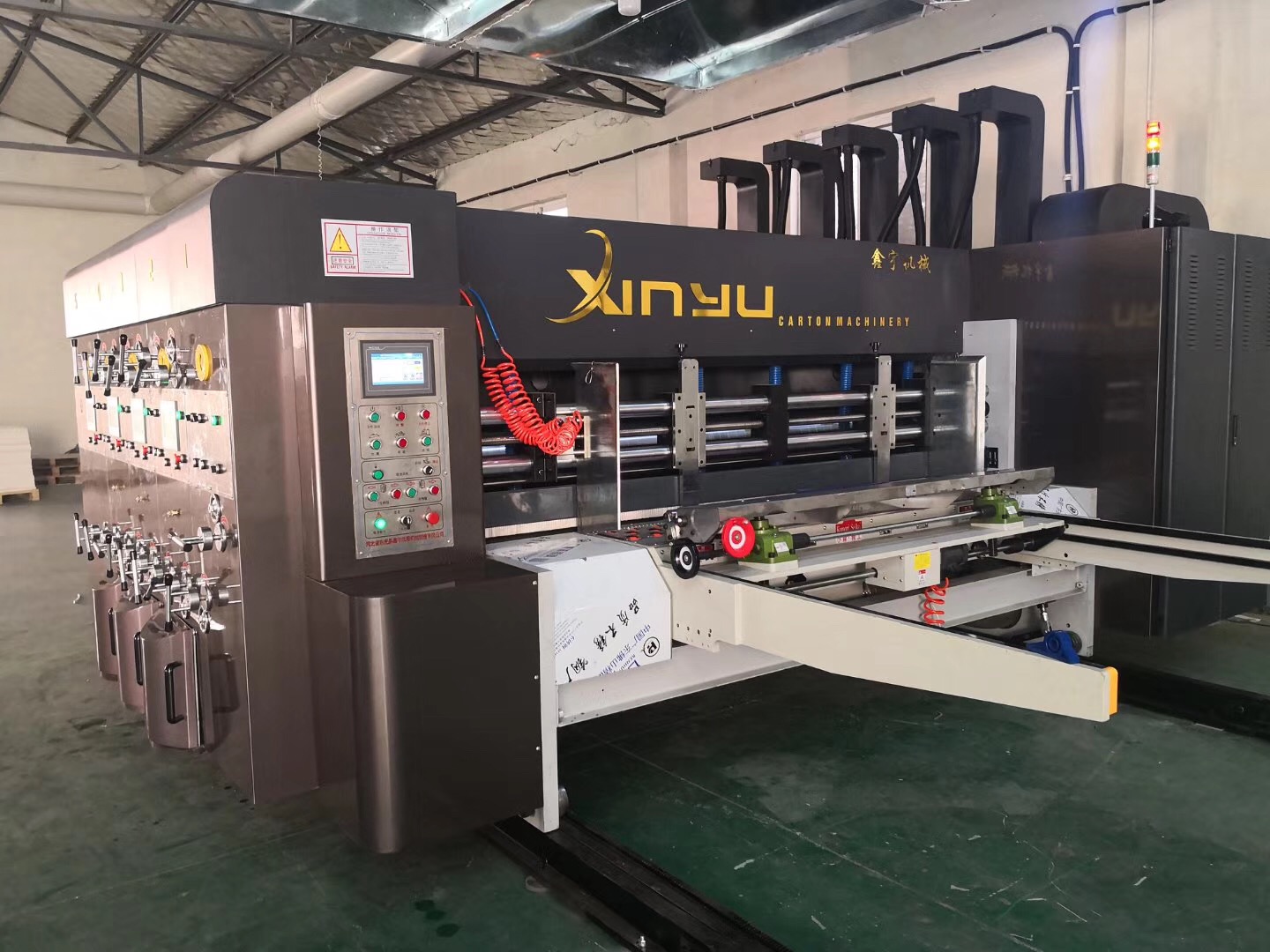

Machine introduced:
1. Touch-screen and electric control dual system.
2. Using high quality materials and fittings.
3. All transmission gears are made of high quality of alloy steel (40Cr) which is grinding under high temperature make the Hardness HRC58-62.
4. The driving part of the whole machine adopts key-free linking ring to remove the linking space. Suitable for long-term use. High precision of color process
5. Has the functions of intelligent return to zero and memory reset etc.
6. The transmission structure adopts two oil pumps circulation to lubricate.
Main features:
Design speed | 200(piece/min) |
Economic speed | 180 (piece/min) |
Max Cardboard size | 1200*2600mm |
Min cardboard size | 360*650mm |
Max printing size | 1200*2400mm |
Max skip cardboard | 1600*2600mm |
Slot width*slot depth | 7×400mm |
Min slot distance | 300*100*300*100mm |
Max die cutting size | 1200*2600mm |
Standard plate thickness | Hanging plate7.2mm |
Main motor power | 22kw |
Air fan power | 7.5kw |
Total power | 35kw |
Tinted precision | ±0. 5mm |
Slotting precision | ±1.5mm |
Die cutting precision | ±1mm |
Weight about | 35 Ton |
1. Touching screen computerized control, Rapid order changing, convenient operation and with humanity.
2. Adopting computerized control and electronic adjustments, adapting to utilizing habits of various clients and with convenient choice.
3. Adopting vaccum suction back-kick paper feed system,with stable high-speed operation and high accuracy.
4. Having printing and slotting memory, auto zero adjustment and auto reset.
5. Utilizing accurate transmission in slotting and scoring interval, with stable operation and high precision.
6. Good quality steel and rubbing process practiced in the main transmission gears, prolong the utilizing span.
7. Main electronic equipments are imported from abroad, with European quality standard.
Function of paper feed unit:
1. Vaccum suction assist paper feed to ensure stable high-speed operation and wind rate setting according to requirements.
2. Front can be adjusted by electric , with scale ruler on show, easily under stood.
3. The movement of post bar can be computerized adjusted, with digital setting and manual adjustment so the scale.
4. Side bar can be computerized adjusted, with digital setting.
5. Equipped with brush to sufficiently eliminate dust and scraps as well as foreign substances on the printing surface to improve printing quality.
6. Widely used in variety of level 3,5and7,as well as E corrugated sheet.
7.PLC control, speed change by inverter motor, human interface and LCD display.
8. Sheet kicking aluminum board can return to zero at any time

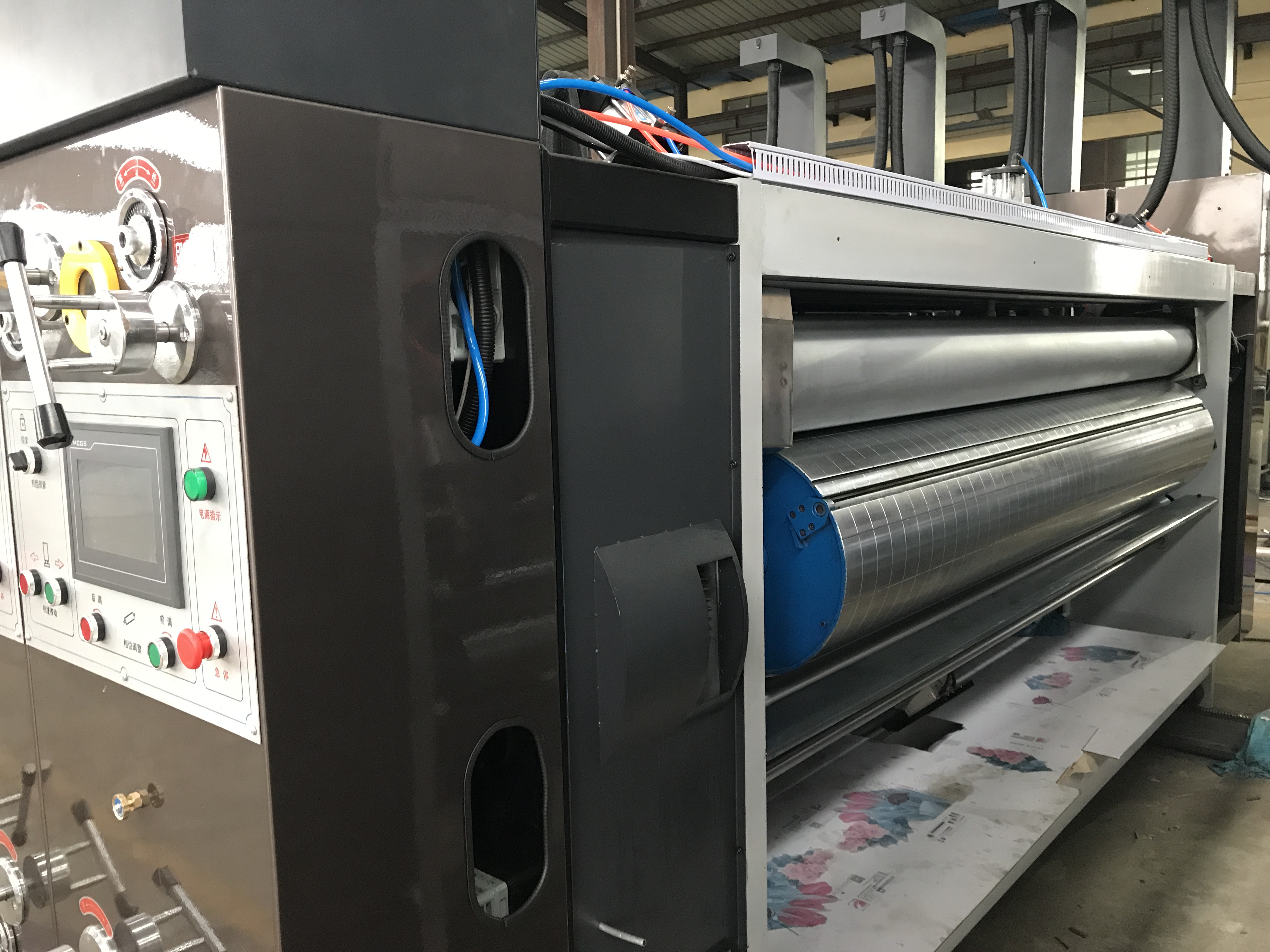

Function of printing unit
1. Standard metal steel reticulate roll.
2. Standard rubber reticulate roll ink supply system.
3. Quick plate-changing device makes fixing or removing convenient.
4. International standard high-precision harmonic phasing device, PLC and touch-screen controlled, 360 degrees adjustment.
5. Special planet gear design enables long service life.
6. Equipped with auto braking device with braking mechanism to lock rotation of press plate roll and maintain the fixing point of original gears. when the printing machine breaks away.
7. With auto reset system after cleaning.
8.Equipped with auto raising device on the reticulate roll, separated with the printing board when stopping ending paper.
9.All the intervals adopt computerized adjustment and digital setting.

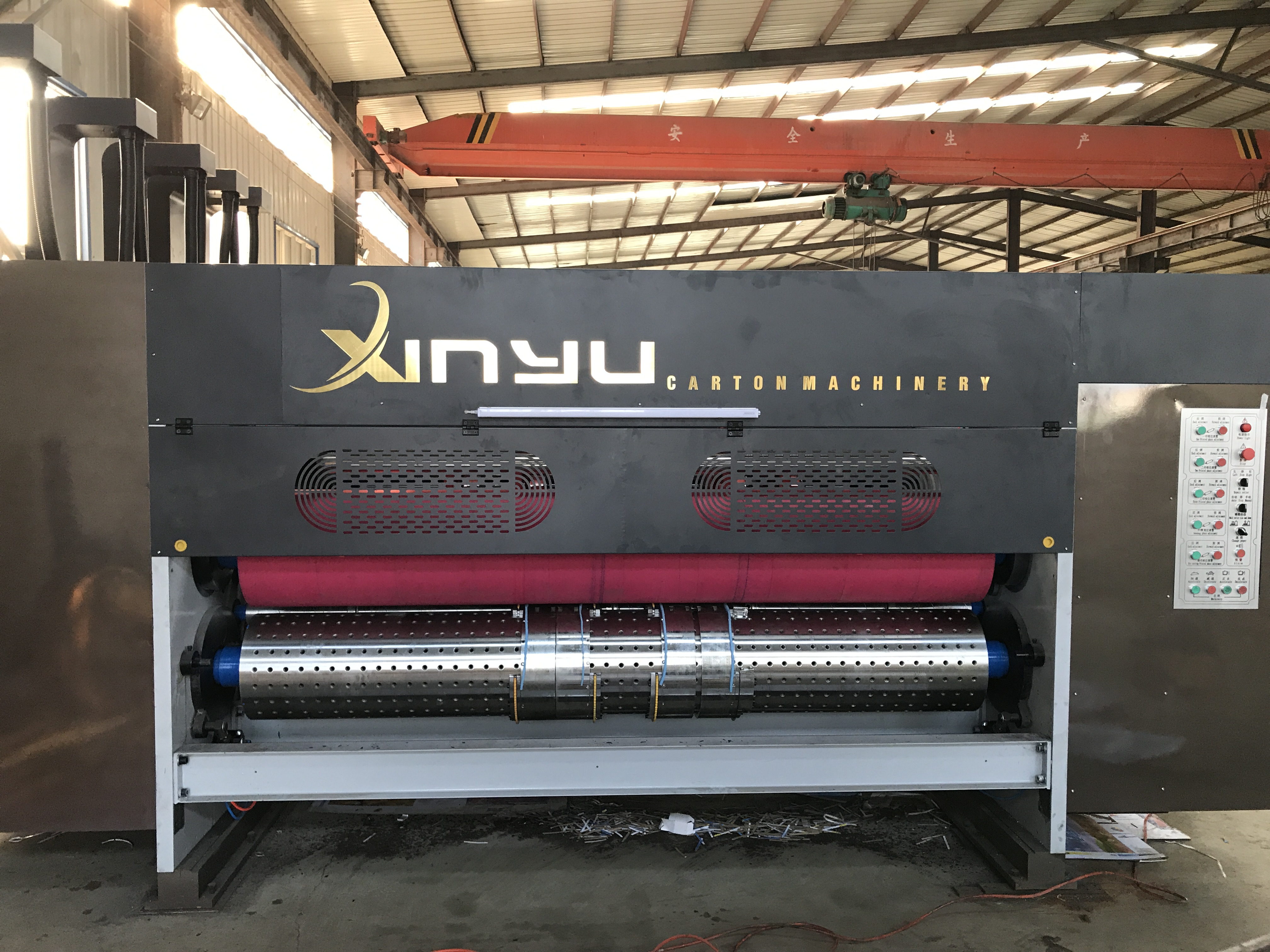

Function of Die-cutting unit
1. Axle direction self-circulating translate.
2. Soft-cutting roller adopt super endurance rubber sleeve.
3. Adopt soft-cutting roller wear and tear self-repairing facility.
4. Own the function of reel-speed self-follow to compensate after upper and lower part rollers repaired
5. Characteristics: own thin knife grooving department, die-cutting fast changing and other function unity.

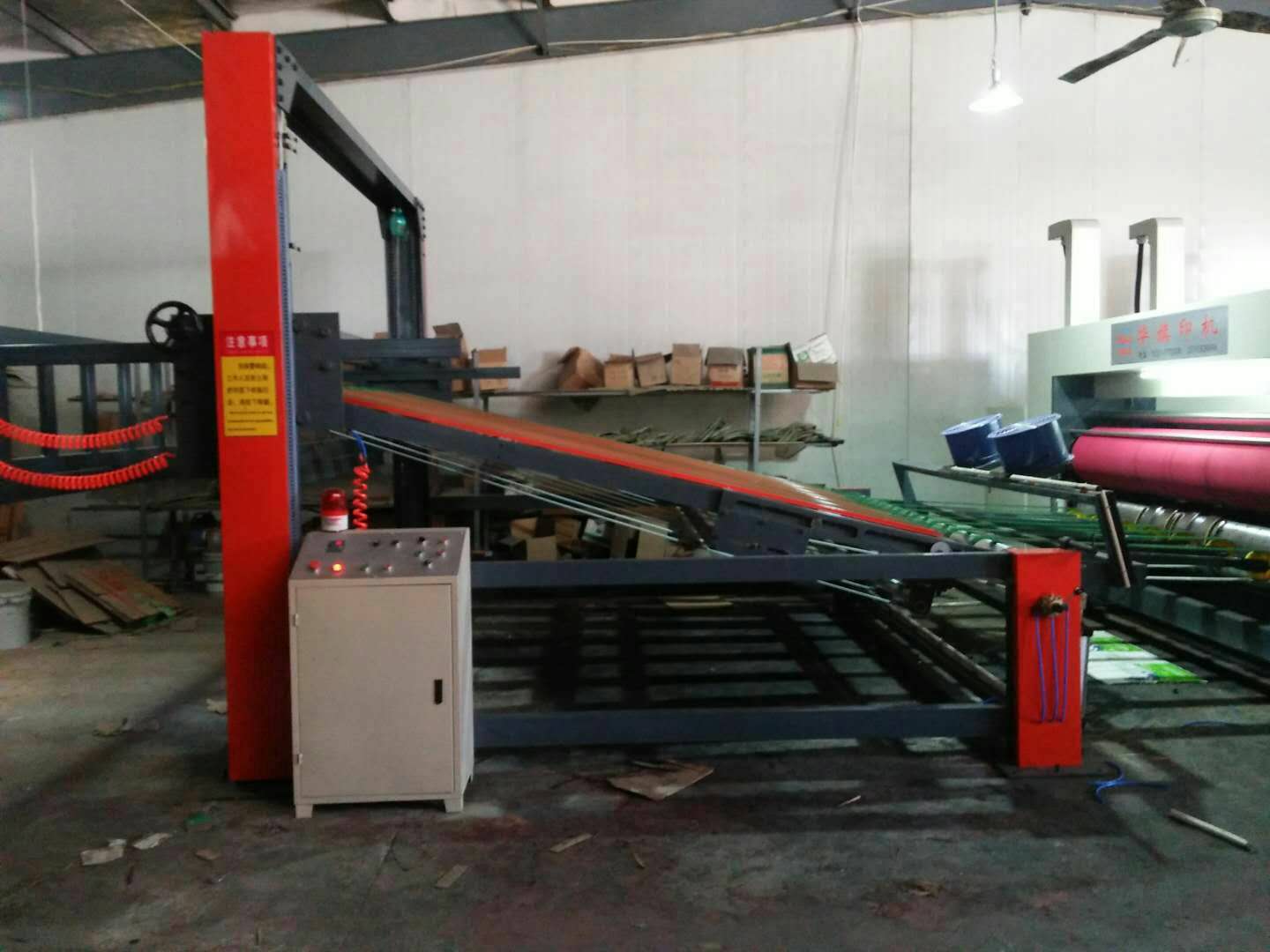

Function of stacker unit
1. Connection arm operation with manually or automatically.
2.The driving belt of connection arm can adjust the elasticity alone and choose the number of connection arm at will.
3.Height up to 1600mm.
4.Platform elevator with brake control device to keep stable position anti-slipping.
5.A pneumatic controlled-plate will be pop-up to hold the coming substrate, when a presetting height reaches.
6.Anti-slipping belt used in the transport bed.
1.We need to test the machine working condition before delivery to customer country.
2.If you need our engineers install and teach you how to operate machine, we also can send our engineers to your country, but need you bear all fee: tickets, food, hotel and salary.
3.Our machine has one year warranty, during this period, if problems caused by our machine quality, we will change all parts for you by free fee. If any questions, send me email by 24 hours, we also help you solve these problems.

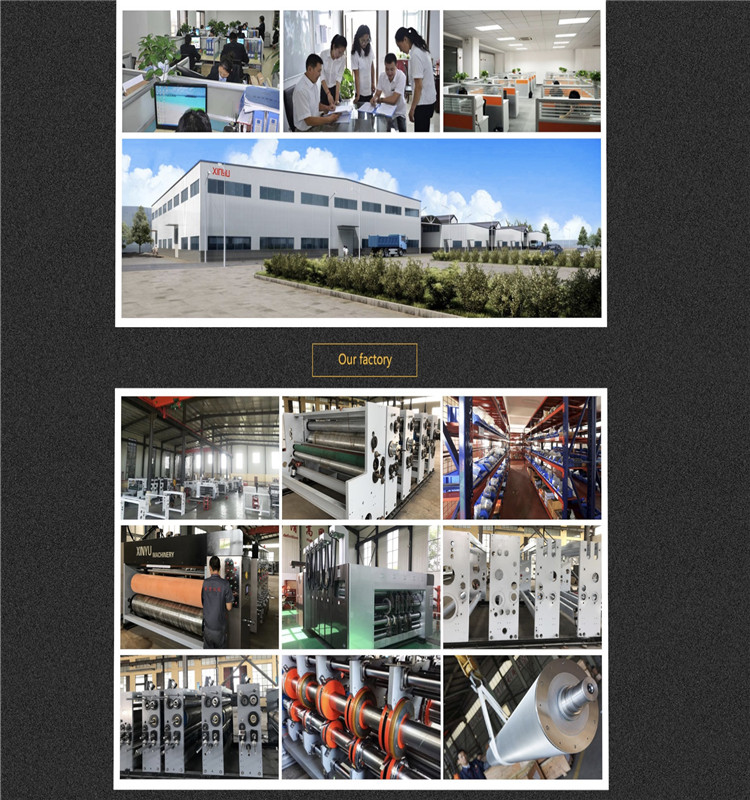

Based on DONGGUANG CANGZHOU, XINYU CARTON MACHINERY was established in 1990, Mrs Li, the ceo of the company, has always helped inovercoming challenges in the industry. with the rich of experience of around 30 years, we are capable of successfully serving several clients. Quality Assurance At XinYu company, quality is our prime forte. Keeping this in mind, we havedirected all our endeavours to attaining highest level of quality in our products, We have a trained team of quality auditors who take care of quality department. Also, we manufacture our products from the finest qualty of material. Client Satisfation We provide quick solutions to clients for their feedback and queries,Morever,we facilite our client with easy payment modes.
1)Q: Are you a factory or trading company?
A: We are a manufacture which is specialized in the production of various kinds of carton equipment for 3o years. (with export license)
2)Q: What are your products?
A: We are specialized in producing 2ply, 5ply, 7ply corrugated cardboard production line, high speed printing machine, ordinary printing machine, single facer, rotary die cutter and other corrugated cardboard production equipment.
3)Q: How does your factory do regarding quality controlling?
A: Over the years our company take"the quality first"integrity-based corporate purpose always meet user's requirements as our sole purpose providing the products with excellent quality, professional technology. always attach great importance to quality controlling from the very beginning to the very end.
a.All raw material we used are environment-friendly.
b.Skillful workers care every details in handling the product and packing process.
c.Quality control department specially responsible for quality in each process.
4)Q: What is the payment terms?
A: T/T, it is 3o% deposit due at placing order and 7o% balance due before loading, or L/C.
5)Q: What is your warranty?
A:12months after the date of installation for mechanical parts, electric parts(expect easily damaged parts under the normal use). within the guarantee period, if the parts failed due to the manufacturing cause, the seller shall send the replacement parts free of charge. otherwise the buyer shall pay for the cost of replacement parts.
