Corrugated Carton box Making Machine Manufacturer Prices
Design speed | 200(piece/min) |
Economic speed | 180 (piece/min) |
Max Cardboard size | 1200*2600mm |
Min cardboard size | 360*650mm |
Max printing size | 1200*2400mm |
Max skip cardboard | 1600*2600mm |
Slot width*slot depth | 7×400mm |
Min slot distance | 300*100*300*100mm |
Max die cutting size | 1200*2600mm |
Standard plate thickness | Hanging plate7.2mm |
Main motor power | 22kw |
Air fan power | 7.5kw |
Total power | 35kw |
Tinted precision | ±0. 5mm |
slotting precision | ±1.5mm |
Die cutting precision | ±1mm |
weight about | 35 Ton |
Lead edge feeding paper part(automatic feeding)
1, Feed the leading edge positioning, frequency adjust the feed rate.
2. Adjustable air flow, increase warped cardboard and thin cardboard secure transmission, accuracy
3. Right and left side covers, a guide mechanism, the smooth displacement accuracy.
4. Clutch, pneumatic locking, safe and reliable.
5.The feed roller is seamless wear rubber wrapped and do balance correction.
6.Lower feed roller is seamless embossed hard chrome plating, balance correction.
7.Feed roll gap adjustment dial worm adjustment range 0-12mm, the use of cross-slider mechanism, when adjusted to ensure the correct transmission gear is always engaged state.
8.Computer adjustment device
1).Feed computer touch-screen human-machine interface adjustments.
Printing part
1.printing roller
1)Steel material, surface grinding, hard chrome plating.
2)Balance correction, smooth operation.
3) Type using thorns hanging version, convenient, reduce printing test print and scrap
2. printing press roller
1)Steel surface grinding, hard chrome plating.
2)Balance correction, smooth operation.
3)Between the printing press roller and the printing roll dial display, manual adjustment, the adjustment range 0-12mm, using rocker panels institutions, adjust the transmission gear is always to ensure the correct rodents state.
4)Steel surface using advanced hard chrome plating process, hard, smooth, wear-resistant.
5)When feeder with pneumatic lift net roller to prevent duplication inked plate and short downtime, network roll hole in the ink dry.
3.Ceramic roller
1).Outside diameter is :176mm.
2).Steel tube surface coating ceramic grinding, laser engraving anilox .
3).The net line number is 200-700( line number is optional).
4).Than steel anilox roll printing meticulously, wear-resisting, long service life.
4.Doctor blade
1).Convenient operation: As long as the solenoid valve is operated and the air bag is inflated or vented, the scraper can be divided and combined.
2).Light structure: the support frame and the knife cavity are made of aluminum, and the surface is specially treated.
3).Good ink scraping effect: the airbag can ensure that the knife cavity can always be attached to the ceramic roller even in the case of micro-deformation to prevent ink leakage.
4).Easy to clean, good effect: high-quality coating on the inner surface of the knife cavity, ensuring excellent surface finish and flatness, the ink is not easy to stick to the inner surface, plus special cleaning device, greatly improving the ceramic roller and Knife cleaning efficiency
5.Phase adjustment
1), the differential planetary gear mechanism
2), the printing phase micro controller and electric digital 360 ° adjustment (the machine is running, stop can be adjusted)
3), the lateral position of the hand wheel adjustment.
6.Ink circulation
1), the use of pneumatic diaphragm pumps ink, ink stability, operation and maintenance simple.
2), the ink filter, filter impurities.
3), with automatic inking unit, the ink can be realized down stop function to prevent the shutdown of the ink dry.
4), the ink reservoir cup to prevent ink splashes and exhaust.
5), the automatic cleaning cycle and automatic ink.
Dry unit
1).Infrared drying system, drying bracket pneumatic lifting, easy to maintain during the printing process
2).Infrared heating system make the temperature rise fast and stable ,every dryer unit ,the power is about 36-40kw
3).The temperature is controlled constantly ,and it is heated in section in order to save the heating power .the customer can turn off some heating power if it is not necessary .
4).Temperature alarm, automatic alarm after temperature over temperature, safe and reliable
Energy-saving circulating with the five air blower fan structure to accelerate drying effect and improve printing die cutting quality
5).Machine design :in order to improve the printing performance ,after printing unit with one unit dryer unit ,this unit is before vanish unit .and then varnish unit ,after varnish unit is dryer unit ,the last is die cutting unit .
Coating uint
Same working as the printing unit
Die cutting part
1,This machine is exclusive equipment for die cutting and molding ,suitable for the manufacturing of colorful cantons, boxes and other package products of abnormal shape.
2,It adopts the double roller pressing and urethane soft template ;die cutting aped difference servo makes up the linear velocity automatically ,once completing the paperboard and the siding ,slotting ,punching ,creasing and folding of the corrugated paper of medium and small thickness.
3,The machine adopts the vacuum adsorption feeding facility ;the main machine adjusts the speed by electromagnetism and the die cutting phase by computer ,featuring high precision of die cutting ,high speed and convenient operation.
Stacking unit
1, the choice of manual or operation.
2 bed units lift driven by strong chain.
3, the stack height is 1600mm.
4, flat wrinkles climbing belt, to prevent the cardboard decline.
5, when the pressure action bin baffle stacked in cardboard tray connected to the book highly extendable, hold the cardboard.

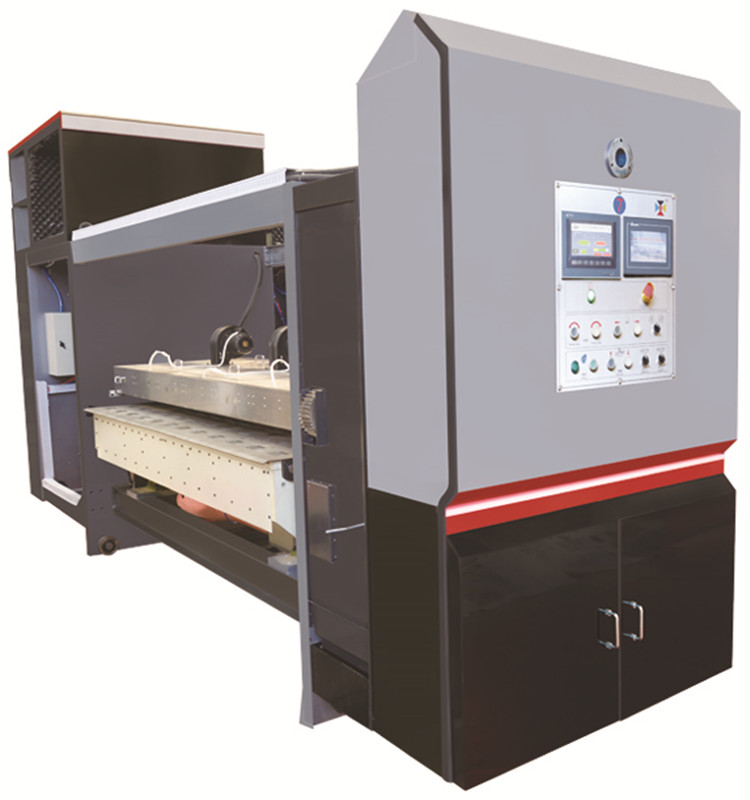

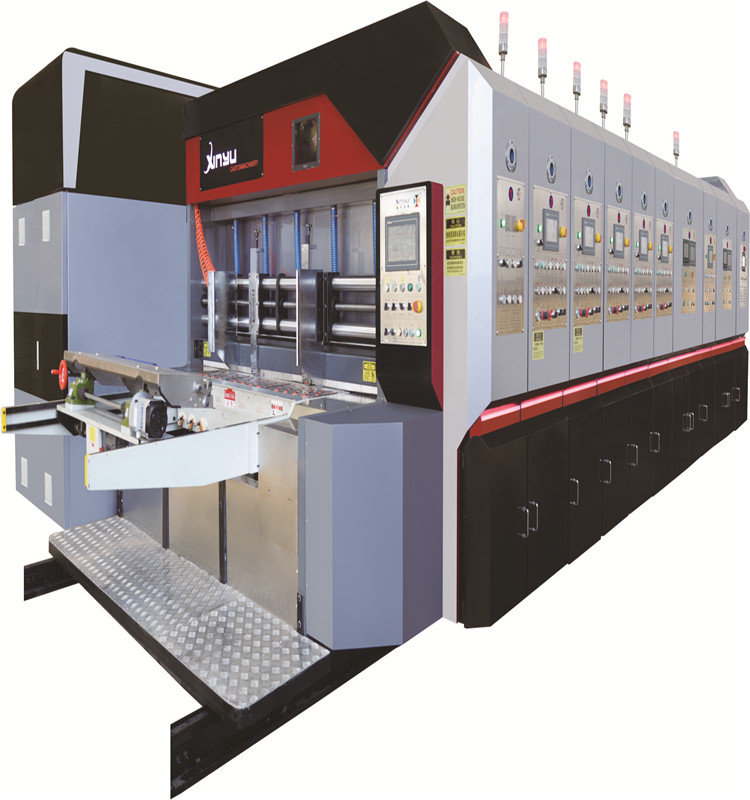

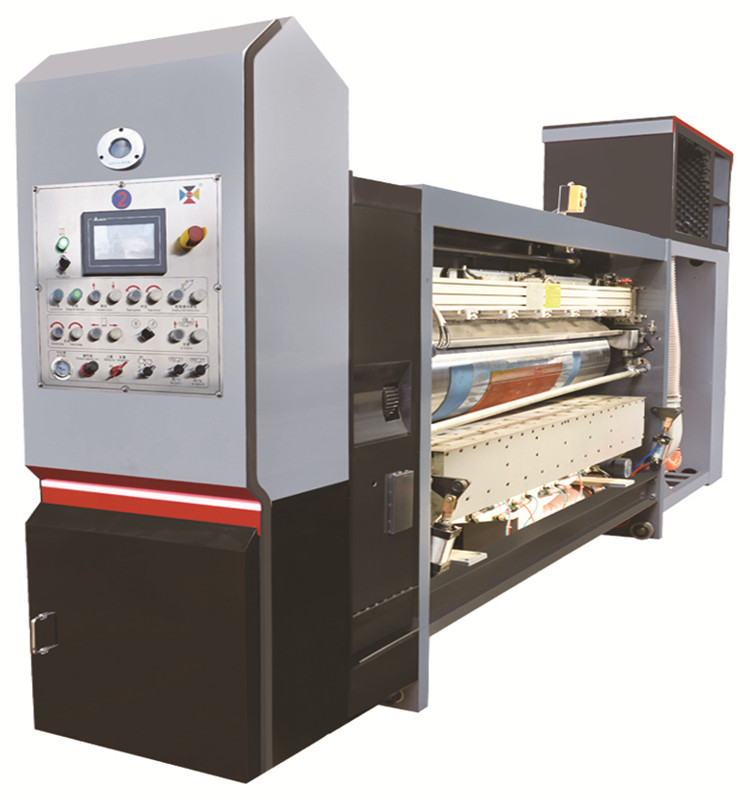

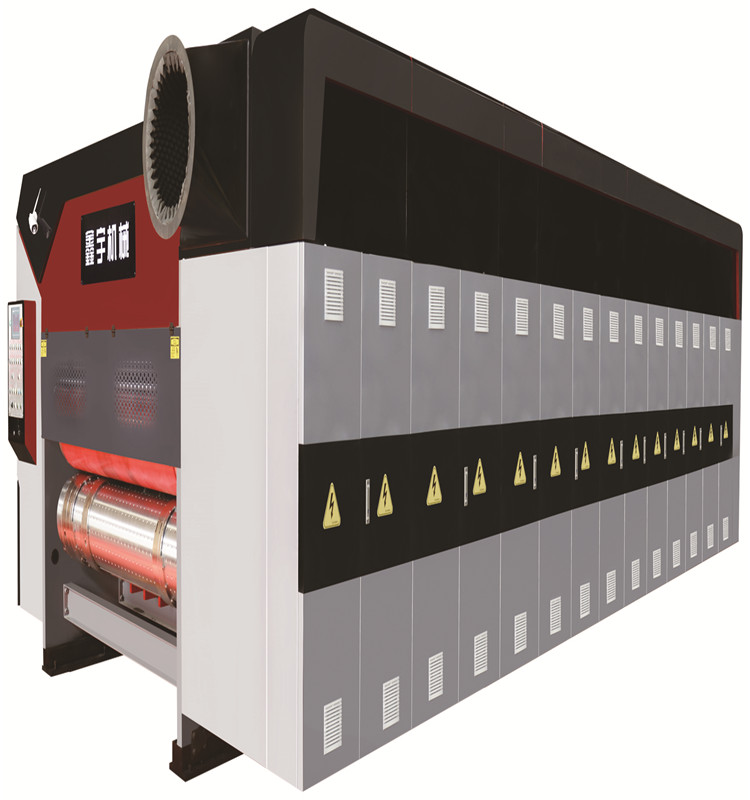

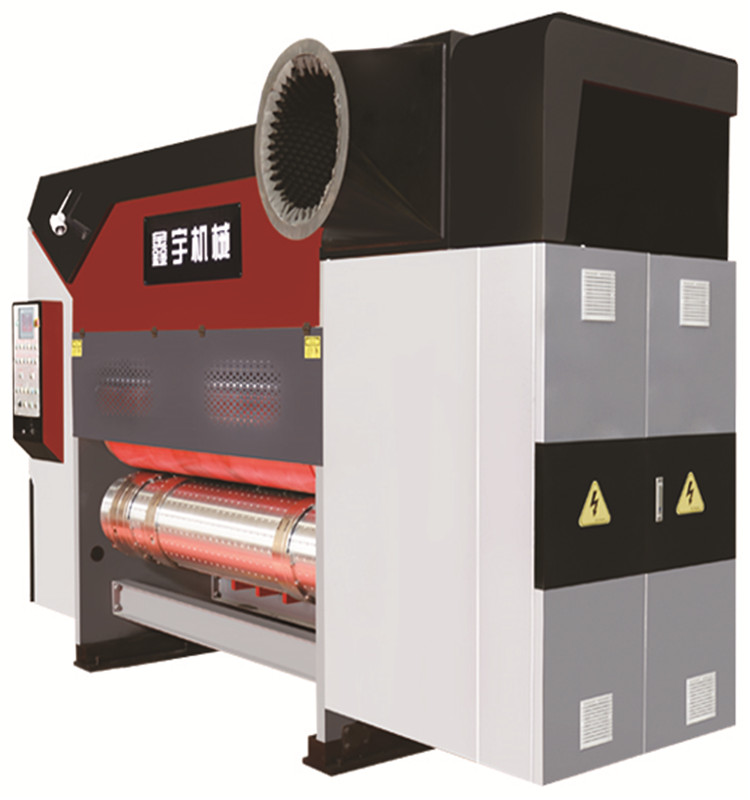

Machine photo
Based on DONGGUANG CANGZHOU, XINYU CARTON MACHINERY was established in 1990, Mrs Li, the ceo of the company, has always helped inovercoming challenges in the industry. with the rich of experience of around 30 years, we are capable of successfully serving several clients. Quality Assurance At XinYu company, quality is our prime forte. Keeping this in mind, we havedirected all our endeavours to attaining highest level of quality in our products, We have a trained team of quality auditors who take care of quality department. Also, we manufacture our products from the finest qualty of material. Client Satisfation We provide quick solutions to clients for their feedback and queries,Morever,we facilite our client with easy payment modes.
1.We need to test the machine working condition before delivery to customer country.
2.If you need our engineers install and teach you how to operate machine, we also can send our engineers to your country, but need you bear all fee: tickets, food, hotel and salary.
3.Our machine has one year warranty, during this period, if problems caused by our machine quality, we will change all parts for you by free fee. If any questions, send me email by 24 hours, we also help you solve these problems.
1)Q: Are you a factory or trading company?
A: We are a manufacture which is specialized in the production of various kinds of carton equipment for 3o years. (with export license)
2)Q: What are your products?
A: We are specialized in producing 2ply, 5ply, 7ply corrugated cardboard production line, high speed printing machine, ordinary printing machine, single facer, rotary die cutter and other corrugated cardboard production equipment.
3)Q: How does your factory do regarding quality controlling?
A: Over the years our company take"the quality first"integrity-based corporate purpose always meet user's requirements as our sole purpose providing the products with excellent quality, professional technology. always attach great importance to quality controlling from the very beginning to the very end.
a.All raw material we used are environment-friendly.
b.Skillful workers care every details in handling the product and packing process.
c.Quality control department specially responsible for quality in each process.
4)Q: What is the payment terms?
A: T/T, it is 3o% deposit due at placing order and 7o% balance due before loading, or L/C.
5)Q: What is your warranty?
A:12months after the date of installation for mechanical parts, electric parts(expect easily damaged parts under the normal use). within the guarantee period, if the parts failed due to the manufacturing cause, the seller shall send the replacement parts free of charge. otherwise the buyer shall pay for the cost of replacement parts.
