Fiber count | Structure | Fibers per tube | Loose tube diameter(mm) | CSM diameter/pad diameter(mm) | Thickness of outer jacket(mm) | Cable diameter(mm) | Cable Weight(kg/km) |
4 | 1+6 | 4 | 1.8 ±0.1 | 2.2 /2.2 | 1.6±0.1 | 10.0±0.5 | 97 |
6 | 1+6 | 6 | 1.8 ±0.1 | 2.2 /2.2 | 1.6±0.1 | 10.0±0.5 | 97 |
8 | 1+6 | 4 | 1.8 ±0.1 | 2.2 /2.2 | 1.6±0.1 | 10.0±0.5 | 98 |
12 | 1+6 | 6 | 1.8 ±0.1 | 2.2 /2.2 | 1.6±0.1 | 10.0±0.5 | 98 |
18 | 1+6 | 6 | 1.8 ±0.1 | 2.2 /2.2 | 1.6±0.1 | 10.0±0.5 | 98 |
24 | 1+6 | 6 | 1.8 ±0.1 | 2.2 /2.2 | 1.6±0.1 | 10.0±0.5 | 99 |
30 | 1+6 | 6 | 1.8±0.1 | 2.2 /2.2 | 1.6±0.1 | 10.0±0.5 | 100 |
36 | 1+6 | 6 | 1.8 ±0.1 | 2.2 /2.2 | 1.6±0.1 | 10.0±0.5 | 101 |
48 | 1+6 | 12 | 2.0±0.1 | 2.3 /2.3 | 1.6±0.1 | 10.7±0.5 | 112 |
60 | 1+6 | 12 | 2.0±0.1 | 2.3 /2.3 | 1.6±0.1 | 10.7±0.5 | 113 |
72 | 1+6 | 12 | 2.0±0.1 | 2.3 /2.3 | 1.6±0.1 | 10.7±0.5 | 114 |
84 | 1+7 | 12 | 2.0±0.1 | 3.0 /3.0 | 1.6±0.1 | 11.4±0.5 | 130 |
96 | 1+8 | 12 | 2.0±0.1 | 2.6/3.5 | 1.6±0.1 | 12.0±0.5 | 140 |
108 | 1+9 | 12 | 2.0±0.1 | 2.6 /4.2 | 1.6±0.1 | 12.7±0.5 | 155 |
120 | 1+10 | 12 | 2.0±0.1 | 2.6/ 4.9 | 1.6±0.1 | 13.4±0.5 | 171 |
132 | 1+11 | 12 | 2.0±0.1 | 3.0 /5.5 | 1.6±0.1 | 14.0±0.5 | 187 |
144 | 1+12 | 12 | 2.0±0.1 | 3.0 /6.3 | 1.6±0.1 | 14.8±0.5 | 207 |

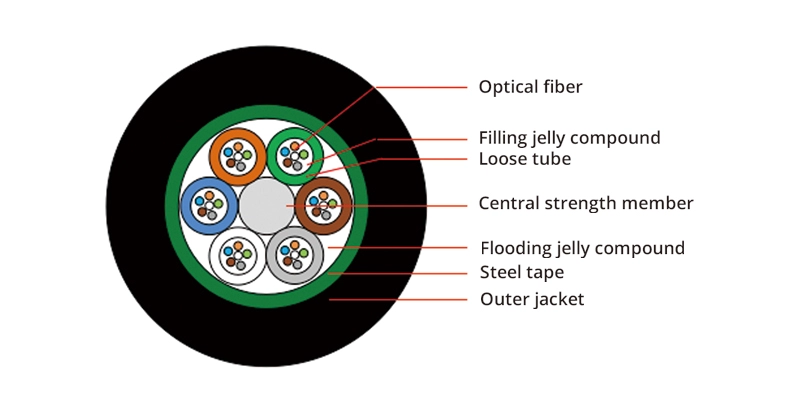

Item | Parameters | |
Loose tube | Material | PBT |
Color | All colors display | |
Filler | Material | PE |
Color | Black | |

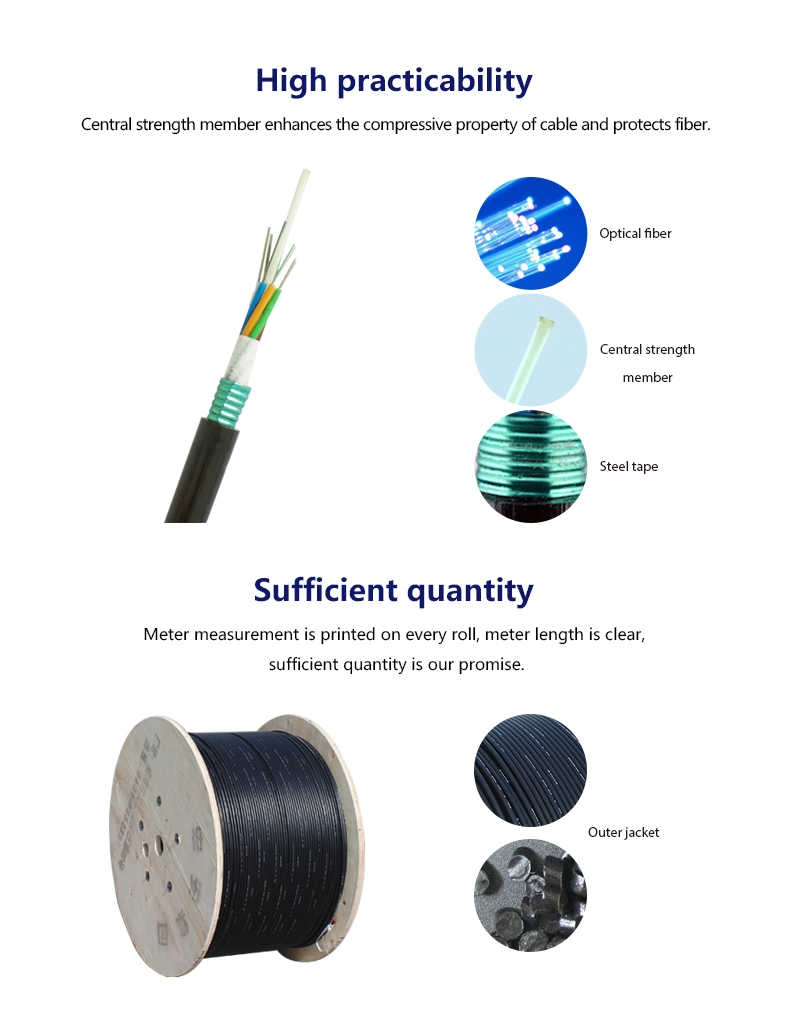

CSM | Material | FRP |
Armoured | Material | Plastic coated steel strip |
Outer jacket | Material | MDPE |
Color | Black | |
Min. bending radius | Static | 10 times cable diameter |
Dynamic | 20 times cable diameter | |
Repeating bending | Load:150N;number of cycles:30 No obvious addition attenuation, no fiber break and no cable damage. | |
Tensile performance | Short term | 1500N |
Crush | Short term | 1000N/100mm |
Torsion | Load:150N; number of cycles:10; twist angle:±90° No obvious addition attenuation, no fiber break and no cable damage. | |
Impact | Impact energy:450g×1m; radius of hammer head:12.5mm; number of impact: 5 No obvious addition attenuation, no fiber break and no cable damage. | |
Short term | 1000N/100mm | |

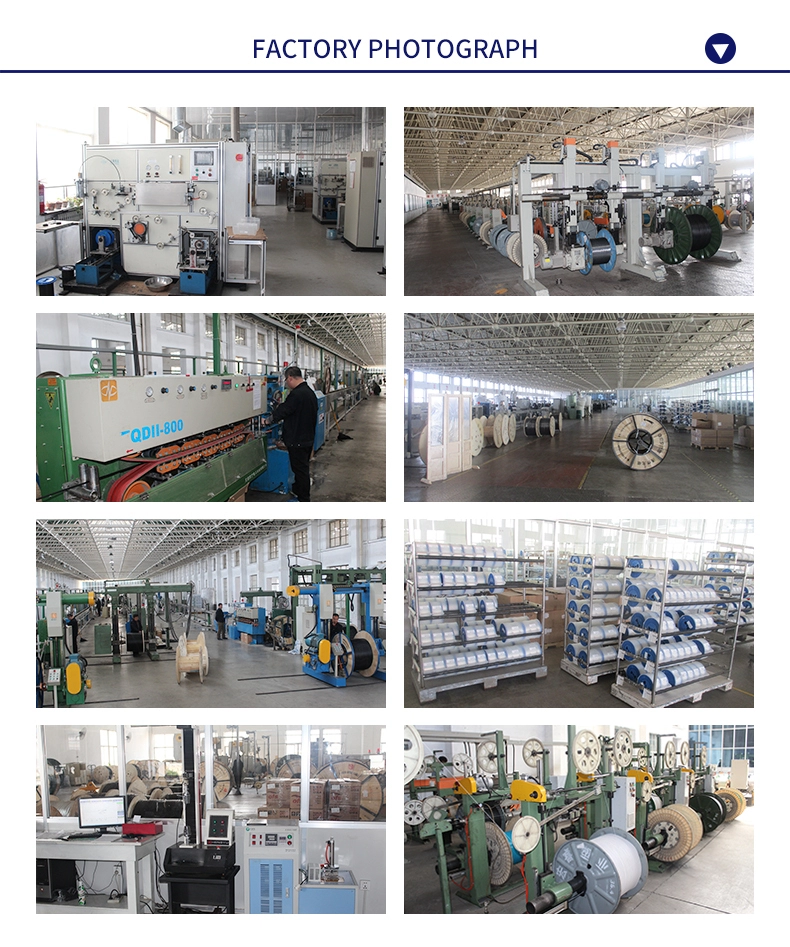

Yes,our factory is located in Shandong Province, near to Qingdao Port,having more than 30- years munufature experience. Welcome to visit.
2. What is your fiber brand?
Most fiber is from Weixin, a fiber brand owned by Hongan ourselves. But we also purchase fiber from Corning, YOFC and other brands.
3.What is your main products?
Our main products are outdoor and indoor fiber optic cable, FTTx cable, network cable and telephone cable.
4.What is your payment term?
30% in advance, 70% before delivery.
