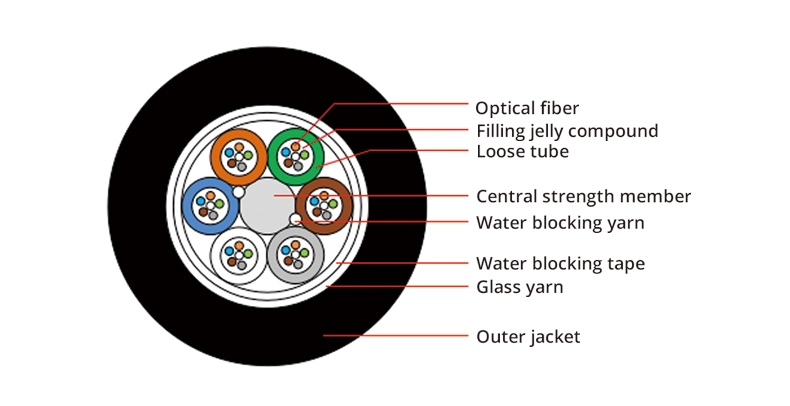

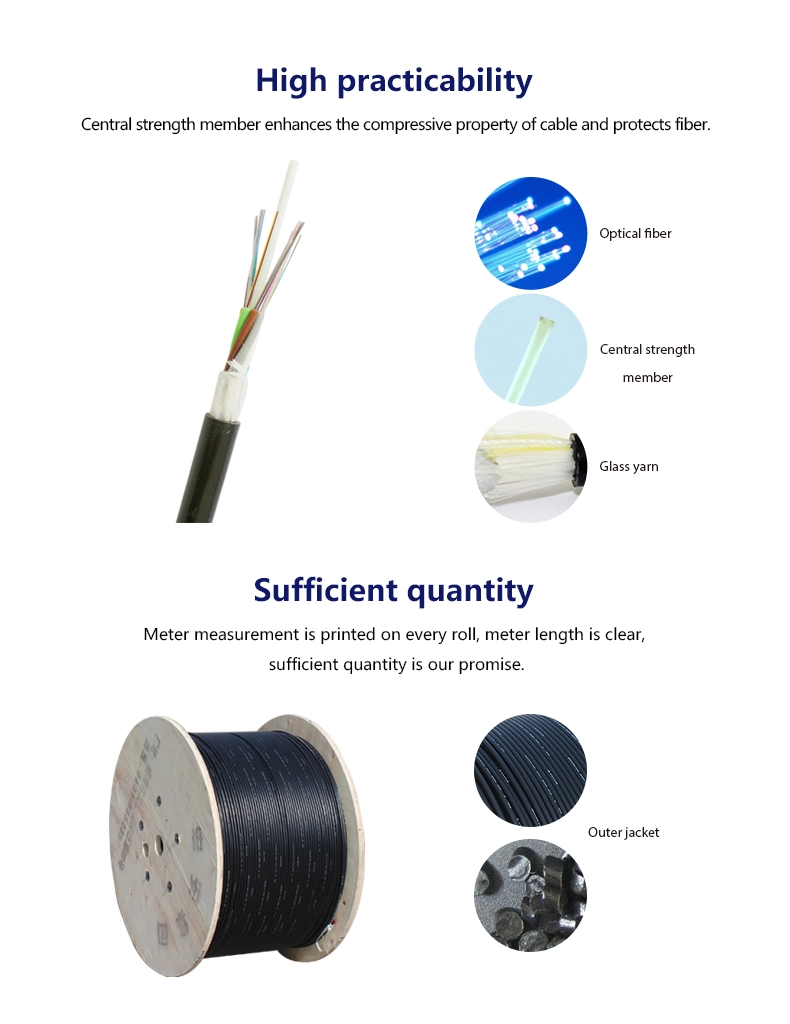

Fiber optic cable GYTA53, 2~288 fibers, central strength member (FRP), jelly filled, fiber contained loose tube and PP filler (if necessary) stranded, water blocking jelly, copolymer coated aluminum tape, PE inner sheath, longitudinally covered by copolymer coated steel tape, PE outer sheath. G652D SM fiber.Detailed specification on your request.
Fiber count | Structure | Fibers per tube | Loose tube diameter(mm) | CSM diameter/pad diameter(mm) | Thickness of Inner jacket(mm) | Thickness of outer jacket(mm) | Cable diameter(mm) | Cable Weight(kg/km) |
4 | 1+6 | 4 | 2.2±0.1 | 2.6/2.6 | 0.9±0.1 | 1.6±0.1 | 14.4 ±0.5 | 191 |
6 | 1+6 | 6 | 2.2±0.1 | 2.6/2.6 | 0.9±0.1 | 1.6±0.1 | 14.4 ±0.5 | 191 |
8 | 1+6 | 4 | 2.2±0.1 | 2.6/2.6 | 0.9±0.1 | 1.6±0.1 | 14.4 ±0.5 | 191 |
12 | 1+6 | 6 | 2.2±0.1 | 2.6/2.6 | 0.9±0.1 | 1.6±0.1 | 14.4 ±0.5 | 192 |
18 | 1+6 | 6 | 2.2±0.1 | 2.6/2.6 | 0.9±0.1 | 1.6±0.1 | 14.4 ±0.5 | 192 |
24 | 1+6 | 6 | 2.2±0.1 | 2.6/2.6 | 0.9±0.1 | 1.6±0.1 | 14.4 ±0.5 | 192 |
30 | 1+6 | 6 | 2.2±0.1 | 2.6/2.6 | 0.9±0.1 | 1.6±0.1 | 14.4 ±0.5 | 192 |
36 | 1+6 | 6 | 2.2±0.1 | 2.6/2.6 | 0.9±0.1 | 1.6±0.1 | 14.4 ±0.5 | 192 |
48 | 1+6 | 12 | 2.5±0.1 | 2.6/2.6 | 0.9±0.1 | 1.6±0.1 | 15.0 ±0.5 | 205 |
60 | 1+6 | 12 | 2.5±0.1 | 2.6/2.6 | 0.9±0.1 | 1.6±0.1 | 15.0 ±0.5 | 207 |
72 | 1+6 | 12 | 2.5±0.1 | 2.6/2.6 | 0.9±0.1 | 1.6±0.1 | 15.0 ±0.5 | 208 |
84 | 1+7 | 12 | 2.5±0.1 | 2.6/3.5 | 0.9±0.1 | 1.6±0.1 | 15.9 ±0.5 | 231 |
96 | 1+8 | 12 | 2.5±0.1 | 3.0/4.3 | 0.9±0.1 | 1.6±0.1 | 16.8 ±0.5 | 257 |
108 | 1+9 | 12 | 2.5±0.1 | 3.0/5.1 | 0.9±0.1 | 1.6±0.1 | 17.6 ±0.5 | 279 |
120 | 1+10 | 12 | 2.5±0.1 | 3.0/5.9 | 0.9±0.1 | 1.6±0.1 | 18.4 ±0.5 | 303 |
132 | 1+11 | 12 | 2.5±0.1 | 3.0/6.6 | 0.9±0.1 | 1.6±0.1 | 19.1 ±0.5 | 324 |
144 | 1+12 | 12 | 2.5±0.1 | 3.0/7.5 | 0.9±0.1 | 1.6±0.1 | 20.0 ±0.5 | 353 |
Item | Parameters | |
Loose tube | Material | PBT |
Color | All colors display | |
Filler | Material | PE |
Color | Black | |
CSM | Material | FRP |
Inner armoured | Material | Plastic coated aluminum strip |
Inner jacket | Material | MDPE |
Color | Black | |
Outer armoured | Material | Plastic coated steel strip |
Outer jacket | Material | MDPE |
Color | Black | |
Min. bending radius | Static | 12.5 times cable diameter |
Dynamic | 25 times cable diameter | |
Repeating bending | Load:250N;number of cycles:30 No obvious addition attenuation, no fiber break and no cable damage. | |
Tensile performance | Short term | 3000N |
Crush | Short term | 3000N/100mm |
Torsion | Load:250N; number of cycles:10; twist angle:±180° No obvious addition attenuation, no fiber break and no cable damage. | |

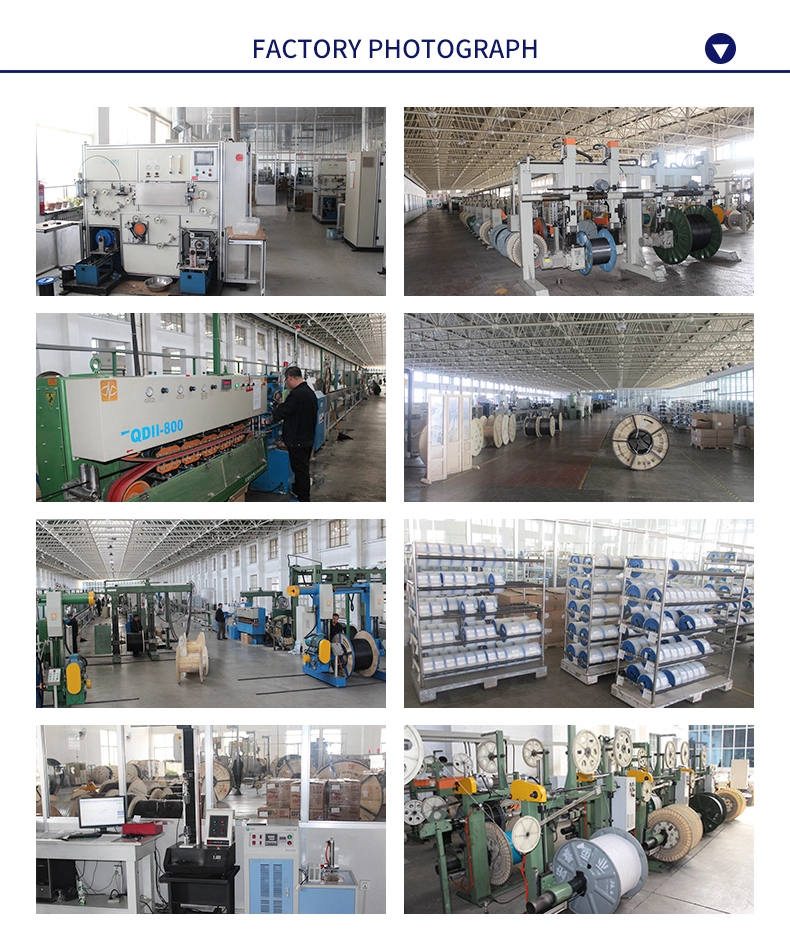

Yes,our factory is located in Shandong Province, near to Qingdao Port,having more than 30- years munufature experience. Welcome to visit.
2. What is your fiber brand?
Most fiber is from Weixin, a fiber brand owned by Hongan ourselves. But we also purchase fiber from Corning, YOFC and other brands.
3.What is your main products?
Our main products are outdoor and indoor fiber optic cable, FTTx cable, network cable and telephone cable.
4.What is your payment term?
30% in advance, 70% before delivery.
