Beveled Welding Ring Stainless Steel Continuous Slot Wire Wrapped Well Screens

Oasis Oil Tools Co.,Ltd is a professional manufacturer of water well screens,  wire wrapped well screens, continuous slot vee shaped wire well screens,

wedge wire screens , oil well screens, bridge slotted well screens, rod based well screens, pipe based well screens, API casing, ISO tubing, steel pipe, steel tube.

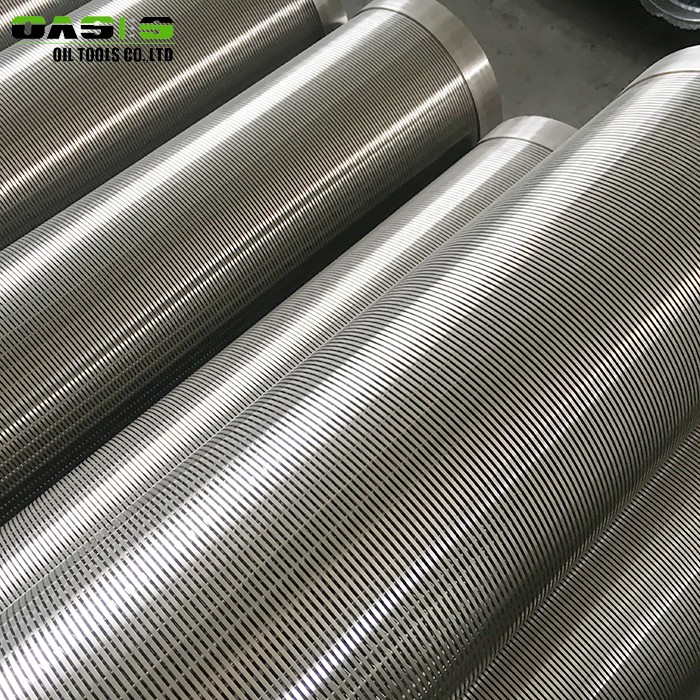

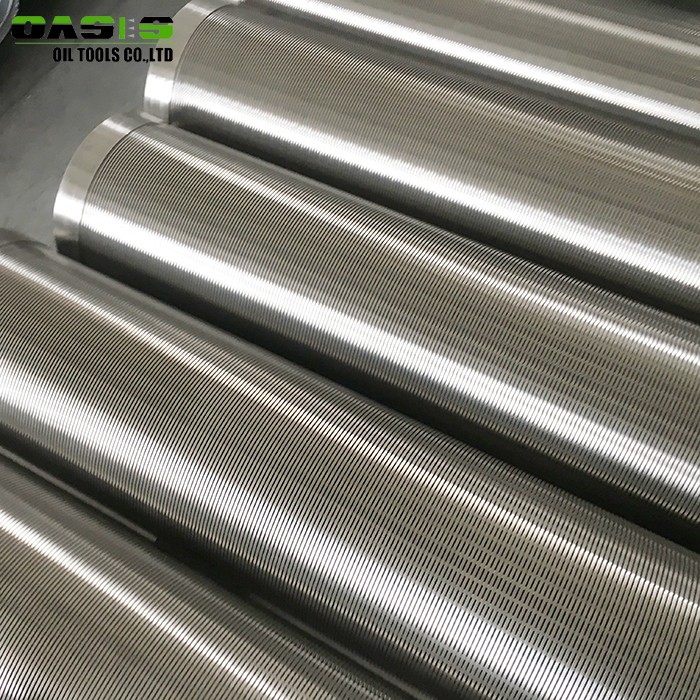

Stainless Steel Continuous Slot Wire Wrapped Well Screens Introduction

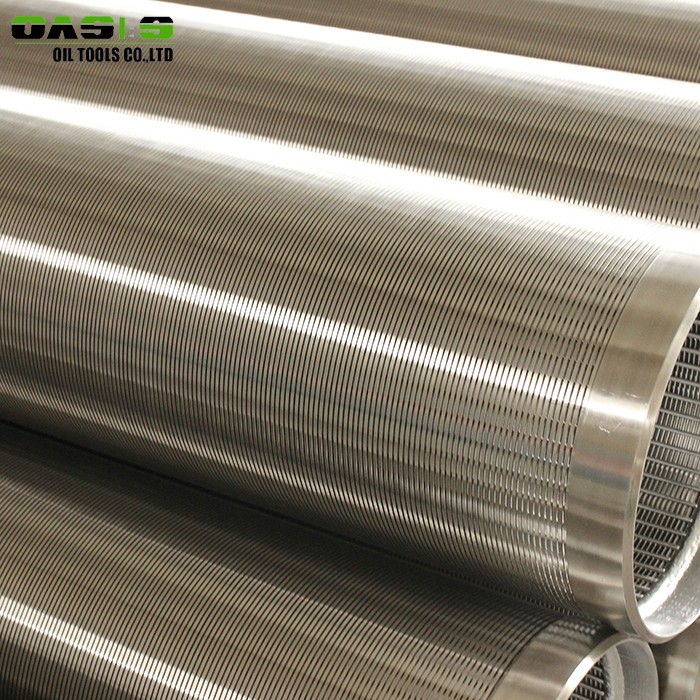

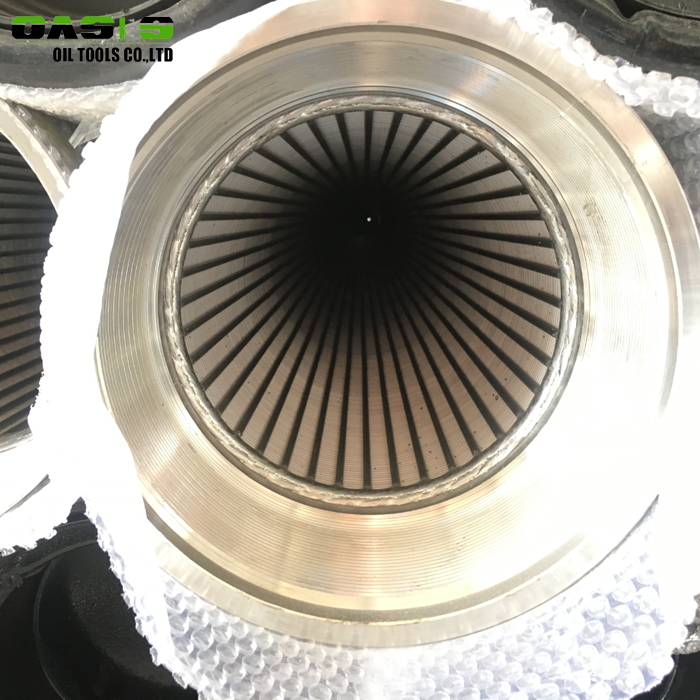

Continuous slot wire wrapped well screens  are manufactured by a v or wedge shaped wire around an internal array of longitudinal support rods. Each intersecting point of these wire is fusion welded.The v or wedge shaped profile wire wraps around the support rods over the full length of the screen creating a continuous slot opening, hence the screen allows water (oil) to enter your well freely in ample quantities, while at the same time keeps the majority of sand and gravel out of the well.

Specifications of Continuous Slot Wire Wrapped Well Screens

1. Slot size(mm): 0.1~3mm

2. Open area: up to 60%

3. Material: low carbon, low carbon galvanized steel (LCG) steel treated with  anticorrosion coating, stainless steel (304, 316L etc)

4. Unit Length up to 6 meters

5. Diameter: ranging from 25 to 800mm

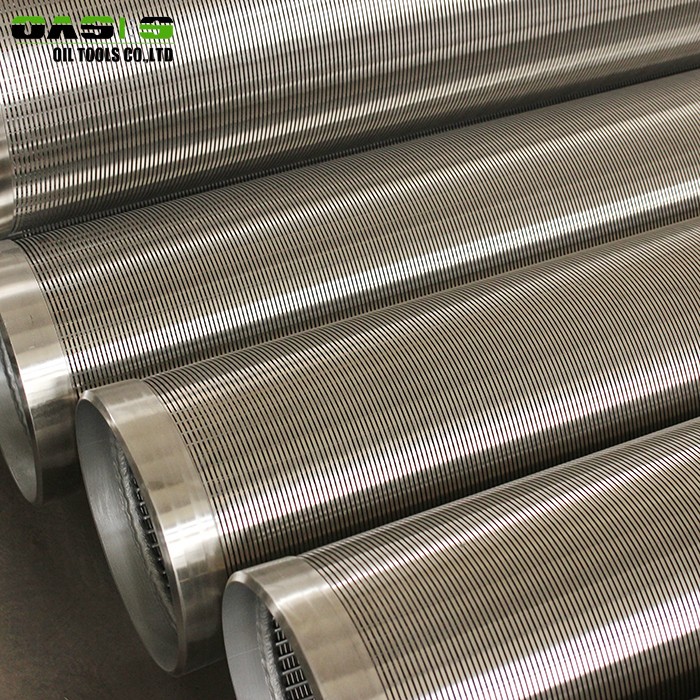

6. End connection: plain beveled ends for butt welding or threaded coupling  or flange

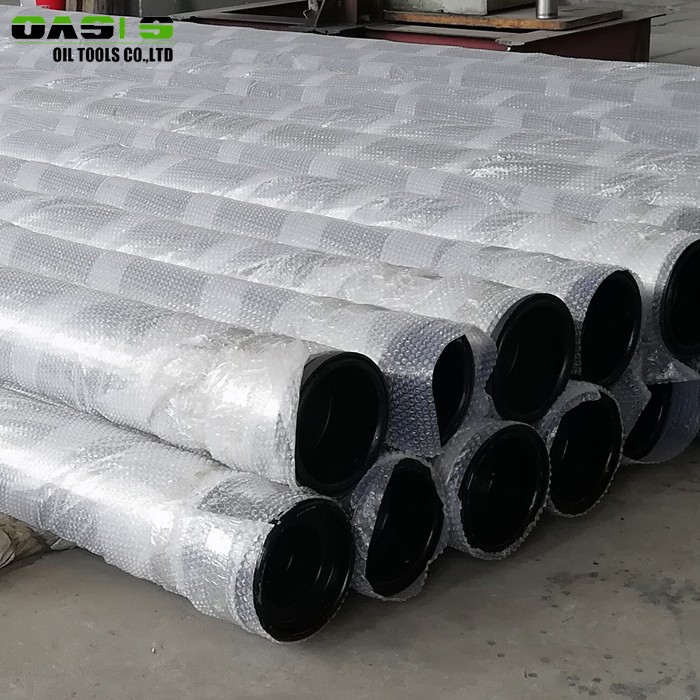

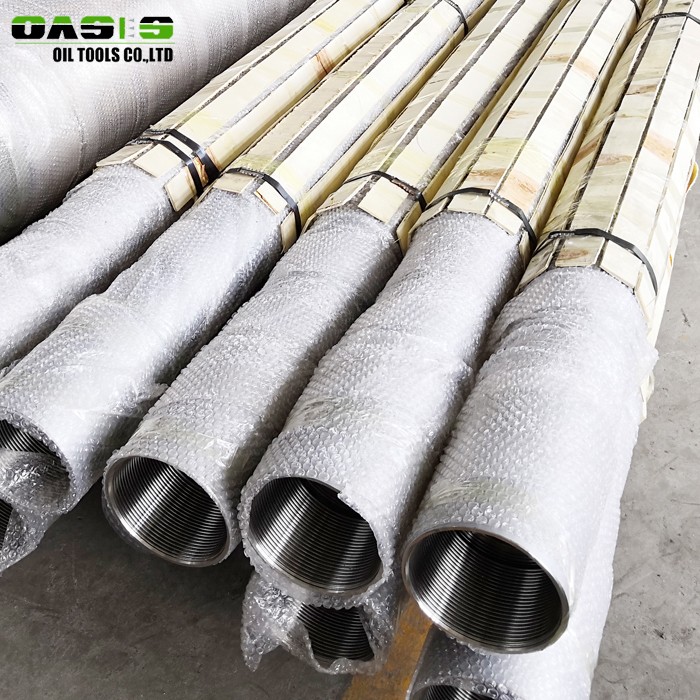

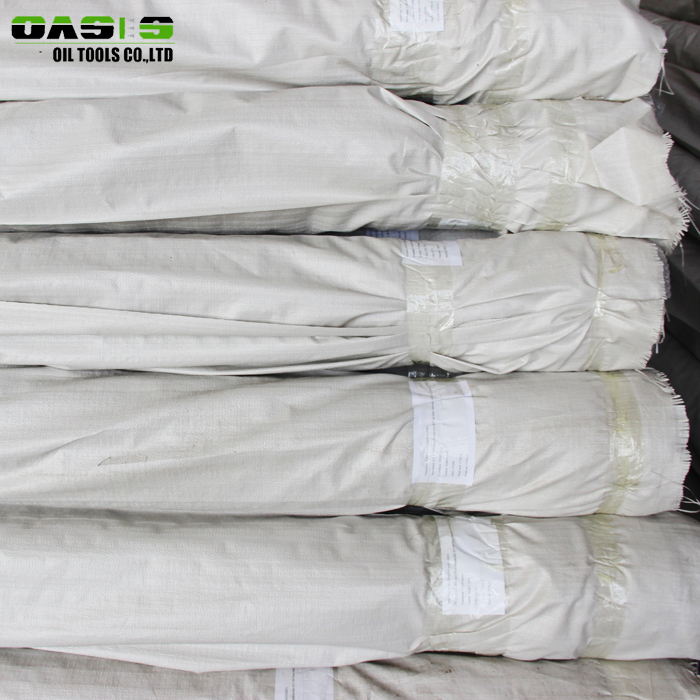

Packing Details

Why choose we OASIS Stainless Steel Continuous Slot Wire Wrapped Well Screens?

1) World Class Quality: OASIS provide our clients with high quality water well screens and related products. OASIS had passed ISO9001:2008 quality control system.

2) Third party inspection: The productive process of OASIS screen is controlled by third party test company such as BV,SGS,etc. or client's representative.

3)Non Standard Screens: We OASIS can supply customer designed and engineered screens according to our clients’ requirements.

4)Quick Delivery:OASIS can prepare stock for our regular clients to meet clients' requirement at any time.

5)Lower Maintenance of the Well:The water can pass freely around coarse particles and enters the well. So low maintenance costs with minimal encrustation or build-up of scale.

6)Environmentally safe:OASIS water well screen has signed the file to protect the environment with our local Environmental Protection Administration.

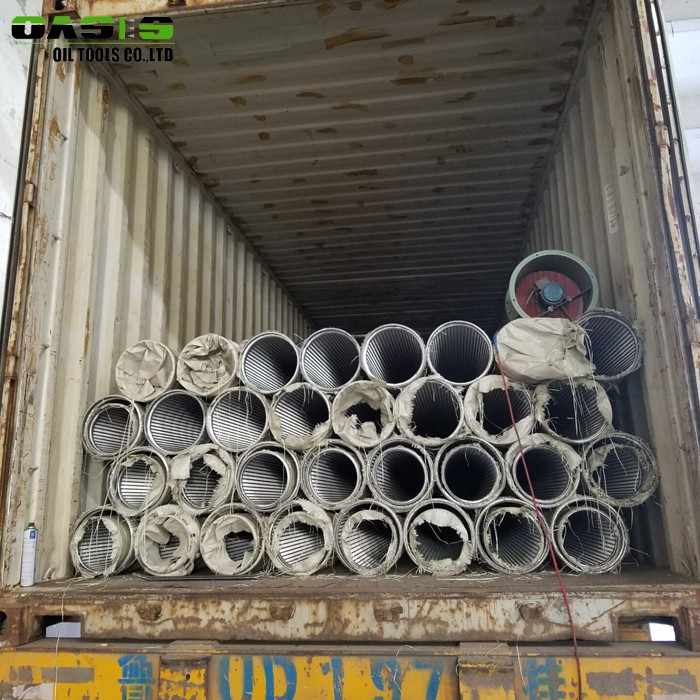

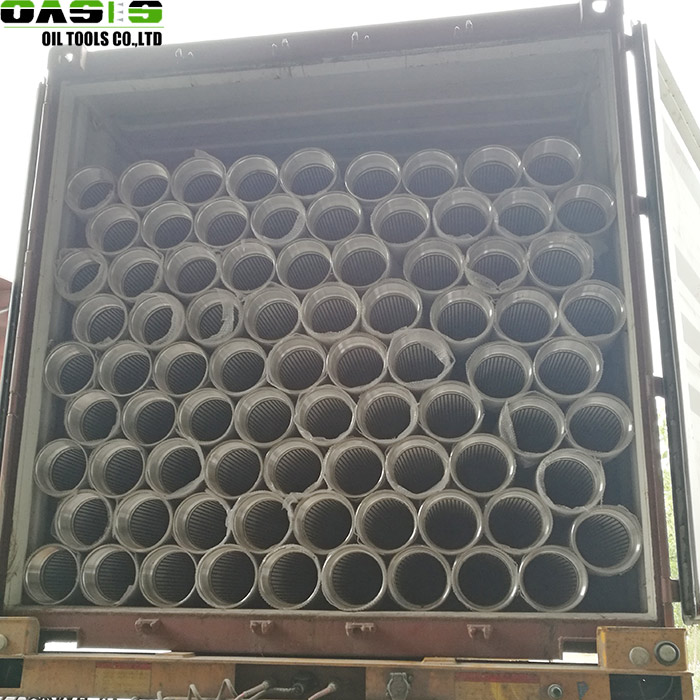

Stainless Steel Continuous Slot Wire Wrapped Well Screens Delivery

FAQ

What's the material you are going to deal with, stainless steel or carbon steel?
Usually material SS201, SS304(L),SS316(L) and duplex stainless steel are in common use.
Low carbon steel with black paint and galvanized, etc are available.

2. What's the OD, length?
Diameter from 30-1500mm, length from 1-6m.

3. What's the slot size of Johnson type water well screen?
Usually it is depends on your water outlet and gravel size.

4. What's the depth of the well or collapse strength of the screen that you need?
Depth of well is suggested to be supplied so that our engineer can calculate the collapse strength for you.
The collapse and tensile strength is important for the screens and each screen will be tested before delivery.

5. What's the connection type?
Plain ends with beveled edges is at least cost. Besides, you can also choose thread and flange connection type.

6. Load into container for delivery is suggested to avoid damage during transportation.
