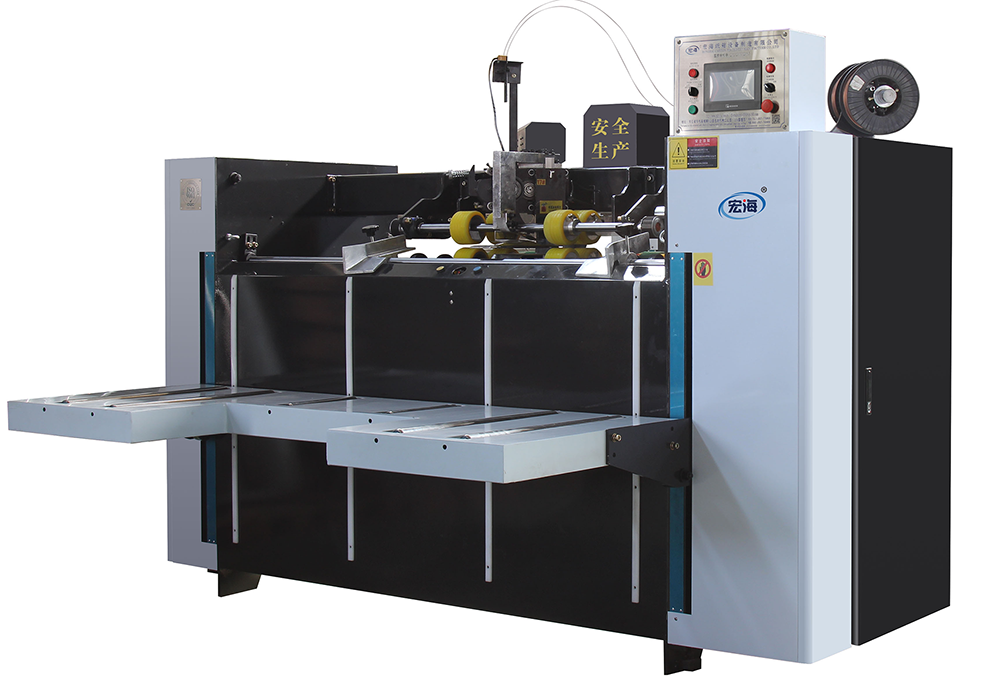

BDJ-B single-chip semi-automatic double-servo-driven nail box machine is a new developed model of our company, which is more efficient, more accurate, high-speed operation and high-efficiency nail forming. Imported double-servo-driven, accurate, reduced mechanical transmission parts, can effectively reduce the mechanical failure rate, it can improve the finished products and expand the output, and provide production managers with more flexibility to arrange production processes. At the same time, it can save unit time and labor cost.

Specifications and descriptions:★ Japan Mitsubishi double servo drive has accurate precision and reduced mechanical transmission parts, which can effectively reduce mechanical failure rate. ★ With Weilun touch screen operation, the parameters (nail distance, nail number, nail type and tailgate) can be changed conveniently and quickly. ★ The whole control system adopts Mitsubishi PLC control system in Japan. ★ The rear electric baffle is driven by stepping motor, which is accurate in size and convenient and quick in changing size. ★ Siemens brand is adopted for all contactors in the control box. ★ All relays adopt French Schneider brand. ★ Optoelectronic and proximity switches adopt Japanese Omron brand. ★ The bottom die and blade are made of Japanese tungsten steel (wear resistance). ★ The whole set of nail heads are all made of special steel, and the computer gongs are precisely processed. ★ Single nail/,double nail//and reinforcing nail (//////with double nails at both ends and single nail at the middle part) can be completed at one time, which can meet different requirements of different customers for nail types. ★ It takes only one minute to change carton size and adjust carton nail spacing, which greatly saves time and is convenient to operate. ★ The front paper feeding part counts automatically, and the paper feeding table is equipped with photoelectric sensing device, which automatically rises when feeding paper. ★ There is automatic counting function in the back section, and the finished products can be stacked and sent to the end of the conveying machinery according to the set quantity (2-99), which is convenient for packing and bundling. ★ Protection function of the whole machine electrical isolation transformer. ★ automatic wire feeding system, 20KG flat wire, saving time. ★ Electric adjustment of the clearance of paper pressing rubber wheel. ★ Mechanical speed: 600 nails/minute. ★ nail spacing: 30-130mm can be adjusted arbitrarily. ★ Effective lifting height of workbench: 900mm. ★ Order-based adjustment of the whole machine can store 100 orders.
