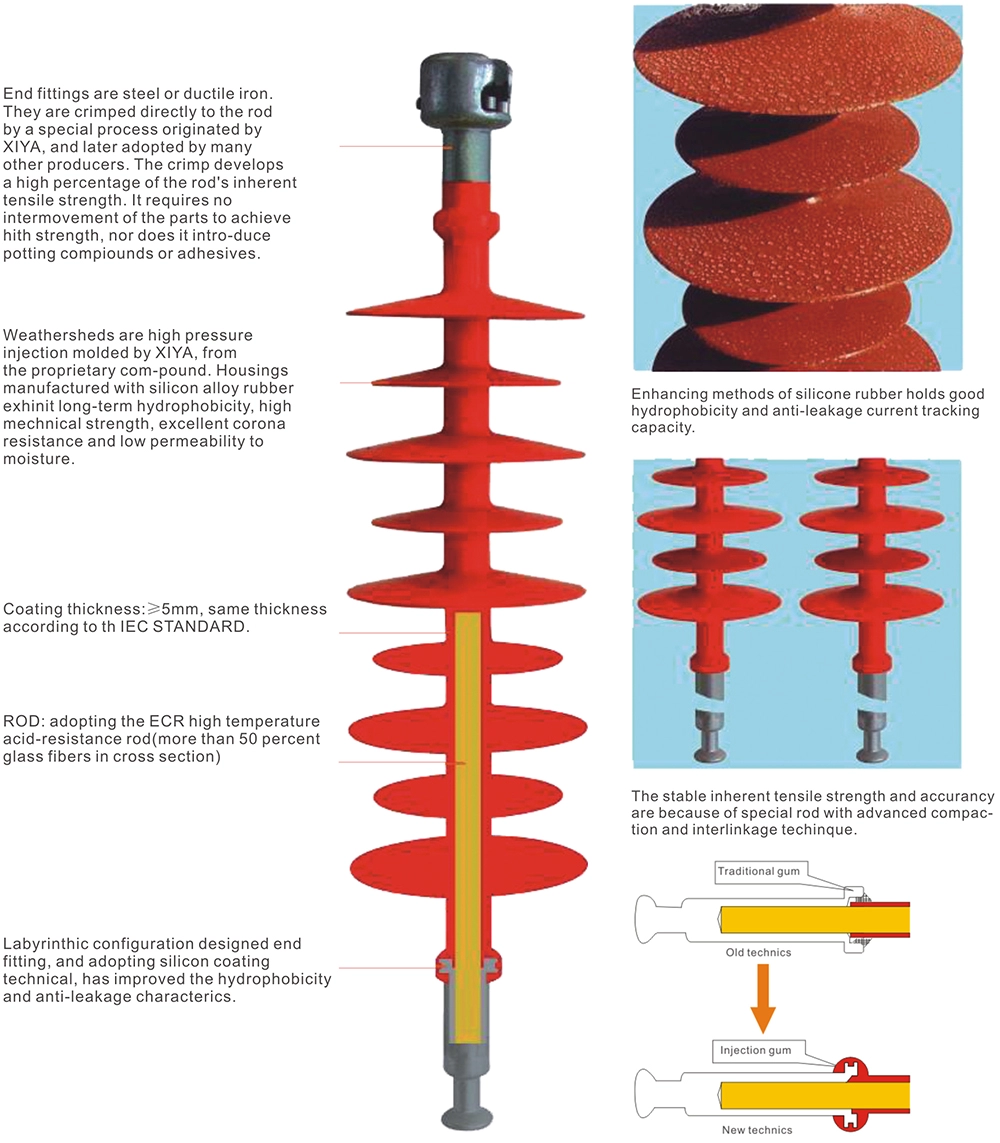

COMPOSITE INSULATOR10kV composite insulator35kV composite insulator66kV composite insulatorPost composite insulator polymer pin insulator 10-36kvsuspension composite insulatorSuspension polymer Insulator15kv composite insulator
L/CT/TD/PWestern UnionPaypalMoney Gram
| Type | CDL-38 | CDL-69 | CDL-115 | CDL-138 |
| Rated Voltage | 38kV | 69kV | 115kV | 138kV |
| Specified Mechanical Load | 12.5kN | 11kN | 9.5kN | 6.6kN |
| Section Length B | 630mm | 860mm | 1115mm | 1510mm |
| Dry Arcing Distance A | 380mm | 556mm | 848mm | 1250mm |
| Leakage Distance | 1330mm | 1420mm | 2130mm | 3150mm |
| BIL | 260kV | 340kV | 620kV | 760kV |
| Power Frequency Wet Flashover | 130kV | 195kV | 295kV | 430kV |
| Number of Sheds | 7 | 8 | 12 | 18 |
