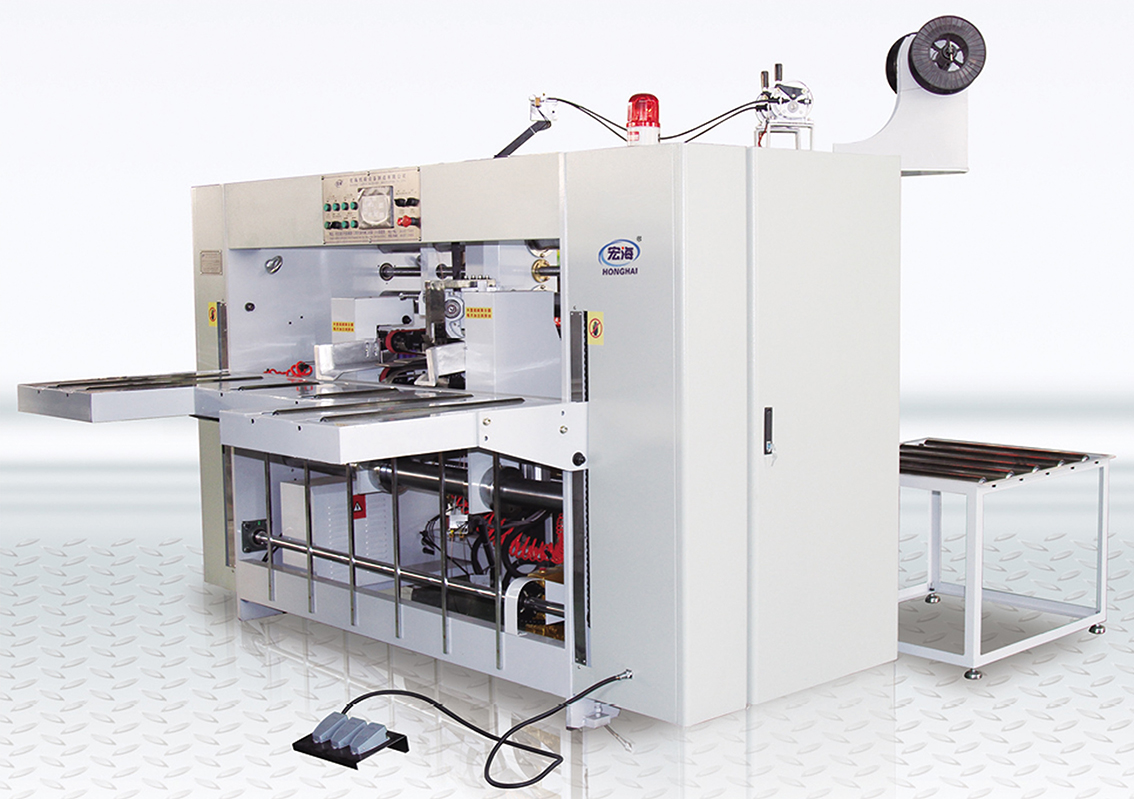

SDJ-D small piece four servo semi-automatic nail box machine

SDJ series double sheet semi automatic stitching machine is high speed and efficient nailing molding machine which is more advanced and practical The biggest feature is that not only the up and down stitch head is separated by servo motor, but also the left and right the synchronous belt. Working in automatic mode and controlling the left and right belt by two baffle photoelectric switch can improve productivity and use the machine efficiently. It also can enhance the properties of the finished product and expanded the production. The managers arrange the production flexibly which can save cost and time. This machine is mainly used for small and medium sized carton.

   This model is SDJ series four servo double sheet semi-automatic sewing machine, and its configuration parameters are as follows:

★ Mitsubishi Four Servo Drive in Japan has accurate precision and reduced mechanical transmission parts, which can effectively reduce mechanical failure rate. ★ The whole control system adopts Mitsubishi PLC control system in Japan. ★ All contactors in the control box adopt Siemens brand in Germany. ★ Relay and circuit breaker adopt Schneider brand in France, and photoelectric and proximity switches adopt Omron brand in Japan. ★ The bottom die and blade are made of Japanese alloy tungsten steel (wear resistance). ★ Taiwan original parts are used for the whole set of nail heads, so the service life of the head is longer. ★ It takes only one minute to change carton size and adjust carton nail spacing, which greatly saves time and is convenient to operate. ★ There is automatic counting function in the back section, and the finished products can be stacked and sent to the end of the conveying machinery according to the set quantity (2-99), which is convenient for packing and bundling. ★ The front paper feeding part counts automatically, and the paper feeding table is equipped with photoelectric sensing device, which automatically rises when feeding paper. ★ paper feeding height: 900mm. ★ Mechanical speed: 600 nails/minute. ★ One dual-purpose, single-piece nailing carton, double-piece nailing carton and irregular carton. ★ Reinforcing nails, single nails and double rows of nails can be nailed at one time. ★ The paper feeding department counts automatically, and the finished products are sent out for bundling. ★ It is suitable for small and medium-sized cartons, with fast and labor-saving stapling. ★ Adjust the nail spacing, set the automatic nail spacing by computer, and the nail spacing is 30-120mm; ★ Automatic wire feeding system, 20KG large plate of flat wire, saving time. ★ Features of this machine: The thickness adjustment of the three-layer, five-layer, and seven-layer cartons is controlled by computer, which is fast and accurate. ★ This machine adopts four servo motors (i.e. two head motors and two feeding motors). ★ The protection device of voltage stabilizing transformer is isolated for the whole machine electrical appliances, which can better protect the service life of the whole machine computer electrical appliances. ★ The whole machine adopts the whole computer to automatically adjust all sizes, and quickly and automatically adjust the sizes of different models in one minute, which is fast and accurate, and can store orders. ★ Binding method: double oblique nail or single oblique nail/reinforcing nail ★ This machine has applied for a national patent with the patent number of 201320093086.
