Jumbo Corrugated Carton Flexo Printer Slotter Die Cutter Machine With Stacker

ID:20110532659

Category: Manufacturing & Processing Machinery Packaging & Printing Machine

FOB Price:US$ 1.000 / Piece(s)

MOQ:1.00 Piece(s)

Product Keywords:

Jumbo Flexo PrinterJumbo Printer SlotterFlexo Printer SlotterCarton PrinterCorrugated Carton PrinterCarton Printer Slotter

Payment Method:

L/CT/T

Product Category

Manufacturing & Processing Machinery > Packaging & Printing Machine

Trademark

K.C.

Product Package

film packaging

Specification

KC-M1832/1836/1840/2045/2250

Place of Origin

Hebei,China

Port

Tianjin

Jumbo Corrugated Carton Flexo Printer Slotter Die Cutter Machine With Stacker

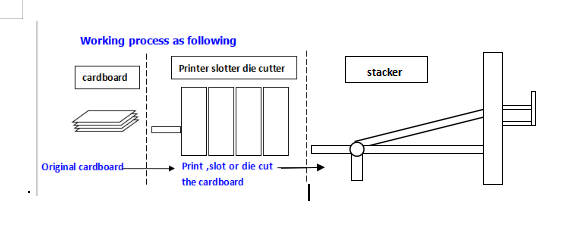

Top Printing Jumbo Flexo Printer Slotter Die Cutter Machine With Stacker is the giant printer we made for customer., The Giant printer has KC-M1840/2245/2250/2450 for option. 1) Lead edge feeder improve the cardboard feeding speed 2) Roller transfer 3) All the interval adjusted by manual control 4) the whole machine is easy to operate,the max speed is 50-80pcs/min according different cardboard size.

Technologic parameter

Model	KC-M1840	KC-M2250	KC-M2450
Max feeding size	1800*4000mm	2200*5000mm	2400*5000mm
Min feeding size	400*720mm	550*800mm	600*800mm
Max printing size	1750*3800m	2150*4800mm	2350*4800mm
Skip feeding size	2000*4000mm	2400*5000mm	2600*5000mm
Max speed	60pcs/min	50pcs/min	50pcs/min
Registering	+/-0.5mm	+/-0.5mm	+/-0.5mm
Die cutting precise	+/-1.5mm	+/-1.5mm	+/-1.5mm

Features

Feeding unit

1. Adopt vacuum absorption lead edge feeder, high pressure centrifugal fan auxiliary feeding paper, wind adjustable.

2. adopt unique quick change type half wheel mechanism to ensure the consistency of feeding position, avoid feeding wheel circle wear is not the same, and replacement is very convenient.

Printing unit

1. The ink supply device is provided with an ink penetration leather pad and a sputtering ink return mechanism,,to prevent ink outside impact printing quality.

2. With a digital display of the function of the planetary gear type accompanied by the adjustment of the plate is electric phase adjustment.

3. Metal anilox roller with rubber roller.

4. Optional: Ceramic anilox roller with doctor blade

Slotting unit

1. The roller with the latest design precompression is adopted to protect the paperboard from damage.

2. Equipped with the button left and right to synchronize the electric axial movement of the motor, make the upper and lower creasing line move together, the upper and lower slotting knife, make the synchronous adjustment, and electrical adjusting box height function.

3. With the digital display function, the planetary gear type phase adjustment mechanism is used to carry out the electric adjustment of the slotting phase and the box height.

4. new desigh rubber creasing wheel. Avoid cardboard damage

Rotary die cutting unit

1. Die - cutting roller with planetary structure, high precision, large bearing capacity, stop, operation can be electric digital 360 - degree adjustment.

2. The roller is hard chrome plated steel surface quality, and balance, increase its running stability and reliability.

3. Optional: with slotting knife attachment

Stacker

1. Answer the paper arm The machine has manual and automatic operation.

2. Platform lifting Strong chain drive. The stack height is 1600mm.

Platform lift drive motor with brake function, the platform can maintain a fixed position, will not decline.

3. Paper baffle. The pressure action of the paper tray, when the board is piled up to the predetermined height, the paper tray is automatically extended to hold the cardboard. The rear baffle position is manually adjusted. Plane wrinkle belts to prevent the cardboard from slipping.
