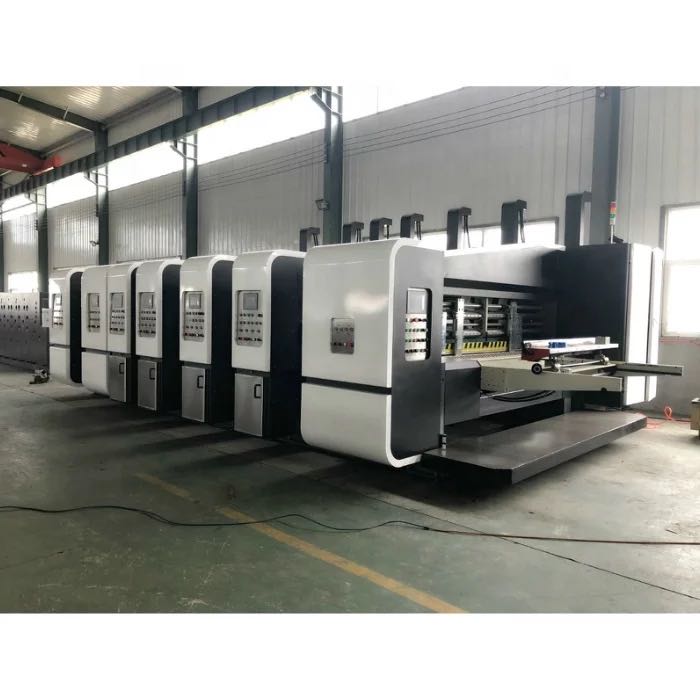

automatic printing slotting die cutting machine for carton box
Main Technology parameters
Model | GYKM1224 |
Machine inside width (mm) | 2600 |
Max feeding paper size(mm) | |
Max effective printing size(mm) | 1200*2200 |
Max die cutting size（mm） | 1200*2350 |
Min coverage size(mm) | 400*700mm |
Min slotting space(mm) | 250*80*250*80 |
Design speed(pcs/min) | 220pcs/min |
Working speed(pcs/min) | 180-200pcs/min |
Standard Thickness of printing plate | 6mm |
Printing precision | ±0.75mm |
Thickness of cardboard | 1.0-10mm |
Wall thickness | 50mm |
Main motor power | About 18kw |
Performance and Characteristics:
The machine can finish multi processes one time such as: printing, slotting, creasing, trimming, corner cutting, punching, die cutting, stacking and so on.
Machine is designed according to high request and reliable function, humanization operation, it can setting, revision, implement, changing and memories in short time, and display data accurately .
All of drive rollers are made of high quality steel with temper and quenching treatment, not change shape when high speed running, hard chrome plated the surface with grinded.
Main drive gears adopt high quality steel with heat treatment with grinded, adopt cross slip system connect each gear, keep gear fix position, ensure transmission precision.
The main drive roller adopt keyless connect, decrease the connection gap, ensure printing precision.
The machine adopts sealed spray lubrication for gear system, engineer oil automatic balance device; keep the oil level equal in each unit.
Motorized digital phase adjustment with “automatic zero return” and “memories” function
PLC computer control with touch screen
l Lead edge feeder with vacuum sucntion, easy operate, high precision.
l All units move automatic orderly, locked by pneumatic, alarm continually
l Main motor is VFD, working stability, low power consumption.
1. Feeding unit
