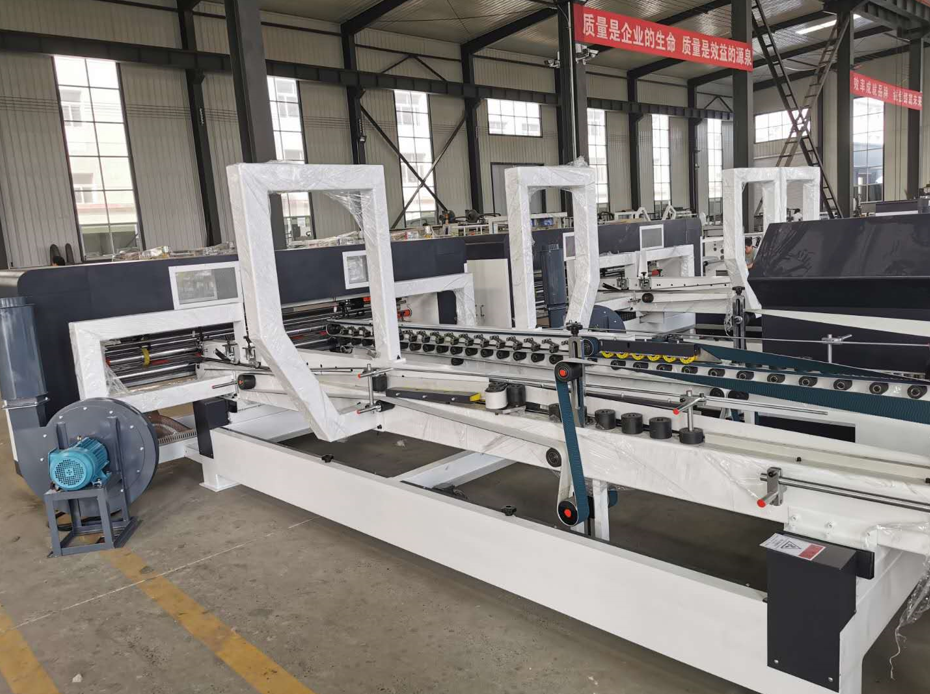

Automatic Carton Box Folder Gluer Machine

The automatic gluing machine consists of three parts: vacuum feeding part, gluing and folding part and counting and stacking output part. Digital display control, PLC computer amplitude modulation, double frequency conversion synchronous operation, with simple, fast, reliable and accurate control mode. Automatic feeding, automatic glue fold, automatic counting, automatic stacking output, remote control to achieve within 100 meters of the remote host start stop, host speed reducer, the fan start stop, paper starts to stop, stop, and left and right arm adjustment, adjust the glue box, carton binding speed an average of 150 meters per minute, high speed and energy saving, the machine can realize one key for single-use (optional), saving labor costs.

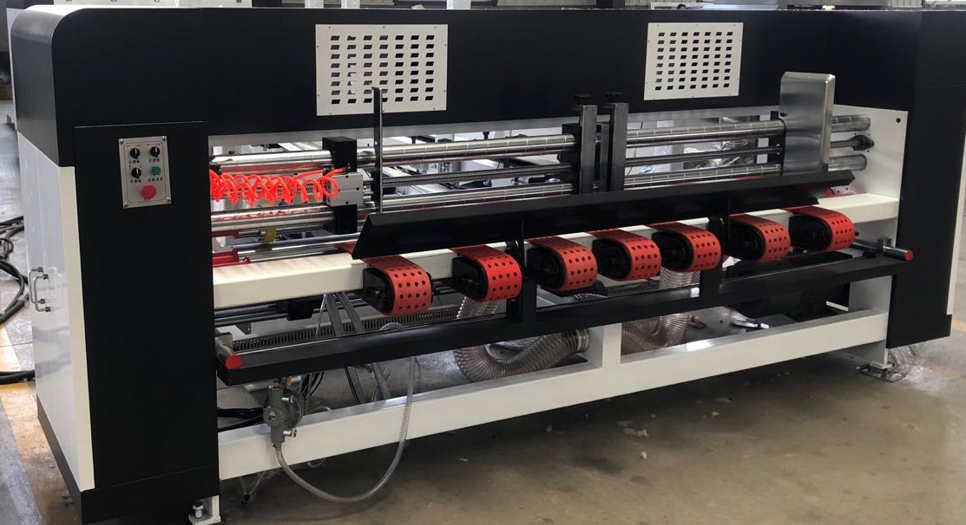

Paper supply department

1. Adopting the belt leading edge suction and paper feeding method, accurate and reliable

2. The use of high-grade electromagnetic clutch and electromagnetic brake system, so that the paper supply department can be independently controlled, simple and reliable operation

3. The height of the press wheel is adjustable, suitable for the cardboard thickness of 2-8mm

4. Linkage with folding part, variable frequency speed regulation, paper supply speed 0-150m/min

5. The front baffle of the paper supply department and the paper belt can be adjusted left and right

Glue coated folding part

1. The main motor adopts frequency conversion speed regulation system which is noiseless, flexible and stable

2. Adopt imported high-friction belt to transport paperboard and automatically fold it

3. The stainless steel wheel is applied with uniform amount of glue, trouble-free and glue-saving

4. The folding part is equipped with paperboard correction device and indentation correction device

5. The folding part has two rows of adjustable inner locating regulating wheel system, with higher forming accuracy

6. Folding speed is 0-150m/min

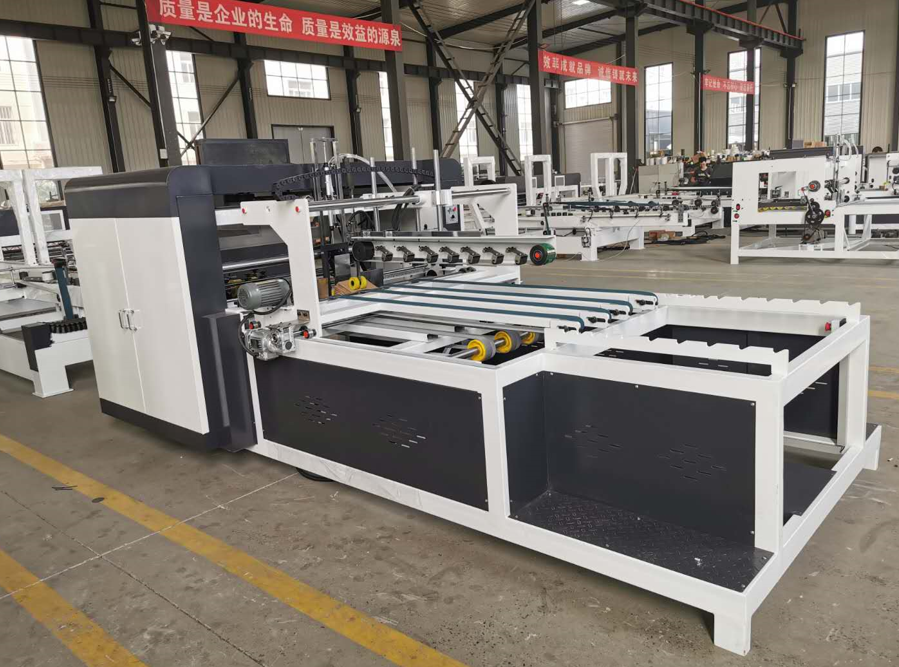

Counting and stacking department

1. Automatic stacking neat output

2. Technology Department main motor frequency conversion speed adjustment, adjustable speed, stable and reliable startup

3. Use belts to transport cartons, which are stacked neatly at a speed of 0-130m/min

4. Using the slapping board to hit the carton, it has the function of rectifying deviation with very small deviation

5. Pneumatic counting and rolling out, PLC electronic control, reliable, accurate and fast action

6. PLC programming controller and touch screen digital control, simple operation, reliable action without stopping input data, automatic counting

7. The output part adopts the belt at the bottom and the belt at the top to compress synchronously, making the finished carton stick firmly and output neatly

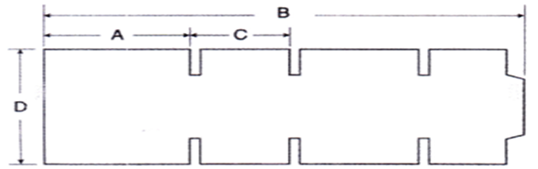

Carton box size of different machine type
