Product Category
Manufacturing & Processing Machinery > Corrugated carton packing machine
Trademark
SOOME
I am a Buyer
OR
By clicking Sign in or logging in with Google or LinkedIn, I agree to the User Agreement and the Privacy Policy .
Business Type: Manufacturer
Main Products:Thin blade slitter scorerNC Cutter off machineStacker machine Carton Printing Slotting Die-Cutting MachineIndustrial Packaging LineGluing MachinesStitching machineStrapping MachineSpare parts
ID:20110632874
Manufacturing & Processing Machinery Corrugated carton packing machine
MOQ:1.00 Piece(s)
Slitter scorer Thin blade slitter scorerCarton box cutting machinePackaging Machinery
L/CT/T
Human machine interface —PLC control,The system for robot operating system more humanized, simple structure, easy to maintain.
1.Manual/auto feeder is available
2. Pre pressing roller,slitting blade and scorer holder are auto adjusted
3.Grinding knife is auto/manual
4.Cardboard thickness and press power are auto adjusted(customer required)
5.Jog for fine-adjusted
6.Auto counter
7.Slitting and press line precision ±0.5mm

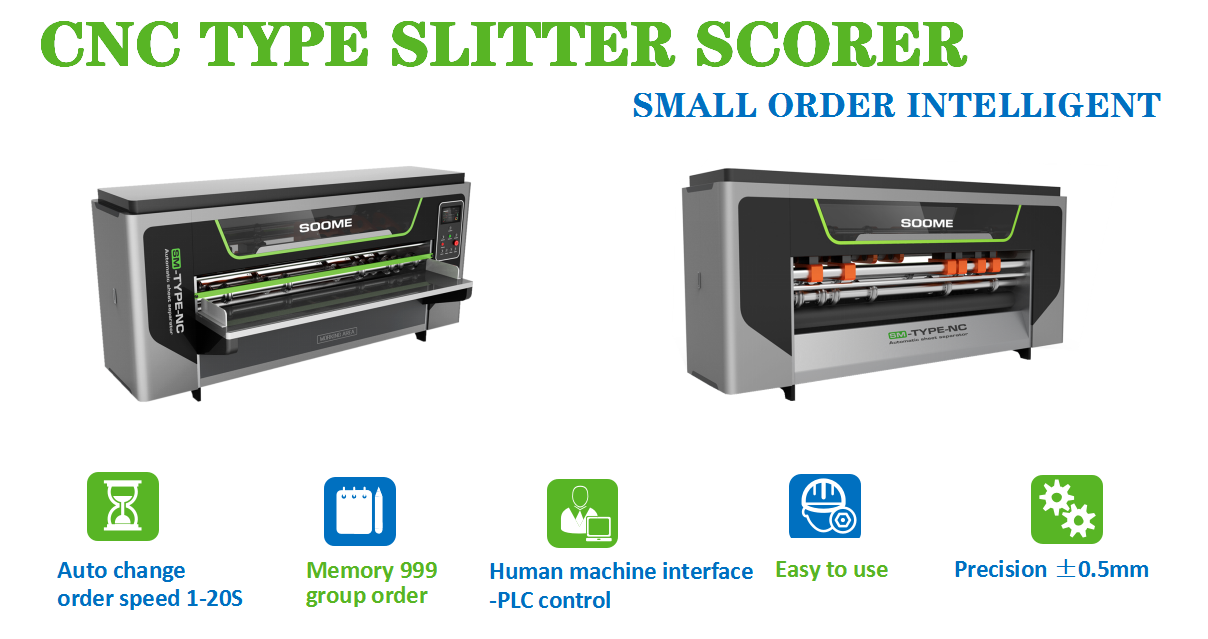

Auto slitter scorer :
8.Human machine interface —PLC control,cutter paper thin blade change order use stand alone stepper motor control,auto change order speed 1-20S,error precision±0.5 mm.
9.Operation humanized.,no technical content,worker use operation use easy.
10Slitting part:Adopt high quality tungsten steel thin blade,sharp and long work life,slice more tidy,non-pressing and non-burr.
11.The two sides of thin blade are cut separately by rubber wheel press board,surmount not scorer,separate plate,off tracking ,to prevent the bad effect of straight line.
12.This machine can memory 999 group order,don’t need stop machine can change order and manual change order.
Model | SMBD-CNC-2750 | SMBD-CNC-3250 |
No.s of slitting scoring | 6/10 | |
Max.production speed | 180m/min | |
Max.feeding width | The Max.slitting between the two blades:2250mm | The Max.slitting between the two blades:2750mm |
Max.slitting width | 2600mm | 3100mm |
Min.slitting width | 200mm | 200mm |
Min.feeding length | 200mm | 200mm |
Min.scoring distance | 40*135mm | 40*135mm |
Gap adjustment | Manual | Manual |
Main motor power | 10kw | 12kw |
Dimensions L*W*H | 1570*3450*1500mm | 1570*3950*1500mm |
Weigh | 2780kg | 2980kg |
Soome Machine,established in 1995.Specialized in developing and manufacturing the automatic,high speed,precise and good quality corrugated machines.We provide the whole dry-end solution for corrugated production line slitter scorer and touch line indentation machine .
Facing the fierce competition in corrugated packing field,our company adopt three concepts"mechanotronics""intelligent operation"and"simple usage".We developed several new high speed automatic machines which improved the competition ability of our customers.
We got the recognition of thousands packing companies from domestics and overseas based on the principle of honest and trustworthy.Our products sold to
Italy,Argentina,Russian,India,Pakistan,Germany,Egypt,Vietnam,Kazakhstan,Turkey,Spain and so on.
Wish we unite in a concerted effort for the beautiful future!
WARRANTY:
1 year warranty after installation,of the spare parts is broken in the warranty period,we will send replacement parts as free,but delivery cost will be your account.
INSTALLATION AND TRAINING
We can send 1-2 engineers to install and set up machine,but all the charges should be paid by buyer.
1. Q: Are you a manufacturer, trading company or a third party?
A: We are a manufacturer, located in South of Dongguang county, Cangzhou city,Hebei province,China.Warmly welcome to visit our company.
2. Q: How about the after-sale service?
A: 1) TM online for 24 hours, also contact by email, wechat, skype, Facebook, whatsapp, etc.
2) To solve the problems with videos/pictures.
3) One year warranty for spare parts change.
