COMPOSITE INSULATOR10kV composite insulator35kV composite insulator66kV composite insulatorPost composite insulator polymer pin insulator 10-36kvsuspension composite insulatorSuspension polymer Insulator15kv composite insulator
L/CT/TD/PWestern UnionPaypalMoney Gram

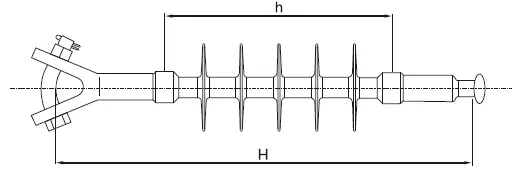

1.Size and technical data of 24kv high voltage composite suspension insulator
TYPE:FXB1-24/70YB
| Rated voltage(KV) | Rated mechanical load(KN) | Structure height(mm) H | Insulating distance(mm) h | Min nominal creepage distance(mm) | Diameter of shed | 1min power frequency wet withstand voltage (kv) | Full wave lightning impulse withstand voltage(peak value) |
| 24 | 70 | 460±15 | 260 | 650 | 108 | 75 | 200 |
2.Materials of 24kv high voltage composite suspension insulator
1).Silicon Rubber for sheds/housing.
2).Glass-fiber reinforced epoxy resin rod (ECR type) for core.
3).Hot dip galvanized cast steel for metal fittings.
4).5000hours aging test from STRI Sweden & Prototype Test & Type Test & Factory Test ( Routine and Sampling Test ).
5).IEC / ANSI / GB standard.
