High-purity nitrogen plant（300-50000Nm3/hN2）
SPECIFICATION
The orthoflow expansion process owns features of low unit energy consumption, high extraction ratio, and visible economy of long-time running. While the backflow expansion process owns features of high pressure of nitrogen products out of tower with no influence in the purity, and less one-time investment of complete equipment.
TECHNICAL SPECIFICATIONS
CONTENTS | MODEL | KDN- 225(D) | KDN- 500(D)
| KDN-800/40Y(F)
| KDN- 1000(D)
| KDN- 1000/40Y(Z) |
Type Process | LIN-inject | LIN-inject | Reverse flow | LIN-inject | Common flow | |
GAN flow | Nm3/h | 225 | 500 | 800 | 1000 | 1000 |
LIN flow | L/h | - | - | 40 | - | 40 |
Nitrogen Purity | ppm(O2) | <=2 | <=2 | <=3 | <=2 | <=5 |
GAN pressure | MPa | <=0.85 | <=0.85 | <=0.7 | <=0.85 | <=0.3 |
Start-up time | h | 12 | 12 | 18 | 12 | 16 |
Operating period | year | >=1 | >=1 | >=1 | >=1 | >=1 |
Note: The high purity nitrogen plant capacity can be re-designed as per customer's detailed requirement.
CONTENTS | MODEL | KDN- 1000/50Y(F) | KDN- 1200/60Y(F)) | KDN- 1500/70Y(F) | KDN- 1600/150Y(F) | KDN- 2000/80Y(F) |
Type Process | Reverse flow | Reverse flow | Reverse flow | Reverse flow | Reverse flow | |
GAN flow | Nm3/h | 1000 | 1200 | 1500 | 1600 | 2000 |
LIN flow | L/h | 50 | 60 | 70 | 150 | 80 |
Nitrogen Purity | ppm(O2) | <=2 | <=2 | <=10 | <=10 | <=2 |
GAN pressure | MPa | <=0.85 | <=0.7 | <=0.85 | <=0.3 | <=0.85 |
Start-up time | h | 18 | 18 | 16 | 16 | 20 |
Operating period | year | >=1 | >=1 | >=2 | >=2 | >=2 |
CONTENTS | MODEL | KDN- 3000/80Y(F) | KDN- 4000/150Y(F) | KDN- 4500/150Y(F) | KDN- 5000 (Z) | KDN- 6000/200Y(F) |
Type Process | Reverse flow | Reverse flow | Reverse flow | Common flow | Reverse flow | |
GAN flow | Nm3/h | 3000 | 4000 | 4500 | 5000 | 6000 |
LIN flow | L/h | 80 | 150 | 150 | 200 | 200 |
Nitrogen Purity | ppm(O2) | <=5 | <=2 | <=2 | <=0.5 | <=2 |
GAN pressure | MPa | 0.65 | 0.7 | 0.6 | 0.23 | 0.6 |
Start-up time | h | 18 | 20 | 20 | 24 | 20 |
Operating period | year | >=2 | >=2 | >=2 | >=2 | >=2 |

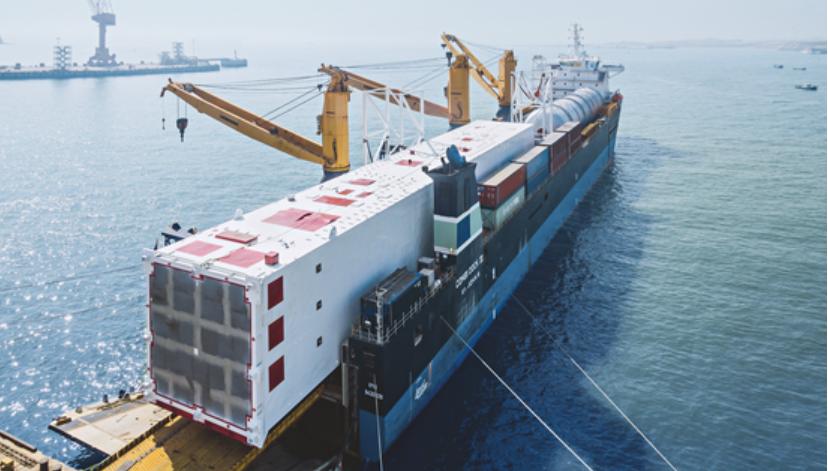

All in container shipping by sea.
REPORT & CERTIFICATIONS
Reference E-mail sales@sinocleansky.com to get more detailed test report specimen.
FAQ
1. What is the advantages for SinoCleansky pure nitrogen plant?
Eliminated the high power consumption characteristic in conventional designs.
2. Whether customized for the pure nitrogen and ultra-pure nitrogen plant ?
Yes ,customized, produces tailor-made product to users and new products to market.
3. What about the application for air separation ?
Small and medium-sized air separation for oxygen, nitrogen and argon .
4. What about the Variable pressure adsorption equipment process ?
PSA plants are based on a reliable, flexible and trouble-free vacuum pressure swing adsorption (VPSA) process.
5 . What is the advantages for high-purity nitrogen plant ?
While the backflow expansion process owns features of high pressure of nitrogen products out of tower with no influence in the purity, and less one-time investment of complete equipment.
