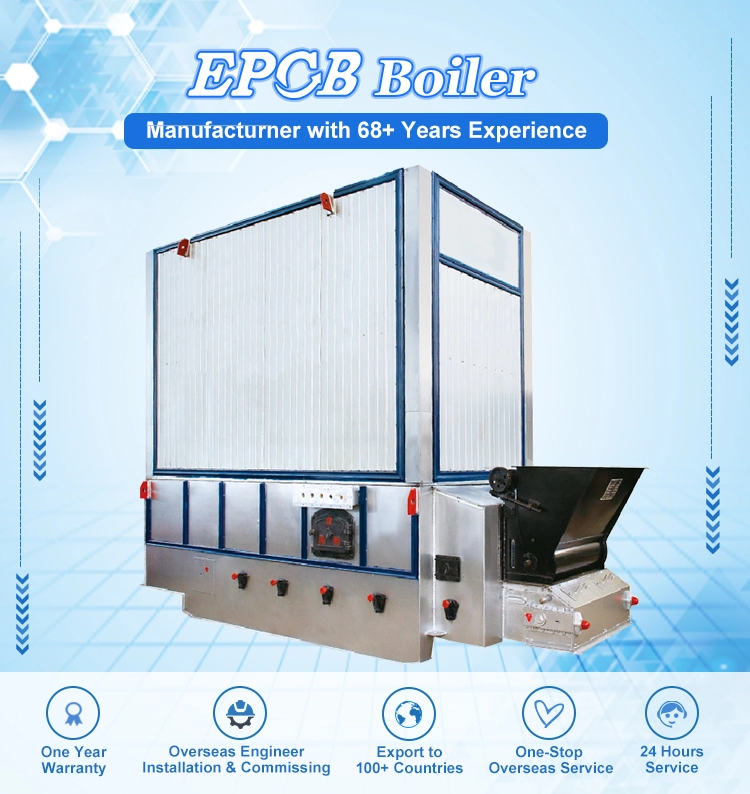

Thermal oil heaterThermal oil boilerBiomass fired boilerBiomass Thermal Oil Boiler
L/CT/T

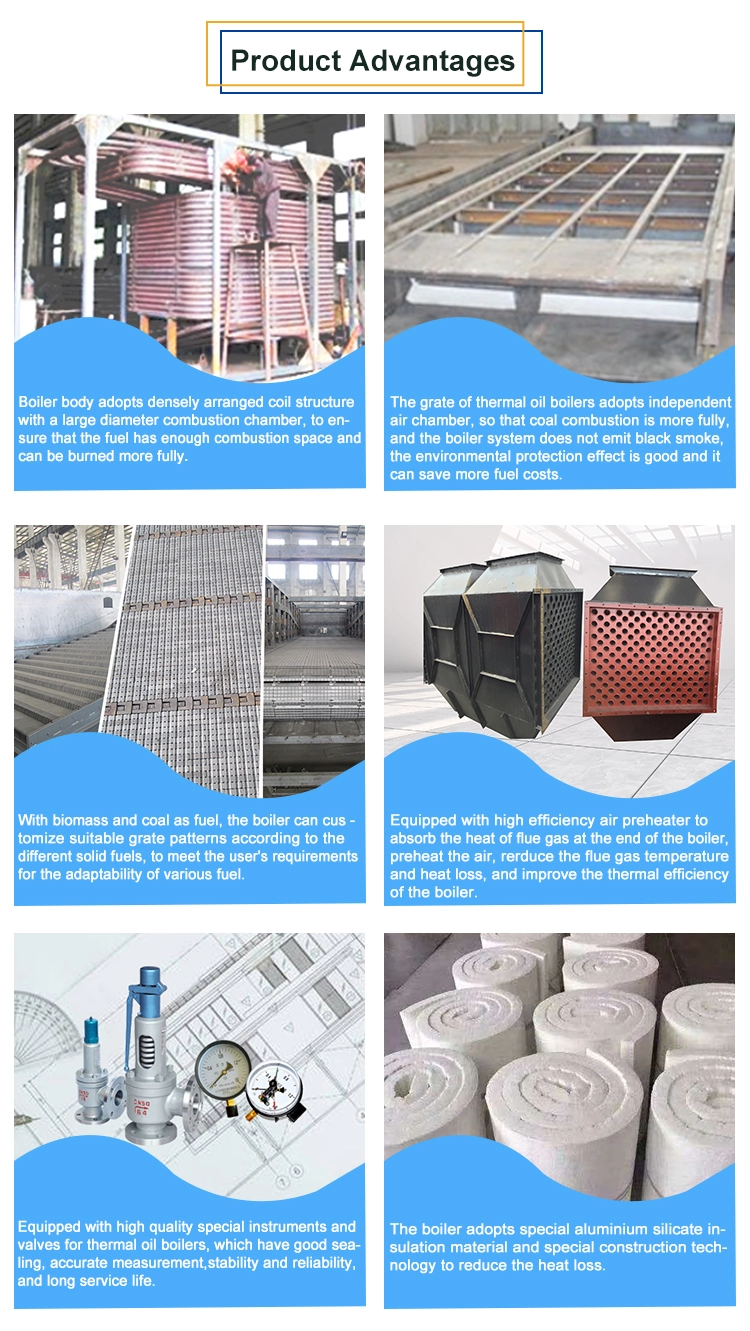

Product Features:
1. Low steel consumption,high air leakage efficient, high coal leakage volume,suitable to burn I II soft coal.
2. Adoption of automatic temperature control function is made to achieve stable heating and precise temperature adjustment.
3. It adopts perfect running control and safety monitoring device with safety,reliability and easy operation.
4. Fast temperature rise,high thermal efficiency, with overload capacity at a certain degree to ensure output of boiler.
| Item/Type | Coal/Biomass Fired Thermal Oil Boiler | ||||||||||||||
| Rated thermal power | kw | 1200 | 1400 | 1900 | 2300 | 2900 | 3500 | 4100 | 4700 | 5900 | 7000 | 8200 | 9400 | 12000 | 14000 |
| ×104(Kcal/h) | 100 | 120 | 160 | 200 | 250 | 300 | 350 | 400 | 500 | 600 | 700 | 800 | 1000 | 1200 | |
| Boiler thermal efficiency % | 76 | 78 | 82 | 83 | 83 | 83 | 83 | 83 | 84 | 84 | 84 | 84 | 84 | 85 | |
| Design pressure MPa | 1.1 | ||||||||||||||
| Max. working temperature ℃ | 320 | 320 | 320 | 320 | 320 | 320 | 320 | 320 | 320 | 320 | 320 | 320 | 320 | 320 | |
| Medium circulation flow m3/h | 100 | 100 | 160 | 160 | 200 | 200 | 200 | 260 | 300 | 340 | 400 | 520 | 500 | 620 | |
| Medium volume m3 | 0.97 | 1.12 | 1.7 | 2.6 | 3 | 3.2 | 3.5 | 4.1 | 4.6 | 6.2 | 8.9 | 12.6 | 13.6 | 14.8 | |
| Main pipe diameter DN | 125 | 125 | 150 | 150 | 200 | 200 | 200 | 200 | 250 | 250 | 250 | 300 | 300 | 350 | |
| Installation capacity kw | 48 | 55 | 75 | 77 | 100 | 100 | 120 | 140 | 175 | 215 | 215 | 270 | 315 | 380 | |
| Fuel type | Class II/III Soft Coal, Biomass, Wood Chips, Wood Pellets, Rice Husk, etc | ||||||||||||||
| Fuel consumption | Coal kg/h | 179.3 | 203.8 | 263.2 | 314.7 | 396.8 | 478.9 | 561.0 | 643.1 | 797.7 | 946.4 | 1108.7 | 1270.9 | 1622.4 | 1870.6 |
| Biomass kg/h | 259.2 | 294.6 | 380.3 | 454.8 | 573.5 | 692.1 | 810.8 | 929.4 | 1152.8 | 1367.8 | 1602.3 | 1836.7 | 2344.8 | 2703.4 | |
| Boiler weight | ton | / | / | 25 | 32 | 33 | 39 | 41 | 67 | 70 | 80 | 98 | 108 | 115 | 130 |
| Boiler size mm | L ength | 4685 | 4685 | 6000 | 6400 | 5700 | 7000 | 7600 | 8900 | 8900 | 10000 | 11000 | 11220 | 12610 | 11350 |
| Width | 2500 | 2500 | 2200 | 2400 | 2400 | 2850 | 2900 | 3290 | 3290 | 3310 | 3400 | 3560 | 3560 | 3950 | |
| Height | 5210 | 5710 | 4300 | 4800 | 5070 | 5200 | 5400 | 5750 | 6000 | 5850 | 5850 | 5850 | 5850 | 9000 | |
1.Fire tube series Horizontal oil/gas fired boilers (0.5-30T/H, 0.7-21MW)
2.Water tube series Horizontal Oil/gas fired boiler (4- 35T/H )
3.Vertical fire tube series Vertical Oil/gas fired boiler (0.1-2 T/H, 0.06-0.7MW )
4.Large drum chain grate new type water fire tube boilers (1-35T/H, 0.7-29MW)
5. Double drum chain grate series water tube biomass boilers (4-35T/H, 1.4-29MW)
6. Electric boiler boiler ( 10--50 T/H)
7.Oil/Gas fired thermal oil boiler
8.Coal fired thermal oil boiler heater
9. High/low pressure of various fuels,CFB Circulating Fluidized Bed boiler ( 35T--400T )

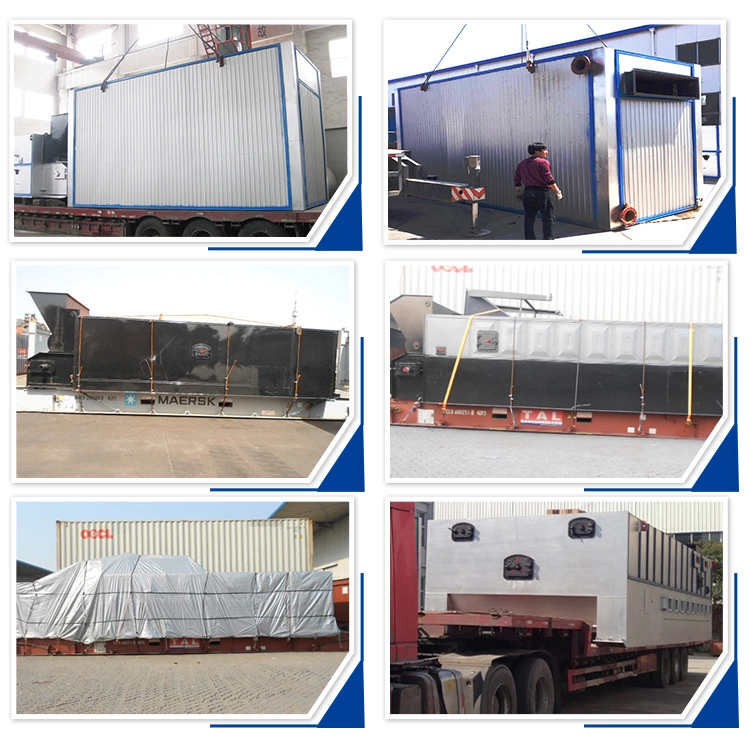

We choose the best way to pack and load our boilers. All parts will be complete and work well. Professional factory offers professional and safe service.
1. 100%safety, running stably, excellent water level and pressure control, fully automatic operation.
2. Boiler running life > 20years.
3. Good after-sale service. It is free for you to get the damaged spares in warranty period (1 year) if there is any questions. Assure that we can supply you spares in boiler’s all life.
4. We can arrange engineer to your company for installation and commissioning and training. If you need us at any time, we can send our technicians and prepare in a short time.
5. Special paint is used after assembly. Paint is particularly used in your climate area, which is anti-corrosion, anti-abrasion and color-fastness.
6. Comprehensive after-sales service. We can design layout drawings of boiler system according to your actual requirement.Also can dispatch engineer to guide installation & commissioning.

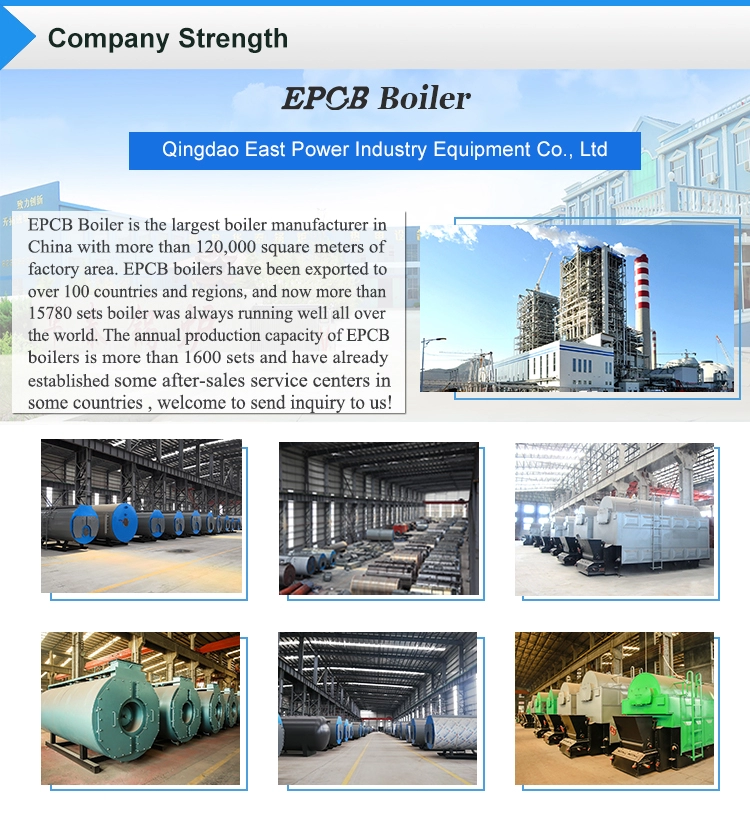

EPCB Boiler is a professional boiler manufacturer in China. Focus on industrial boiler production and sales for 68 years. Our main products are coal-fired boilers, oil gas boilers, biomass boilers, electric boilers, and power plant boilers. EPCB Boiler has more than 15000 users, and the users are covering more than 100 countries and regions. EPCB Boiler is well received by users, because of its features energy saving, environmental protection, helping users save money and High quality After services. We have professional boiler engineers to customize the boiler system for you so that you and your enterprise can produce higher quality products at a lower cost! Make your enterprise more competitive!
Q: Are you manufacturer?
A: Yes, we are the largest boiler manufacturer in China. We have our own factory with 120,000m2 area.
Q: How can I choose the suitable model for our factory?
A: Please tell us the boiler capacity, the fuel you plan to use and the steam pressure you need, and then we can choose the suitable boiler model and send quotation to you immediately.
Q: How can I get the best price quickly?
A: Please tell us your name, email address and company name, and then we will send you price list immediately. And if you use Whatsapp, Skype or Wechat, you can provide us your ID, it will be more convenient for our communication.
Q: What about the delivery time?
A: Usually the delivery time is about 30 days, if you need boiler urgently, we can discuss about it again and reduce the production time to help you get boiler earlier.
Q: How can you convince me of your boiler quality?
A: Our factory has more than 35 years experience in industrial boiler production, and we have exported to more than 60 countries; and our product has passed Chinese-government Standard, ASME standard, CE standard and get ISO9001, EAC, SGS Inspection Certificates.
Q: What about the installation?
A: After you receive the boiler, we will guide you to make some preparation for installation. If necessary, we can send engineers to your local to guide the installation.
Q:What is the using life of your boiler?
Normally the boiler is design for 20 years life, but with right operation and good maintenance, the boiler can be use 20-25 years.
